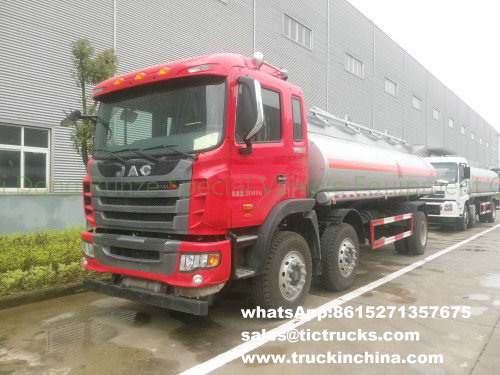

JAC 6x2 Petroleum Tanker Truck Capacity 22000L Diesel, kerosene, crude oil

JAC 6x2 Petroleum Tanker Truck Capacity 22000L Diesel, kerosene, crude oil
Overall dimensions 11990X2500X3560mm Curb weight 7600kg
Tank dimensions 8200X2150X1480mm Tank volume 17900-22000L
Price: $ 30000  -  44000
Discount Price: $ 28750  -  39750
FOB:
Availability:
Quantity:

  • DRZ5161GYYH

  • JAC

  • 8705909990

JAC 6x2 Petroleum Tanker Truck Capacity17900L - 22000L Diesel, kerosene, crude oil

 Vehicle Model DRZ5241GYYH
Overall dimensions 11990X2500X3560mm Curb weight 7600kg
Tank dimensions 8200X2150X1480mm Tank volume 22000L

Chassis parameters
Chassis model HFC1241P2K1C54F Chassis brand JAC
Overall dimensions 11730x2495x3220mm Wheel base 1900+5400mm
Front/rear wheel track 2040/2040,1860mm Front/rear suspension 1495/2935mm
Approach/departure angle 21/11° Maximum speed 95km/h
Chassis Manufacturer Anhui Jianghuai Automobile Co., Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder, hydraulic lift seat.
Color Red, other color is optional
Engine Model CA6DF4-20E4
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling, direct injection, diesel engine
Rated power 200hp, rated power speed 2300rpm
Displacement 6740ml
Max.torque 760N.m
Bore x stroke 107x125mm
Manufacturer FAW Jiefang Automotive Co.,Ltd Wuxi Diesel Engine Works
Tire Size 11.00R20 steel wire tire
Number 8+1 nos
Clutch Φ430 diaphragm clutch
Frame 280X90X8mm
Fuel tank 300L iron oil tank
Rear axle ANKAI 153, 10 tons
Drive form 6X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions FAW gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Fuel tank structure

Tank dimensions 8200X2150X1480mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.



JAC Refuelling Oil Truck , JAC Refuelling Fuel Truck , JAC Refuelling Truck , FOTON Refuelling Oil Truck , Refuelling Oil Tank Truck , Shacman Refuelling Oil Truck , Dongfeng Refuelling Oil Truck , Dongfeng Refuelling Oil Trucks


JAC 4x2 Diesel refueling vehicle 12000L

Vehicle Model DRZ5161GYYH
Overall dimensions 8500X2500X3150mm Curb weight 7405kg
Tank dimensions 5600X2150X1480mm Tank volume 12000L


Chassis parameters
Chassis model HFC1161P3K2A47F Chassis brand JAC
Overall dimensions 7230x2495x3070mm Wheel base 4700mm
Front/rear wheel track 1963 ,1800 mm Front/rear suspension 1530/1000mm
Approach/departure angle 20/19° Maximum speed 95km/h
Chassis Manufacturer Anhui Jianghuai Automobile Co., Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder
Color Red, other color is optional
Engine Model YC4E160-42
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 160hp, rated power speed 2600rpm
Displacement 4260ml
Max.torque 550N.m
Bore x stroke 110X112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 6+1 nos
Clutch Φ430 diaphragm clutch
Frame 245X75X7mm
Fuel tank 300L iron oil tank
Rear axle Boying 8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Fuel tank structure parameters

Tank dimensions 5600X2150X1480mm Tank volume 12000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system


Related Keywords

JAC Diesel Transport Truck , Diesel Carrying Vehicle , Diesel Carrying Truck , FAW Diesel Transport Truck , JAC Oil Transport Truck , JAC Fuel Transport Truck , JAC Grain Transport Truck , JAC Diesel Transport Vehicle

 Oil  Fuel Trucks    refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Fuel Trucks For Sale

According to the different transport medium, oil   Fuel Trucks    can be called, oil tanker, Fuel Trucks For Sale   , tanker, fuel trucks,  JAC oil delivery tanker, JAC  flow oil truck, JAC refueling vehicle, computer JAC refueling truck, JAC  diesel delivery vehicles,  JAC gasoline delivery vehicles,  JAC oil transport vehicle,  JAC edible oil transport vehicle,  JAC crude oil transport vehicle,  JAC heavy oil truck,  JAC oil truck.

According to the brand oil tanker truck can be divided into, Yuejin Fuel Trucks For Sale     , Dongfeng Fuel Trucks For Sale, FAW Fuel Trucks For Sale , Foton Fuel Trucks For Sale, Sinotruk  Fuel Trucks  ,Auman Fuel Trucks For Sale , North-Benz  Fuel Trucks For Sale ,JAC  Fuel Trucks For Sale ,  Shacman  Fuel Trucks , CAMC oil transport Fuel Trucks For Sale , JAC Fuel Trucks For Sale , JMC Fuel Trucks For Sale , etc.


shipping parking

Packaging & Shipping_1.jpg

1, attached parts and tools put into standard export box.

2, Oil Tank Truck will be cleaned and covered with wax before delivery.

3, Oil Tank Truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,some small Oil Tank Truck can be put into container according to its overall dimensions.
