Beiben 2527/2534 /2638 Fuel Truck road Tanker for Sale 6x4 22000L

Views:7431     Author: Dong Runze Special Vehicle      Publish Time: 2017-04-25      Origin: Dong Runze Special Vehicle

Beiben 2527/2534 /2638 Fuel Truck road Tanker for Sale 6x4 22000L

Beiben 2527/ 2534/2638 6x4 22000L Fuel Truck  road Tanker for Sale Diesel, kerosene, crude oil

Vehicle Model DRZ5254GYYN

USD 49000.00 - 51000.00 / Set

Overall dimensions 9450×2480×3030mm Curb weight 10450kg
Tank dimensions 7000×2300×1500mm Tank volume 22000L

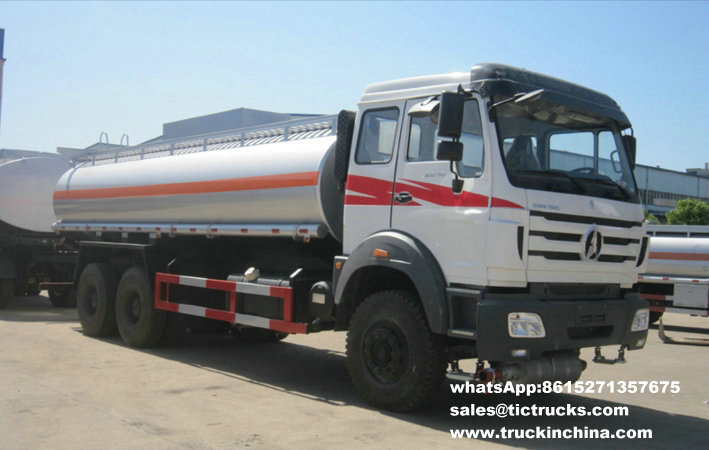

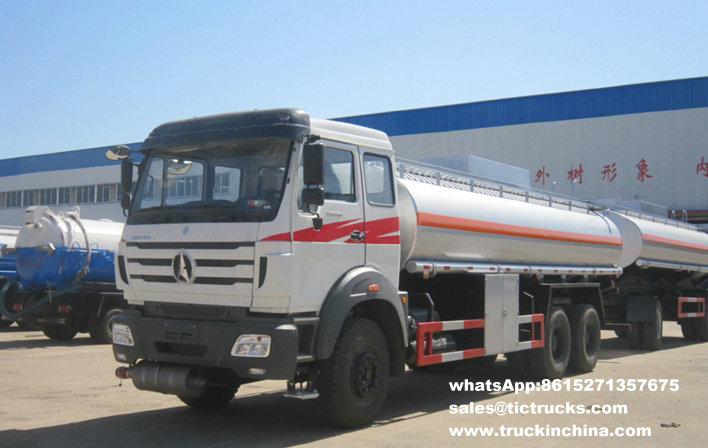

Beiben 6x4 22000LBeiben oil delivery tankerChassis parameters     Beiben 2534 2538 heavy oil truck 6x4 22000L
Chassis model ND1254B41J Chassis brand North-Benz
Overall dimensions 8915x2495x3030mm Wheel base 4100+1350mm
Front/rear wheel track 2045/1870/1870mm Front/rear suspension 1410/2055 mm
Approach/departure angle 21/23° Maximum speed 85km/h
Chassis Manufacturer BEIBEN TRUCK
Cab Configuration NG80B a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner
Color White,other color is optional
Engine Model WP10.270E32
Emission Euro 3
Type 6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1100N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co.,Ltd
Tire Size 11.00R20 steel wire tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 400L aluminum alloy
Front axle 5.5 tons
Rear axle 457 rear axle,13.0 tons
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Gearbox 9JS119B ,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

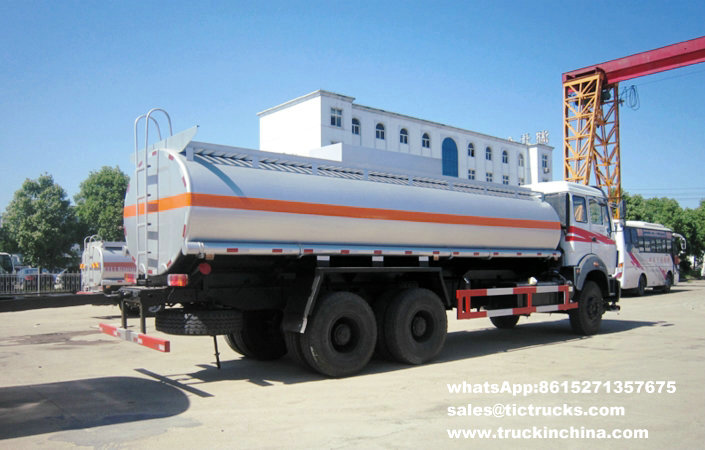

 Beiben refueling vehicle 6x4 22000L

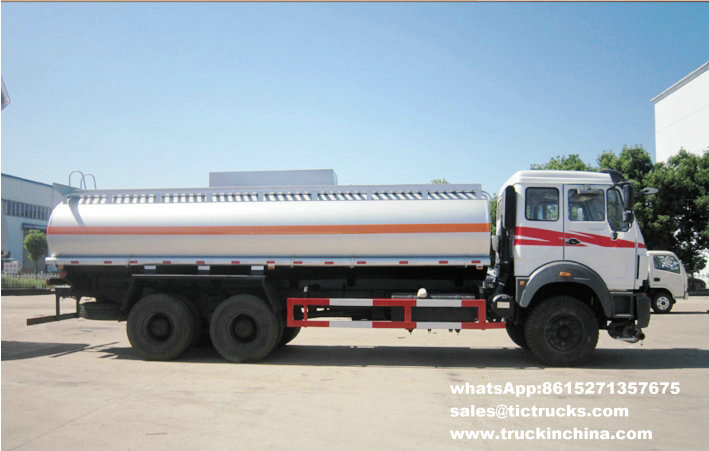

Beiben 2527 gasoline delivery vehicles 6x4 22000L

Fuel tank structure parameters
Tank dimensions 7000×2300×1500mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,

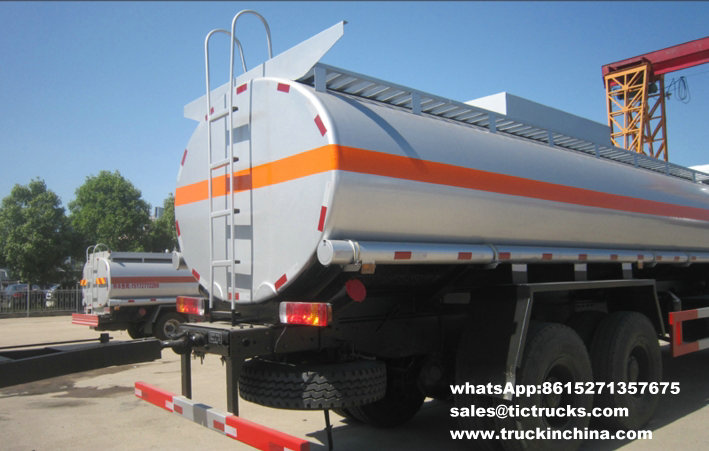

Beiben 6x4 22000L Fuel Truck Tanker for Sale 5_1.jpg

 Oil  Fuel Trucks    refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, crude oil,and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Fuel Trucks For Sale

According to the different transport medium, oil   Fuel Trucks    can be called, oil tanker, Fuel Trucks For Sale   , tanker, fuel trucks,  Beiben oil delivery tanker, Beiben  flow oil truck, Beiben refueling vehicle, computer Beiben refueling truck, Beiben  diesel delivery vehicles,  Beiben gasoline delivery vehicles,  Beiben oil transport vehicle,  Beiben edible oil transport vehicle,  Beiben crude oil transport vehicle,  Beiben heavy oil truck,  Beiben oil truck.

According to the brand oil tanker truck can be divided into, Yuejin Fuel Trucks For Sale     , Dongfeng Fuel Trucks For Sale, FAW Fuel Trucks For Sale , Foton Fuel Trucks For Sale, Sinotruk  Fuel Trucks  ,Auman Fuel Trucks For Sale , North-Benz  Fuel Trucks For Sale ,Beiben  Fuel Trucks For Sale ,  Shacman  Fuel Trucks , CAMC oil transport Fuel Trucks For Sale , Beiben Fuel Trucks For Sale , JMC Fuel Trucks For Sale , etc.


Beiben Oil Tanker Truck , Beiben Stainless Steel Oil Truck , Beiben Fuel Transport Tanker Truck , Beiben Oil Tank Truck , Beiben Oil Truck , Beiben Petroleum Tanker Truck , RHD Oil Tanker Truck , Beiben Plastic lined steel acid Tank Trucks
