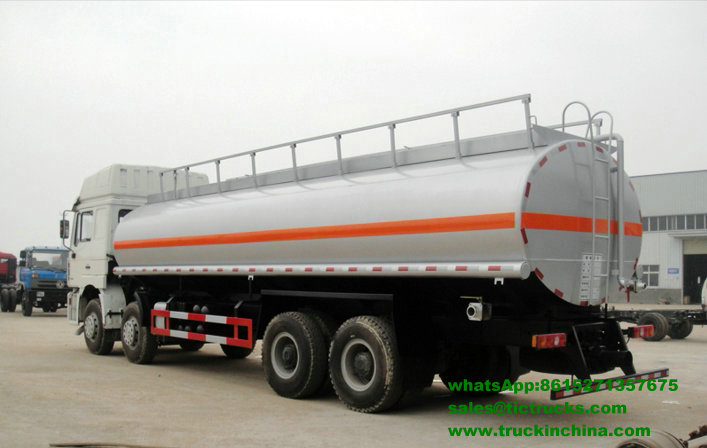

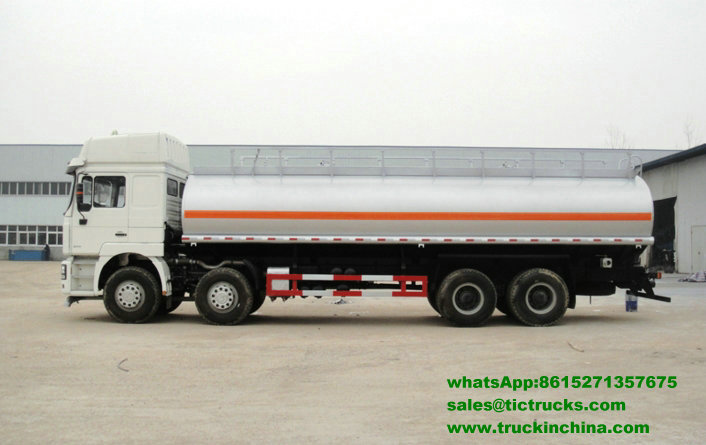

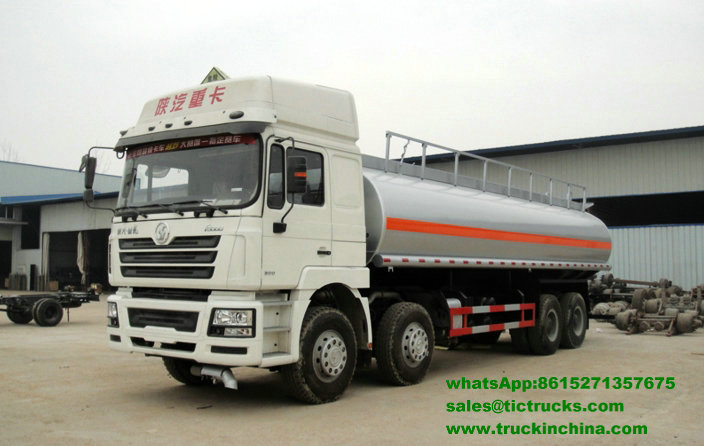

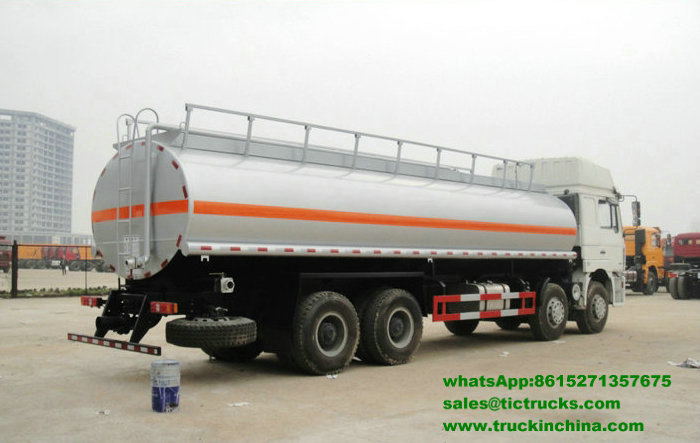

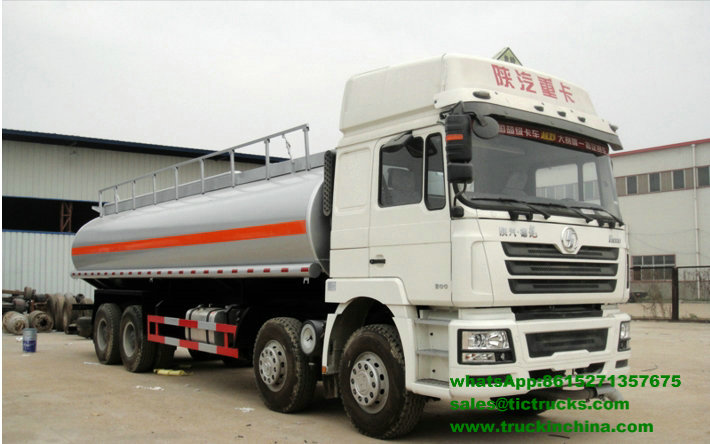

Shacman F3000 8x4 Stainless Steel Oil Tanker Truck Tank volume 30000L Diesel, kerosene, crude oil
Views: 2568 Author: Dong Runze Special Vehicle Publish Time: 2017-04-25 Origin: Dong Runze Special Vehicle
Shacman F3000 8x4 Stainless Steel Oil Tanker Truck Tank volume 30000L
carbon steel Unit Price: USD 45300.00 - 55300.00 / Set/
stainless steel/ Aluminium /Unit Price: USD 63300.00 - 65300.00 / Set/
Refuelling Truck Tanker , Shacman Refuelling Fuel Vehicle , Shacman Refuelling Oil Truck , Fuel Truck Tanker , JAC Refuelling Truck , Heavy Fuel Oil Truck Tanker , FOTON Refuelling Truck , Dongfeng Fuel Truck Tanker
Diesel, kerosene, crude oil
Fuel tank structure parameters
Tank dimensions 9100×2300×1535mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5/6mm or stainless steel/ Aluminium /
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Oil bowser refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, crude oil,and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. oil bowser For Sale
Vehicle Model DRZ5315GYYFS4561
Overall dimensions 12000X2490X3340mm Curb weight 14170kg
Tank dimensions 9100×2300×1535mm Tank volume 30000L
Chassis parameters
Chassis model SX1315NN4561 Chassis brand SHACMAN
Overall dimensions 11850x2490x3270mm Wheel base 1800+4575+1400mm
Front/rear wheel track 1939/1939/1800/1800mm Front/rear suspension 1525/2575mm
Approach/departure angle 18/12° Maximum speed 99km/h
Chassis Manufacturer Shanxi Automobile Group Co., Ltd.
Cab Configuration Delong F3000 long a row and a half deluxe cab(with sleeping berth),allowable 3 passengers,electronically controlled automatic constant temperature air conditioner,electric rocking window machine, ordinary air filter,air master seat,four point airbag,traveling data recorder
Color White,other color is optional
Engine Model WP7.270E31
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 7140ml
Bore x stroke 108×130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 11.00R20 steel wire tire
Number 12+1 nos
Clutch φ430 diaphragm clutch
Frame 850 × 300 (8 + 5)mm
Fuel tank 400L aluminum alloy + fuel anti-theft alarm device
Front axle MAN, 5.5 tons
Rear axle MAN,13 tons single level,main reduction ratio 4.111
Drive form 8X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox 9JS119B, 9 speed forward 1 reverse.
Steering device Power assisted steering,steering machine (domestic ZF technology)
Steering wheel Left hand drive
Selective configuration central control door lock,600L aluminum alloy fuel tank,driving room electric flip,engine 300hp,engine 340hp
If there is a slight change in the chassis parameters above,please take the actual product as the standard
