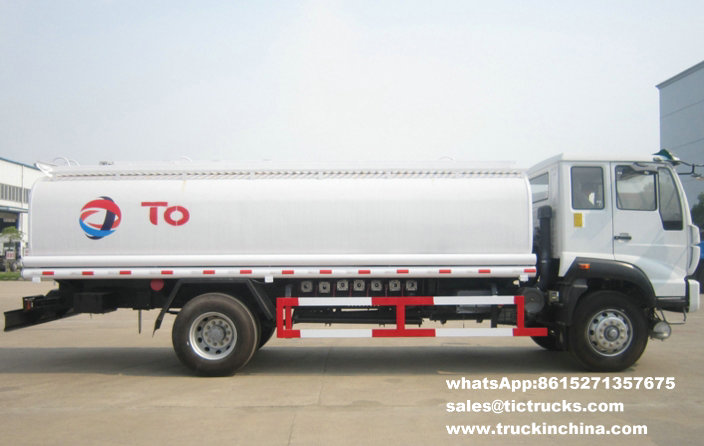

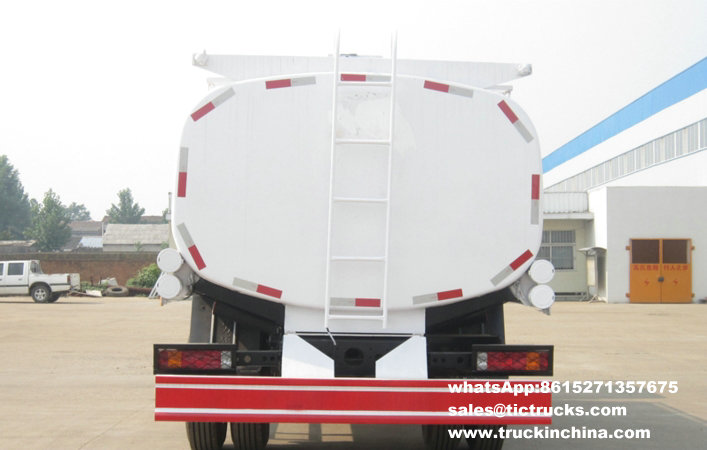

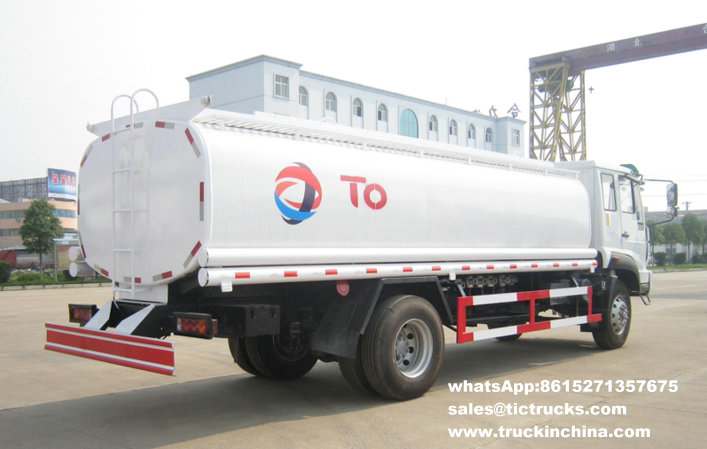

SINOTRUK 4X2 15000L aluminium fuel tank truck for sale
Views: 1751 Author: Dong Runze Special Vehicle Publish Time: 2017-04-25 Origin: Dong Runze Special Vehicle
SINOTRUK 4X2 15000L aluminium fuel tank truck for sale
Vehicle Model DRZ 5167GYYZ4 Vehicle Brand FOMON
Overall dimensions 8600X2500X3300mm Curb weight 8300kg
Tank dimensions 6000×2050×1445mm Tank volume 15000L
Fuel tank structure parameters
Tank dimensions 6000×2050×1445mm Tank volume 15000L
Tank material Aluminium alloy 5083 Tank thickness 5.5mm
Head thickness 6mm Color and Logo Optional
carbon steel Unit Price: USD 35300.00 - 38300.00 / Set/
stainless stee/l Aluminium /Unit Price: USD 44300.00 - 45800.00 / Set/
Chassis parameters
Chassis model ZZ1167M4611D1 Chassis brand SINOTRUK
Overall dimensions 7990 x2496x2958mm Wheel base 4600mm
Front/rear wheel track 2022/1830mm Front/rear suspension 1500/1890mm
Approach/departure angle 16/23° Maximum speed 95km/h
Chassis Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Cab Configuration HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers
Color White, other color is optional
Engine Model D10.31-40
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 310hp, rated power speed 1900rpm
Displacement 9726ml
Max.torque 1390N.m
Bore x stroke 126X130mm
Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Tire Size 12R22.5 tubeless tire
Number 10+1 nos
Front axle HF7 tons
Rear axle ST16 tons
Drive form 4x2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions HW13710 ,10 speed forward 2 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
