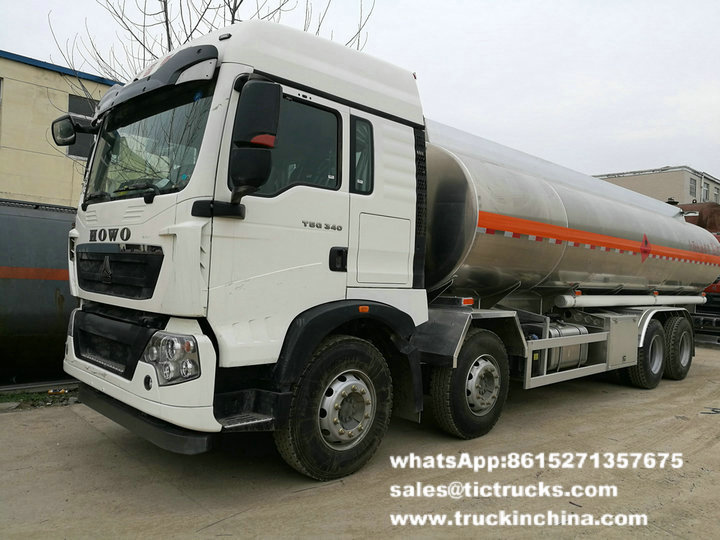

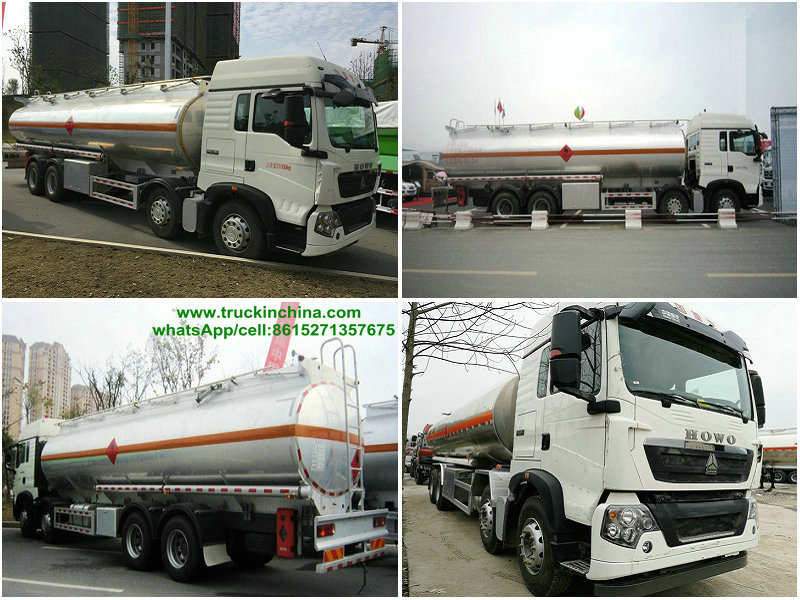

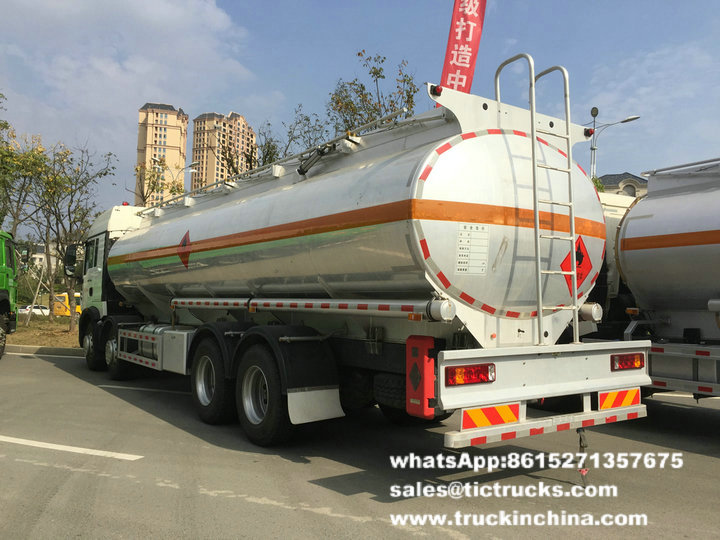

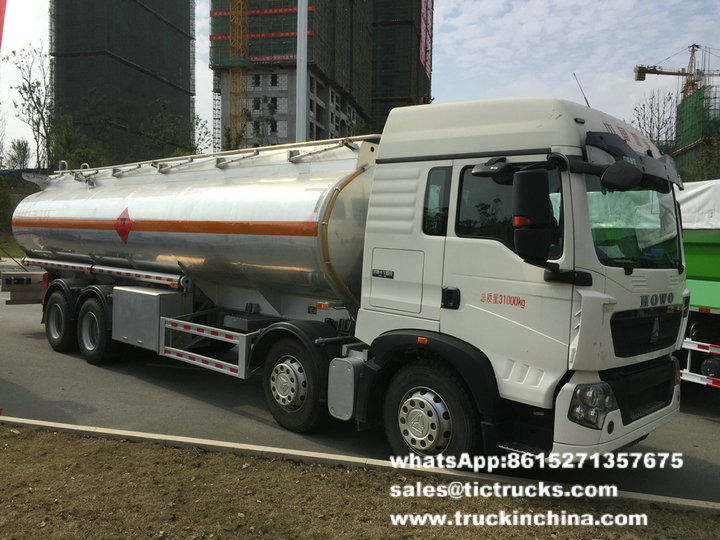

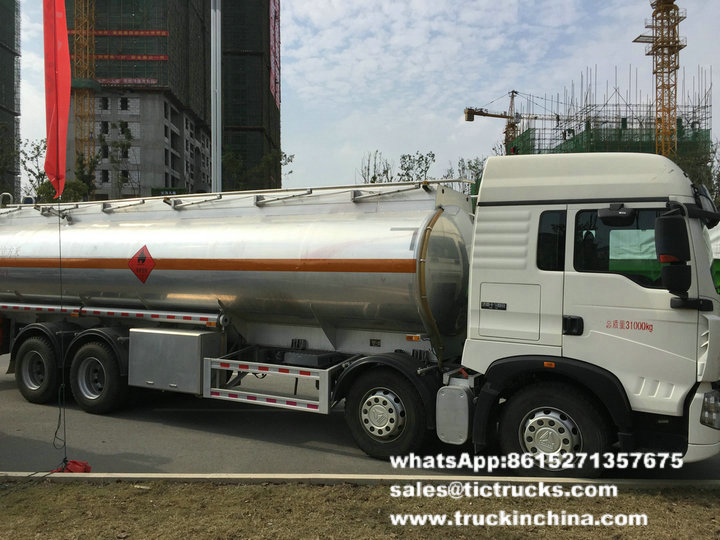

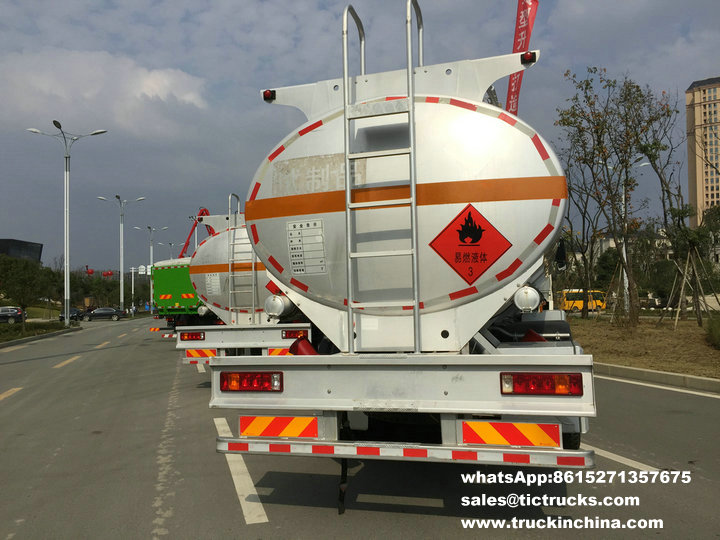

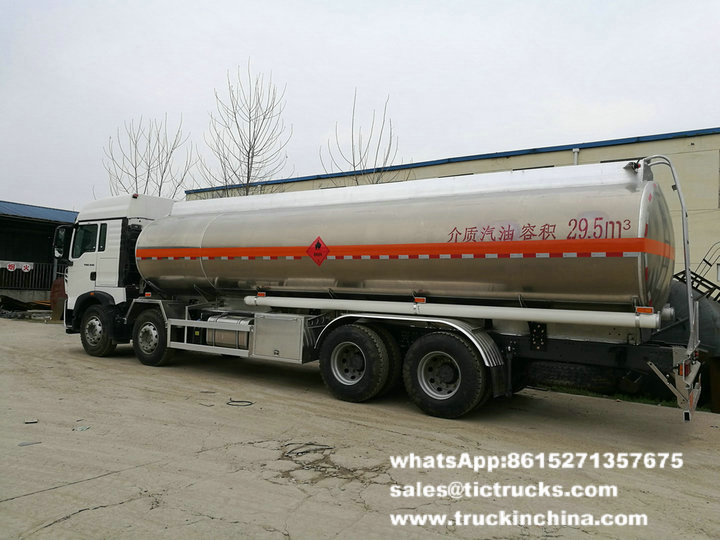

SINOTRUK HOWO 8X4 30000L Aluminium fuel tank truck for sale
carbon steel Unit Price: USD 46900.00 - 54300.00 / Set/
stainless steel/ Aluminium /Unit Price: USD 65300.00 - 68800.00 / Set/
Vehicle Model DRZ5317GYYZ
Overall dimensions 11900×2500×3400mm Curb weight 14500kg
Tank dimensions 9100×2400×1650mm Tank volume 30000L
Fuel tank structure
Tank dimensions 9100×2400×1535mm Tank volume 30000L
Tank material Carbon steel Tank thickness 6mm / stainless steel ss304/ Aluminium 5083
Color Optional Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Chassis parameters
Chassis model ZZ1317N4667W Chassis brand SINOTRUK
Overall dimensions 11700X2496X3025mm Wheel base 1800+4600+1350mm
Front/rear wheel track 2022/2041, 1830/1830mm Front/rear suspension 1500, 2425mm
Approach/departure angle 16/19° Maximum speed 90km/h
Chassis Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Cab Configuration HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers
Color White, other color is optional
Engine Model WD615.69
Emission Euro 2
Type 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 336hp, rated power speed 2200rpm
Displacement 9726ml
Max.torque 1350N.m
Bore x stroke 126x130mm
Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Tire Size 295/80R22.5 tubeless tire
Number 12+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 400L iron oil tank
Front axle HF 7 tons
Rear axle HC 16 tons
Drive form 8X4
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions gearbox HW15710 , 10 speed forward 2 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
