DRZ 5110GYYE4 Dongfeng 4x2 8000L refuelling truck euro 4

Views: 1720     Author: DRZ     Publish Time: 2017-04-20      Origin: Dong Runze Special Vehicle

DRZ 5110GYYE4 Dongfeng 4x2 8000L refuelling truck euro 4

DRZ 5110GYYE4 Dongfeng 4x2 8000L refuelling truck euro 4 USD 16300.00 - 22300.00 / Set/Sets

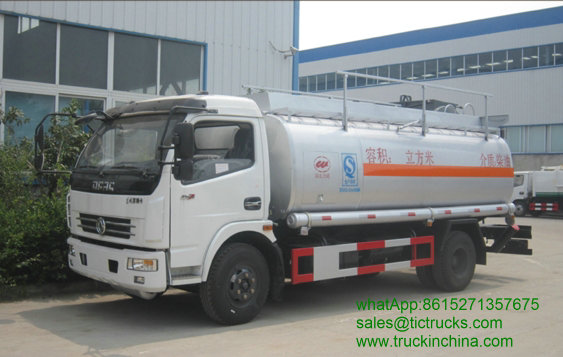

Dongfeng 4x2 8000L refuelling truck euro 4_1.jpg

Related Keywords

Dongfeng Refuelling Truck , Dongfeng Refuelling Fuel Truck , Dongfeng Refuelling Oil Truck , Dongfeng Refuelling Oil Trucks , Dongfeng Refuelling Oil Tank Truck , Dongfeng Refuelling Fuel Tank Truck , Dongfeng Refuelling Fuel Tank Trucks , Dongfeng Cooling Truck

Overall dimensions 7000×2300×2850mm Curb weight 4255kg
Tank dimensions 4900×2000×1130mm Tank volume 8000L

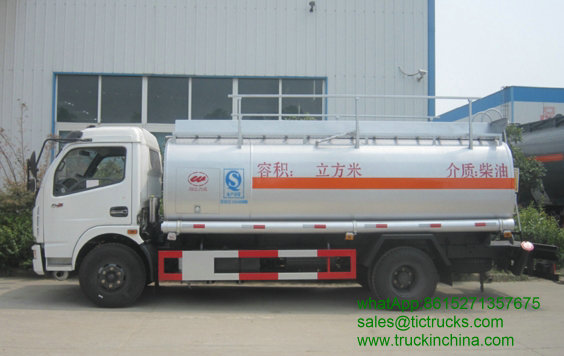

Dongfeng 4x2 8000L refuelling truck -euro 4_1.jpg

Chassis parameters
Chassis model EQ1110TKJ1 Chassis brand DONGFENG
Overall dimensions 6695X2285X2350mm Wheel base 3800mm
Front/rear wheel track 1650/1730mm Front/rear suspension 1180/1715mm
Approach/departure angle 22/13° Maximum speed 80km/h
Chassis Manufacturer Dongfeng Automobile Co.,Ltd
Cab Configuration Single row cab, allowable 3 passengers, cab can be flipped
Color White,other color is optional
Engine Model CY4102-CE4C
Emission Euro 4
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 124hp,rated power speed 2800rpm
Displacement 3856ml
Max.torque 345N.m
Bore x stroke 102x118mm
Manufacturer Dongfeng Chaoyang Diesel Power Co. Ltd.
Tire Size 7.50R16,steel wire tire
Number 6+1 nos
Frame 192mm
Brake Air break, exhaust brake
Front axle 2.5T
Rear axle 4.5T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

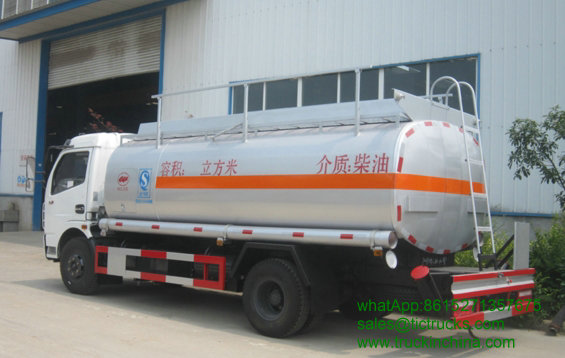

Dongfeng 4x2 8000L refuelling - truck euro 4_1.jpgFuel tank structure parameters

Tank dimensions 4900×2000×1130mm Tank volume 8000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.
