JAC Vacuum Tanker Trucks 16000 Liters -20000Liters Customizing
With vacuum pump
| Quantity: | |
|---|---|
-
DRZ5
-
DRZ
-
8705909990
JAC Vacuum Tanker Trucks 16000 Liters -20000Liters Customizing
JAC 16000 Liters -18000Liters --20000Liters Vacuum Tanker Trucks for sale
The vacuum truck cubage from 16000L-20000L
Many truck chassis for you choice,such as JAC,Dongfeng,FAW,North Benz,Foton,NISSAN,Hino,
HOWO,SINOTRUK,JAC,ISUZU,etc.
Our gurantee period is 12months or 8000KM which comes first .
JAC 16m3 -18M3 Sewage Drainage Truck Sewage Sucking tank Truck specification:
| Item | unit | parameter | |||
| Vehicle model | 18m3 - 20M3 Sewage Sucktion Truck | ||||
| Chassis model | HFC5253GFJ | ||||
| Overall dimensions | mm | 10100*2490*3650 | |||
| Fact cubage | L | 18000 | |||
| Mass in working order | kg | Approx11505 | |||
| Body internal dimensions | mm | TBD | |||
| Wheel base | 4350+1300 | ||||
| Engine | Model | WD615 | |||
| Displacment/horsepower | 8300/191 | ||||
| Type | 6cylinder ,direct Inject , line , turbcharege | ||||
| Tire specification | 10.00R20 | Traction system | 6X4 | ||
| Axle | 11.5T | transmission | Fast 9 speed | ||
| Equipment | 1,Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment 2,Time for full suction<5min 3,tank rear cover can be opened by air and dump , | ||||
| Tank material | Q235 | ||||
| Tank thickness | Tank 6mm , head cover 6mm | ||||
| Fullfilling time | <5min | ||||
| Discharge time | <4min | ||||
| Vertical suction | 8M | ||||
| Dump angle | 45 degree | ||||
| vacuum pump Pump data | Model | 50qzxdg-45-400 | |||
| Brand | weilong | ||||
| No | 2 | ||||
| Rating rotate speed | 500r/mm | ||||
| Suction speed | 45L/S | ||||
| Main accessory | Hydraulic cylinder | 2pcs | |||
| oil and gas separator | 1pcs | ||||
| Oil tank | 18L | ||||
| High pressure oil pipe | 1pcs | ||||
| hydraulic directional control valve | 1pcs | ||||
| Three way valve | 1pcs | ||||
| moisture separator | 1pcs | ||||

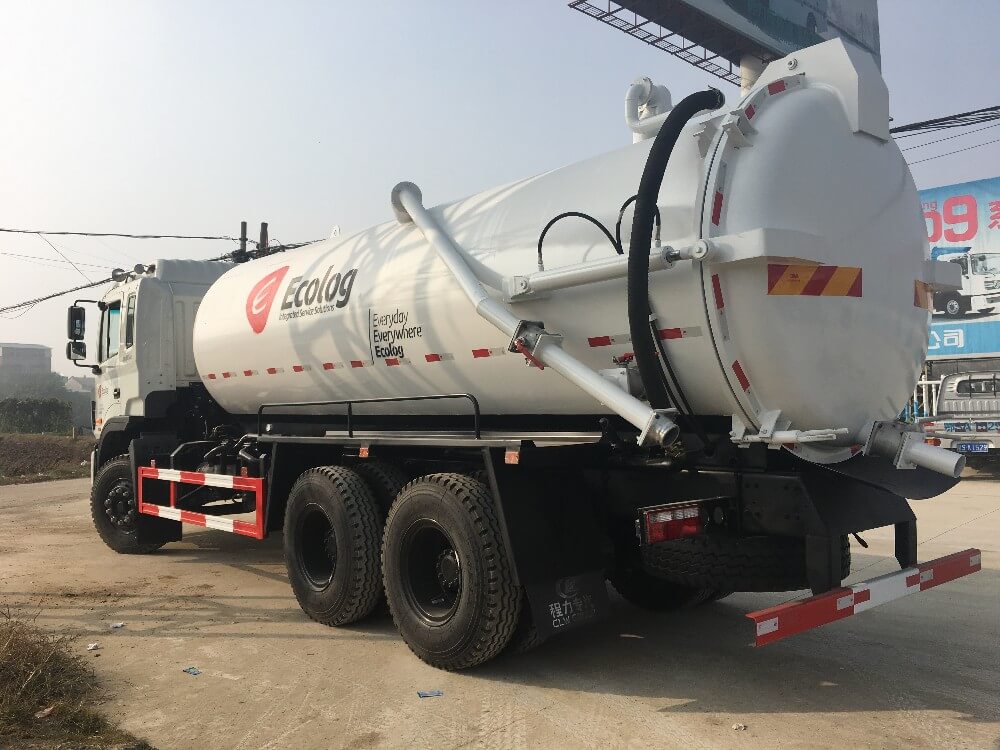

Photo of JAC Sewage Truck
