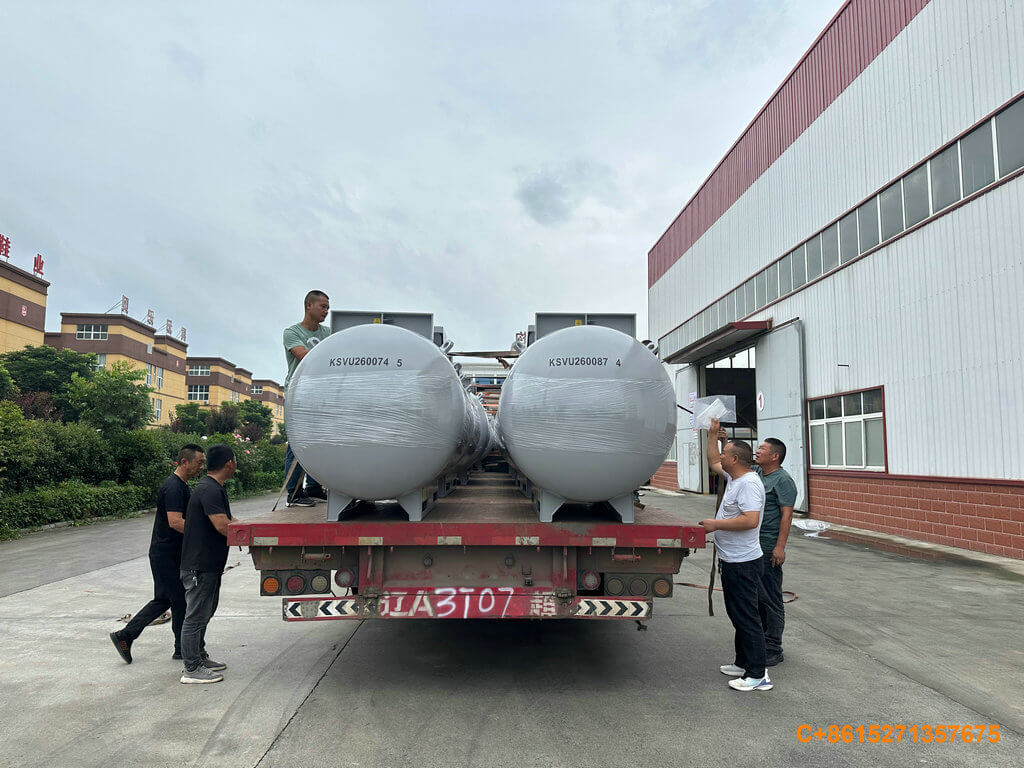

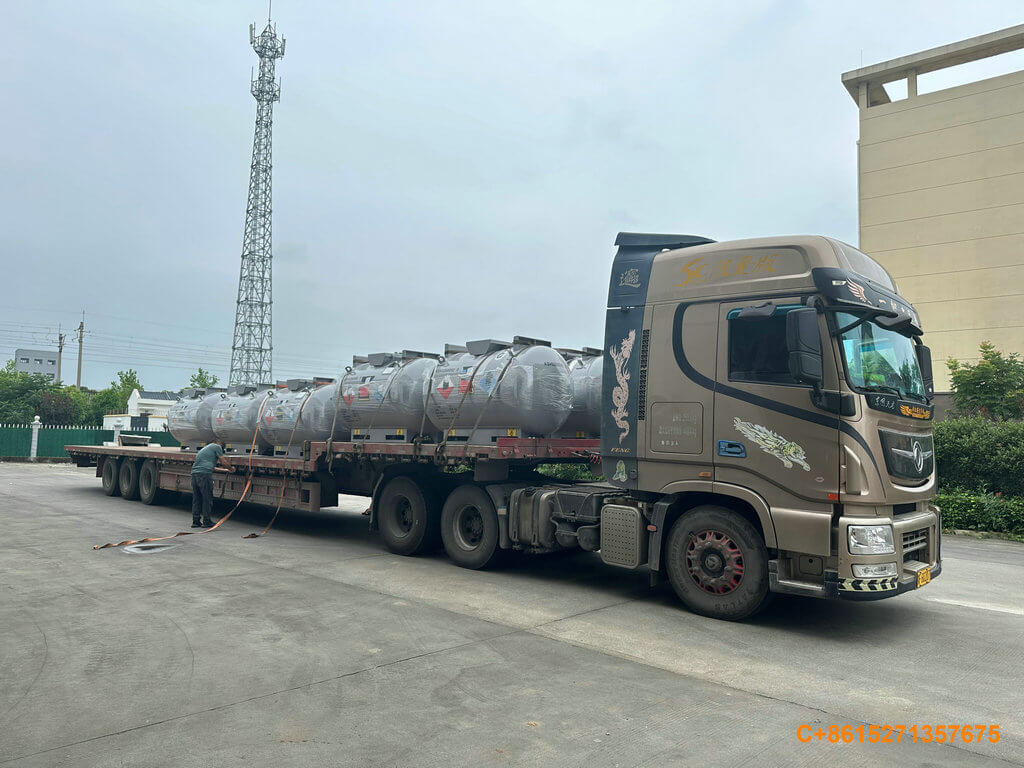

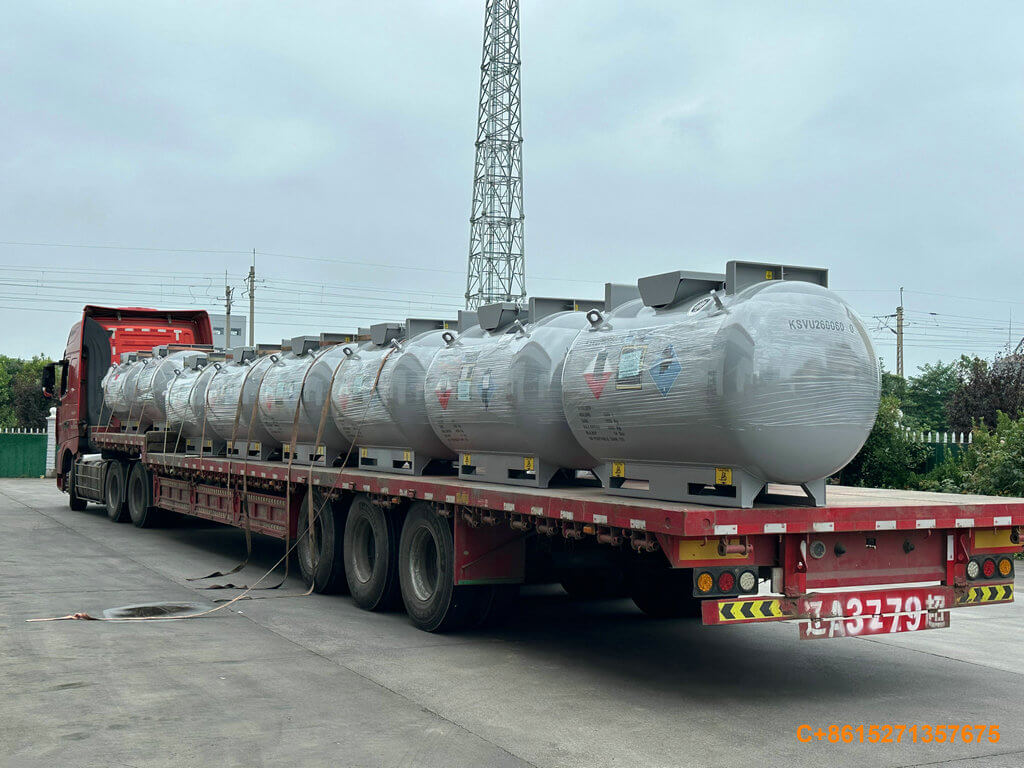

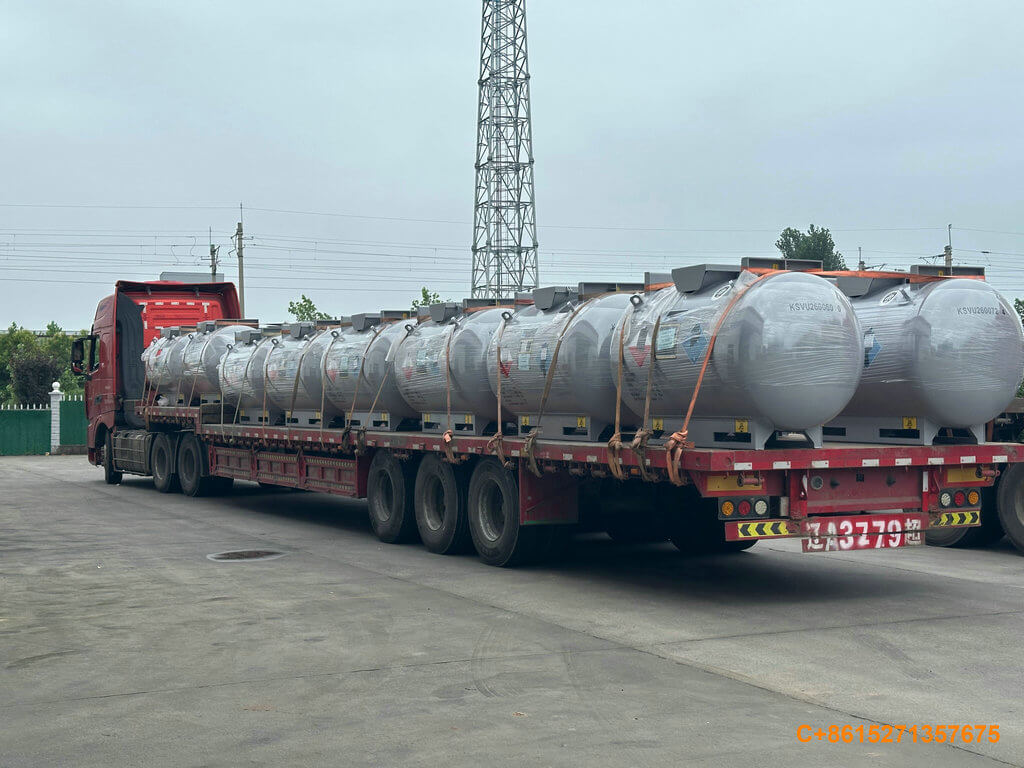

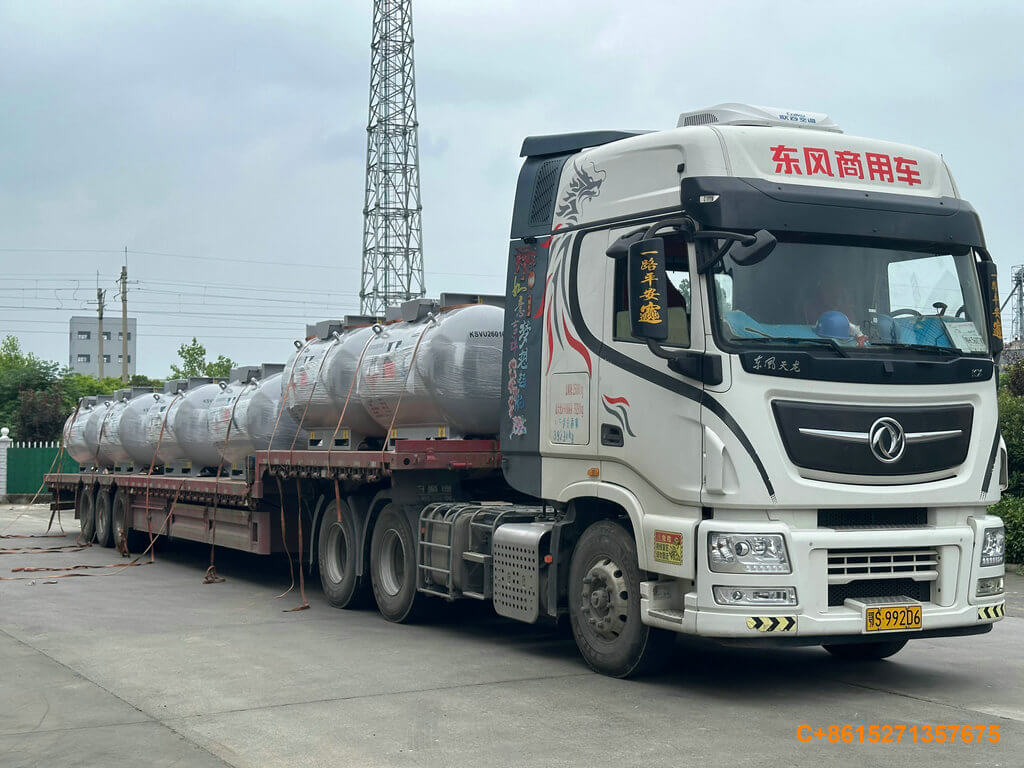

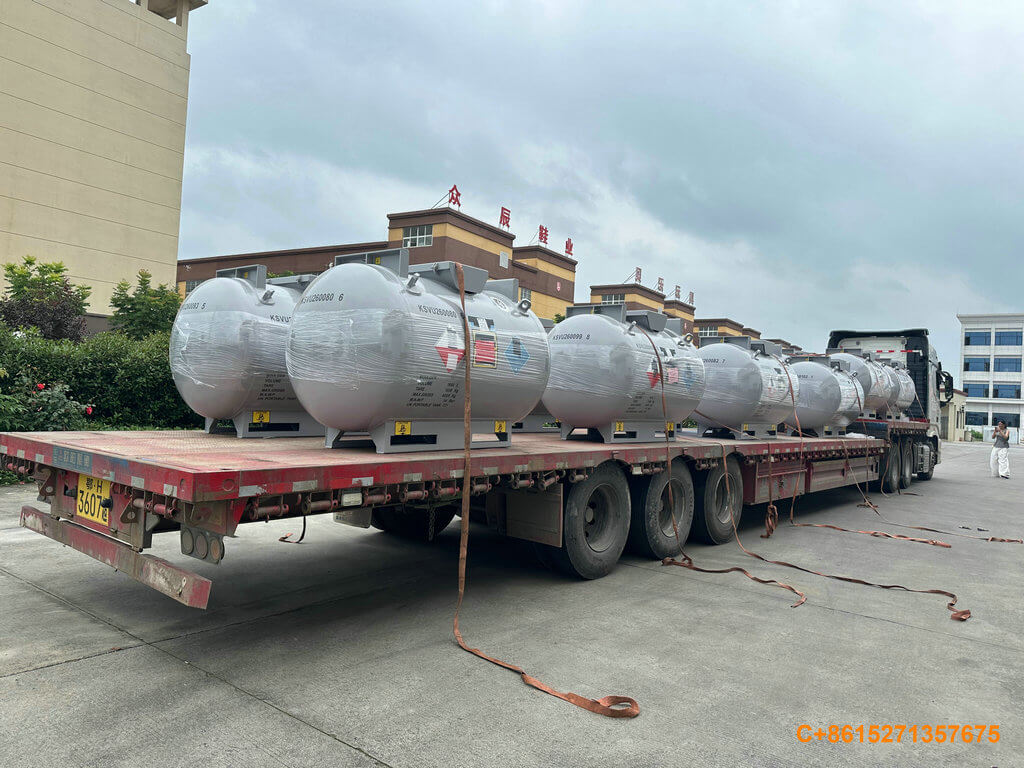

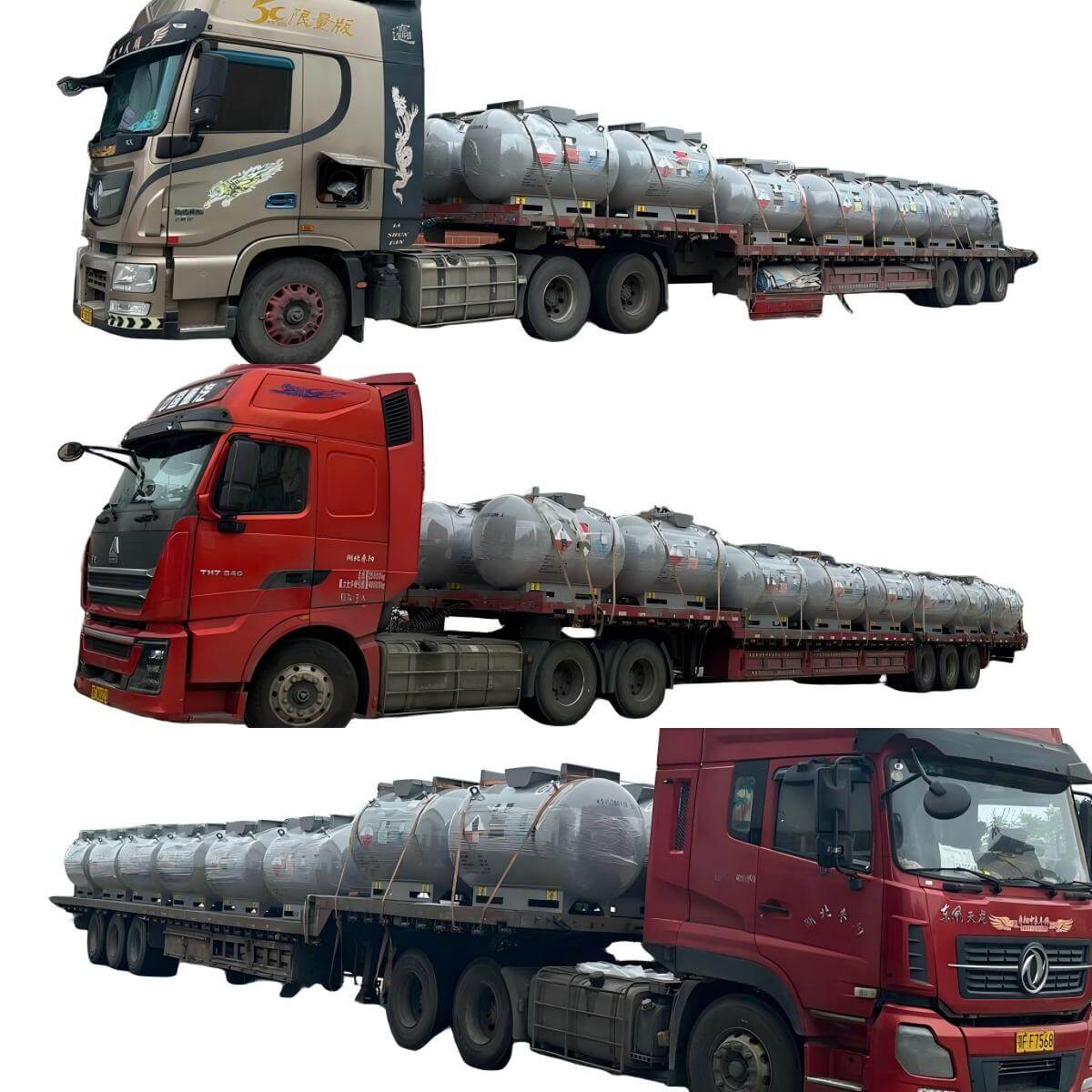

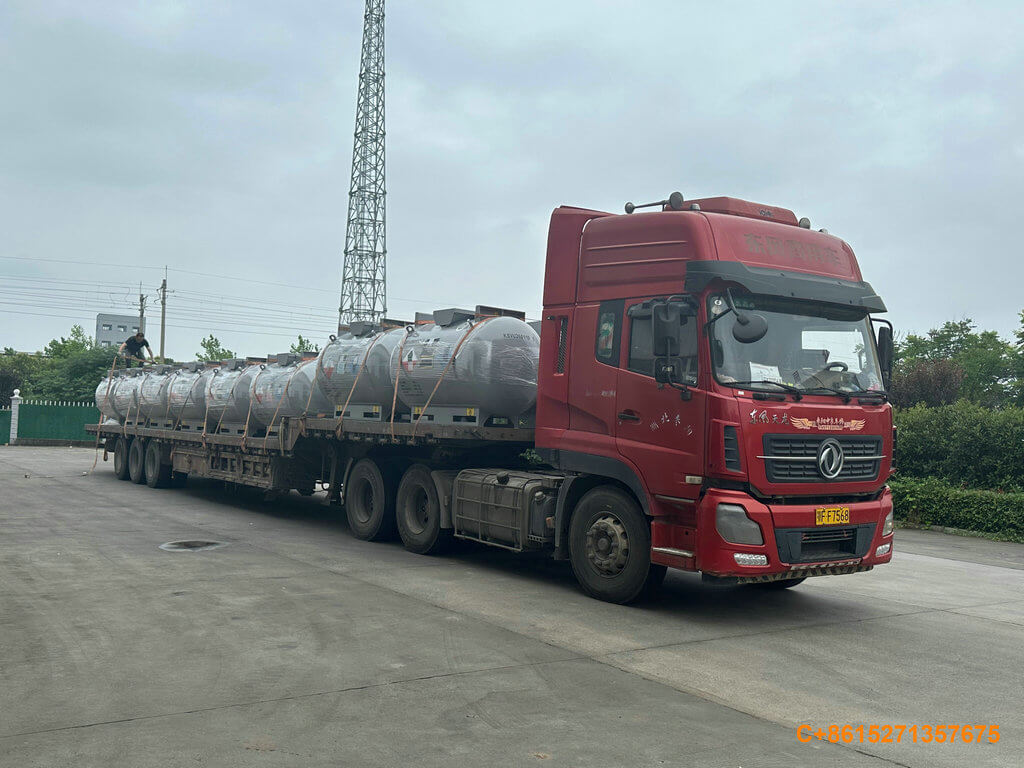

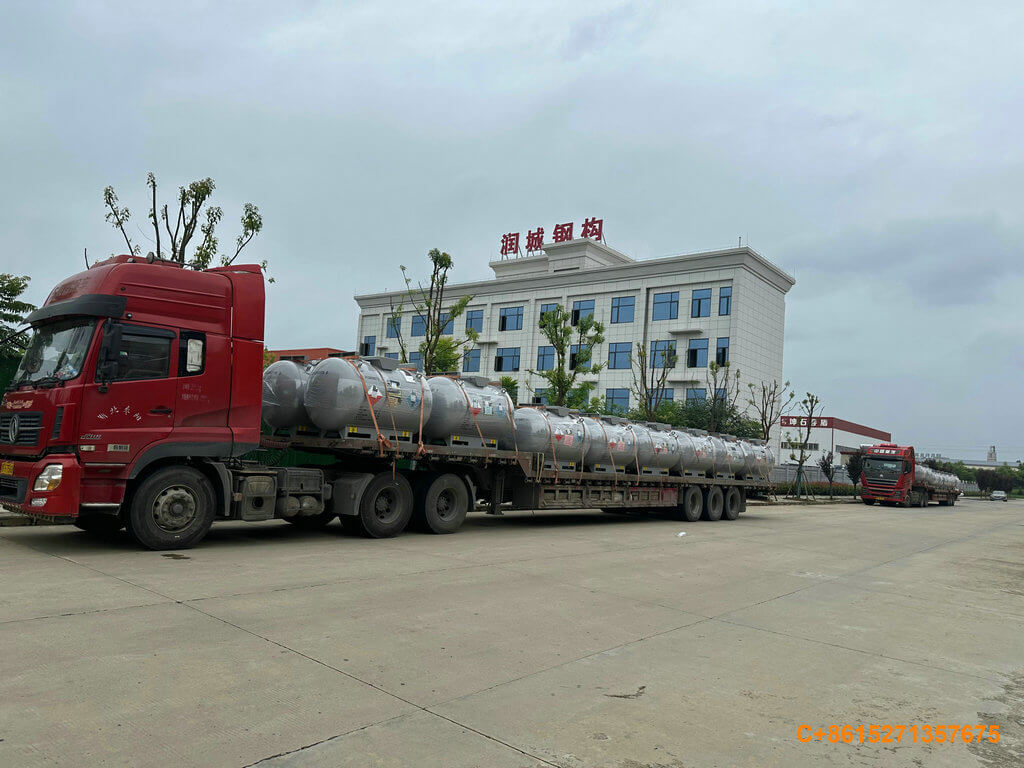

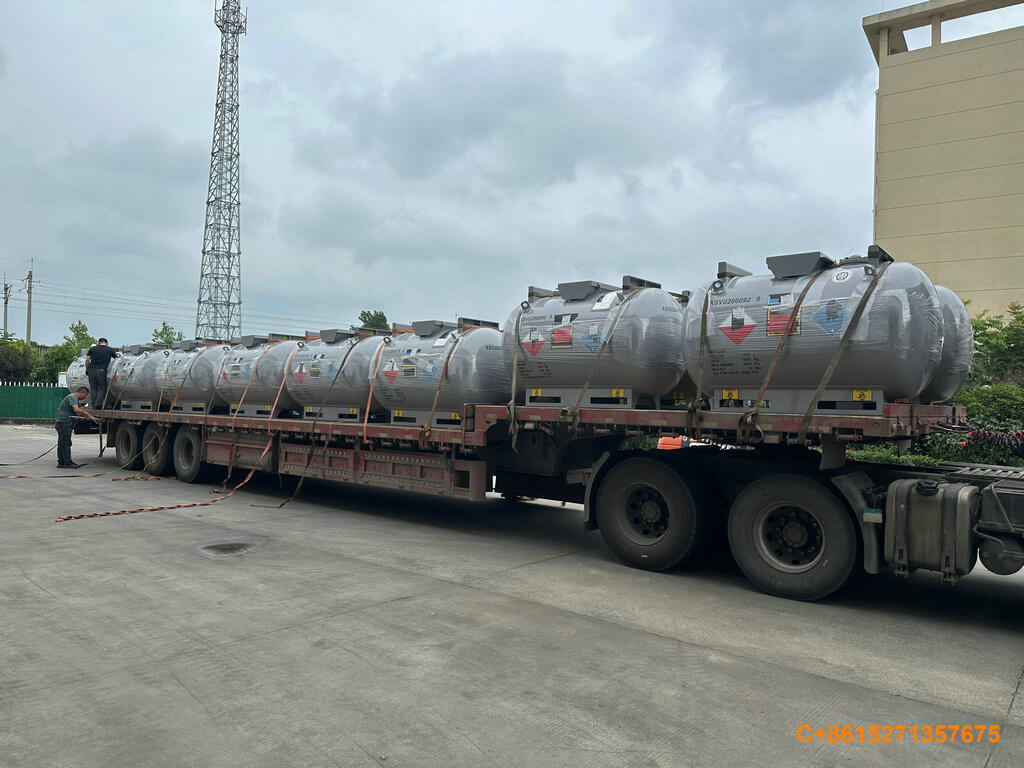

60PCS Metal Alky TEAL Catalyst T21 UN Portable Tank Cylinders To USA
Views: 2026 Author: Tom Publish Time: 2026-06-26 Origin: Dong Runze
60PCS Metal Alky TEAL Catalyst T21 UN Portable Tank Cylinders To USA

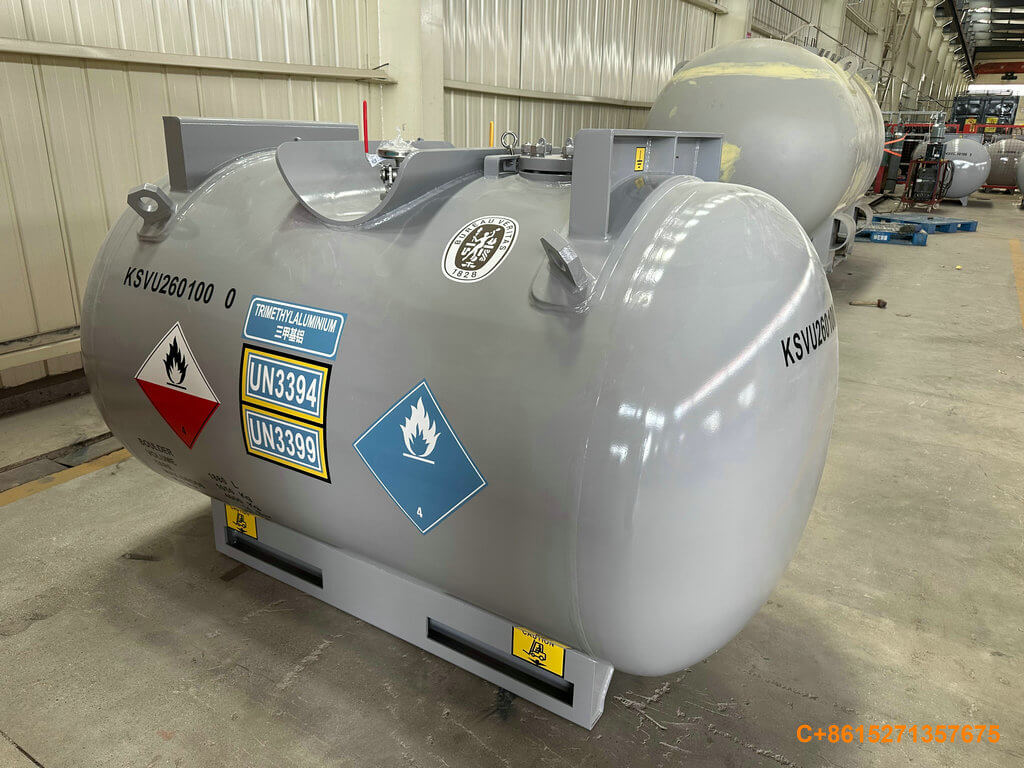

60Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA
with 60pcs Spare PSV RELIEF VALVES SF/A412F-25P(3B) Manufacturer (SHENYANG XINGUANG VALVE ）
Country of origin: China 6X 40HQ / 63120KGS //203.66CBM
Marks | Description of goods | Quantity SETS/UNITS | N.W/G.W | DIMENSIONS (LxWxH)(cm) |
N/M | RELIEF VALVES SF/A412F-25P(3B) HS:8481400000 | 60 | 90KGS /120KGS | 1 PACKAGE 720 ×365 ×580MM 0.2CBM |
KSVU 260053 ~KSVU 260112 | PORTABLE TANK (EMPTY AND NEW TANKS) HS:8609009000 | 60 | 63000KGS /63000KGS | 2128 × 1148 × 1388 MM X60 203.46CBM |
Manufacturer : Keystone Vessel Manufacturing Co., Ltd. Country : CHINA | |||||
Max. gross mass : 4000 kg | Tare : 1050 kg | Payload : 2950 kg | |||
Owner : Boulder Scientific Company | Operator : | ||||
Portable Tank Instruction : T21 | ADR/RID Tank Code : | Special Provisions : TP2 TP7 TP36 TP41 | |||
Model : KS1880-T21 Serial N° : C260055 ISO size/Type code : NA Type : UN Portable Tank Prototype Ref : BVCT2370646/S Dimensions : 2128x1148x1388 mm | |||||
SUBSTANCES SUITABLE FOR TRANSPORT : | UN3394 UN3399 | ||||
Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Max. allowable working pressure : 14.00 bar Test pressure : 21.00 bar | APPROVALS** IMDG : F/BV/23/194-T21 ADR/RID : F/9151/BV/26 TIR* : GB/C 26839 BV/2023 US-DOT CFR49 : UN Portable Tank | ||||
CHARACTERISTICS | INSPECTIONS |
GENERAL DRAWING N° KS1880-00 Rev.1 DESIGN Design code ASME VIII-1 Design temperature min -40 °C max 65 °C Design pressure 14.00 bar External design pressure 1.03 bar MATERIALS Frame SA-516M Gr.485 Tank Shell SA-516M Gr.485 Tank Heads SA-516M Gr.485 TANK External diameter 1148.00 mm Number of compartments 1 Number of baffles 0 Design thickness Shell Nominal 12.00 mm Minimum 9.87 mm Heads Nominal 12.00 mm Minimum 9.87 mm Equivalent thickness in reference steel Shell 12.15 mm Heads 12.15 mm External tank area 8.60 m² EQUIPMENT Heater type None Heater work pressure N/A Heater test pressure N/A Surface area m² Outlet Top Yes Closures 2 Bottom No Closures SAFETY DEVICES Relief valves Nb 1 Relief valve 1 type SF/A412F-25P-(3B) Serial N° 202604050 Setting + 15.40 bar Relief valve 2 type Serial N° Setting bar Relief valve 3 type Serial N° Setting bar Relief valve 4 type Serial N° Setting bar Flame resistant gauze NO Rupture disc 1 type Serial N° Setting bar Rupture disc 2 type Serial N° Setting bar Mounting N/A Installed vent capacity 1.35 Nm³/s Minimum vent capacity 0.788 Nm³/s COATING / INSULATION Internal / External None PROTOTYPE TESTS R 4000 kg Stacking at N/A kg Transverse Racking test force N/A newton Impact test at SRS obtained at R = N/A kg MARKING Drawing. N° KS1880-20 Rev.0 & KS1880-24 (BOULDER) Rev.0 | This tank has been manufactured under BUREAU VERITAS survey, in accordance with the following prescriptions : Rules of BUREAU VERITAS - ETTC GM Code IMDG ADR/RID The inspections performed are subject to reports BVCT2670260/S INSPECTIONS PERFORMED Verification of the conformity with the prototype. Visual internal and external inspection of the tank. Visual inspection of the frame. Hydrostatic pressure test of the tank: - At a pressure of 21.00 bar - Performed on : 04-06-2026 Leakproofness test of the tank equipment: - At a pressure of 12.6 bar - Performed on : 18-06-2026 Satisfactory operation of the service equipment. Verification of the markings. Review of radiographic test reports: - Circumferential and longitudinal shell welds: 100% - Welds in head section: 100% REMARKS - Date of next statutory examination: 12-2028 - Date of next CSC examination: N/A ASME Certification Mark with the U Designator; Fusible element setting 177°C * Manufacturers responsibility to obtain the approval ** ADR/RID/IMDG/CSC are covered by the accreditation n°3-1352 |
UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA
Adr/Rid Organometallic Substance, Liquid, Water- Reactive
C-430 Saddle Type Portable Tank , tank capacity 1630L
C-480 Saddle Type Portable Tank, tank capacity 1880L
C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
Adr/Rid Organometallic Substance, Liquid, Water- Reactive
