2PCS 22KL LDPE Lined 20FT ISOTank Container For Sulfuric Acid HCL Acid To Vietnam

Views: 20270     Author: Dong Runze Special Vehicle     Publish Time: 2026-09-08      Origin: Site

2PCS 22KL LDPE Lined 20FT ISOTank Container For Sulfuric Acid HCL Acid To Vietnam

 2PCS 22KL LDPE Lined 20FT ISOTank Container For Sulfuric Acid  HCL Acid To Vietnam

20FT TANK CONTAINER

TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM( EMPTY AND NEW TANKS)

BRAND: DONG RUNZE

DTAU2607080

DTAU2607096

TANK CAPACITY:22M3

CONTAINER DIMENSION

6058MM*2438MM*2591MM

WEIGHT

5500KG

THICKNESS OF PLASTIC LINING

16MM

PRODUCT TYPE

STEEL TANK LINING PE

MATERIALS OF THE LINING LAYER

PE7042

DATE OF MANUFACTURER

2026-8-15

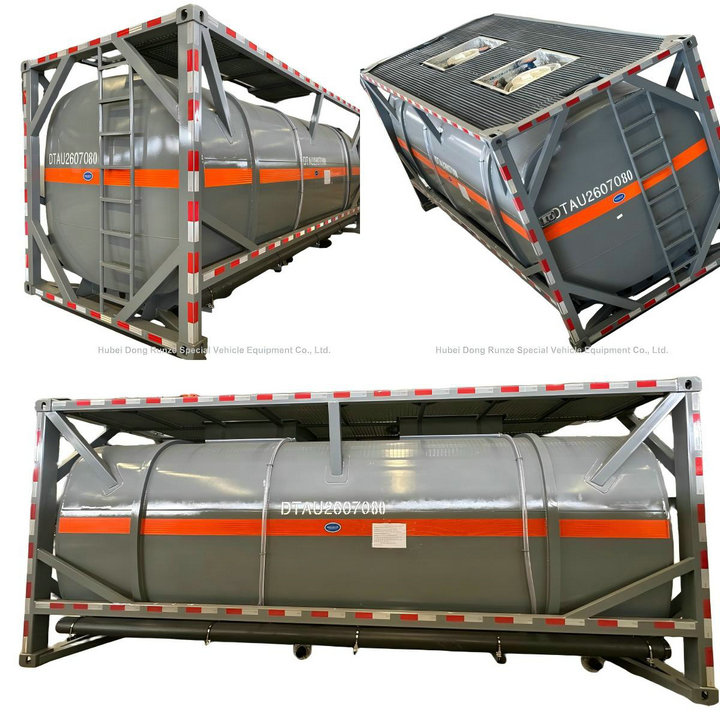

20ft Tank Container isotank ACID PAC PE PTFE Lined 20ft (5)

20 FT Tank Container ( road transport type not allowed ship on board full loading)

20ft ISO TANK Used to contain: HCl (38%), NaOH (50%), PAC , H2SO4( 94%) etc…

Tank Capacity:22m3

Liner thickness: 16mmPE

Tank in 20ft rectangular frame

Detail as draw agreed by both size

The colour painting of tank is grey.

Net Weight about 5500KG

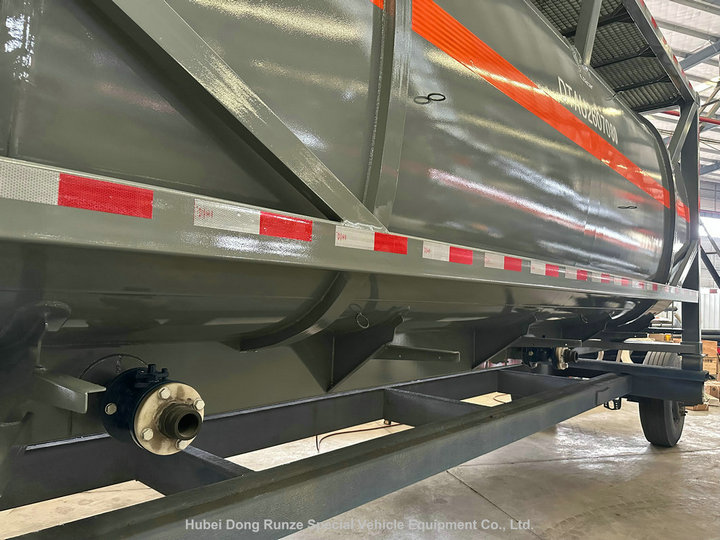

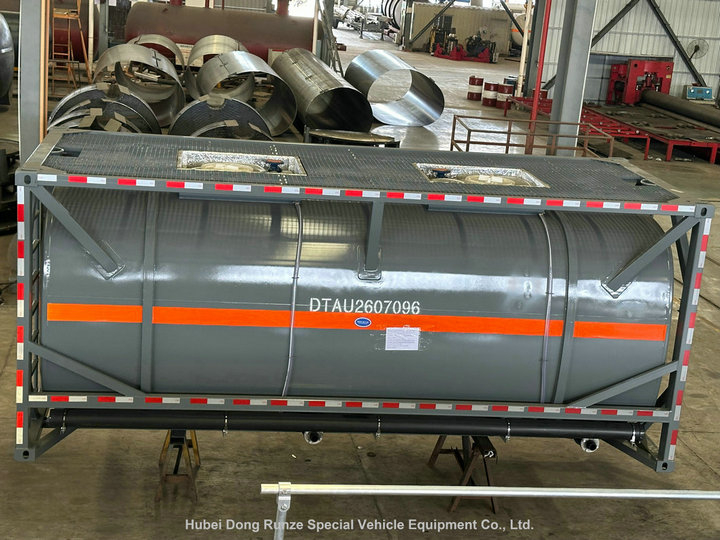

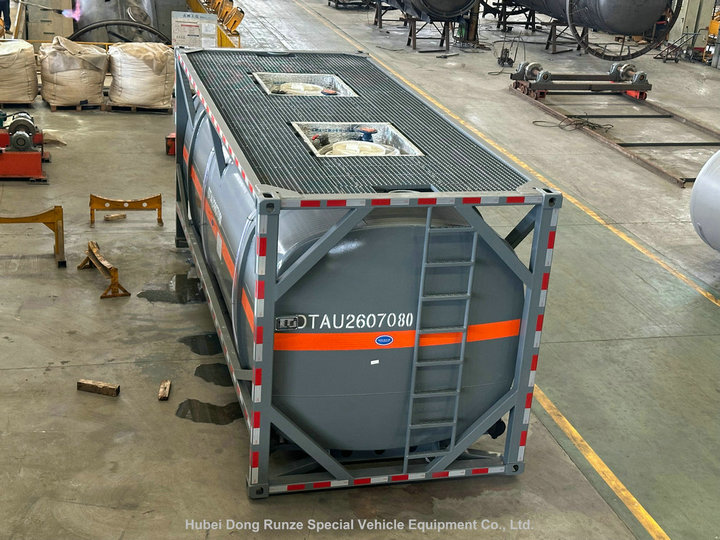

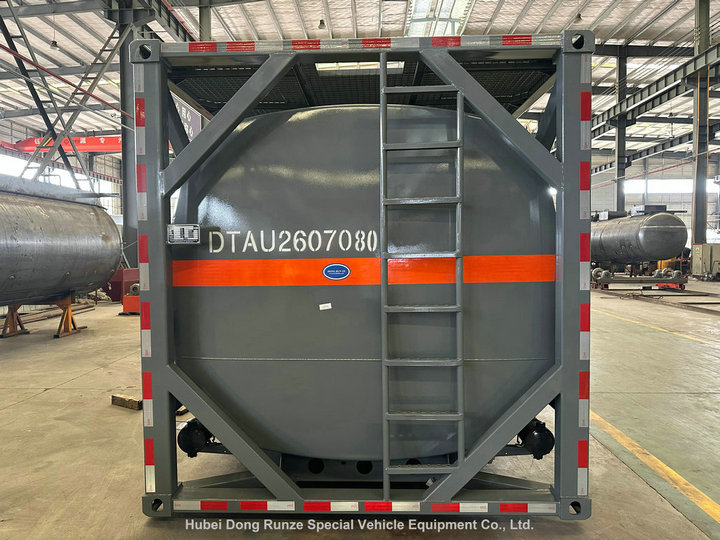

20ft isotankHCL ACID PAC PE PTFE Lined (64)20ft isotankHCL ACID PAC PE PTFE Lined (63)20ft isotankHCL ACID PAC PE PTFE Lined (53)20ft isotankHCL ACID PAC PE PTFE Lined (21)

Specification

ISO 20FT tank container ( LDPE lined )  to contain and transport  HCL, NaOH,etc

Tank capacity: 22,000 liters 02 manhole, 02 chambers

3 layer: - Steel 6 mm- Composite 4 mm Welded Steel Wire Mesh - LLDPE 16 mm

Product dimension

6058mm*2438mm*2591mm

Weight

5500KGS

thickness of plastic lining

16mm

Product trype

steel tank lined LLDPE

Materials of the lining layer

PE7042


20ftTank container


Ext. Length

6,058mm

Ext. Width

2,438mm



Ext. Height

2,591mm

M.G.W.

32000kg



Tare

5500Kg

Max. Payload

26200Kgs



Cubic Capacity

21.8~22m³

Tank Design Standard

GB 150 ,GB/ T 16563, GB/ T 1413, GB/ T 1836, GB/ T 1835.



Max. Design Pressure

0.1MaP

Calculated Pressure

0.1MaP



Testing Pressure

0.1MaP

Design Operating Temp.

-20℃~55℃



Lining

PE7042 lined 16mm

Material of Tank Body

Q235



Manhole Dia.

500mm

Tank Body Thickness

6 .0mm



Facilities Tank Capacity: 22,000 Liters

Steel sheet 6mm, head 6mm Liner thickness: 16mm PE

Tank in 20ft rectangular frame, 2 bottom PTFE lined valves , full plastic manhole cover,  the painting of tank is anti-corrosive painting, top of tank with asphalt & silver paper anti-corrosive treatment.

The colour painting of tank is Grey.
