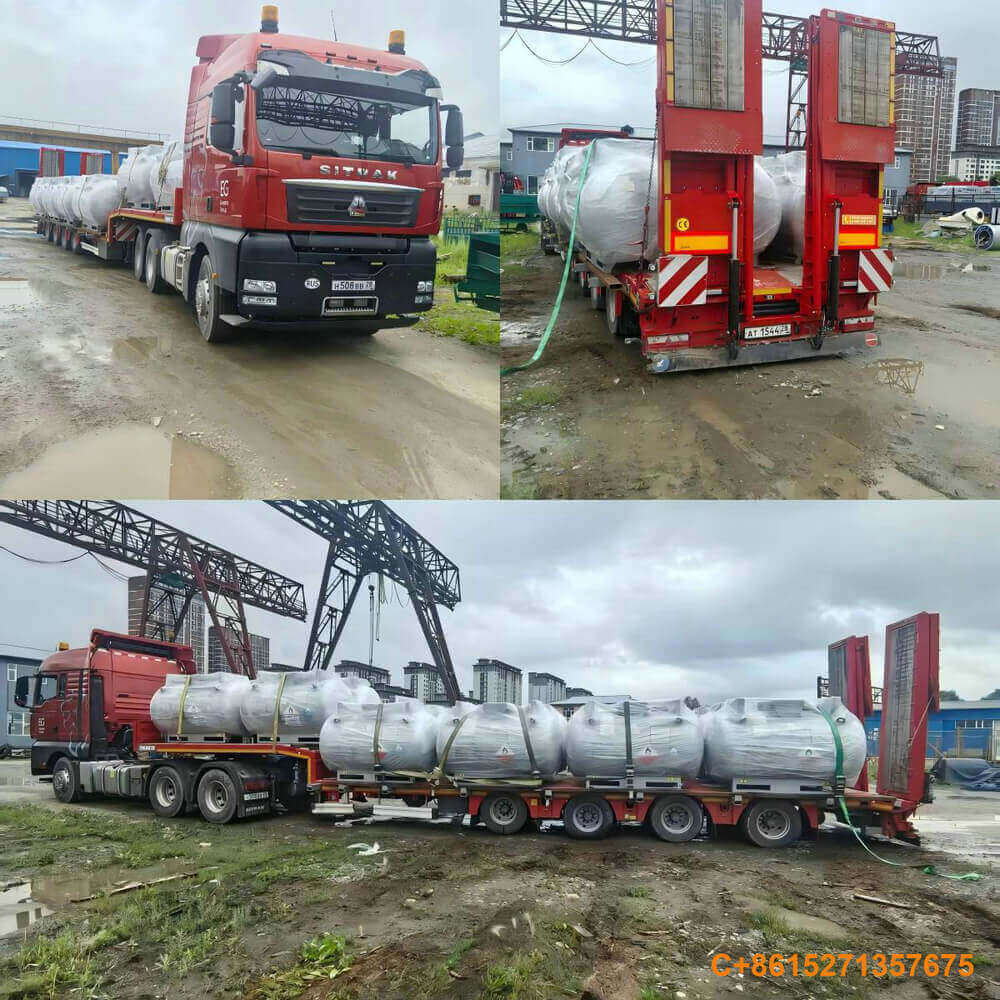

16 PCS IMDG CCS ADR/RID Metal Alky C430 KS1630A-T21 UN Portable Tank Catalyst Cylinders 1630L Delived to HEIHE

Views: 2030     Author: Tom     Publish Time: 2026-07-07      Origin: Dong Runze

16 PCS IMDG CCS ADR/RID Metal Alky C430 KS1630A-T21 UN Portable Tank Catalyst Cylinders 1630L Delived to HEIHE

16 PCS IMDG CCS ADR/RID  Metal Alky  C430 KS1630A-T21 UN Portable Tank Catalyst Cylinders 1630L Delived to HEIHE

Exported by Hubei Dong Runze Special Vehicle Equipment subcompany Keystone Vessel (Wuhan) Co.,Ltd

Adr/Rid Organometallic Substance, Liquid, Water- Reactive

UN portable tank instruction T21

Model KS1630A-T21

Max.operating gross mass 4000kg

Tare mass 1100kg

Max.permissible payload 2900kg

Overall dimensions 2093×1078×1390 mm

Volume(water capacity at 20℃) 1630 liters

Design temperature -60~75℃

M.A.W.P. 14 bar

M.A.W.P.of heating system ---bar

Test pressure 21 bar

Material &nominal thickness of shell/heads 09MnNiDR GB/T 713.314mm(shell)/14mm(head) mm


Description of goods

Quantity

N.W

g.w

MEASUREMENT

PORTABLE TANK

(EMPTY AND NEW TANKS)

T21 KS1630 CHINA CCS CERTIFICATE

NOZZLE LIST B: N1 2"
N2 DN25,N3 DN20,N4 3/4

HS.CODE:8609009000

16PCS

17600

KGS

17700

KGS

2093× 1078× 1390 MM X16


TOTAL  50.18CBM

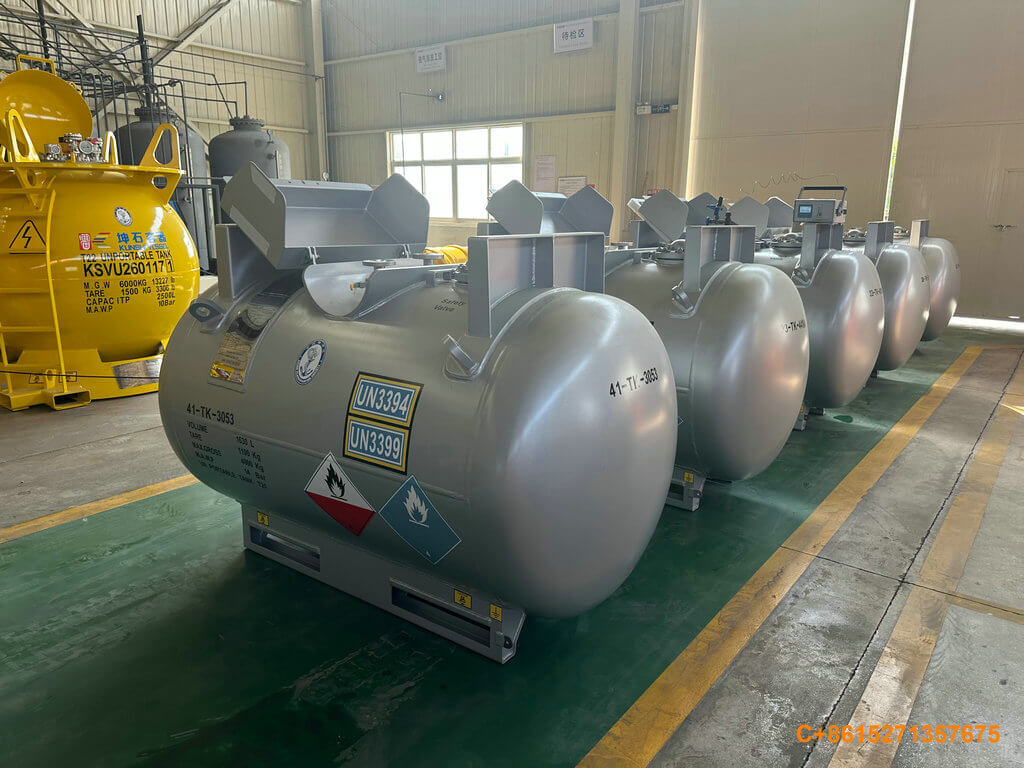

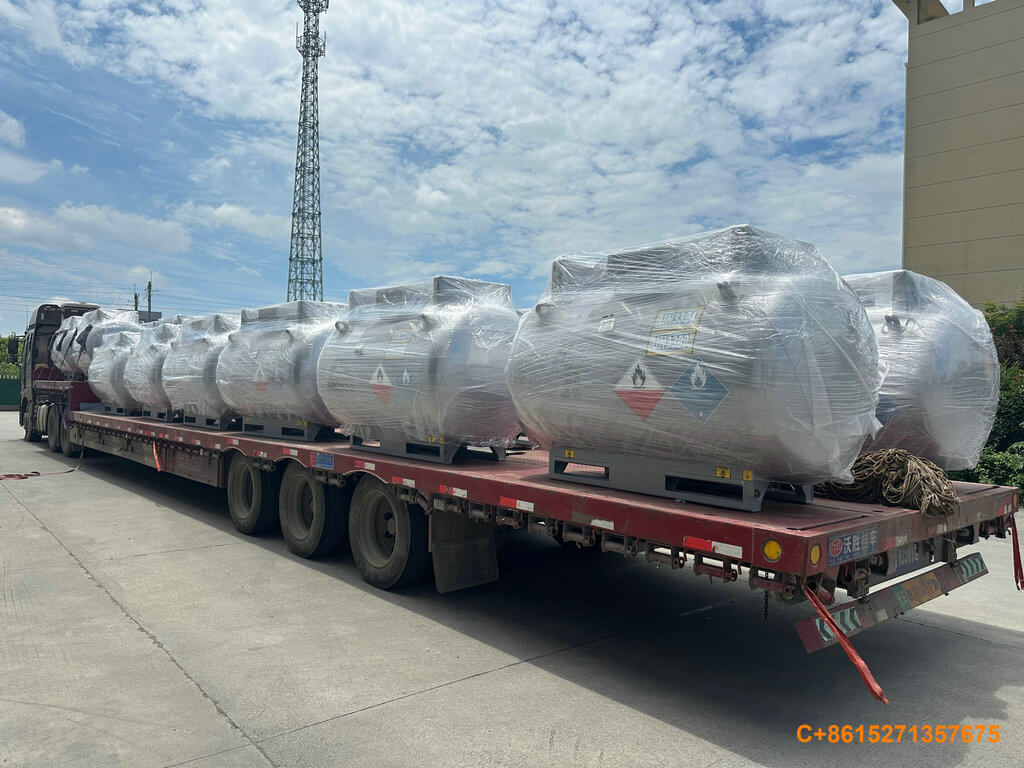

Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (77)Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (148)


Product Description

UN portable tank instruction

T21

Model

KS1630A-T21

Max.operating gross mass

4000kg

Tare mass

1100kg

Max.permissible payload

2900kg

Overall dimensions

2093×1078×1390 mm

Volume(water capacity at 20℃)

1630 liters

Design temperature

-60~75℃

M.A.W.P.

14 bar

M.A.W.P.of heating system

---bar

Test pressure

21 bar

Initial pressure test date

25/05/2026

Leakproofness test pressure

10 bar

Material &nominal thickness of shell/heads

09MnNiDR GB/T 713.314mm(shell)/14mm(head) mm

Effective thickness of shell/heads

10.7mm(shell)/10.1mm(head)mm

Equivalent thickness of shell/heads in reference steel

10.82mm(shell)/10.21mm(head)mm

Relief valves

Serial Number:202603083,DN40 /  Setting Pressure:1.54MPa

Fusible elements

149℃   Fusible   Device   1

assembly

Design code

ASME VIII DIV 1(CS)

Aplicable cargo

ORGANOMETALLIC SUBSTANCE,LIQUID,PYROPHORIC,WATER-REACTIVE(UN3394)

ORGANOMETALLIC SUBSTANCE,LIQUID,WATER-REACTIVE(UN3398)

ORGANOMETALLIC SUBSTANCE,LIQUID,WATER-REACTIVE,FLAMMABLE(UN3399)

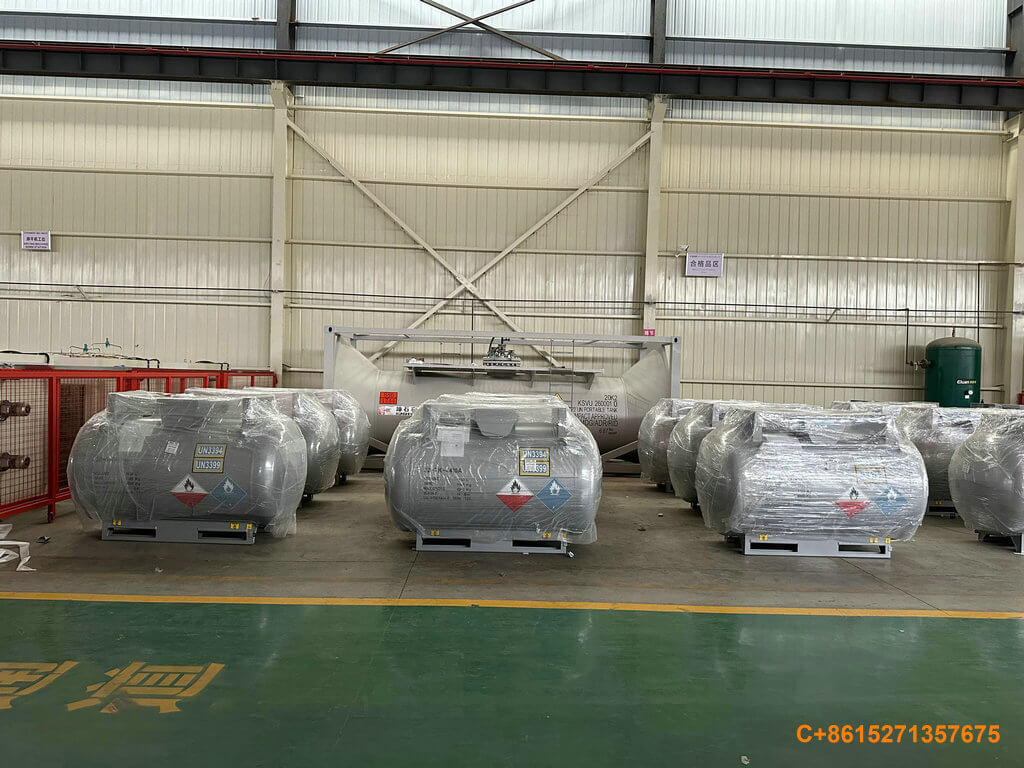

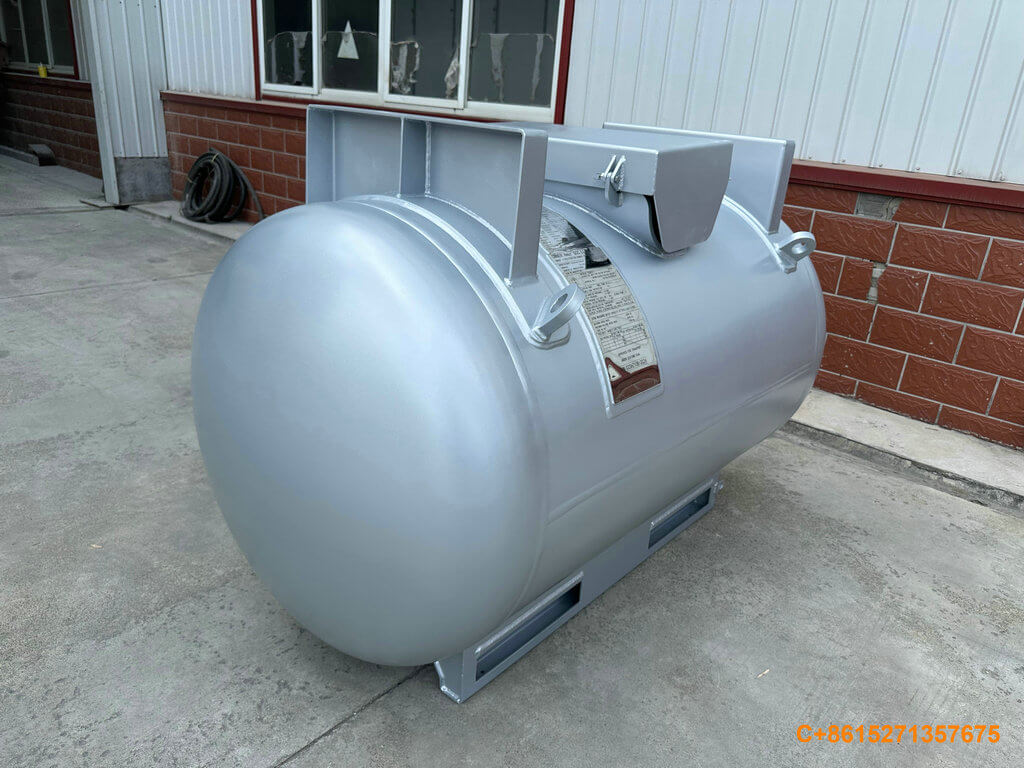

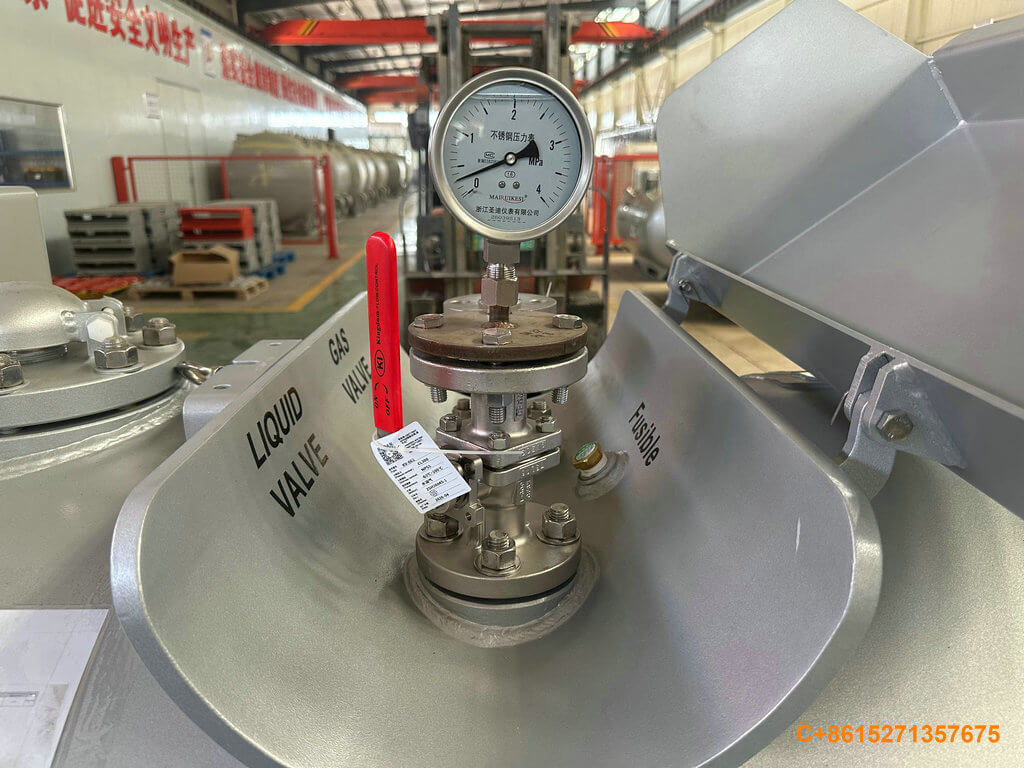

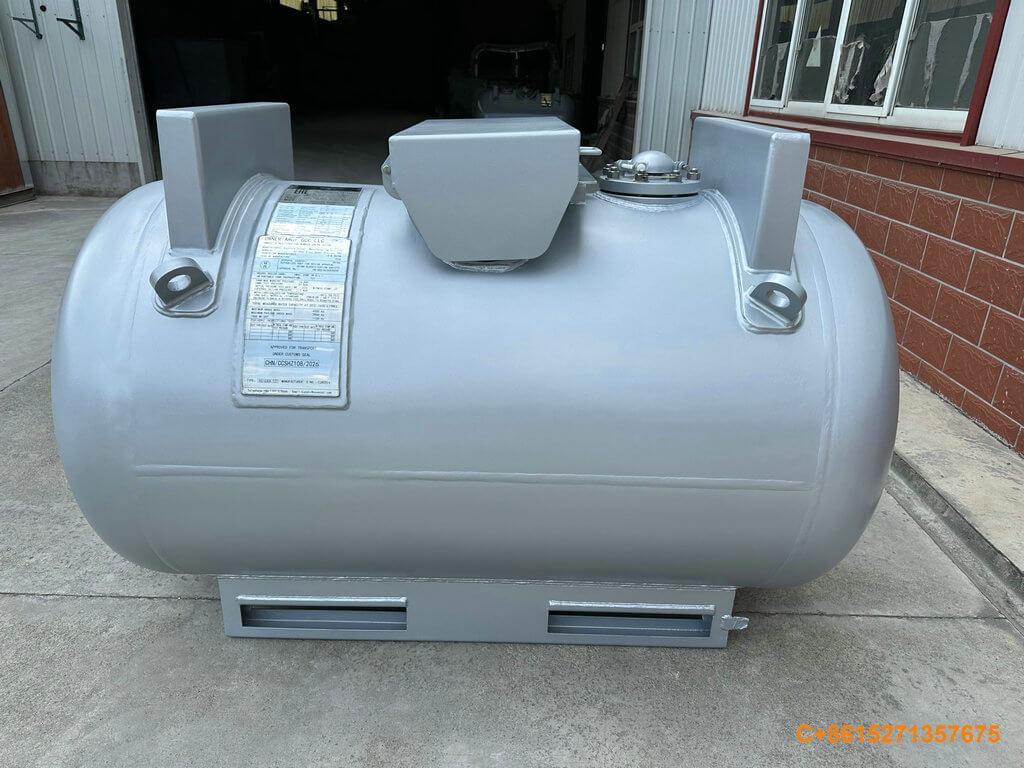

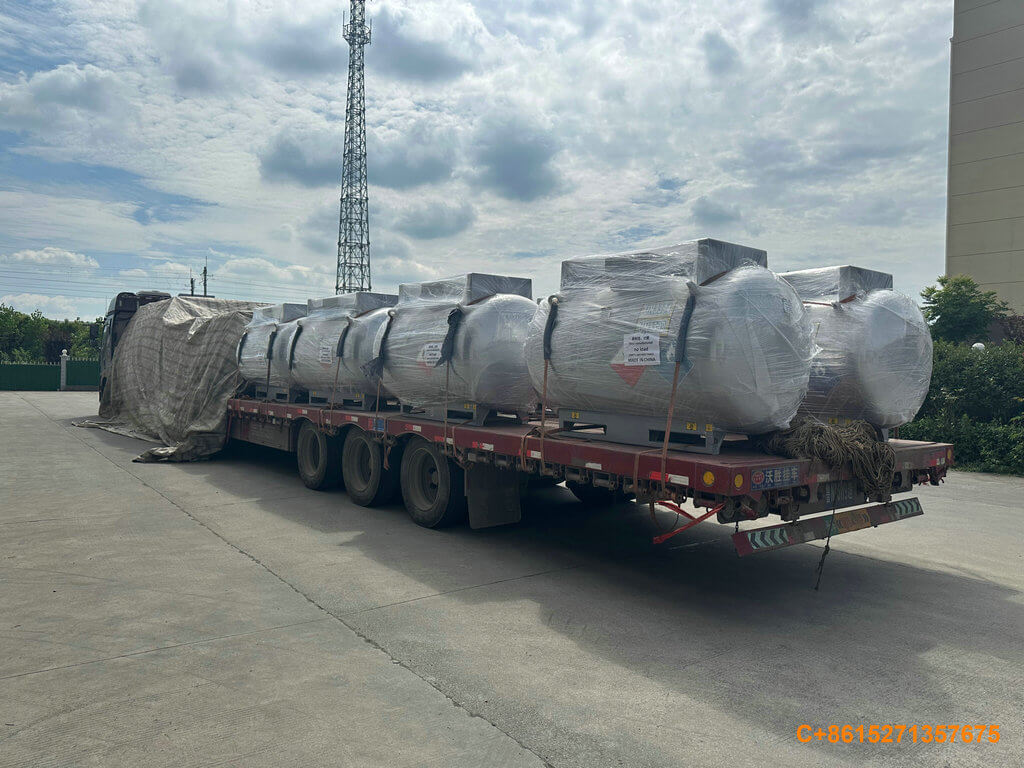

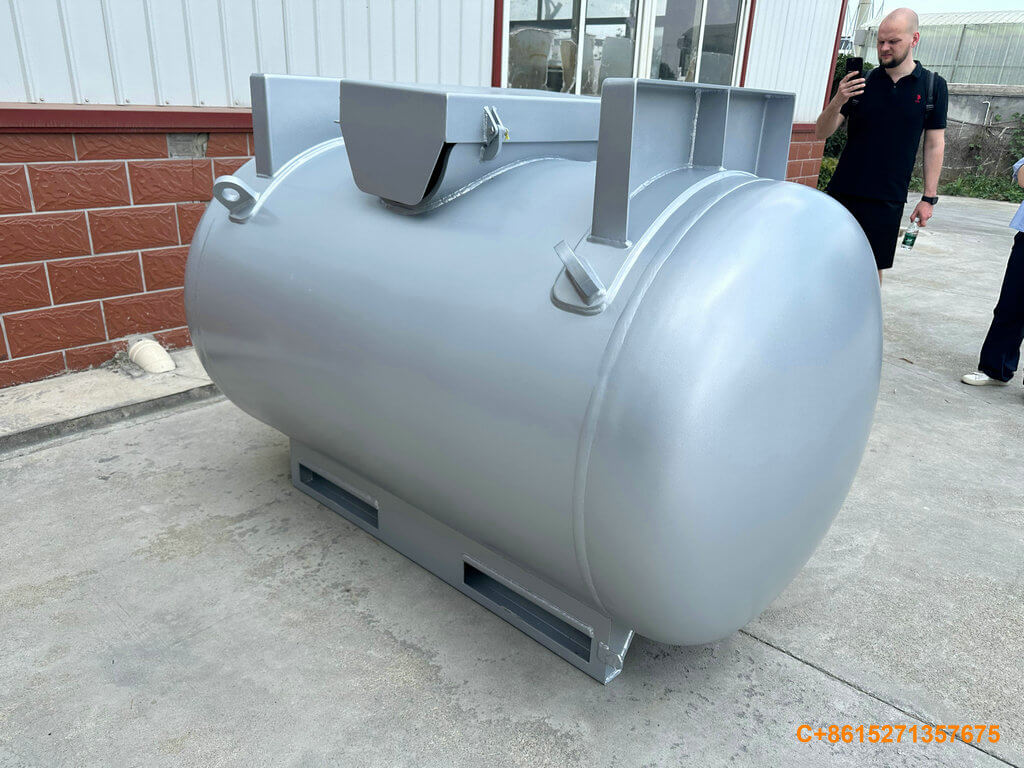

Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (271)Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (21)Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (24)Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (19)Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (84)Metal Alky TEAL C430 C480 T21 UN Portable Tank Catalyst Cylinder (98)

Exported by Hubei Dong Runze Special Vehicle Equipment subcompany Keystone Vessel (Wuhan) Co.,Ltd

 UN T21 Portable Tank Container 1880L Cylinder For  TEAL Metal Alkyls UN3394 UN3399  to USA

Adr/Rid Organometallic Substance, Liquid, Water- Reactive

C-430 Saddle Type Portable Tank , tank capacity 1630L
C-480 Saddle Type Portable Tank, tank capacity 1880L

C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L

T21 UN Portable tank

T21 ISOTANK

 Adr/Rid Organometallic Substance, Liquid, Water- Reactive
