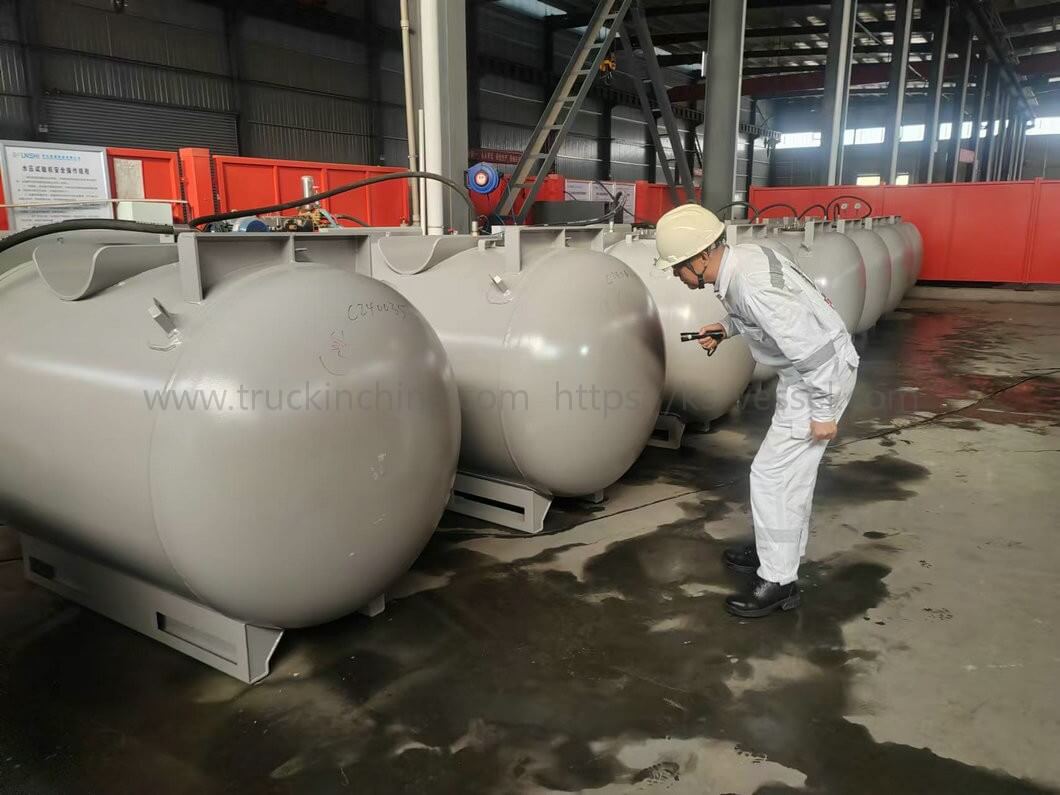

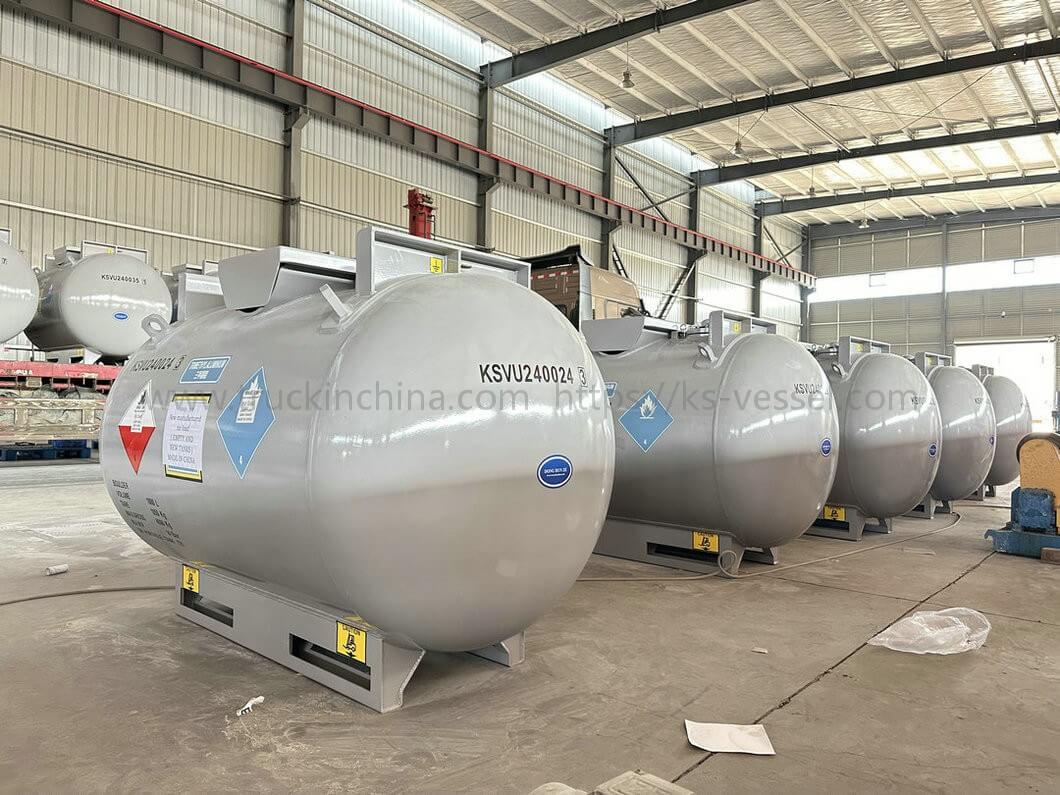

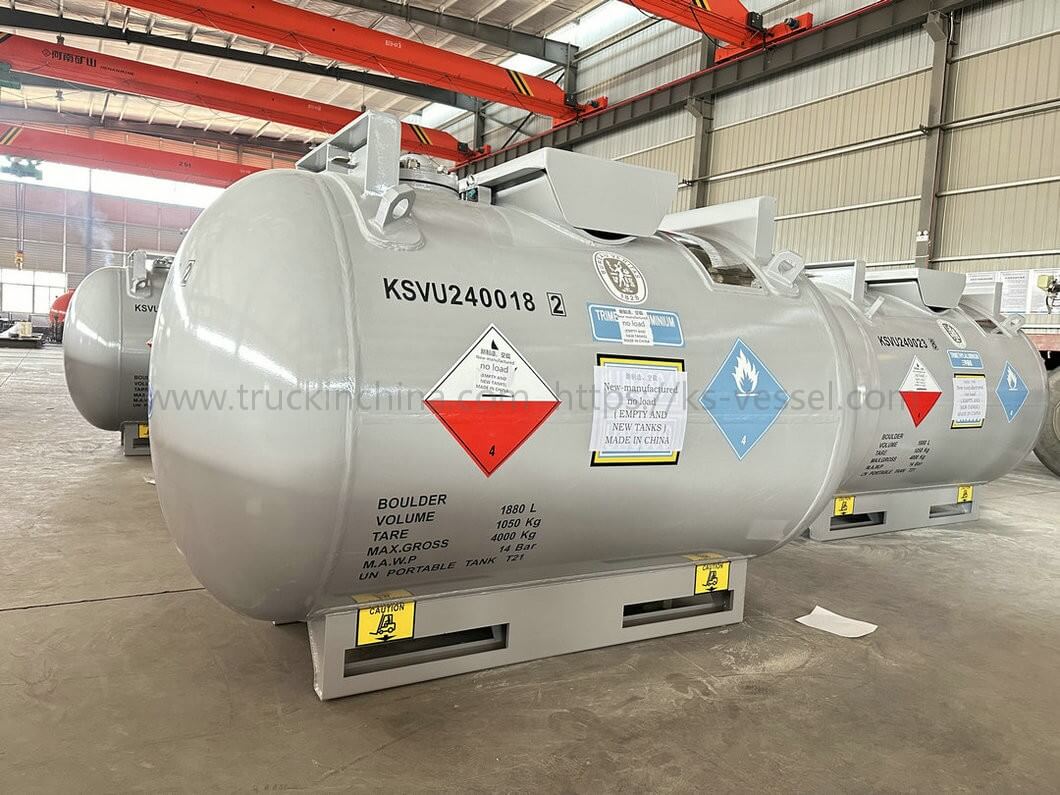

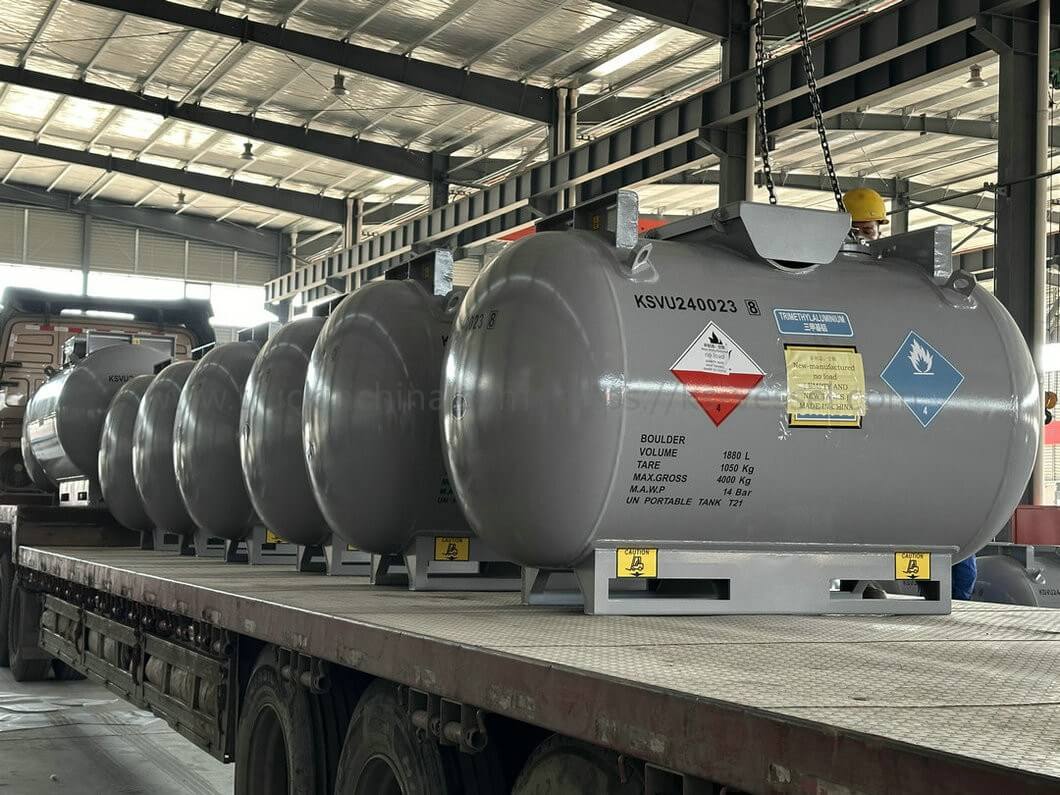

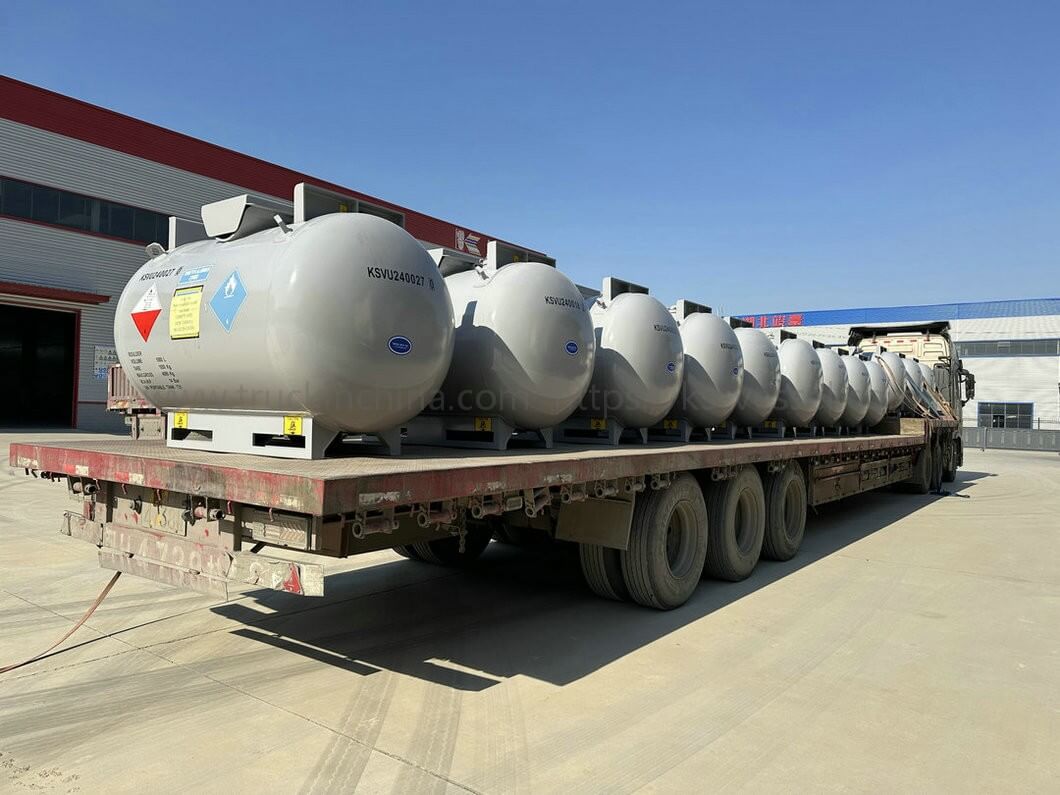

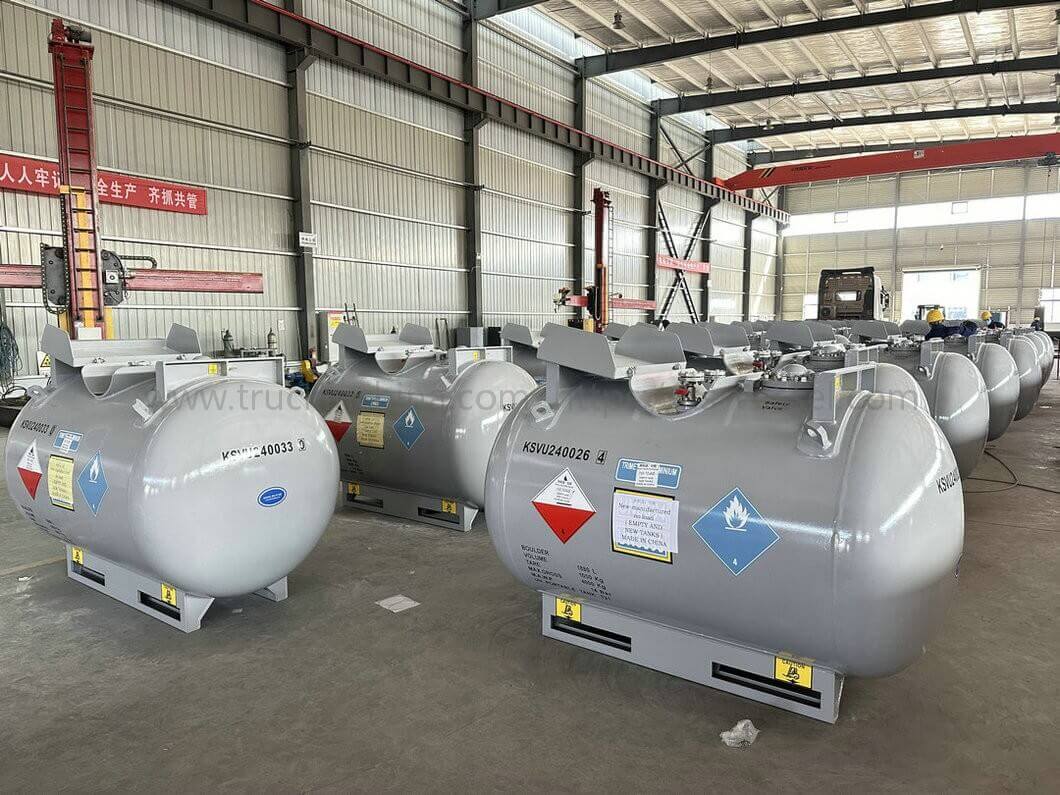

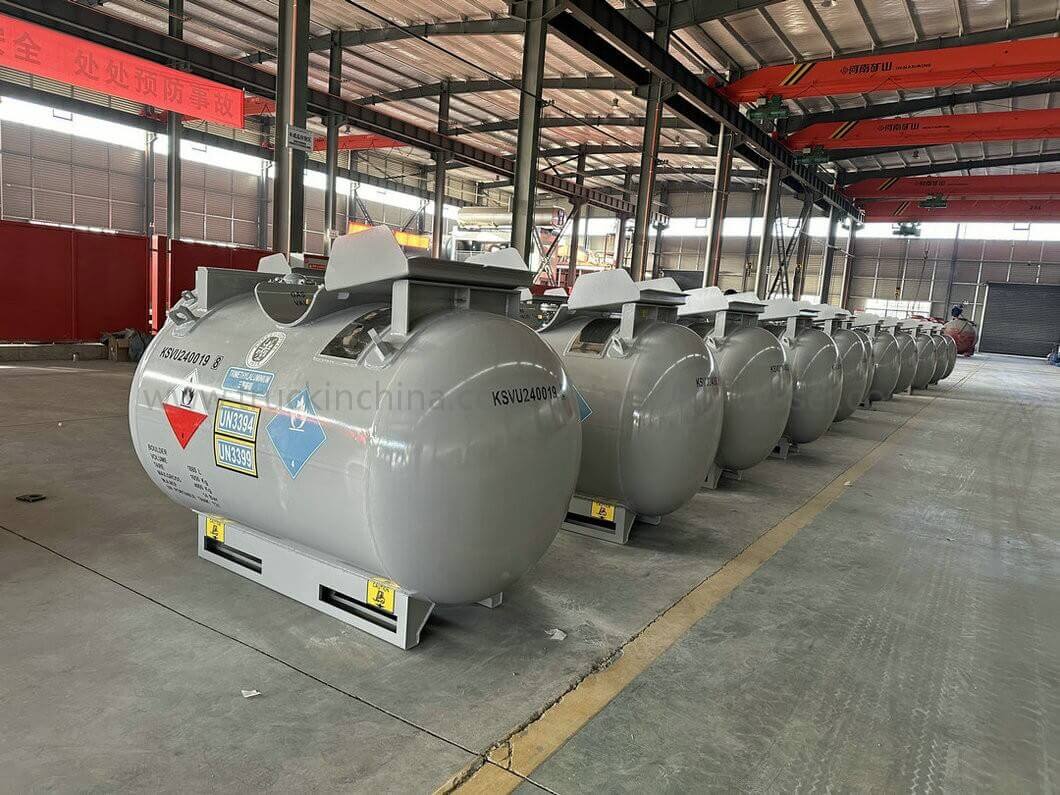

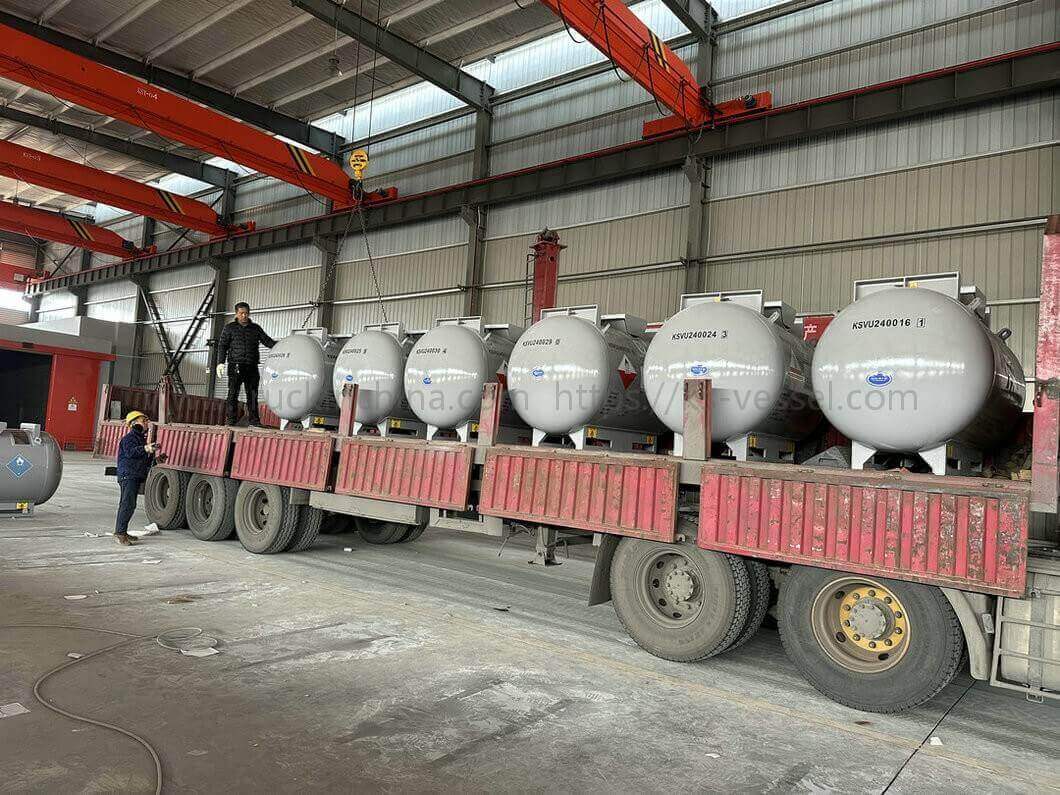

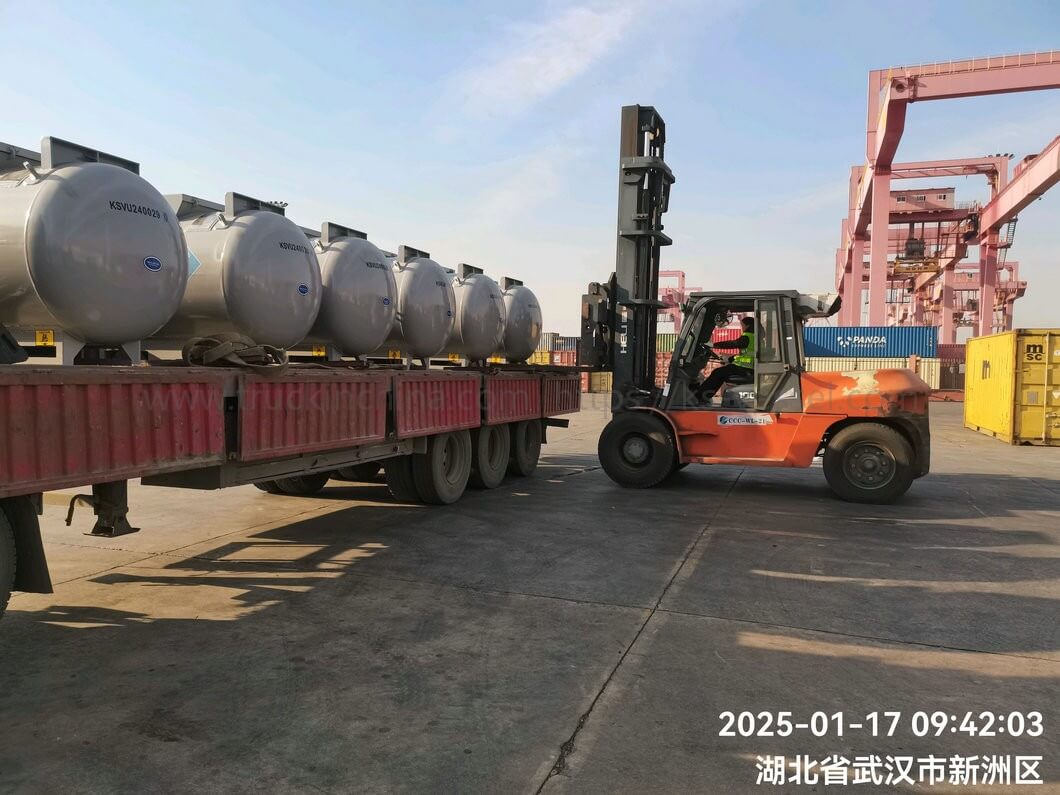

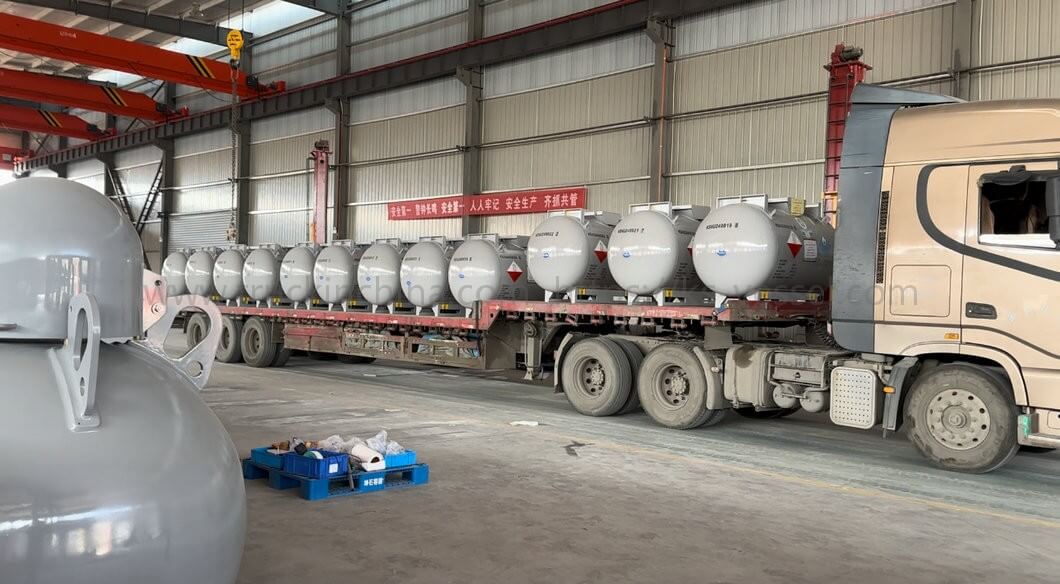

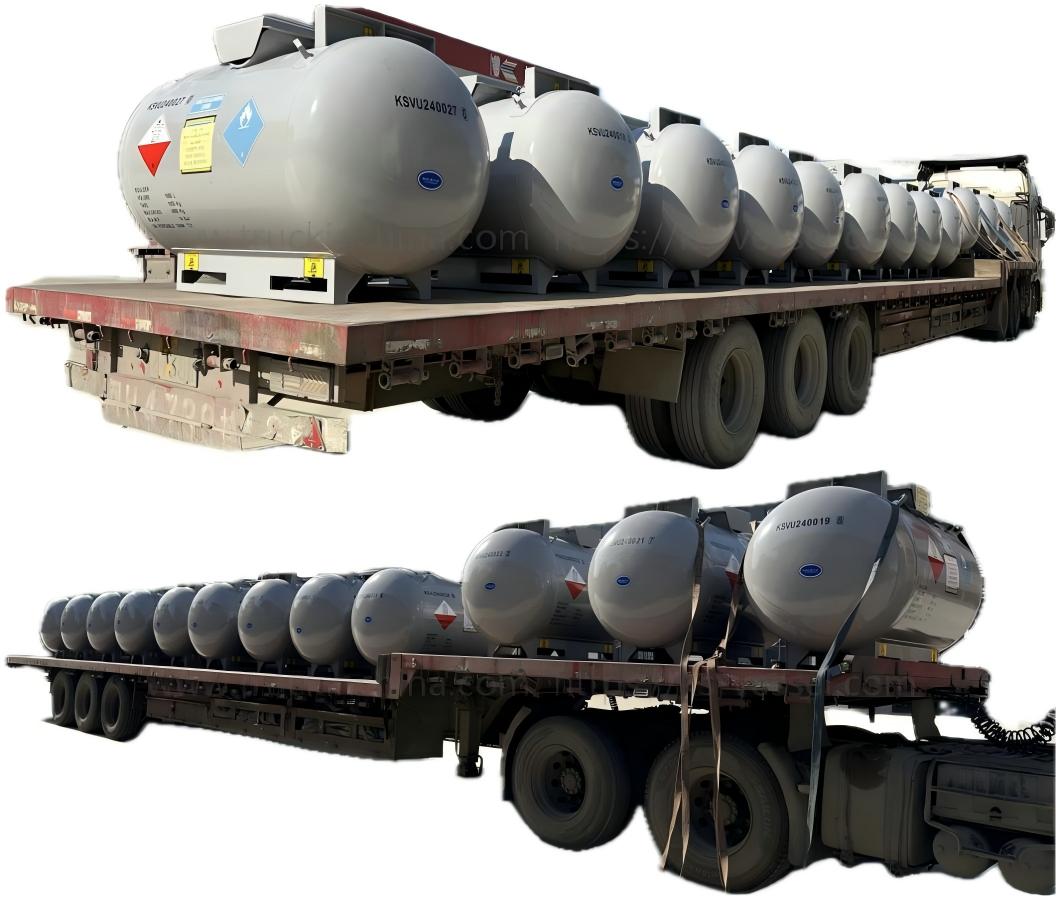

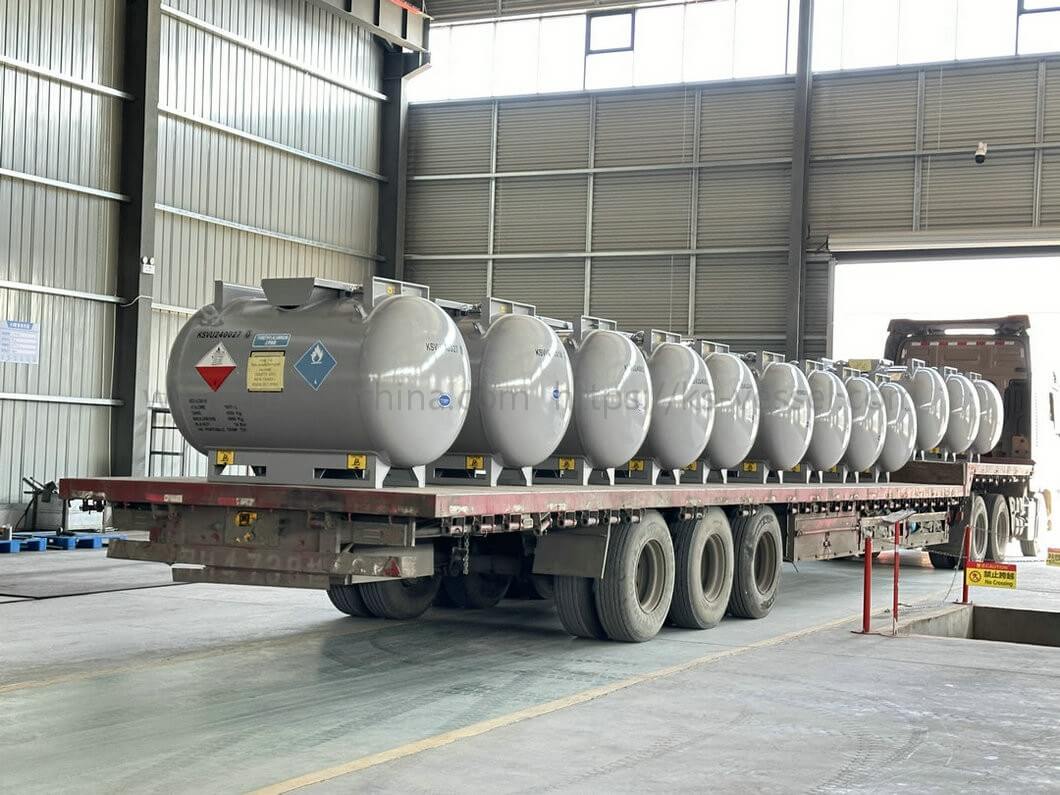

20PCS Metal Alky TEAL C480 T21 UN Portable Tank Cylinders To USA
Views: 2029 Author: Tom Publish Time: 2025-01-19 Origin: Dong Runze
20PCS Metal Alky TEAL C480 T21 UN Portable Tank Cylinders To USA

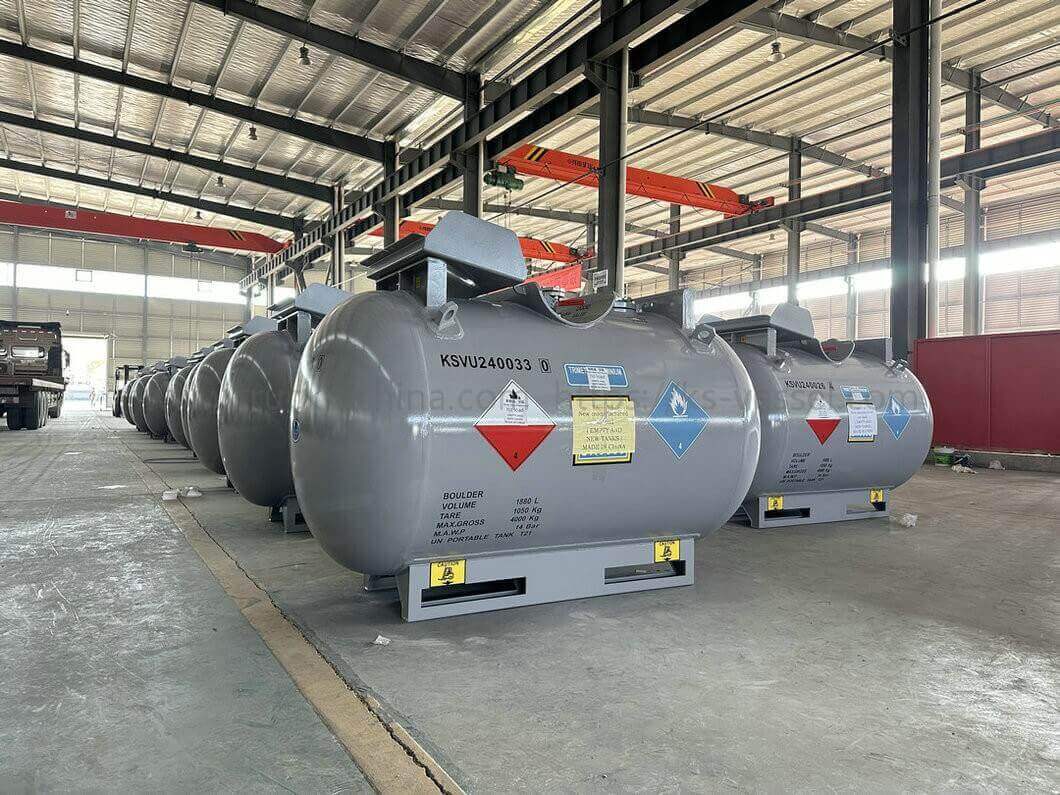

20Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA
with 30pcs Spare PSV RELIEF VALVES SF/A412F-25P(3B) Manufacturer (SHENYANG XINGUANG VALVE ）
Max. gross mass : 4000 kg
Tare : 1050 kg
Payload : 2950 kg
KSVU240016 -KSVU240035
Marks | Description of goods | Quantity | N.W/G.W | DIMENSIONS (LxWxH)(cm) |
N/M | RELIEF VALVES SF/A412F-25P(3B) | 30 | 180KGS /220KGS | 1 package 53x63x48CM ≤ 0.5 CBM |
C480 CYLINDER T21 PORTABLE TANK (EMPTY AND NEW TANKS) | 20 | 21000KGS /21000KGS | 2128x114.x1388mmX20 67.82CBM |
Country of origin: China 2X 40HQ / 21220KGS 68.32CBM
| BVCT: BVCT2470696/S | Report N° : CN-2025-RZH-00001 - CN-2025-RZH-00020 | ||||
| Manufacturer: Keystone Vessel Manufacturing Co., Ltd. Country : CHINA | |||||
| Max. gross mass: 4000 kg | [ Tare: 1050 kg | Payload: 2950 kg | |||
| Owner : Boulder Scientffic Company | Operator : | ||||
| Portable Tank Instruction : T21 | [ ADR/RID Tank Code: | Speciar Provisions: TP2 TP7 TP36 TP41 | |||
Model : KS1 880-T21 Serial N° : : C240016~C240035 ISO size/Type code : NA Type: UN Portable Tank Prototype Ref : BVCT2370646/S Dimensions : 2128x1148x1388 mm | |||||
| [ SUBSTANCES SUITABLE FOR TRANSPORT: | UN3394+UN3399 | ||||
| [ Nominal capacity : 1880L Measured capacity : 1880L at 20°C Max. allowable working pressure : 14.00 bar Test pressure : 21.00 bar | APPROVALS** IMDG : F/BV/23/194-T21 ADR/RID : F/9151/BV/24 TIR* : GBIC 26839 BV/2023 US-DOT CFR49 : UN Portable Tank | ||||
| CHARACTERISTICS | |||||||||||||||
| GENERAL DRAWING N° DESIGN Design code Design temperature Design pressure External design pressure MATERIALS | KS1880-00 Rev.1 ASME VIII-1 min -40 °C 14.00 bar 1.03 bar | max | 9.87 mm 9.87 mm 2 202412051 | 65 °C None | Setting Setting Setting Setting | + 15.40 bar bar bar bar | |||||||||
| Frame Tank Shell Tank Heads TANK External diameter Number of compartments Number of baffles Design thickness | SA-516M Gr.485 + GB/T 713 Q345R SA-516M Gr.485 SA-516M Gr.485 1148.00 mm 1 0 | ||||||||||||||
| Shell Heads | Nominal Nominal | 12.00 mm 12.00 mm | Minimum Minimum | ||||||||||||
| Equivalent thickness in reference steel | |||||||||||||||
| Shell Heads External tank area EQUIPMENT Heater type Heater work pressure Heater test pressure Surface area Outlet Top Bottom SAFETY DEVICES Relief valves Nb Relief valve 1 type Relief valve 2 type Flame resistant gauze Rupture disc 1 type Rupture disc 2 type Mounting Installed vent capacity Minimum vent capacity COATING / INSULATION Internal | 12.15 12.15 8.60 None N/A N/A Yes No 1 SF/A412F-25P-(3B) NO N/A 1.35 Nm³/S 0.788 Nm³/S / | mm mm m² m² Closures Closures Serial N° Serial N° Serial N° Serial N° External kg kg newton kg | |||||||||||||
| PROTOTYPE TESTS R Stacking at Transverse Racking test force Impact test at SRS obtained at R = | 4000 N/A N/A N/A | ||||||||||||||

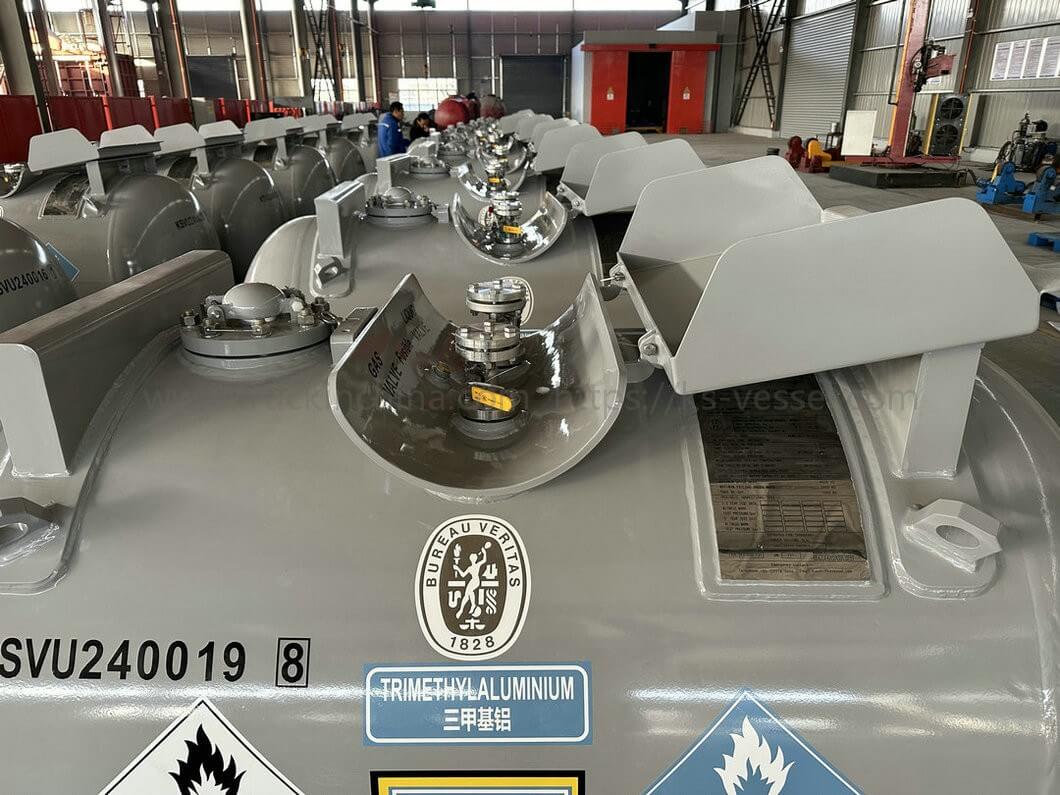

| MARKING Drawing. N° KS1880-20 (BOULDER) Rev.0 & KS1880-24 (BOULDER) Rev.0 | |||||||||||||||
ASME Certification Mark with U; Fusible element setting 177°C
| INSPECTIONS | ||||||

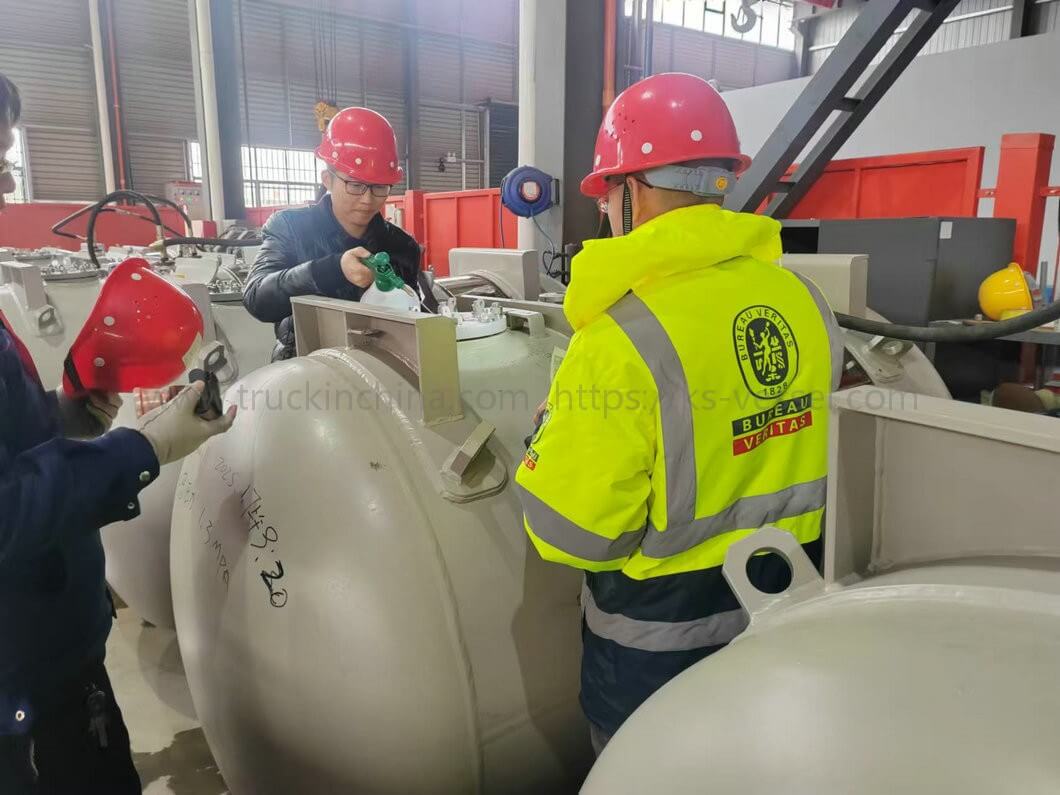

This tank has been manufactured under BUREAU VERITAS survey, in accordance with the following prescriptions : Rules of BUREAU VERITAS - ETTC GM Code IMDG ADR/RID The inspections performed are subject to reports BVCT2470696/S INSPECTIONS PERFORMED Verification of the conformity with the prototype. Visual internal and external inspection of the tank. Visual inspection of the frame. Hydrostatic pressure test of the tank: - At a pressure of 21.00 bar - Performed on : 06-01-2025 Leakproofness test of the tank equipment: - At a pressure of 12.6 bar - Performed on : 07-01-2025 Satisfactory operation of the service equipment. Verification of the markings. Review of radiographic test reports: - Circumferential and longitudinal shell welds: 100% - Welds in head section: 100% REMARKS - Date of next statutory examination: 07-2027 'Certification Mark with the U Designator; Fusible element setting 177°C * Manufacturers responsibility to obtain the approval ** ADR/RID/IMDG/CSC are covered by the accreditation n°3-1352 | ||||||
