TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-480S Metal Alky 1.88 M3 UN Portable Tank T21 US DOT BV

Metal Alky Portable C480 UN T21 Tanks
Adr/Rid Organometallic Substance, Liquid, Water- Reactive
TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-480S T21 Metal Alky Mobile Portable Tank 1880L
Alky Portable Tank Container FOR UN3394 ,UN3399

Price for refer only. Final Price Offer Discount.
Price: $ 7000
Discount Price: $ 6800
Availability:
Quantity:

  • C-480

  • 8609009000

  • Shanghai, China

  • 3000

  • T/T

TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky  C-480S  Metal Alky 1.88 M3 UN Portable Tank T21 US DOT BV

T21 ISOTANK

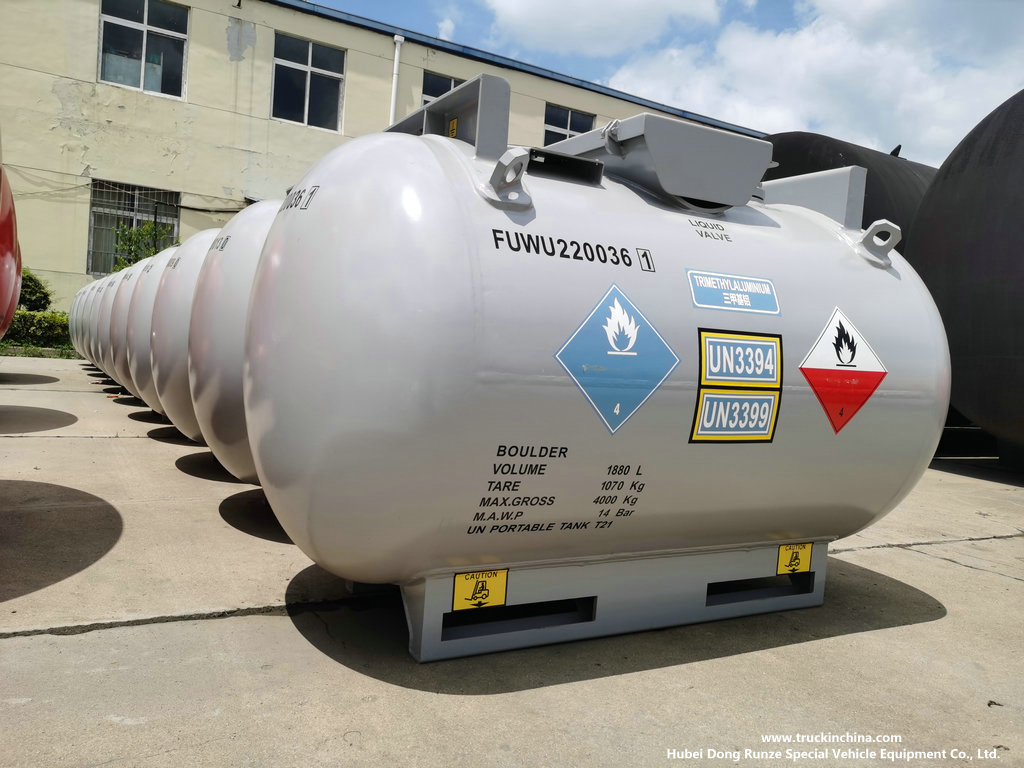

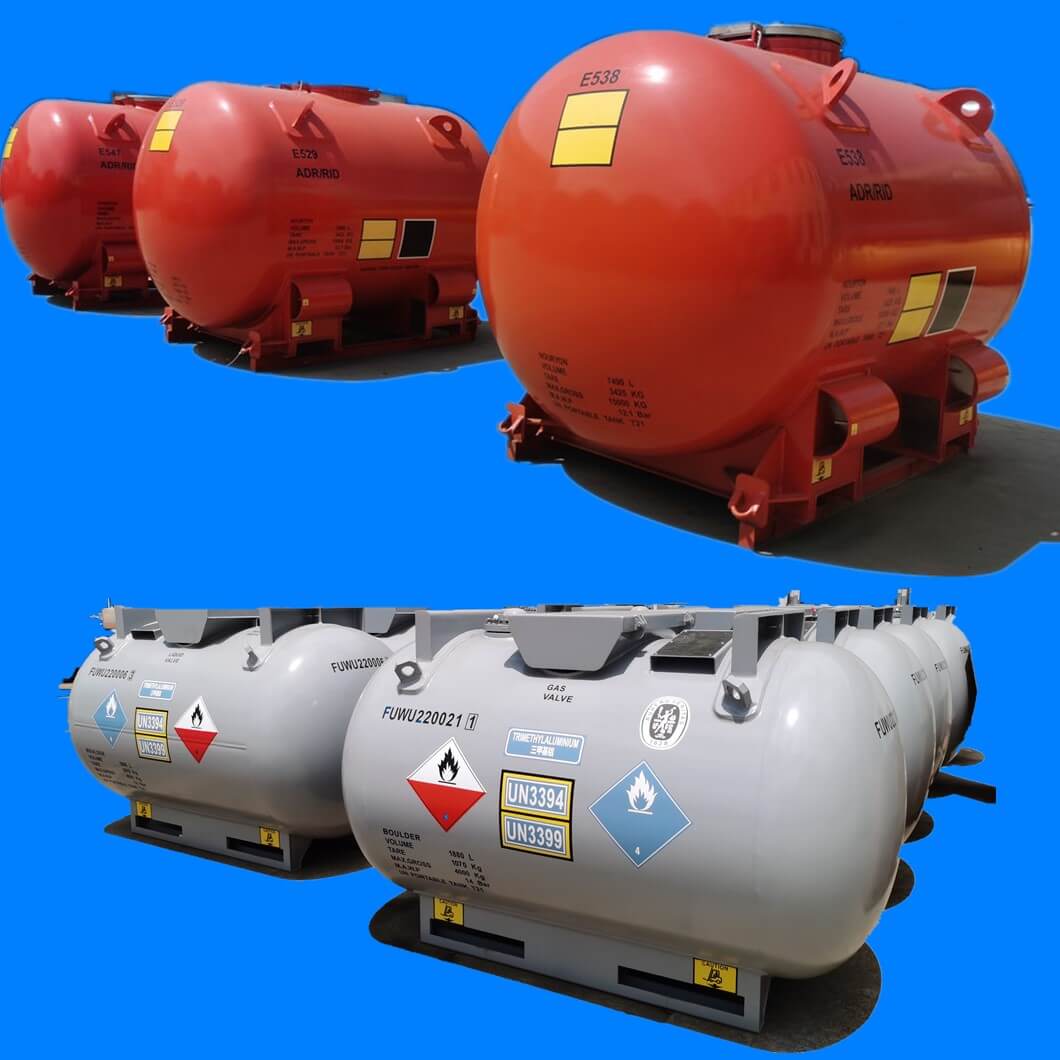

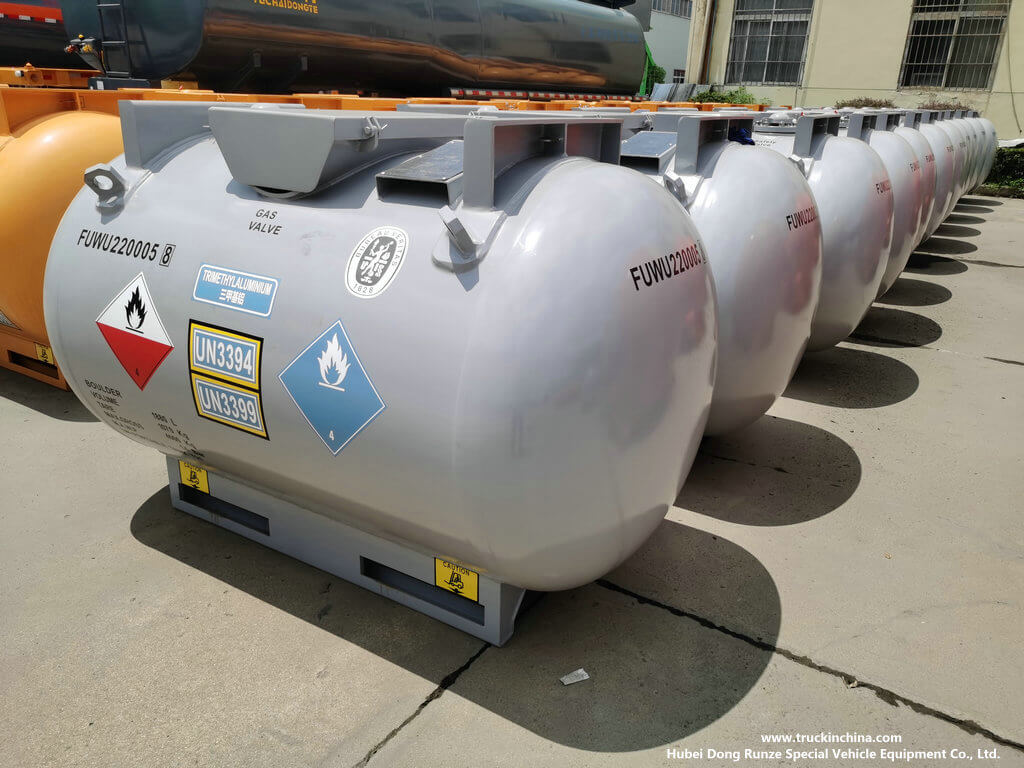

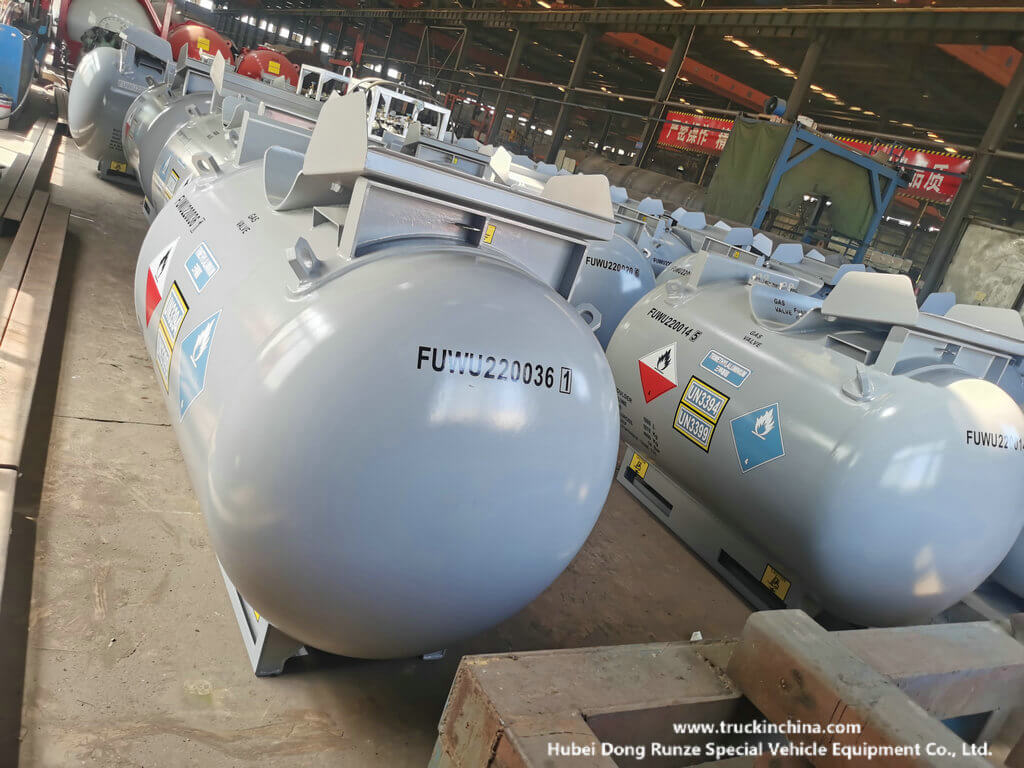

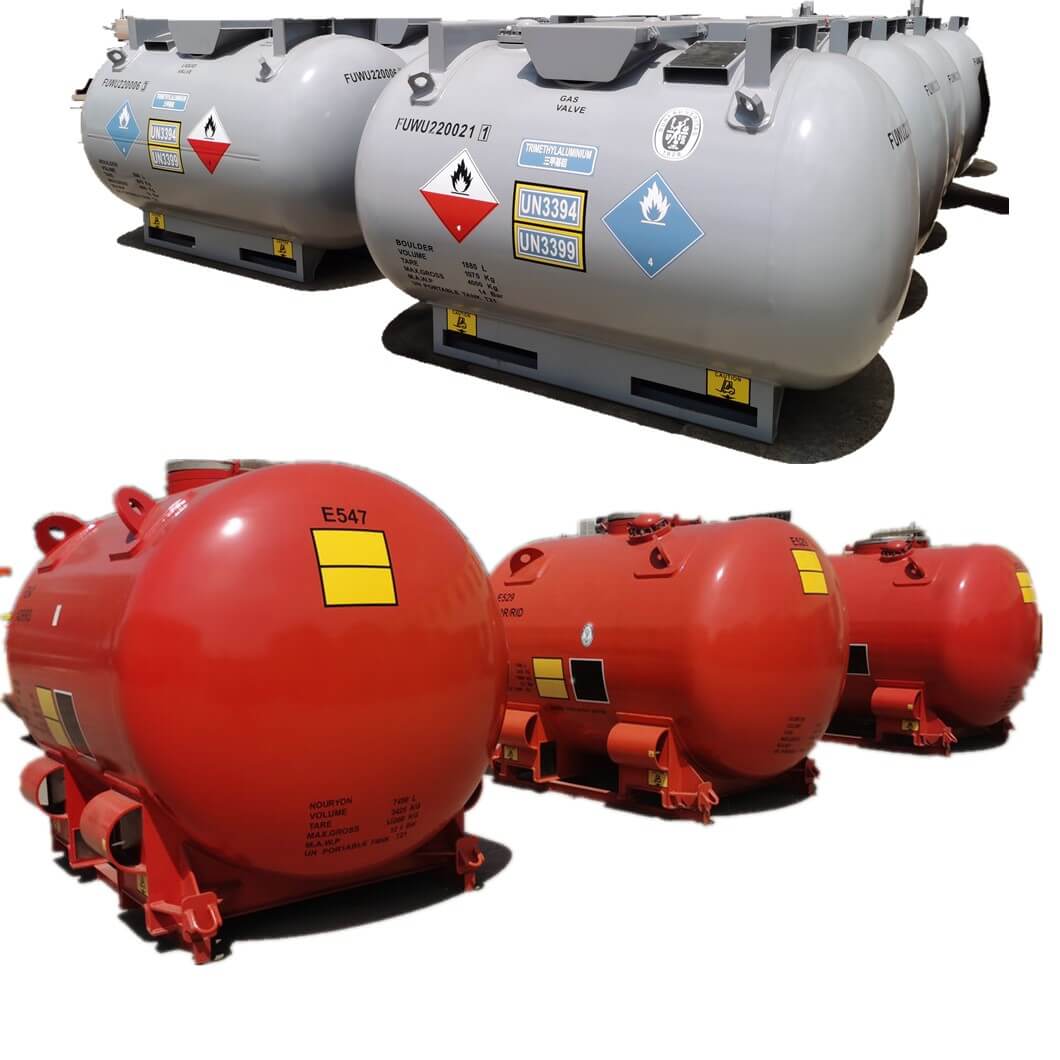

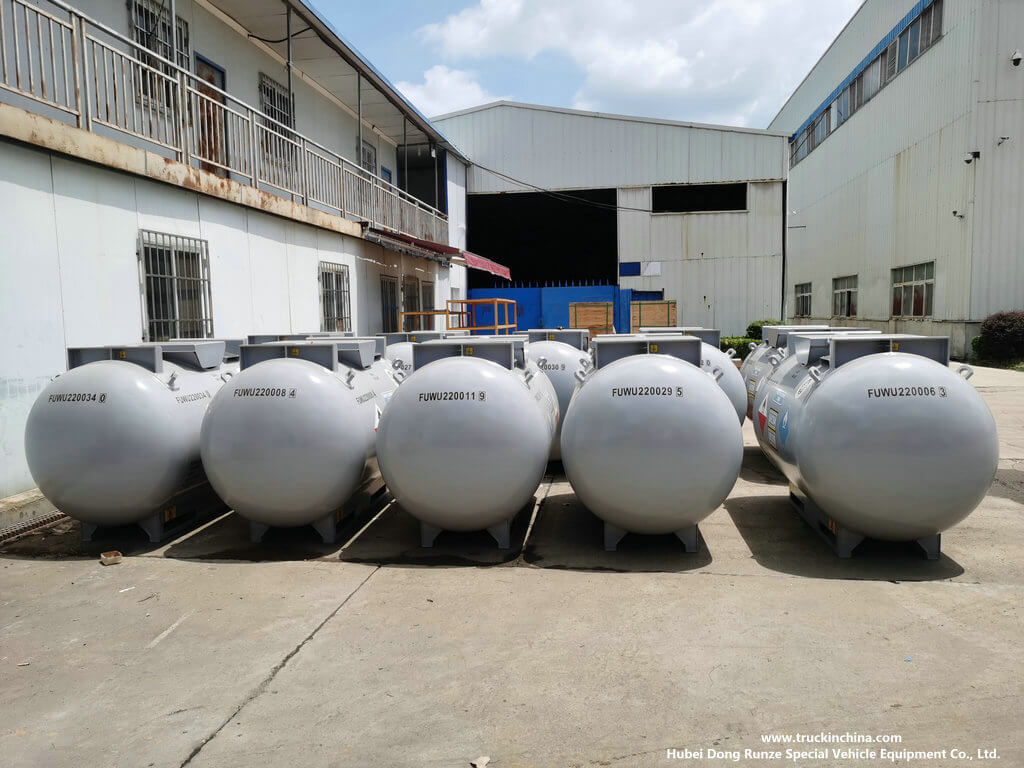

 t21 un portable tanks (3)US DOT UN Portable Tank T21 TEAL container (3)US DOT UN Portable Tank T21 TEAL container (12)US DOT UN Portable Tank T21 (8)US DOT UN Portable Tank T21 TEAL container (4)

Metal Alky Portable C480 UN T21 Tanks

Adr/Rid Organometallic Substance, Liquid, Water- Reactive

TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky  C-480S T21 Metal Alky Mobile Portable Tank 1880L

Alky Portable Tank Container   FOR UN3394 ,UN3399  HS code :8609009000

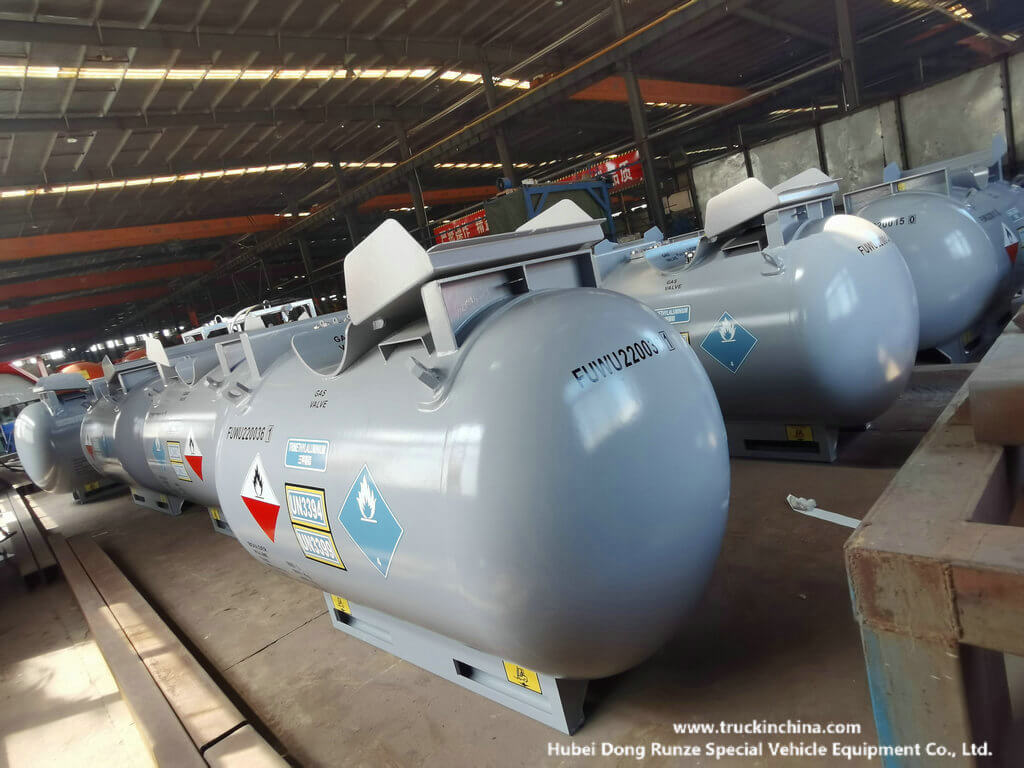

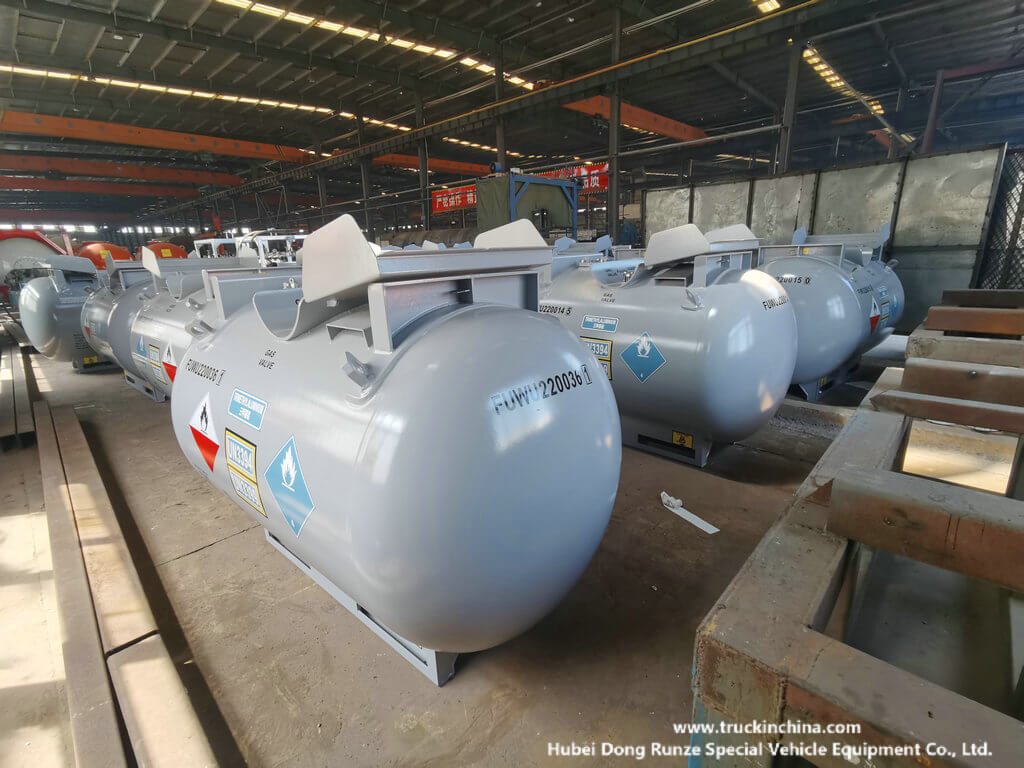

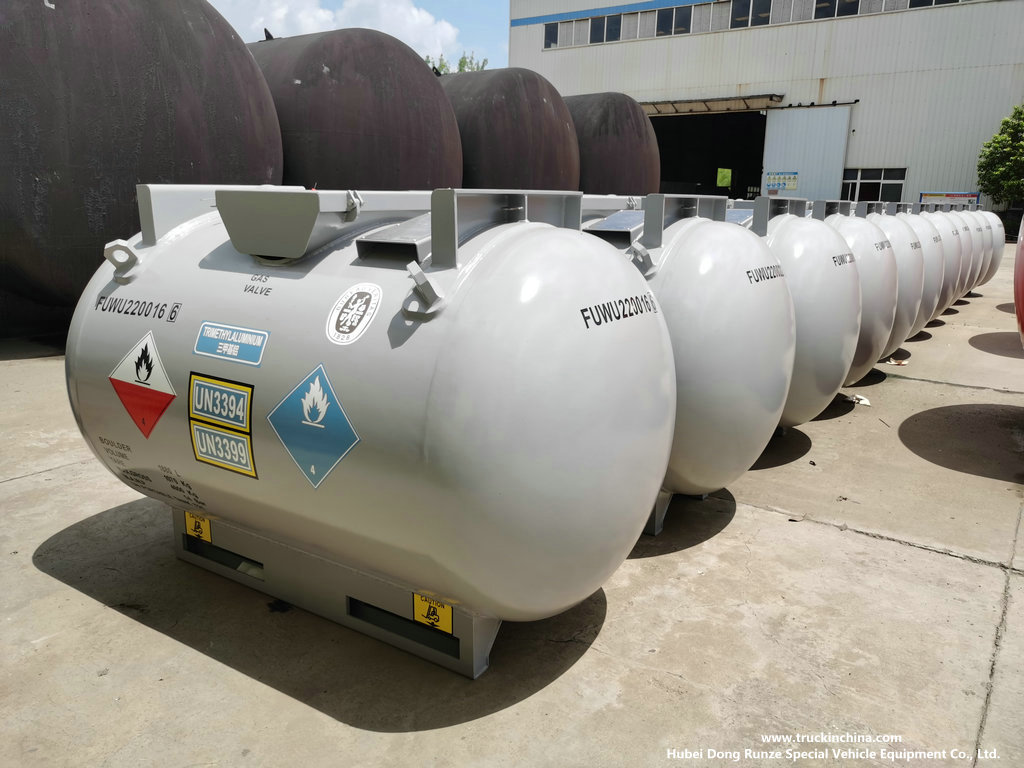

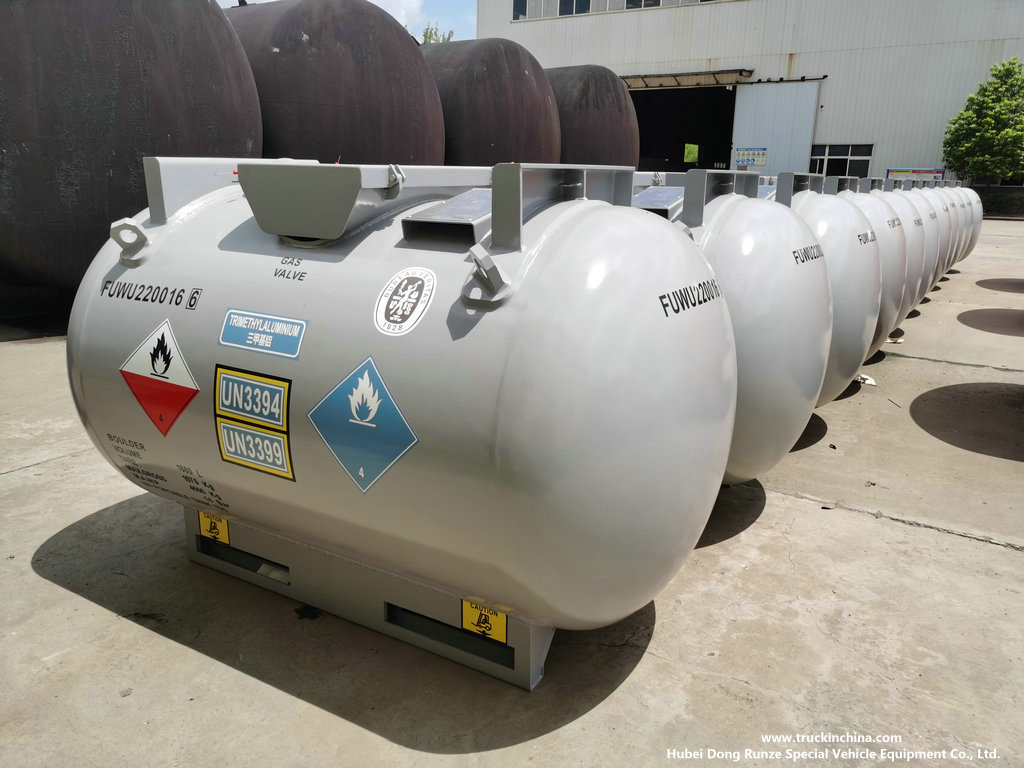

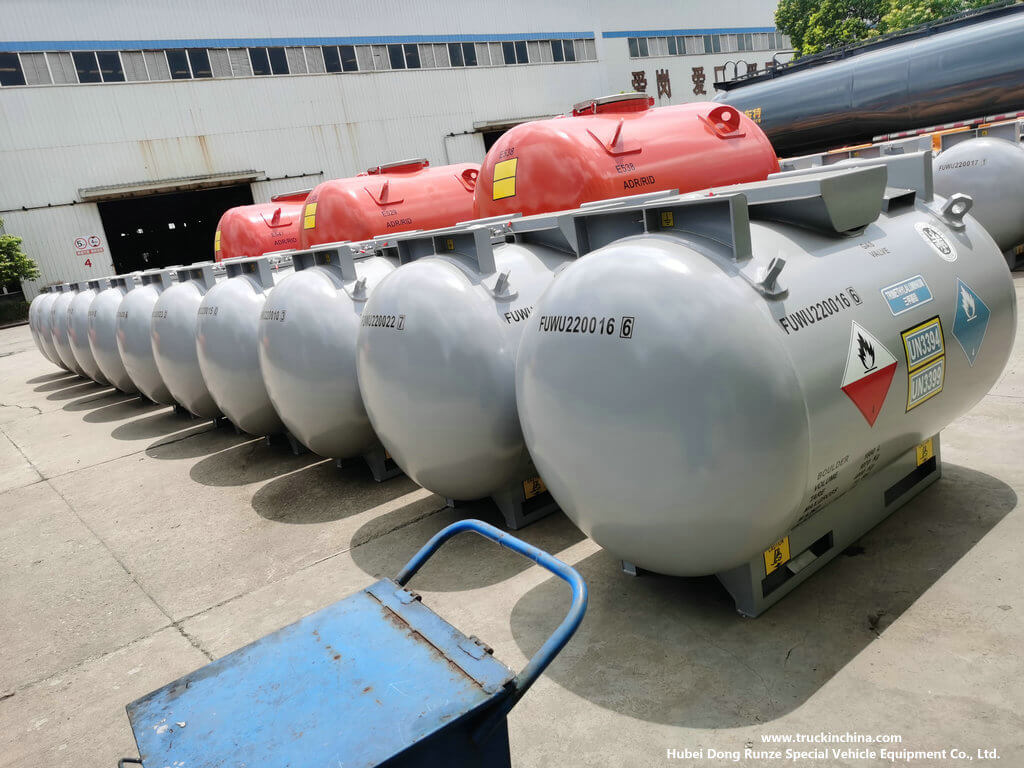

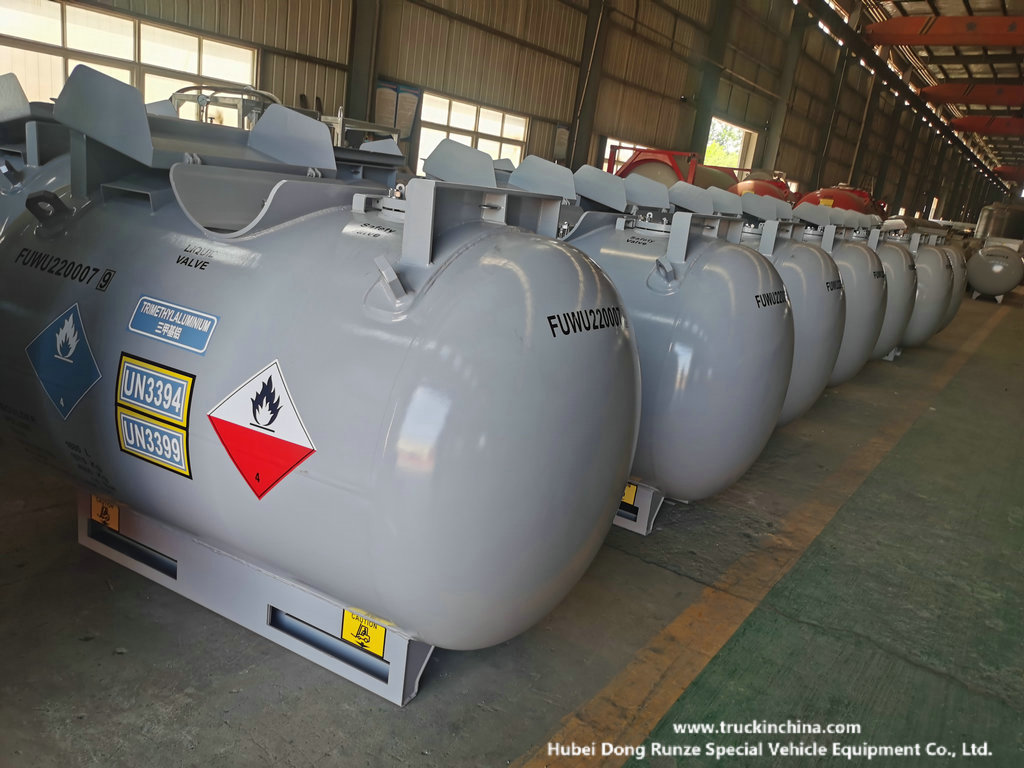

US DOT UN Portable Tank T21 TEAL container (15)US DOT UN Portable Tank T21 (1)US DOT UN Portable Tank T21 (2)US DOT UN Portable Tank T21 (4)US DOT UN Portable Tank T21 TEAL container (2)US DOT UN Portable Tank T21 TEAL container (5)

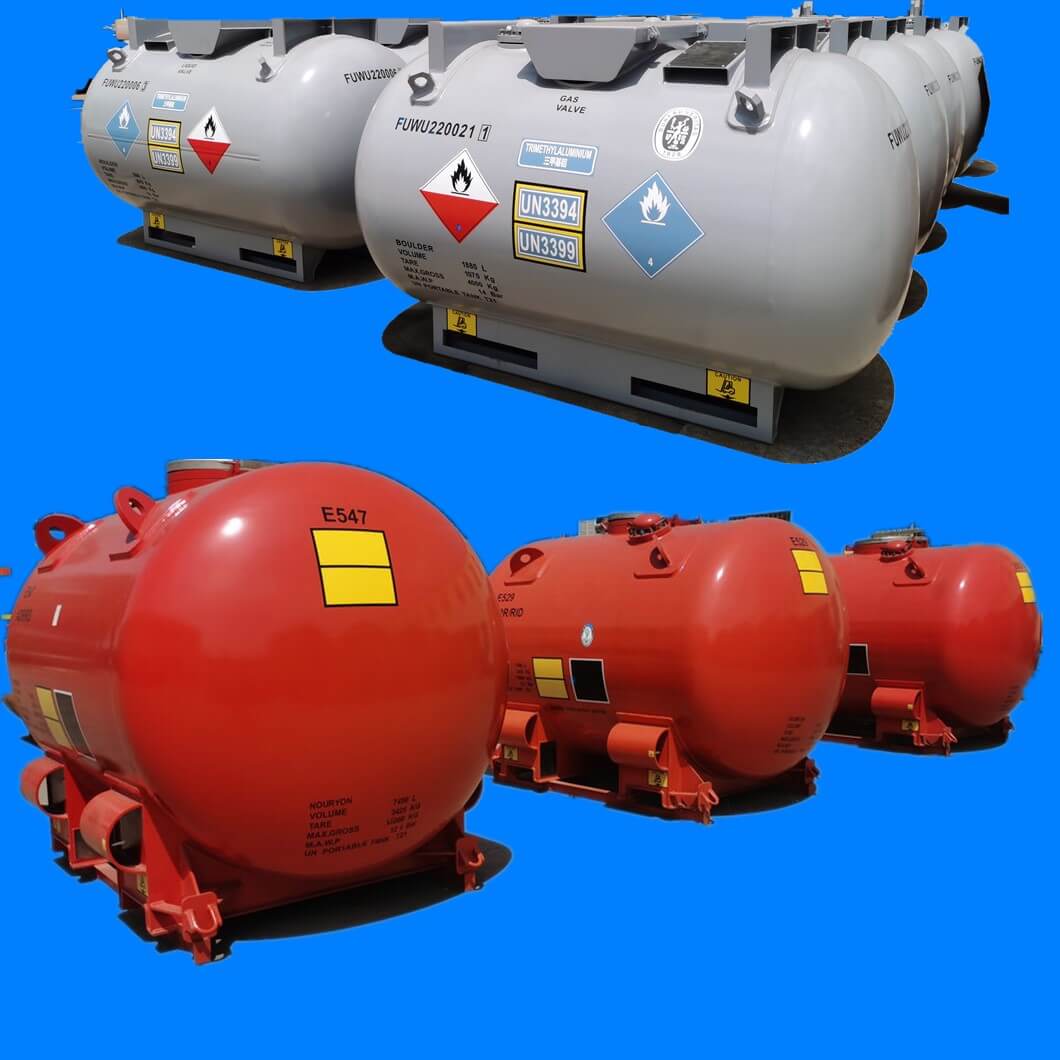

t21 un portable tanks (11)t21 un portable tanks (7)

Triethylaluminum (TEAL) Alky Portable Tank Container

Portable tank Volume (90% full) Dimensions
Length

Diameter

Height
C-250 829 l
(219 gal)
208 cm
(82 in)
81 cm
(32 in)
96.5 cm (38 in)
C-430 dome 1,465 l 208 cm 107 cm 122 cm
type (387 gal) (82 in) (42 in) (48 in)
C-430 saddle 1,465 l 208 cm 107 cm 128 cm
type (387 gal) (82 in) (42 in) (50.5 in)
C-1980 6,745 l /7495
(1782 /1980 gal)
305 cm
(120 in)
190 cm
(74.8 in)
224 cm
(88.2 in)
ISO a 19,200-21,150 l
(5,068-5,584 gal)
606 cm
(239 in)
244 cm
(96 in)
259 cm
(102 in)

T21 TEAL TANK Portable Containers


Chemicals

CAS #

Characteristics

Unit

Specification
Packaging Type




Teal C-1980




97-93-8
Aluminium % > 22.7



C-1980
Container
Tri-ethylaluminium % > 94
Tri-n-butylaluminium % < 6
Tri-iso-butylaluminium % < 0.1
Hydride< 0.1% % < 0.1
Appearance
Colourless liquid




Teal Iso Portable Tank




97-93-8
Aluminium % > 22.7



20 m3
Isocontainer
Tri-ethylaluminium % > 94
Tri-n-butylaluminium % < 6
Tri-iso-butylaluminium % < 0.1
Hydride< 0.1% % < 0.1
Appearance
Colourless liquid






Teal C-430 (Saddle Type)






97-93-8
Aluminium % > 22.7




C-430
Saddle Type Container
Tri-ethylaluminium % > 94
Tri-n-butylaluminium % < 6
Tri-iso-butylaluminium % < 0.1
Hydride< 0.1% % < 0.1


Appearance



Colourless liquid

For Triethyl aluminium
Abbreviation: TEAL
Molecular formula: (C2H5)3Al
Molecular weight: 114.2
Density: 0.835g/cm3(at25ºC)
Boiling point: 186.6ºC(760mmHg)
CAS No.: 97-93-8
Use: Catalyst in polyolefin industry, intermediate in organic compound manufacture.
Technical index: No.Test itemsIndex1AppearanceTransparent liquid2Aluminium (Wt%)≥23.03Triethyl aluminium (Wt%)≥95.04Tributylaluminium (Wt%)≤5.05Aluminum hydride (Wt%)≤0.05
Packing: 1200kg-1400kg/tank
Note: Customize solutions in various

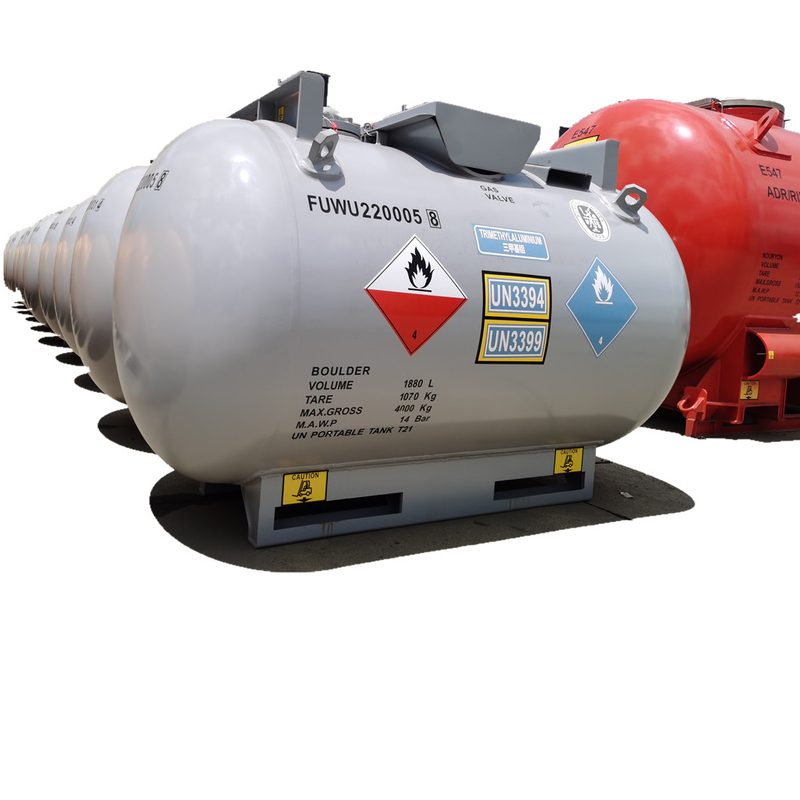

Name: Portable tank  Teal Cylinder

Model:  T21 UN PORTABLE TANK T21

Dielectric triethyl aluminum UN3394+UN3399 Triethyl aluminium

Volume:  1880 L

External dimensions mm : 2128*1148*1388

16. Tank size mm :  1148*2128

Design pressure: 14  Bar

Test pressure:  21 Bar

Design temperature range :- 40 ºC ~ 65 ºC

Tank material :SA516

Nominal shell thickness:  12 mm

Nominal head thickness:  14 mm

Container net weight: 1070 KG

Maximum working weight:  4000 KG


Attached:  "safety valve *1,

Gas phase valve : DN20 *1  PN40

Liquid valve :  DN15*1 PN40"

Design/manufacturing standards : IMDG CODE 2016,ADR/RID,49CFR,TIR,

USDOT, T21 UN Portable Tank, ASME BPVC Sec. Div. 1-2017"

Third party inspection : BV ASME TS

The pictures are for your reference only.
UN T21 TEAL portable tank C430 C480 (66)
