4 Sets 13M Low Bed Trailer 60- 80 Tons With 4pcs Container Locks 30T Winch HWE300 to NIGERIA

Views: 202614     Author: Dong Runze Special Vehicle     Publish Time: 2026-07-02      Origin: Dong Runze Special Vehicle

4 Sets 13M Low Bed Trailer 60- 80 Tons With 4pcs Container Locks 30T Winch HWE300 to NIGERIA

 4 Sets 13M Low Bed Trailer  60- 80 Tons With 4pcs Container Locks 30T Winch HWE300 to NIGERIA

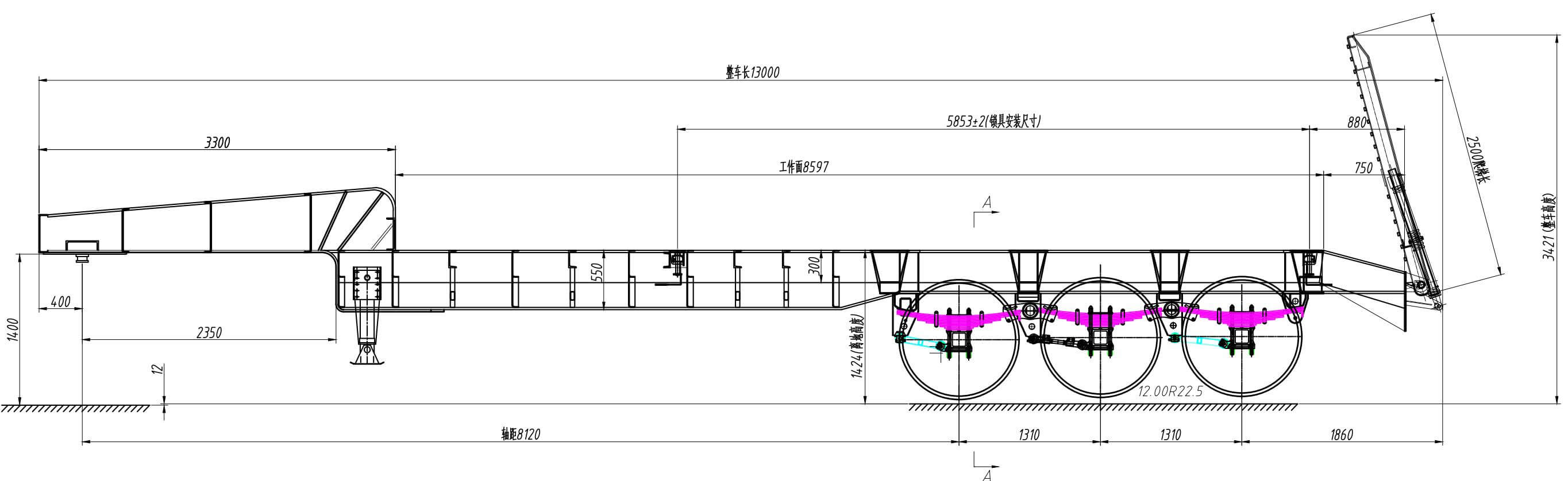

DRZ9800TDP 80 TONS with 30T towing winch (1)

Technical Specifications

1. Axle: 3 units, 14T BPW brand axles

2. Rim: 9.00 export special rim

3. Tire: 12.00R22.5, 13 pieces CHENGSHAN including one spare tire

4. Suspension: American type mechanical suspension for export

5. Spring leaf: Reinforced 12/12/12 pieces per axle, specification 16X90

6. King pin: 3.5 inch bolt type high-quality domestic king pin

7. Support leg: 28T JOST A300C heavy-duty support leg、Static load capacity: 75 tons

8. Main beam: Height 550mm, upper plate 20mm, bottom plate 20mm, middle plate 12mm, Q345 material; side beam 25# channel steel Q235,reinforcing plates welded between the main beams。Double upper & lower webs on the front gooseneck;

9. Platform: 6mm thick diamond steel plate ;8 mm thick Q345 reinforcing plates applied at rear spliced welding joints.

10. Ladder: Manual Duty Spring ladder

11. Brake system: RE6 relay valve, four double & two single brake chambers

12. Electrical system: 24V voltage, export LED lights, 7-way 7 wire harness receptacle

13. Tool box: 1 set

14. 10sets heavy-duty lashing hooks Ring on each side

15. Container Twist Locks:4pcs Twist Locks for 20ft Container

16. Color: Black / Yellow

HS: 8716399000

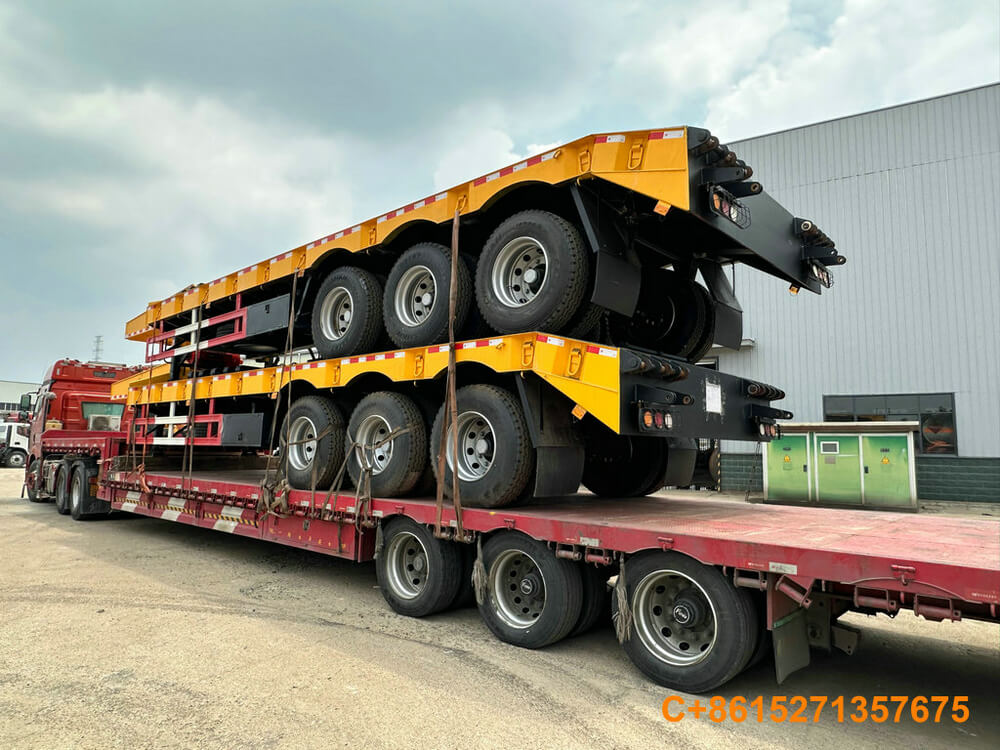

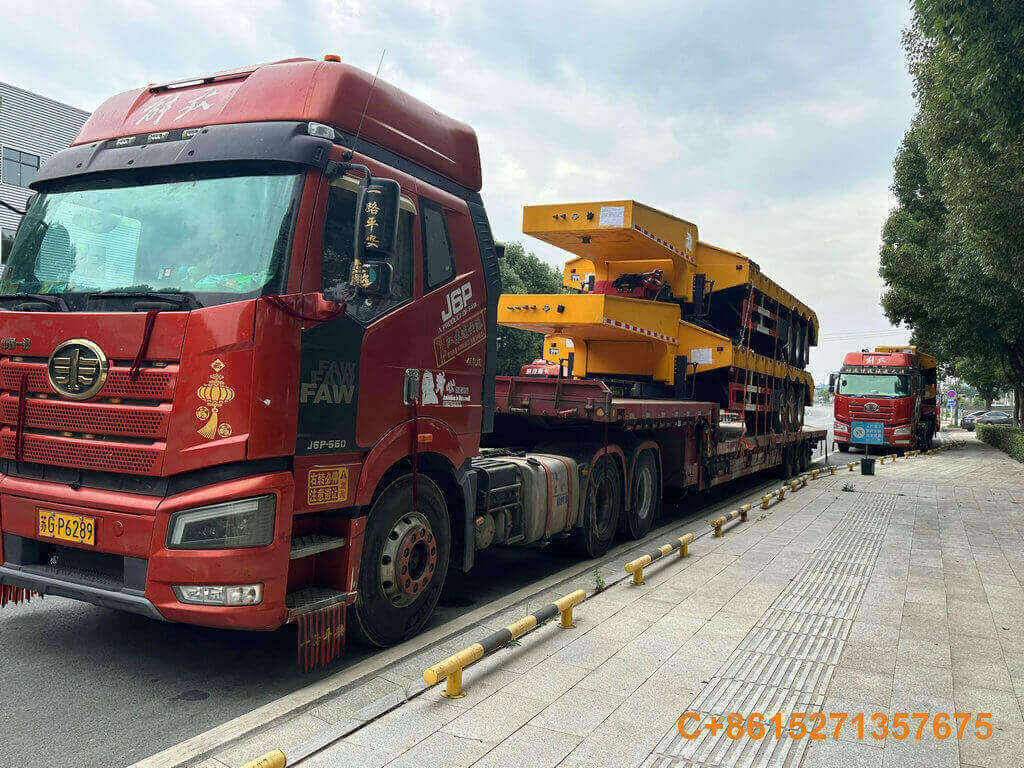

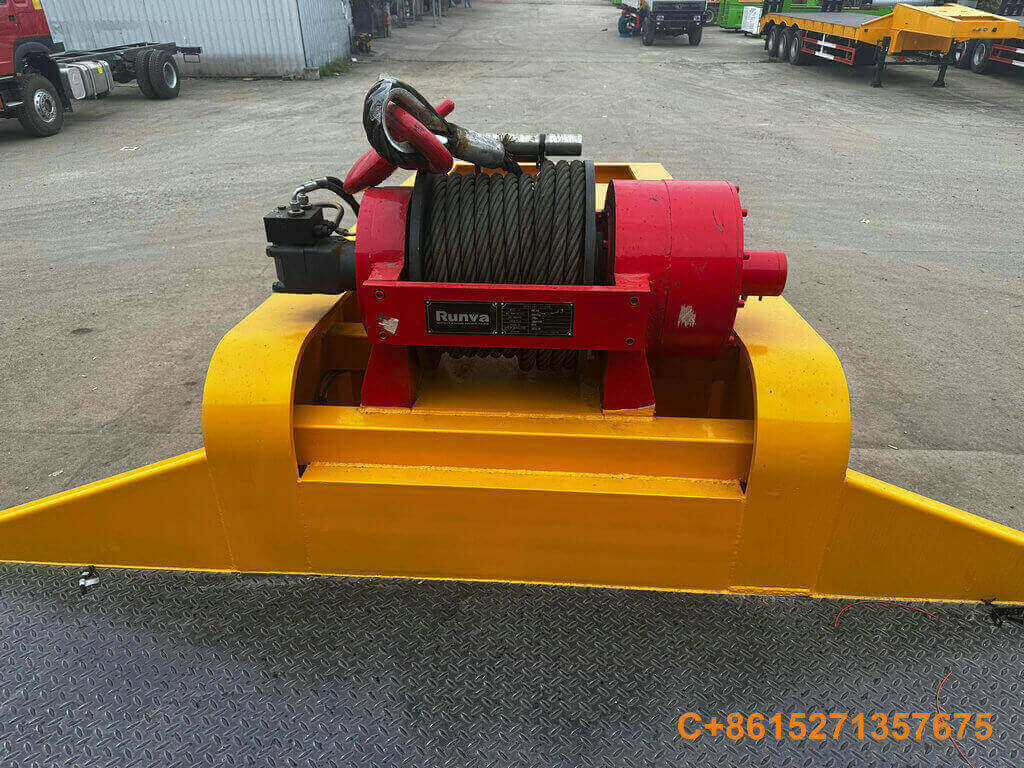

low bed Trailer 60 tons BPW Axles 3m wide (24)low bed Trailer 80 tons BPW Axles 3m widelow bed Trailer 60 tons BPW Axles 3m wide (114) (1) (1) (1) (1) (1)

Winch Model:HWE300 Towing 30T


Winch Model

Towing 15 T

Towing 20T

Towing 30T

HWE150

HWE200

HWE300

Rated tensile force

15000Kgs   (15T)

20000Kgs   (20T)

30000Kgs   (20T-30T)

wire rope capacity

55m

50m

50m

Rope capacity

Φ22*40m

Φ26*40m

Φ32*40m

Specification of steel wire rope

5

5

5

Number of layers of steel wire rope

17Mpa

17Mpa

16Mpa

Rated pressure

120L/min

120L/min

120L/min

Rated flow rate

250ml/r

315ml/r

500ml/r

Motor displacement

40.6:1

36:01:00

53:01:00

Reduction ratio

522mm*180mm*280mm    8-M20

532mm*160mm*280mm    8-M20

610mm*170mm*310mm    8-M27

Installation hole spacing

1030mm*500mm*415mm

1158mm*512mm*420mm

1250mm*640mm*540mm

Boundary dimension mm

300Kg

380Kg

700Kg

(length * width * height)

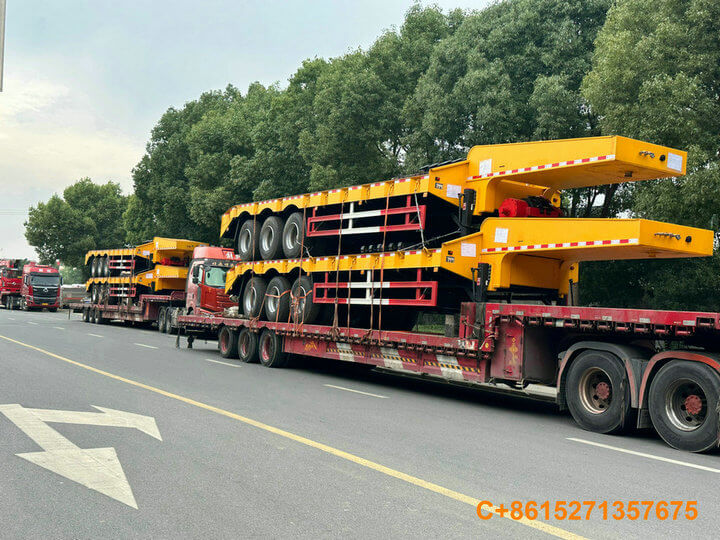

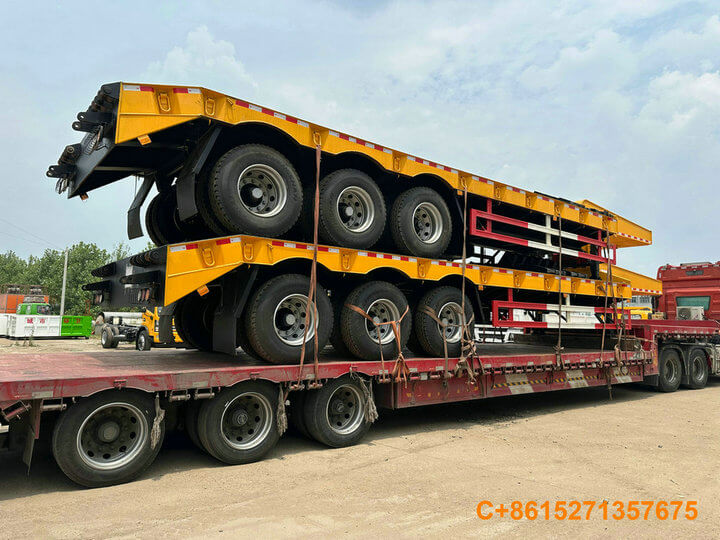

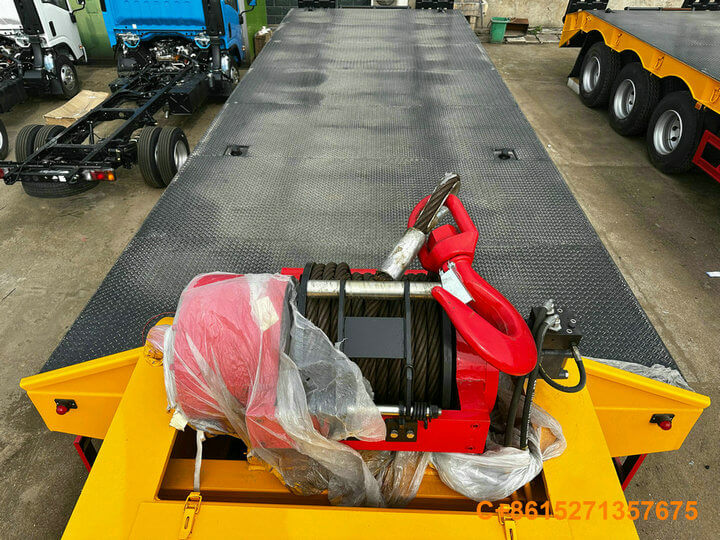

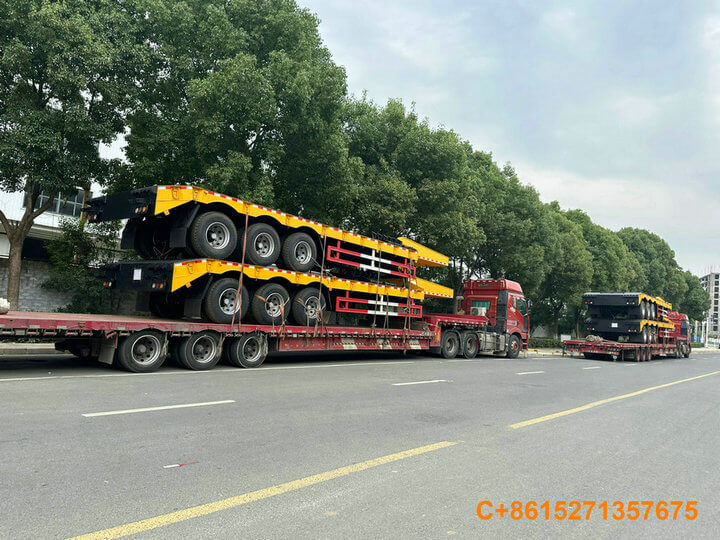

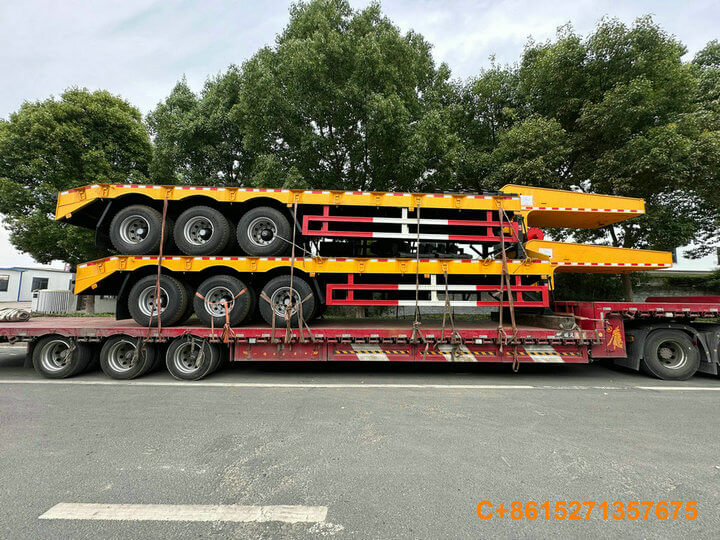

low bed Trailer 60 tons BPW Axles 3m wide (20)low bed Trailer 60 tons BPW Axles 3m wide (21)low bed Trailer 60 tons BPW Axles 3m wide (6)low bed Trailer 60 tons BPW Axles 3m wide (57)low bed Trailer 60 tons BPW Axles 3m wide (25)(1)
