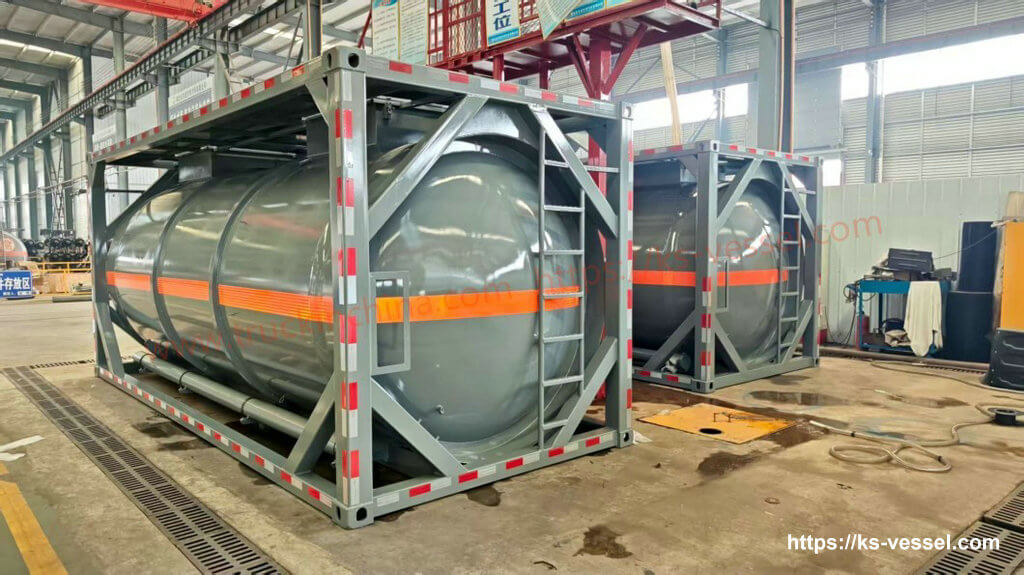

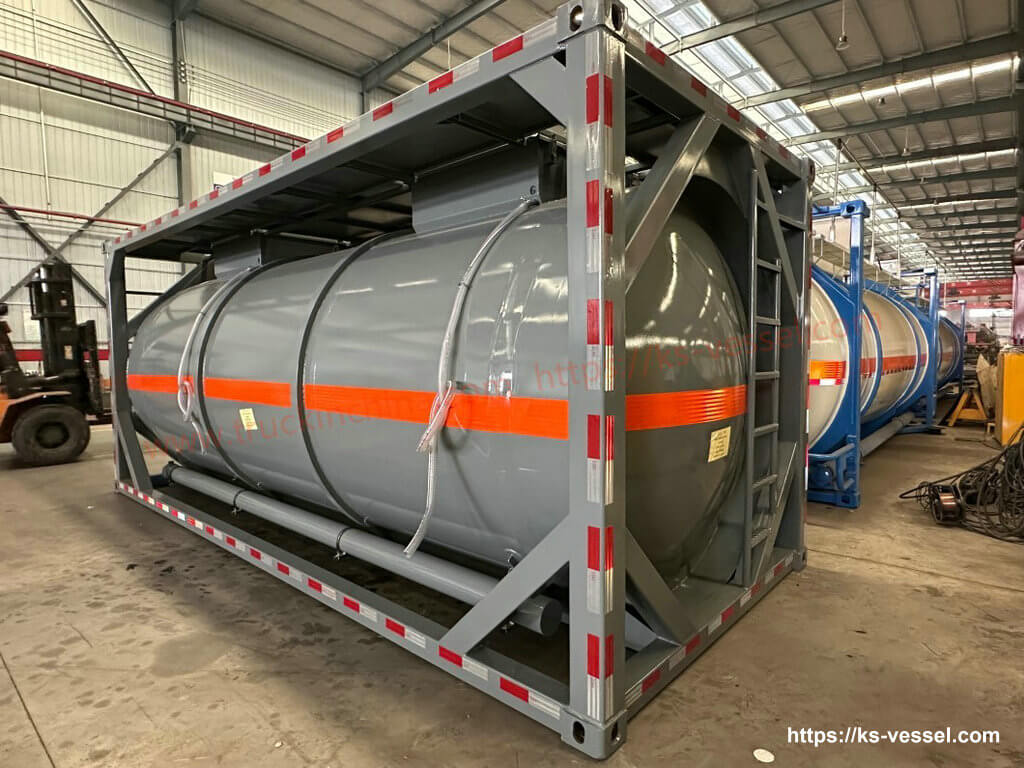

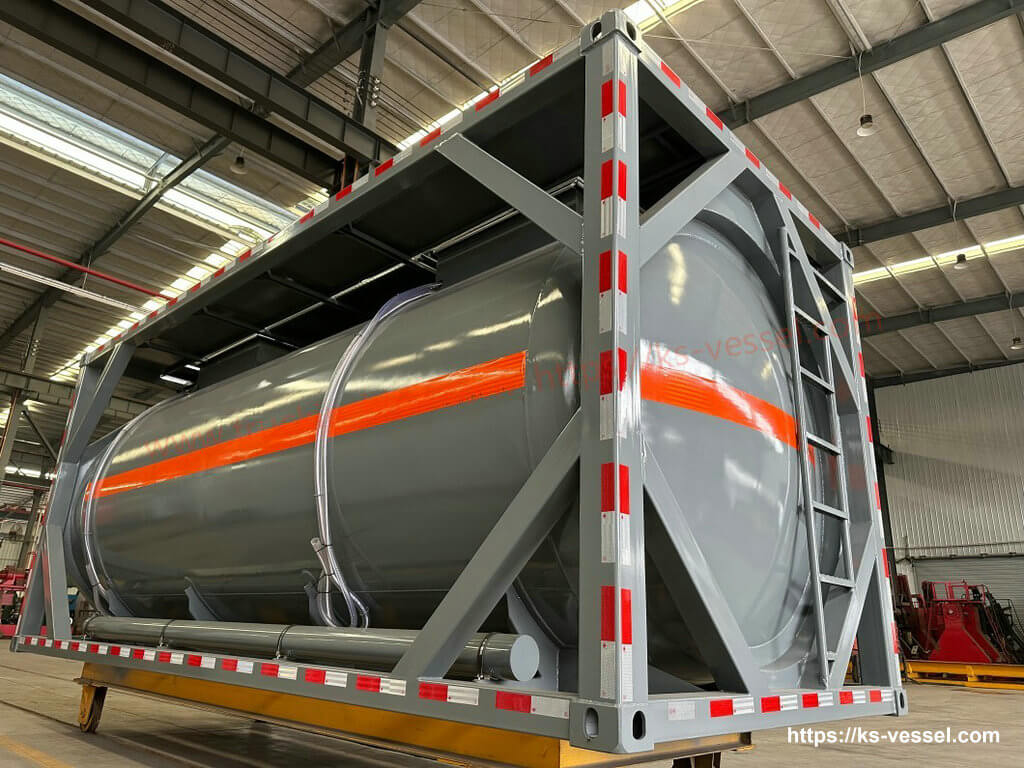

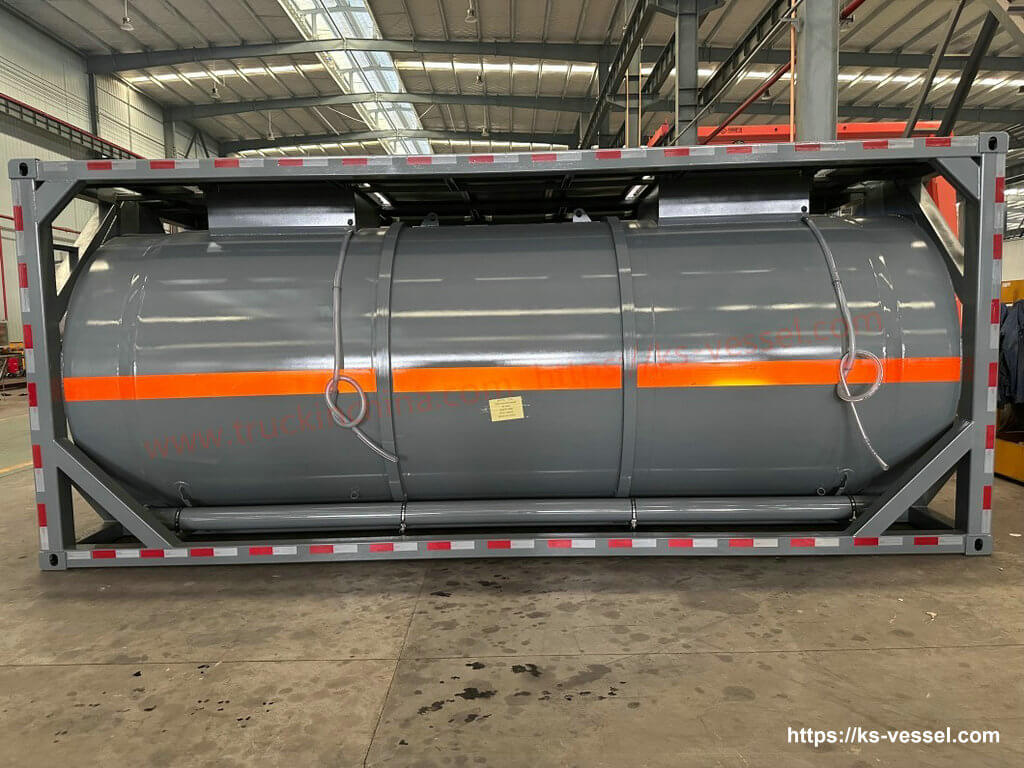

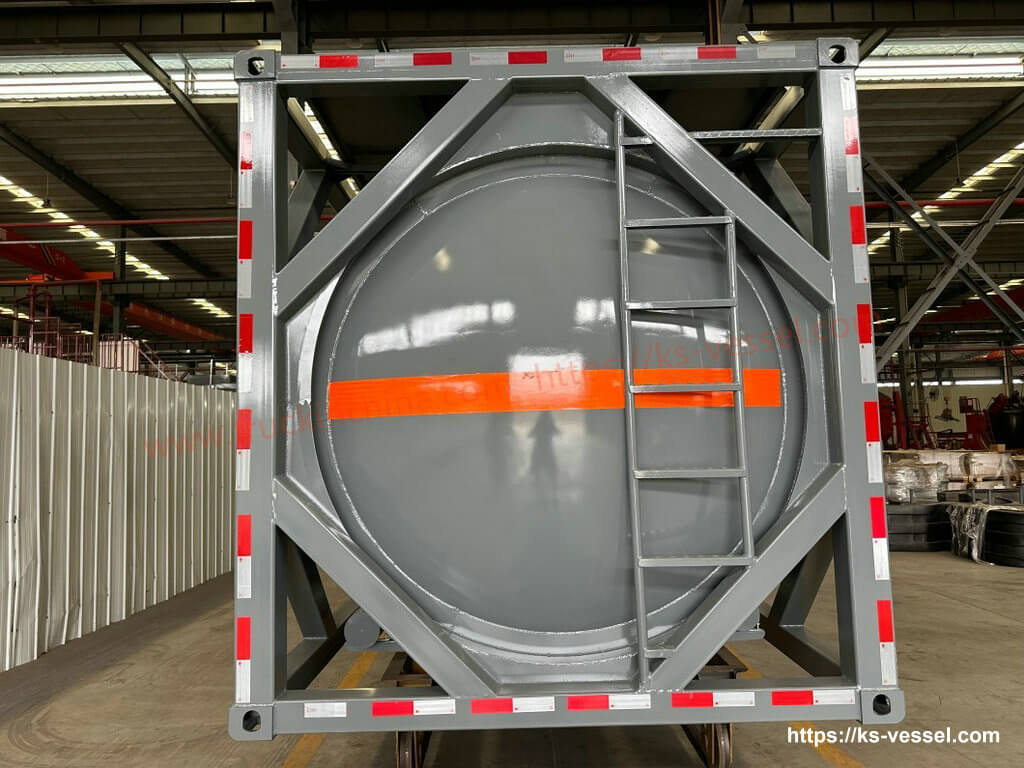

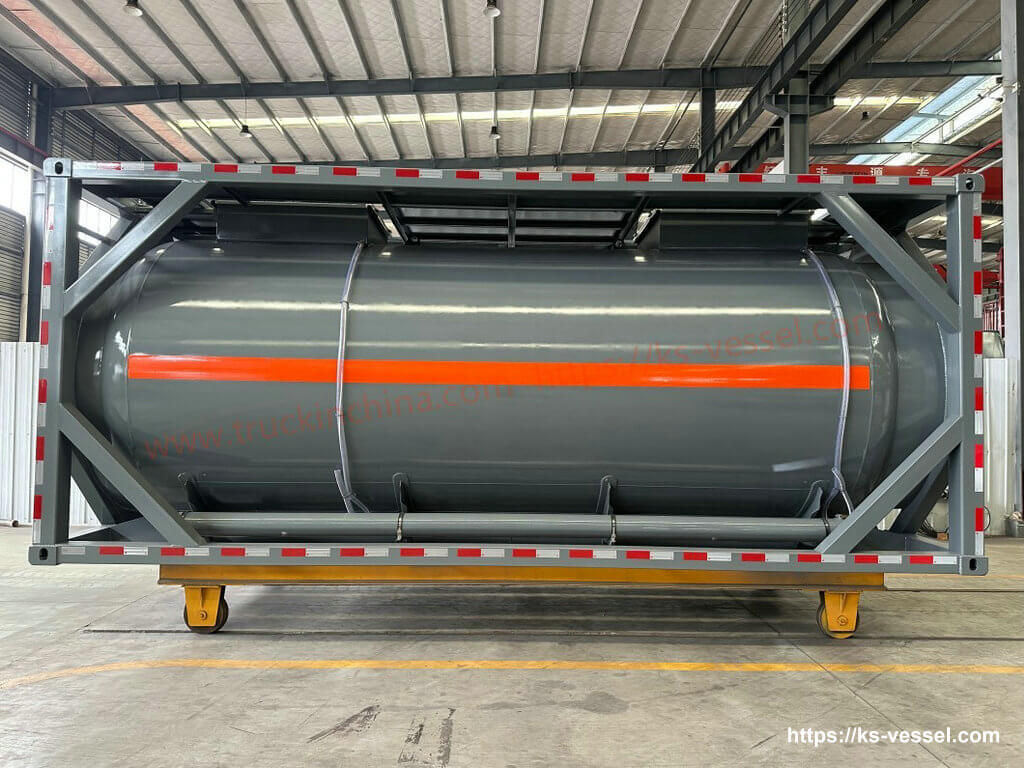

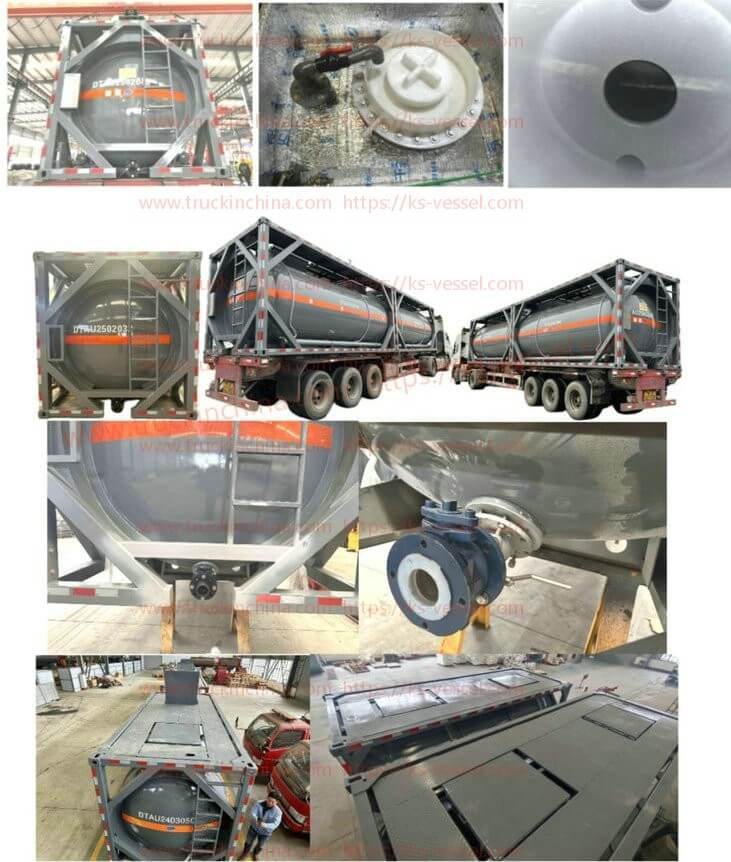

3 Units PE Lined T7 T8 T14 ISO Tank Container for DHF,HCL,KOH,H2O2 Hydrofluoric Acid/ Hydrochloric Acid/ Potassium Hydroxide / Hydrogen Peroxide Export To India
Views: 25801 Author: Dong Runze Special Vehicle Publish Time: 2025-08-29 Origin: Dong Runze
3 Units PE Lined T7 T8 T14 ISO Tank Container for DHF, HCL,KOH , H2O2 Hydrofluoric Acid/ Hydrochloric Acid/ Potassium Hydroxide / Hydrogen Peroxide Export To India
Hubei Dong Runze Special Vehicle Equipment subcompany Keystone Vessel (Wuhan) Co.,Ltd
| Number &Type of Packages | Shipping Mark | Description of Goods | Grossweight | Measurement | ||

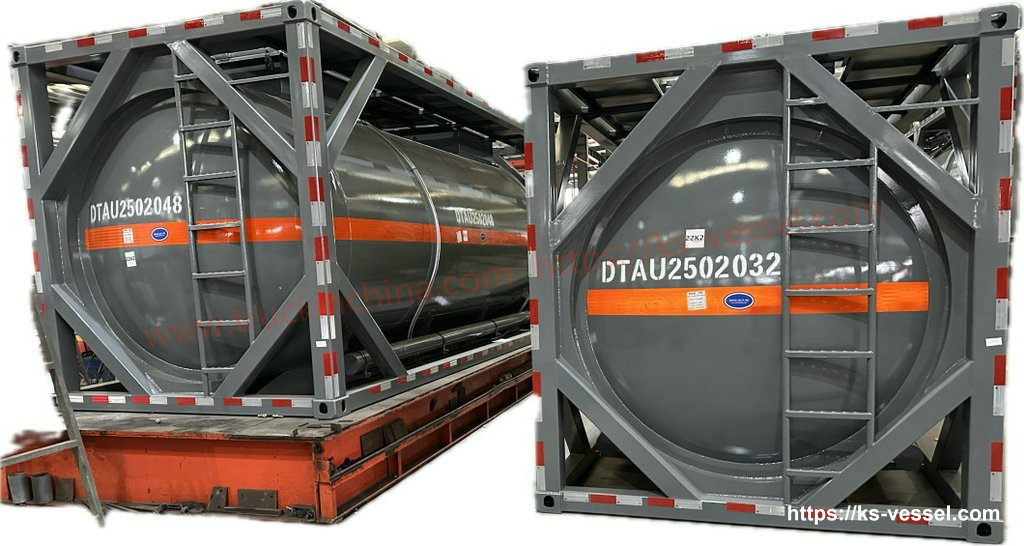

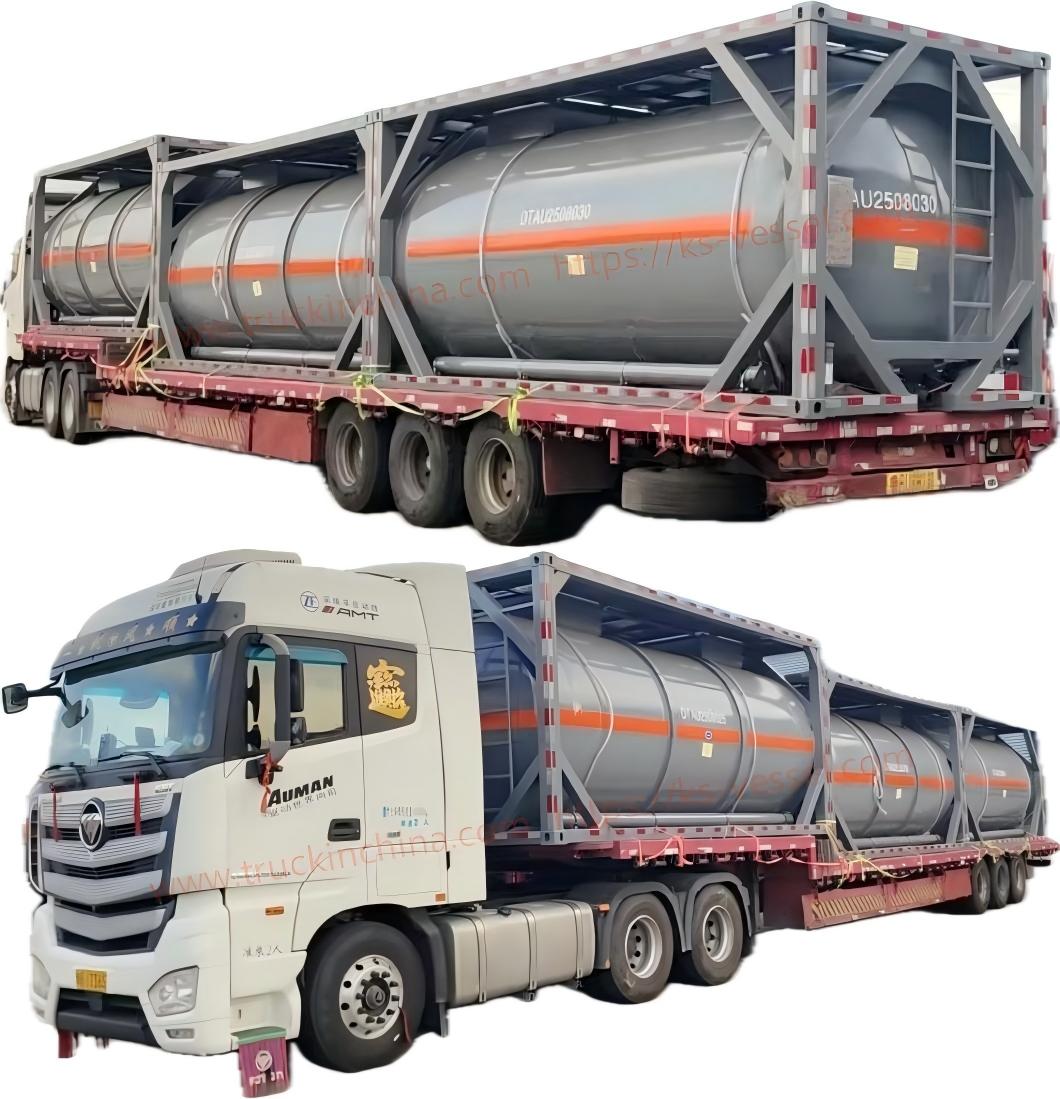

| 3 UNITS | DTAU2508010 DTAU2508025 DTAU2508030 | THREE (3) UNITS IN NUDE OF 20FT TANK CONTAINER (EMPTY AND NEW TANKS) COUNTRY OF ORIGIN:CHINA HS CODE:8609.00 | 15700 KGS | 114.8 CBM | ||

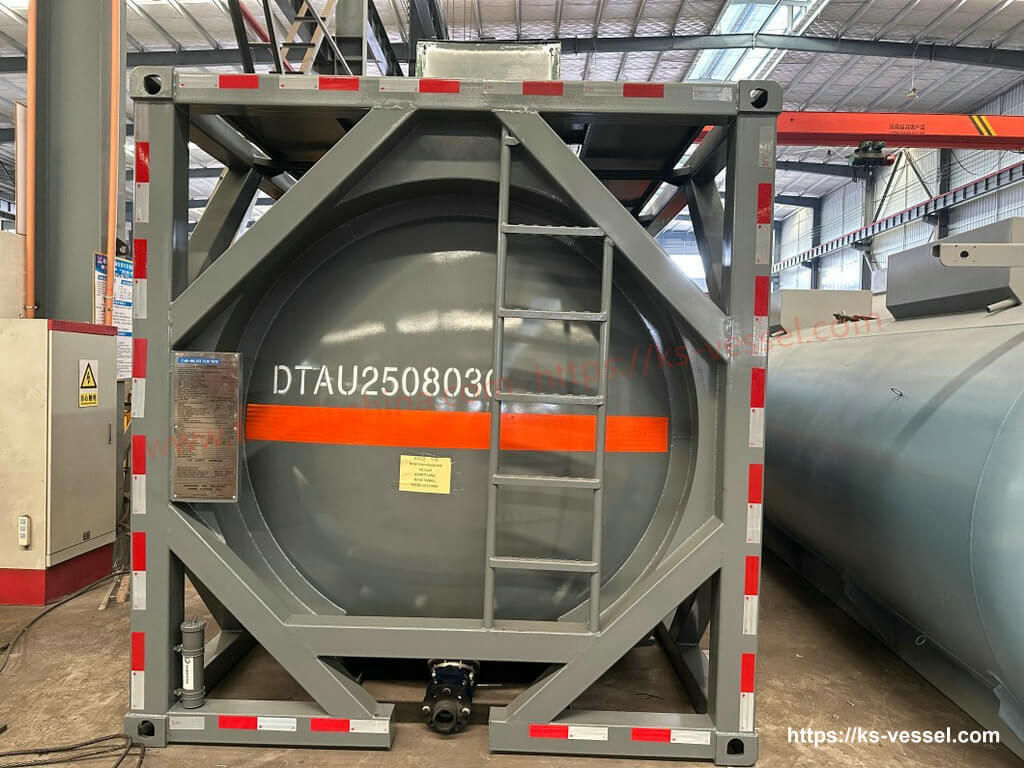

| DTAU2508010/ 20'TK/1/5200/38.2 DTAU2508025 /20'TK/1/5200/38.2 DTAU2508030/ 20'TK/1/5300/38.4 | ||||||

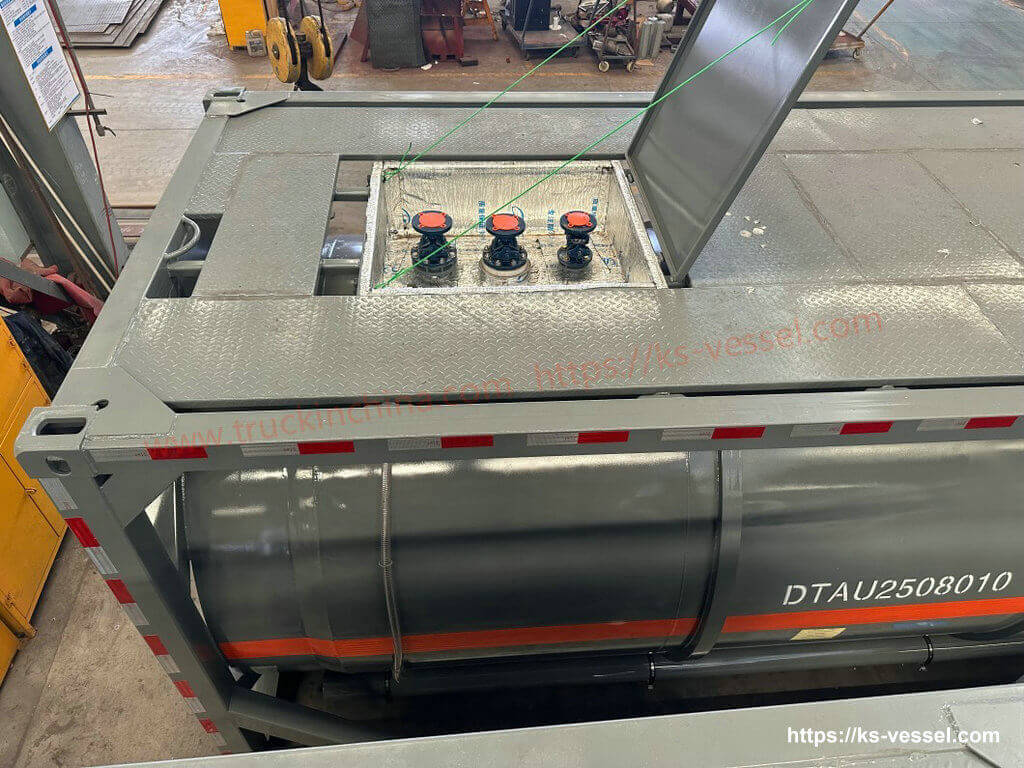

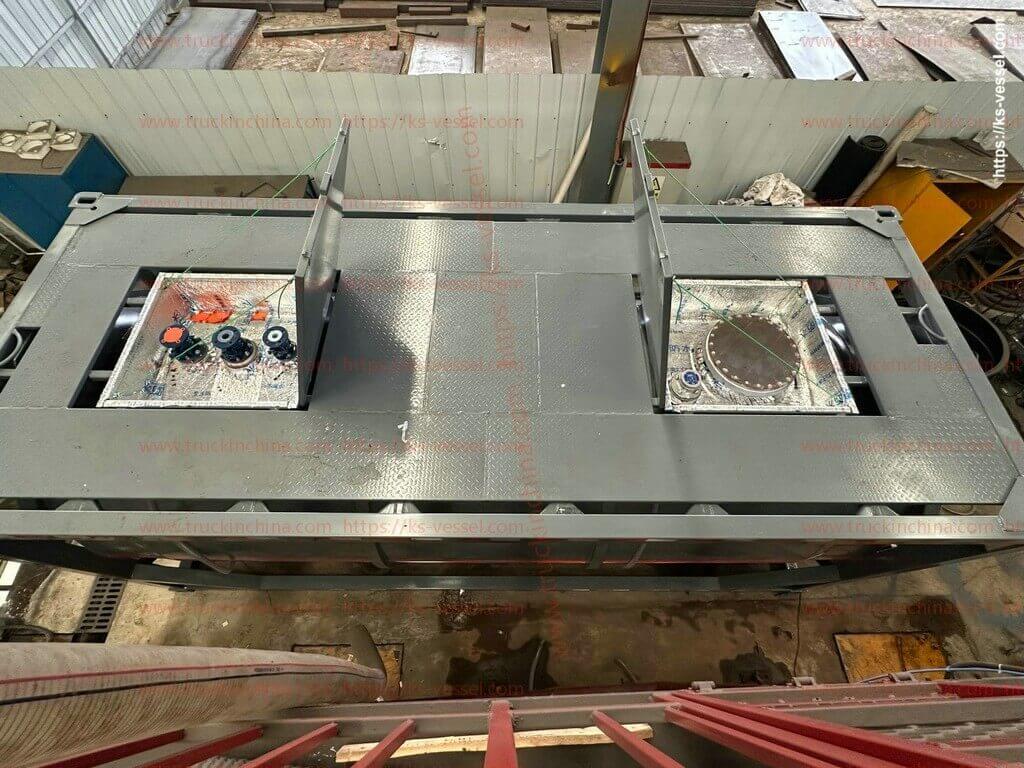

ISO Tank Top Loading / Top unloading Discharge valve
| Details | UOM | ISO tank with PE lining |
| Frame Dimension | Feet | 20 X 8 X 8' 6"inch |
| Tank Dimension | m | Not Provided |
| Shell Thickness | mm | Shell 6mm,head 8mm |
| Shell MOC | 16MnDR | |
| Lining Thickness | mm | 16 |
| Lining MOC | PE | |
| Baffle | Nos | Not Provided |
| Capacity | Litres | 21,000 |
| Tare Weight | Kg | 5200 |
| Max Gross Weight | Kg | 36000 |
| Working Pressure | Bar | 4 |
| Test Pressure | Bar | 6 |
| Design Temp | Deg C | Minus 40 to 65 |
| Design Code | GB150.GB18564 T14 | |
| Board Walk | Full walk way | |
| Painting | 120 micron min DFT | |
| Remarks | Domestic purpose without Lloyds / BVQI Register certified |
ISOTank Top Loading / Bottom unloading Discharge valve
| Product dimension | 6058mm*2438mm*2591mm | ||||
| Weight | 5200KGS | ||||
| thickness of plastic lining | 16mm | ||||
| Product trype | steel tank lined LLDPE | ||||
| Materials of the lining layer | PE7042 | ||||
| 20ft Tank container | |||||
| Ext. Length | 6,058mm | Ext. Width | 2,438mm | ||
| Ext. Height | 2,591mm | M.G.W. | 32000kg | ||
| Tare | 5300Kg | Max. Payload | 26200Kgs | ||
| Cubic Capacity | 19m³ | Tank Design Standard | GB 150 ,GB/ T 16563, GB/ T 1413, GB/ T 1836, GB/ T 1835. | ||
| Max. Design Pressure | 0.27MaP | Calculated Pressure | 0.27MaP | ||
| Testing Pressure | 0.4MaP | Design Operating Temp. | -20ºC~50ºC | ||
| Lining | PE7042 lined 16mm | Material of Tank Body | Q235 | ||
| Manhole Dia. | 500mm | Tank Body Thickness | 6 .0mm | ||
| Facilities Tank Capacity: 17500-19000 Liters FACILITIES TANK CAPACITY: 19000 LITERS STEEL SHEET 6MM, HEAD 6MM LINER THICKNESS: 16 MM LLDPE MATERIALS :CARBON STEEL OUTSIDE LLDPE LINING INSIDE TANK HYDROGEN PEROXIDE 50% UN2014 H2O2 HYDROCHLORIC ACID 36% UN1789 HCL , UN1830 H2SO4 DILUTED SULFURIC ACID 1%~ 50%~ 94%, UN2031 HNO3 NITRIC ACID 1%~30%~50%, NaOH 50% CAUSTIC SODA AND OTHER CHEMICALS .TEMPERATURE:NORMAL | |||||
Container Specification Sheet
T14 ISO TANK CONTAINER MAIN TECHNICAL PARAMETERS | ||||||
20FT TANK CONTAINER | Hydrochloric Acid Un1789 33% HCl Hydrofluoric Acid Un1790 48% HF | |||||
OVERALL DIMENSION(MM) | 6058×2438× 2591 | |||||
WORKING TEMPERATURE(ºC) | -20 ℃ ～+65 ℃ | |||||
Insulating performance | Design according to user’s requirement | |||||
Water testing pressure(MPa) | 0.6 | |||||
Insulating materials and thickness（mm） | optional | |||||
Capacity（m3） | 21000L | |||||
Host materials | Middle Steel Q345/16MnDR + LLDPE7042 (PE) | |||||
Thickness of shell materials（mm） | 6 | |||||
Thickness of Seal Head materials（mm） | 8( 6.5-7.3) | |||||
Corner post materials | 16Mn | |||||
Standard fittings Manhole cover, valve | As design | |||||
Capacity | Tare weight | Max gross weight | ||||
21KL | 5150kg | 36000 | ||||
Dimensions | Metric | Imperial |
Length | 6,058mm | 19'10" |
Width | 2,438mm | 8'0" |
Height | 2,591mm | 8'6" |
Pressures | Bar | MPa |
Working pressure | 4.0 | 0.4 |
Test pressure | 6.0 | 0.6 |
