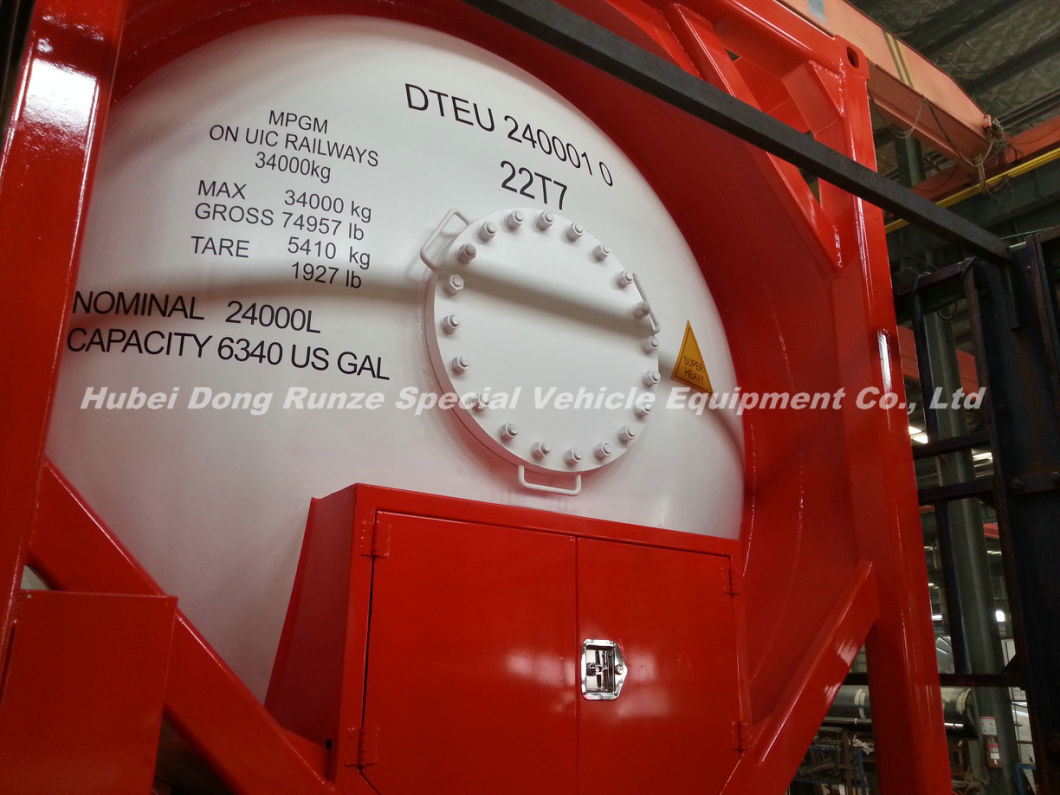

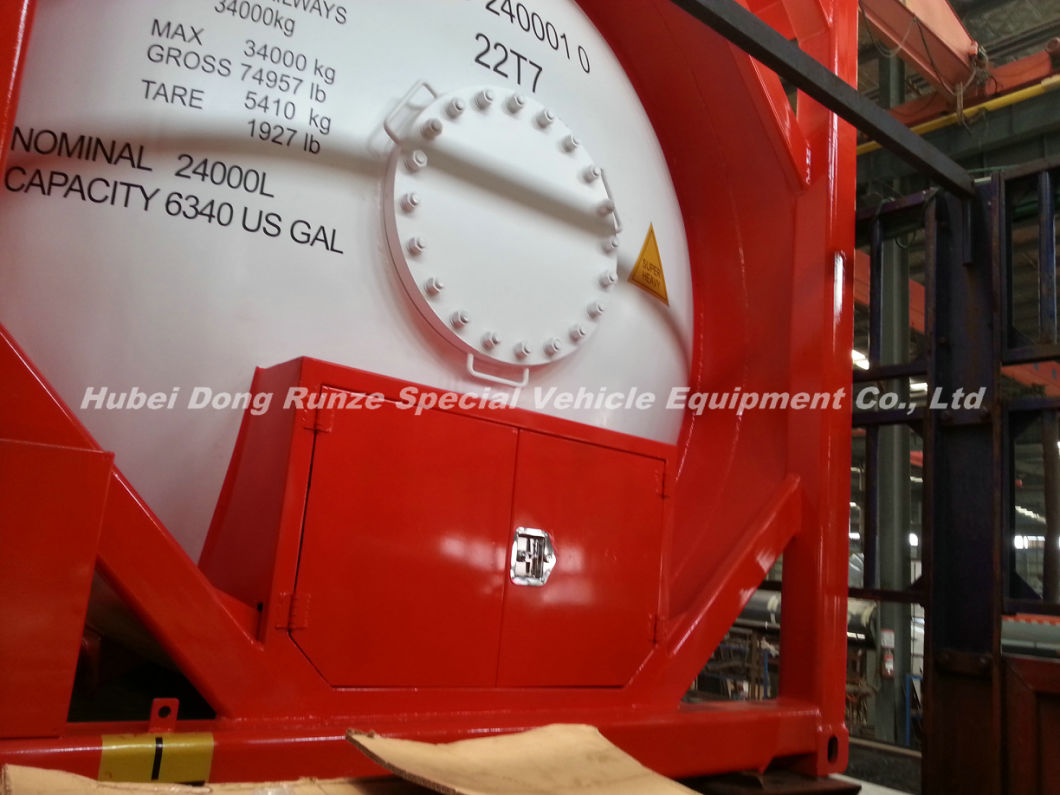

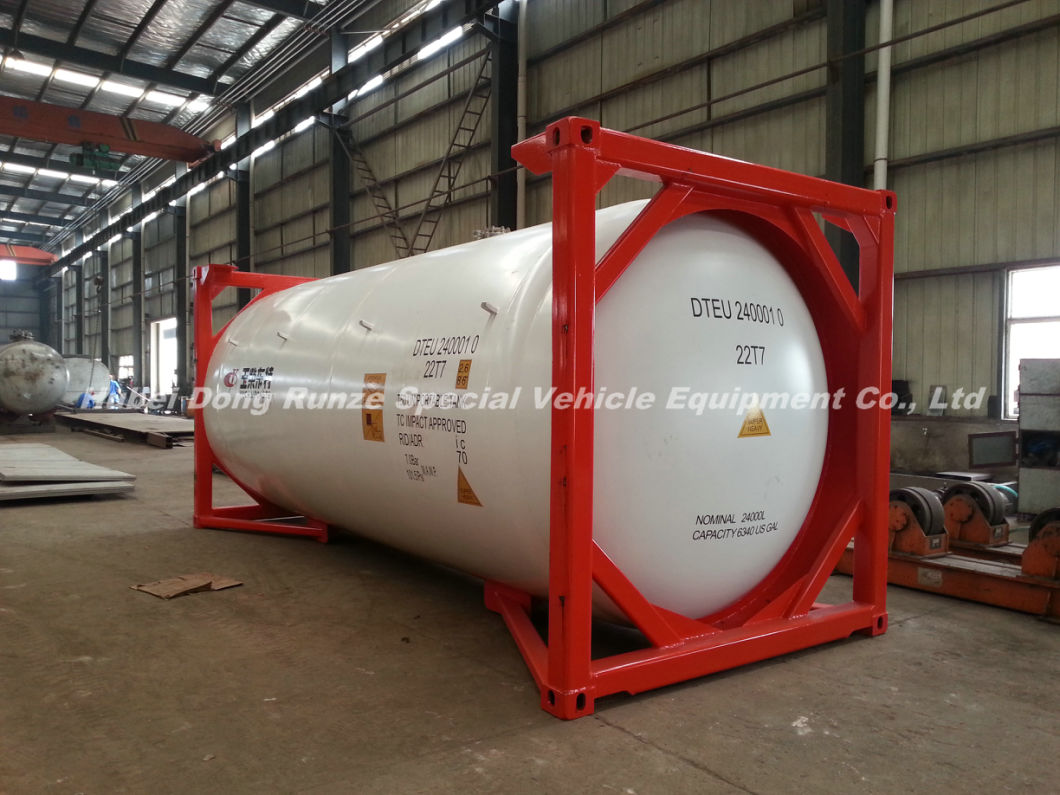

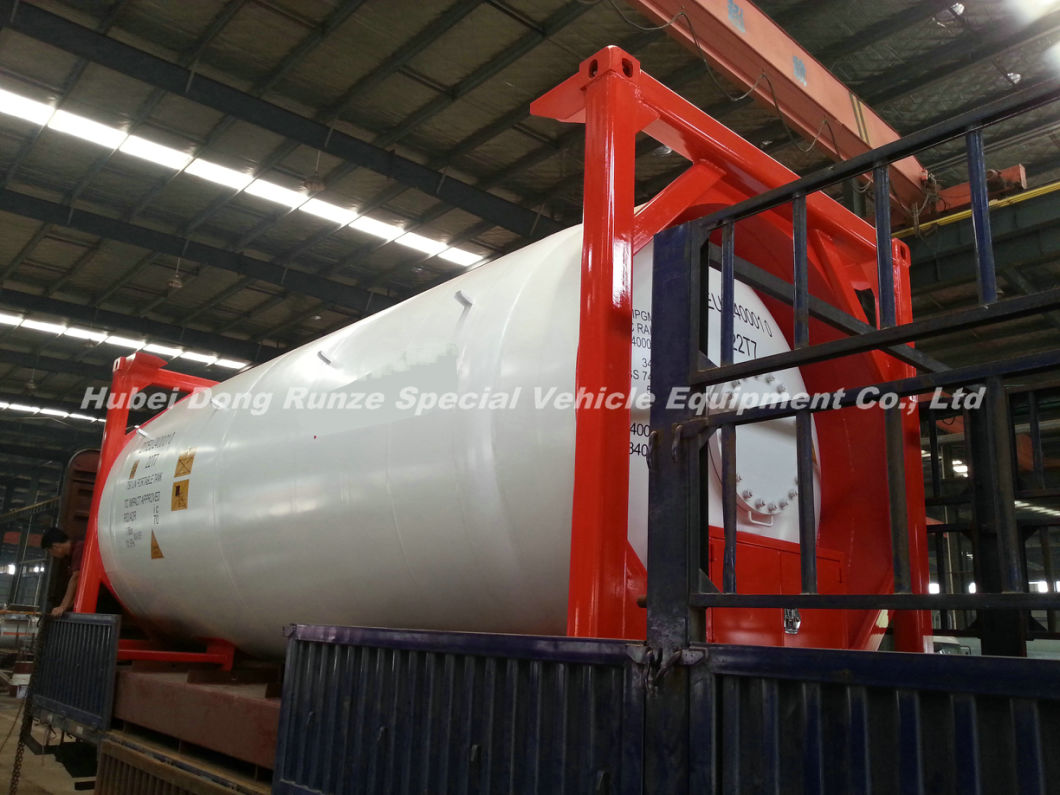

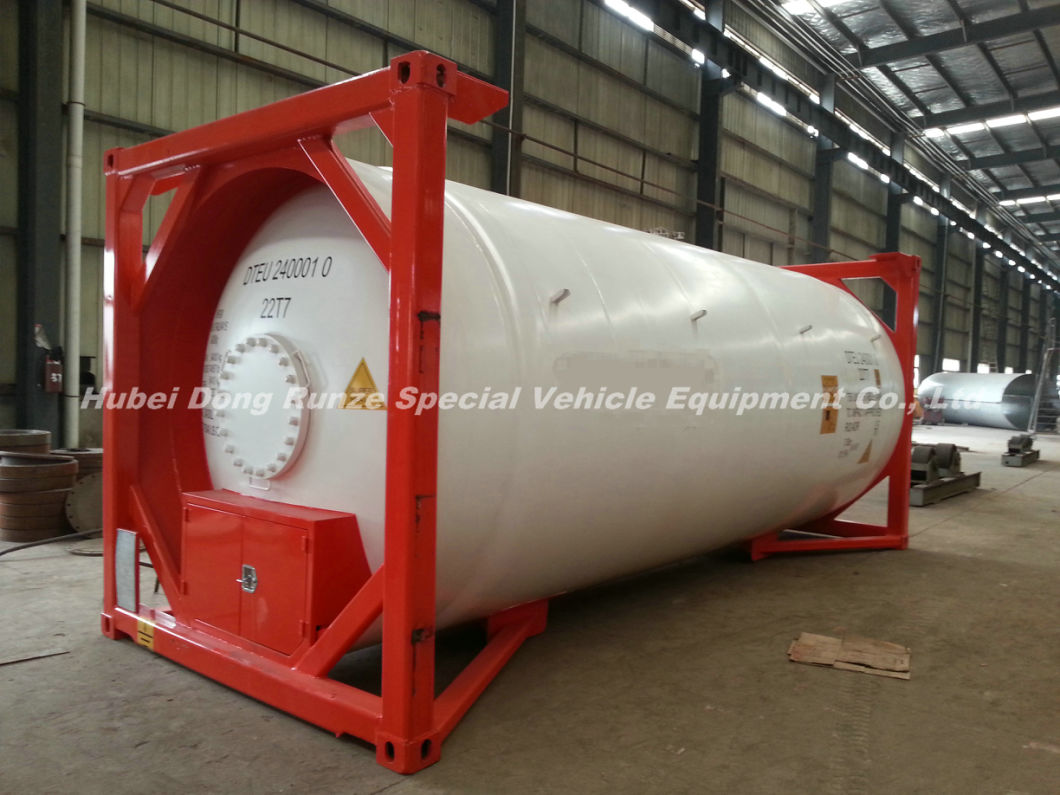

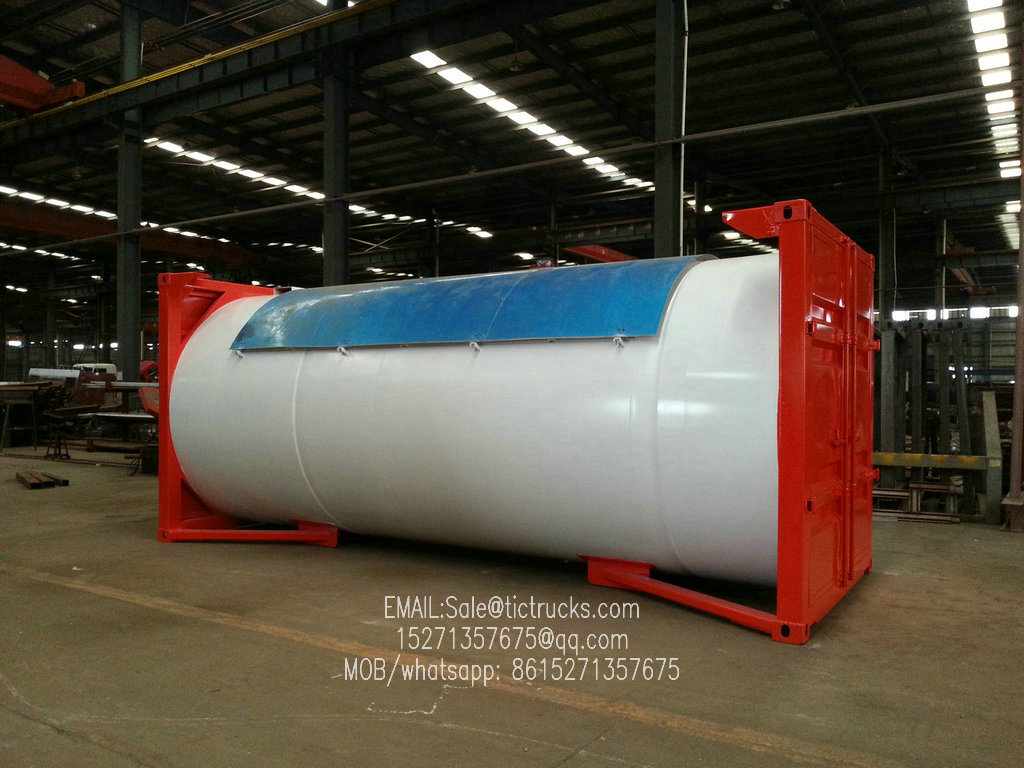

UN1075 ISOTANK 20feet Tank Container  Transport Liquefied Petroleum Gas 22KL,24KL

20FT ISO LPG Tank Container For Liquid Propane,Cooking Gas,DEM,Isobutane 24KL
( DEM ,Isobutane,cooking gas ) Custermizing Container Trailer Mounted

LPG ISO Tank Container 20FT 22000L   -24000L

1.5 Pressure & Temperature Rating

Design Reference Temperature   55°C

Maximum Allowable Working Pressure  17bar (1.77MPa.)

Hydrostatic Test Pressure  22bar(2.2MPa.)

External Design Pressure   0.1 bar

Ambient Temperature Range   -40 to +55°C

1.6 Material Of Construction

Framework  :Hollow section Q345-D--GB/T1591

Plates Q345-D--GB/T1591

Rolled section Q345-D--GB/T1591

Shell & Heads  Q345R

1.7NDE (Non Destructive Examination)

2.0 Tank Fittings And Accessories

2.1 Manhole

Quantity One

Dimensions 500mm ID

Specification Q345R ; bolted type (24 x M24)

Gasket PTFE

Location Rear ellipse end in the crown section

2.2 Safety Relief Valve Assembly

Quantity One

Gasket PTFE

Location Top of the tank.

2.3 Gas Line

Quantity One

Dimensions DN 50 (2")

Gasket PTFE

2.4 Liquid Line

Quantity One

Dimensions DN 50 (2")

Gasket PTFE

Valve Cabinet

A steel valve protection cabinet, houses the gas and liquid line valves, pressure gauge and thermometer.

2.5 Provision for Baffles

Two sets of surge baffles shall be installed.

2.6 Thermometer -40~+80

2.7 Pressure Gauge  A pressure gauge from pressure. 0-40 bar

2.8 Insulating methods Sunshade

ISO Tank Container 20 FT For Hazardous Liquids

Road transport tank container

T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;

Size : 20 feet
Length : +6.058- 6.06 m
Width : +2.438- 2.44 m
Height : 2.438/2.591- 2.60 m

ISOTANK List

20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
Mob :008615271357675

1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5.  certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA

Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers

Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers

Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers

Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers

Food Products Iso Containers, Stainless Steel Iso Tank Containers

Solvents Iso Containers, Stainless Steel Iso Tank Containers

Oils Iso Containers, Stainless Steel Iso Tank Containers

Resins Iso Containers, Stainless Steel Iso Tank Containers

Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers

Mo 1 Iso Containers, Stainless Steel Iso Tank Containers

Imo Iso Containers, Stainless Steel Iso Tank Containers

Imo 5 Iso Containers, Stainless Steel Iso Tank Containers

Imo 7 Iso Containers, Stainless Steel Iso Tank Containers

Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers

Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers

Iso Containers, Stainless Steel Iso Tank Containers Hazardous.

Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.

Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers

Vertical Iso Containers, Stainless Steel Iso Tank Containers

The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.

There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.

 T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks  for  hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank  - Ammonium Nitrate
ISO Tank  - Bio-diesel
ISO Tank  - Molasses
ISO Tank  - Caster Oil
ISO Tank  - Hexane
ISO Tank  - Ethanol
ISO Tank  - Ethylene
ISO Tank  - Methanol


ISO Tank  - IMO 1
ISO Tank  - IMO 2
ISO Tank  - IMO5
ISO Tank  - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank  - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank  - Bitumen tank containers 21,000 litres
ISO Tank  - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 12,000 - 26,500 litres nominal
ISO Tank  - MAWP of 4 bar
ISO Tank  - For transport of:
ISO Tank  - Hazardous liquids
ISO Tank  - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank  - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank  - Heating by steam or electric heating (optional)
ISO Tank  -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation.   (Contact Details above)
IMO 2
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 12,000 - 26,500 litres nominal
ISO Tank  - MAWP of 1.75 bar
ISO Tank  - For transport of:
ISO Tank  - Low Hazardous liquids
ISO Tank  - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank  - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank  - Heating by steam or electric heating
ISO Tank  - Cooling by Glycol
Please contact us if you require further information and/or a quotation.   (Contact Details above)
IMO 0
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 12000 - 26500 litres nominal
ISO Tank  - MAWP of 4 bar
ISO Tank  - For transport of
ISO Tank  - Wine
ISO Tank  - Fruit Juices
ISO Tank  - Vegetable Oils
ISO Tank  - Mineral Oils
ISO Tank  - Non-hazardous Oils
ISO Tank  - Available in 20 foot / 6 metres
ISO Tank  - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank  - Heating by steam or electric heating (optional)
ISO Tank  -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation.   (Contact Details above)
IMO 5
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 15,000 - 25,500 litres nominal
ISO Tank  - MAWP of 1.75 bar
ISO Tank  - For transport of gases, including:
ISO Tank  - Propane
ISO Tank  - Butane
ISO Tank  - Refrigerants
ISO Tank  - Available in 20, 30 or 40 foot sizes
ISO Tank  - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation.   (Contact Details above)IMO 7
ISO Tank  - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank  - Capacity of 20,000 - 24,000 litres nominal
ISO Tank  - MAWP of 8 bar
ISO Tank  - For transport of cryogenic gases, including:
ISO Tank  - LNG
ISO Tank  - Available in 10, 20, 30 or 40 foot sizes
ISO Tank  - Cooling by glycolPlease contact us if you require further information and/or a quotation.   (Contact Details above)
Bitumen Tank Containers
ISO Tank  - Shell made from Carbon Steel
ISO Tank  - Capacity of 20,000-25,000 litres nominal
ISO Tank  - MAWP of 1.75 bar
ISO Tank  - Low Hazardous liquids
ISO Tank  - Available in 20 or 30 foot sizes
ISO Tank  - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank  - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation.   (Contact Details above)
Cement Containers
ISO Tank  - Capacity of 17.5 - 25 cubic metres
ISO Tank  - Pressure dischargeOffshore
ISO Tank  - Shell made from 316 Stainless Steel
ISO Tank  - Capacity of 2,000 - 10,000 litres
ISO Tank  - MAWP of 5 bar
ISO Tank  - For transport of gases, including:
ISO Tank  - Hazardous chemicals
ISO Tank  - Acid
ISO Tank  - Petroleum
ISO Tank  - Available in 8 x 8 x 10 sizes
ISO Tank  - Heated by steam or electric (optional)

The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.

Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.

ISO Tank, ISO Tank Containers

Manufacturers & Exporters

ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.

The bulk liquids that can be transported in an ISO tank include :

Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long

Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products

ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported

ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases

Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders

T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)

T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)

T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers

T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers

T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers

SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers

Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers

PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.

Hazardous chemicals

Acid

Petroleum

ISO Tank

Highly Hazardous UN Portable ISO Tank Containers 14,600 - 24,000 Liters

Highly Hazardous UN Portable ISO Tank Containers
IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 - 24,000 liters
