20FT UN1079 ISOTank Container for Sulfur Dioxide 0.73Mpa Road Transport 22,000litres 28Ton SO2

20FT UN1079 ISOTank Container for Sulfur Dioxide
0.73Mpa Road Transport 22,000litres 28Ton SO2
Email us for Discount Price
Price: $ 31800
Discount Price: $ 28800
Availability:
Quantity:

  • 20feet
  • Dong Run Ze
  • 8609001200
  • Shanghai, China
  • 3000
  • T/T

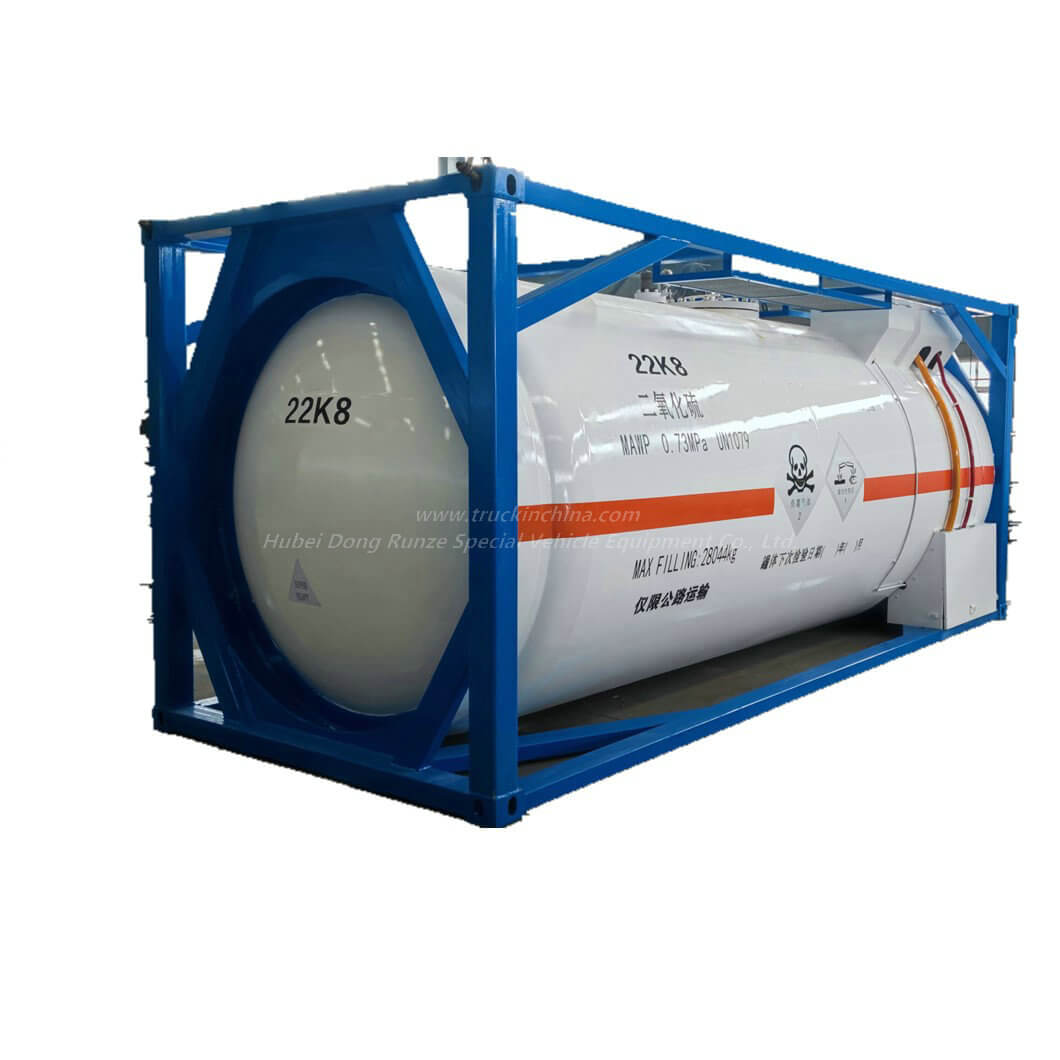

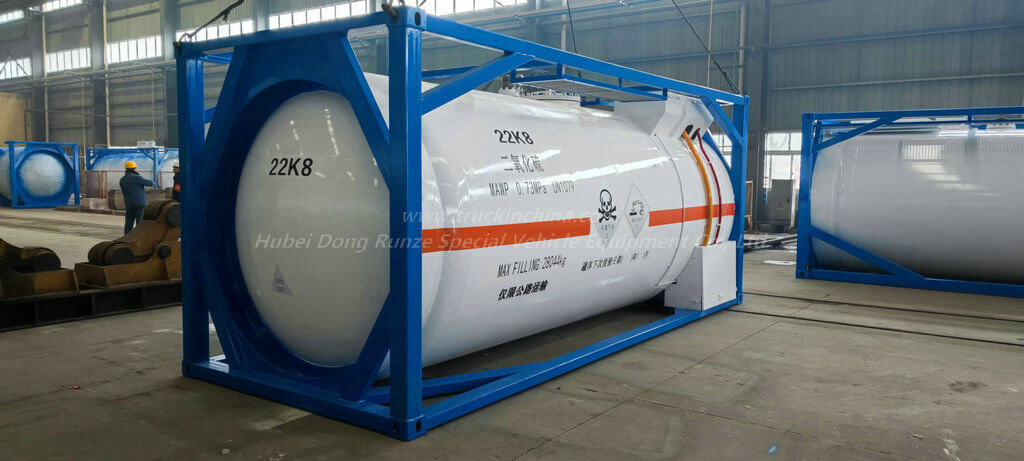

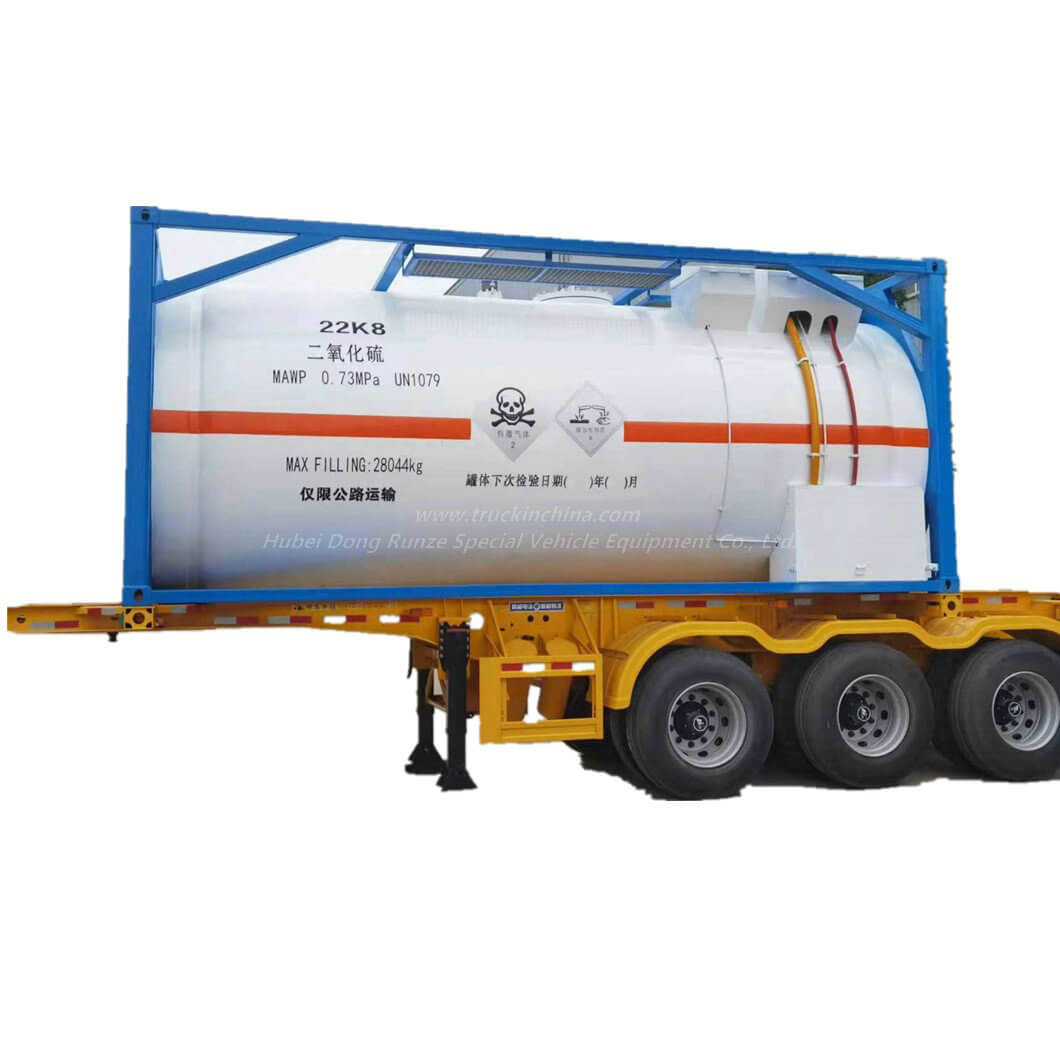

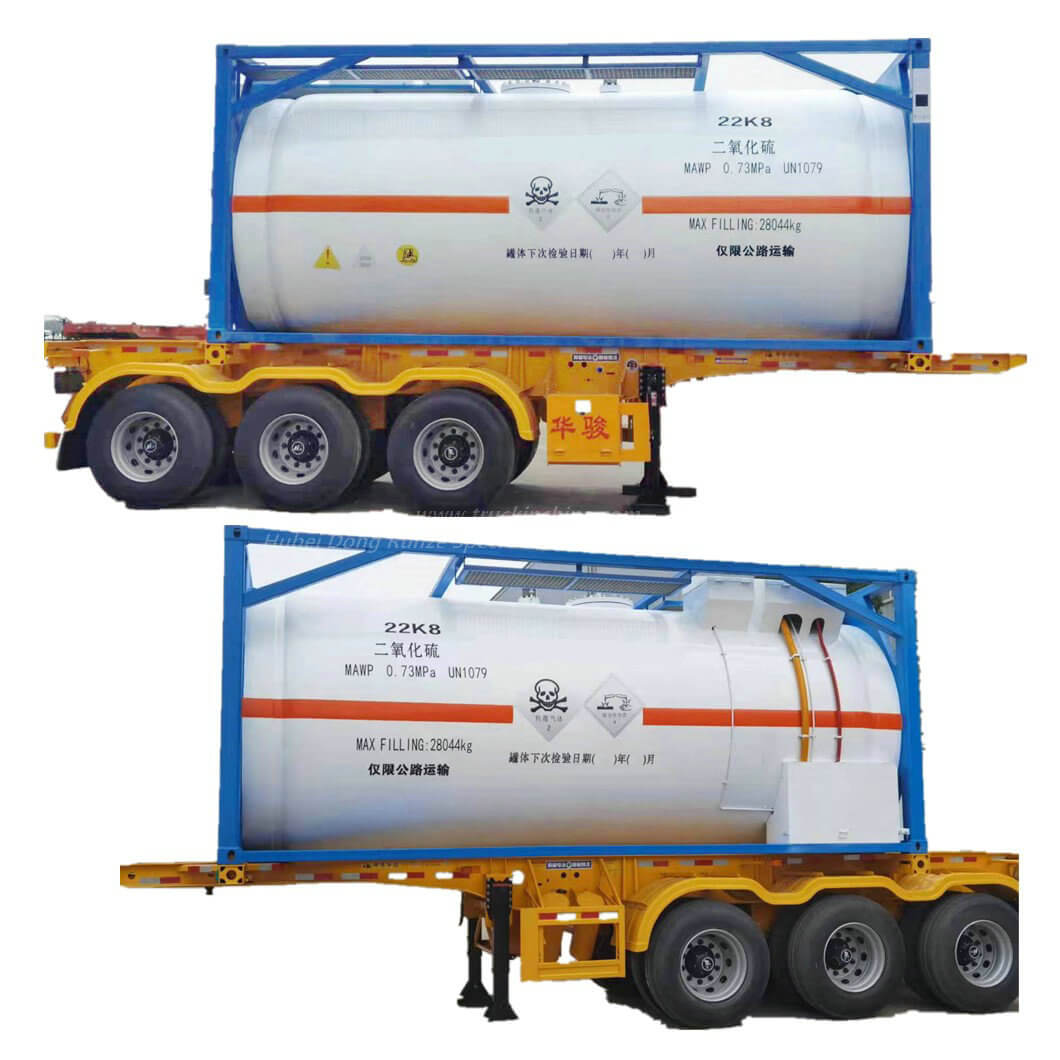

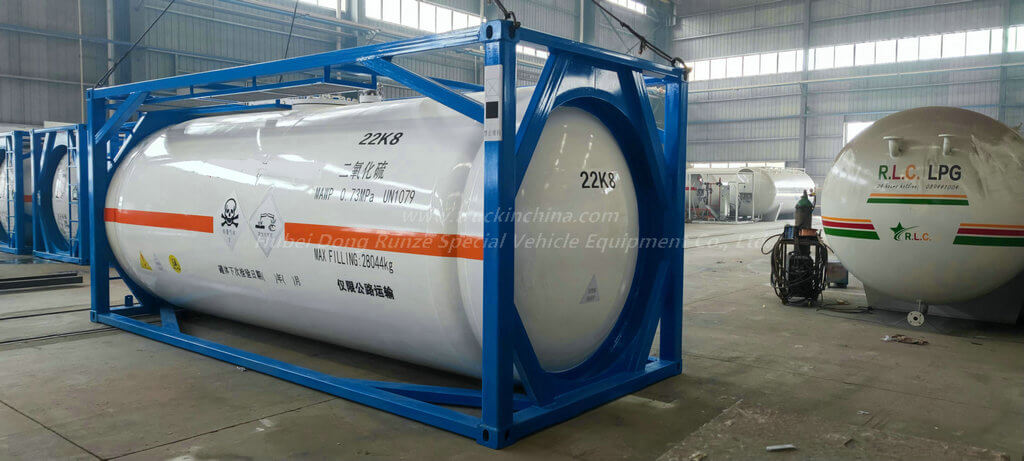

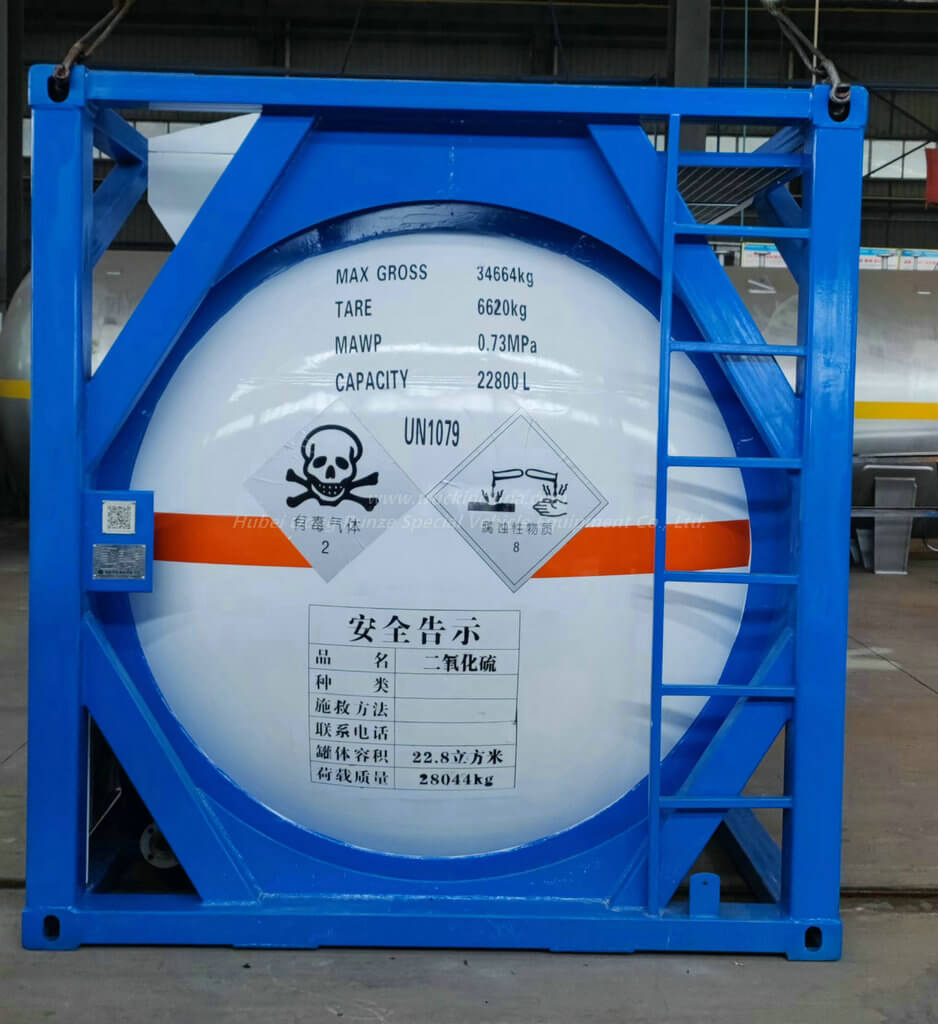

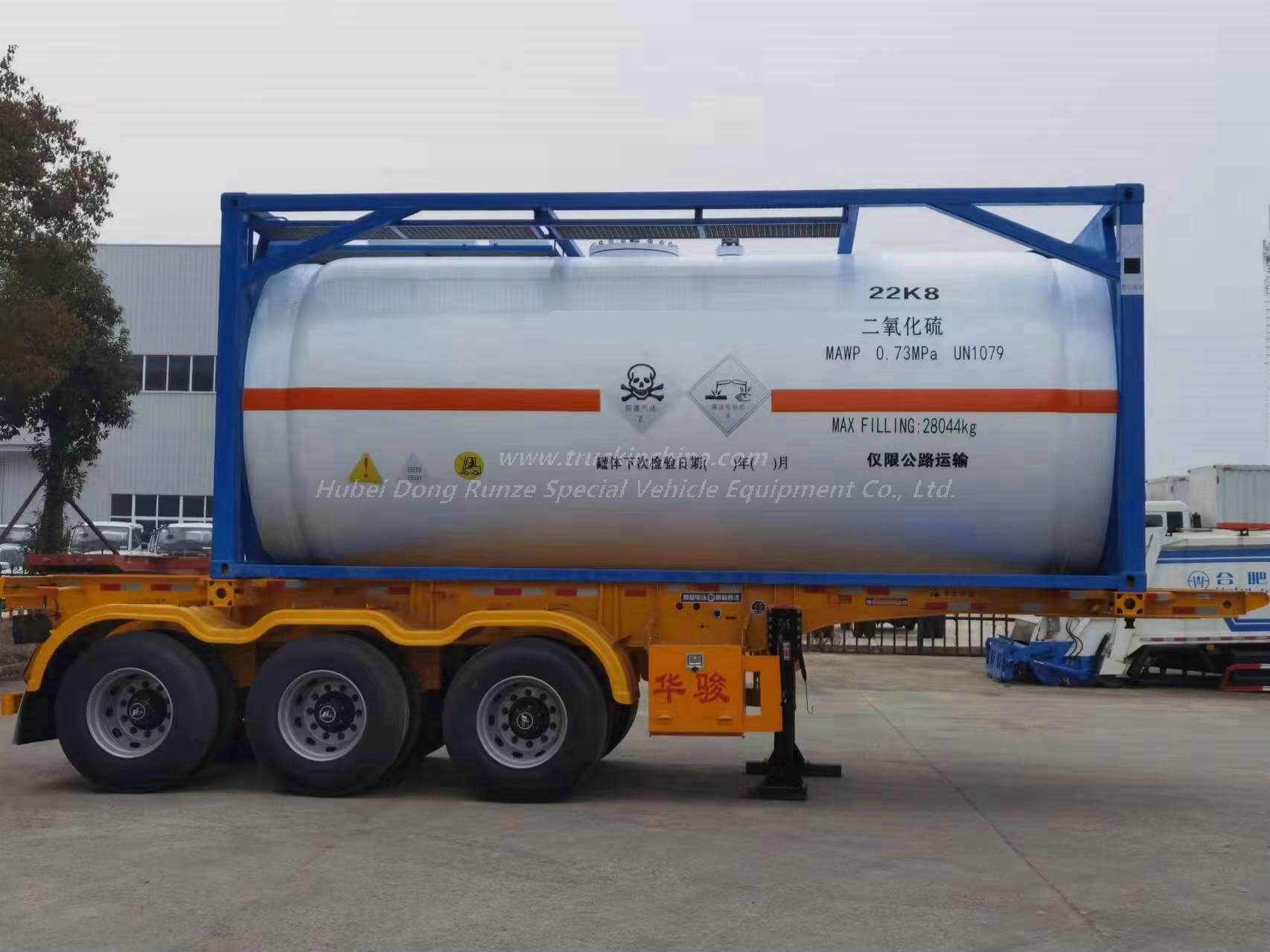

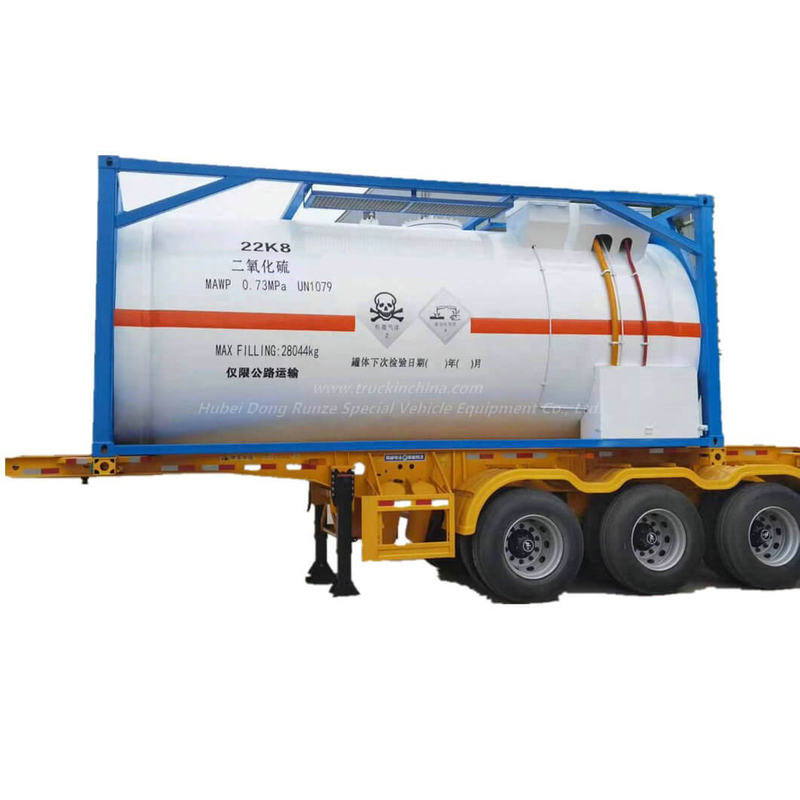

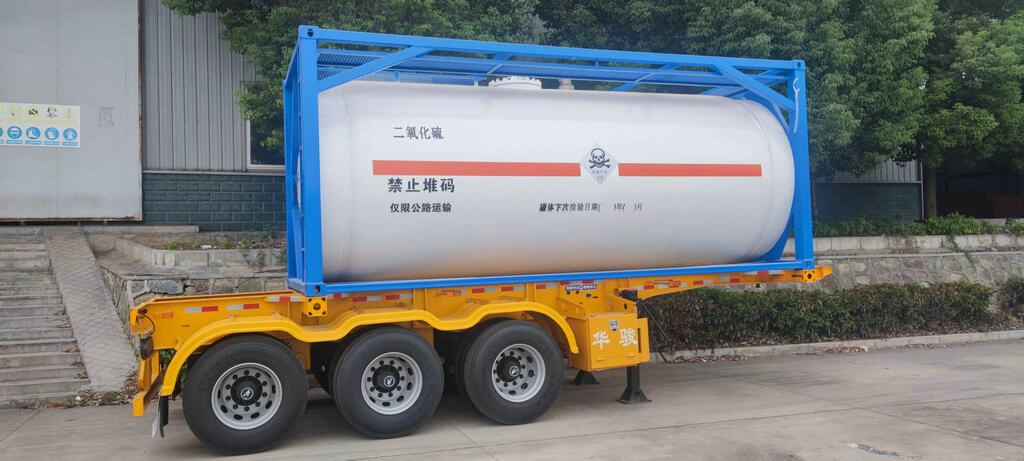

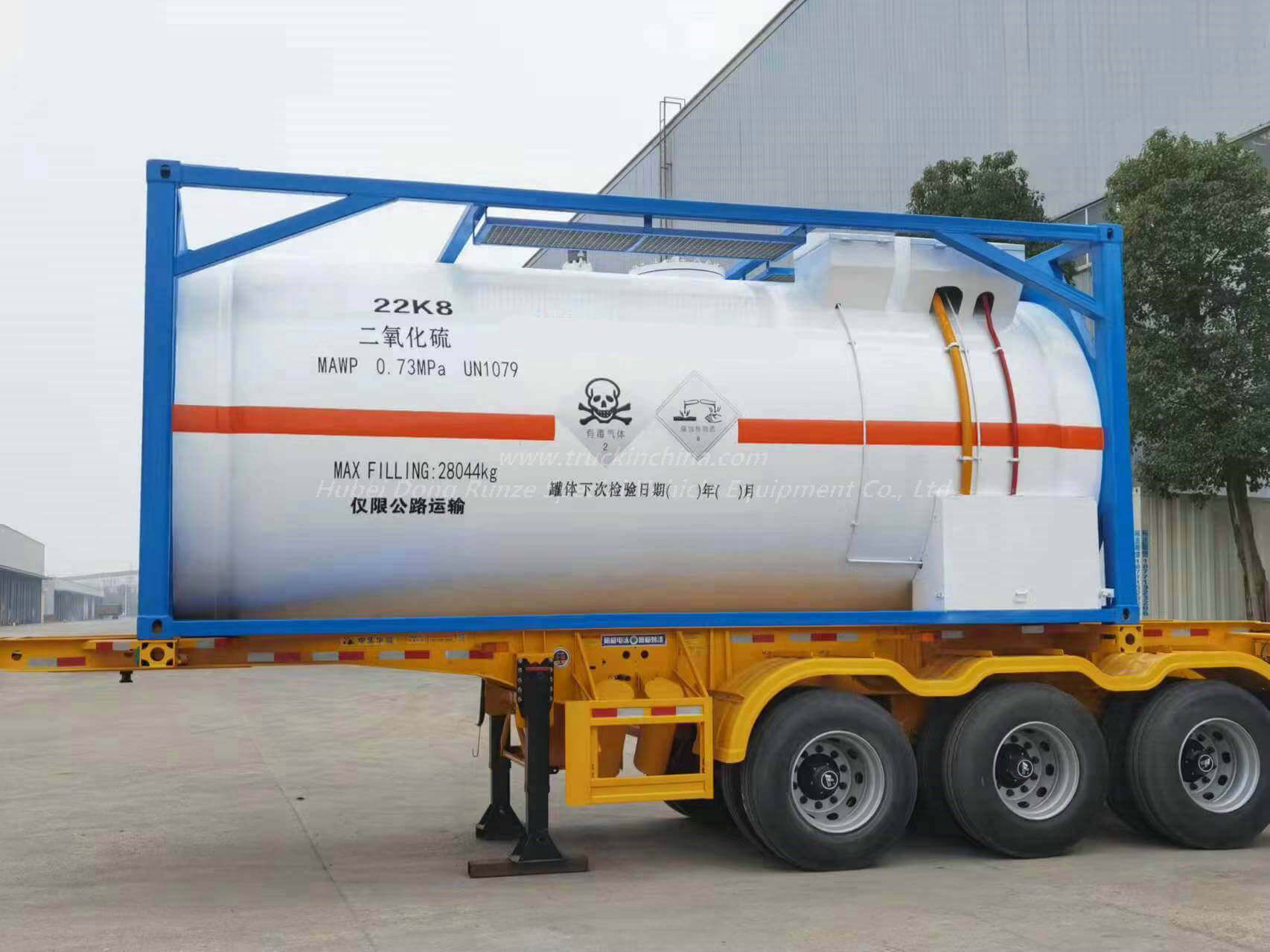

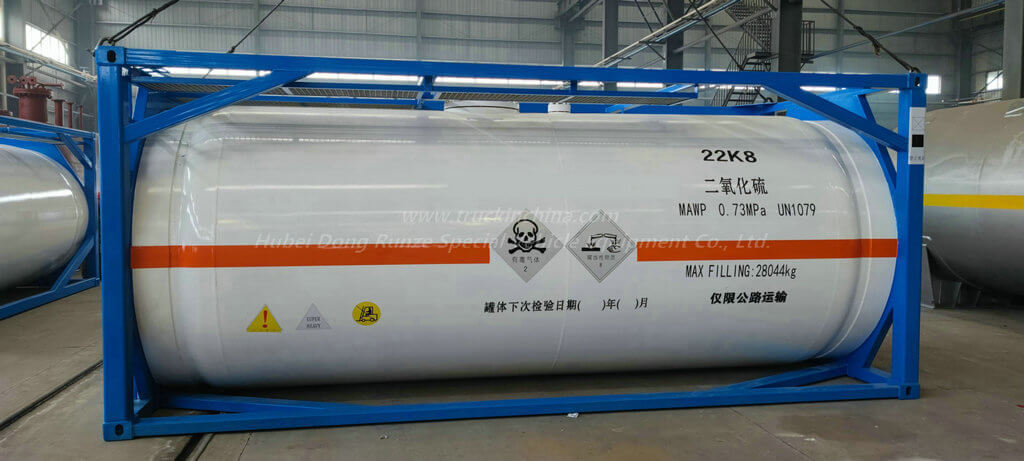

 20FT UN1079 ISOTank Container for Sulfur Dioxide  0.73Mpa  Road Transport 22,000litres 28Ton  SO2 20FT ISO Tank Container for sulfur dioxide SO2 (4)20FT ISO Tank Container for sulfur dioxide SO2 (3)20FT ISO Tank Container for sulfur dioxide SO2 (6)20FT ISO Tank Container for sulfur dioxide SO2 (5)20FT ISO Tank Container for sulfur dioxide SO2 (7)20FT ISO Tank Container for sulfur dioxide SO2 (2)_20FT ISO Tank Container for sulfur dioxide SO2 (1)

project

Unit

Parameter

Filling Medium


Liquid sulfur dioxide SO2 UN1079

filling ratio

t/m3

1.2

volume

m3

23.17

Main material


Q345R

Thickness of cylinder steel plate

mm

10

Thickness of head steel plate

mm

10

CORROSION ALLOWANCE

mm

4

SERVICE LIFE

Year

10

DESIGN TEMPERATURE

50℃

DESIGN PRESSURE

MPa

0.73Mpa

AIR TIGHT TEST PRESSURE

MPa

0.73Mpa

HYDROSTATIC TEST PRESSURE

MPa

1.28Mpa

Tank BODY MASS

Kg

6900~Kg

NDT METHOD


NB/T47013-2015

HEAT TREATMENT METHOD


Overall stress relief heat treatment

OVERALL DIMENSIONS

mm

6058x2438x2591

ISOTank Container for sulfur dioxide SO2
