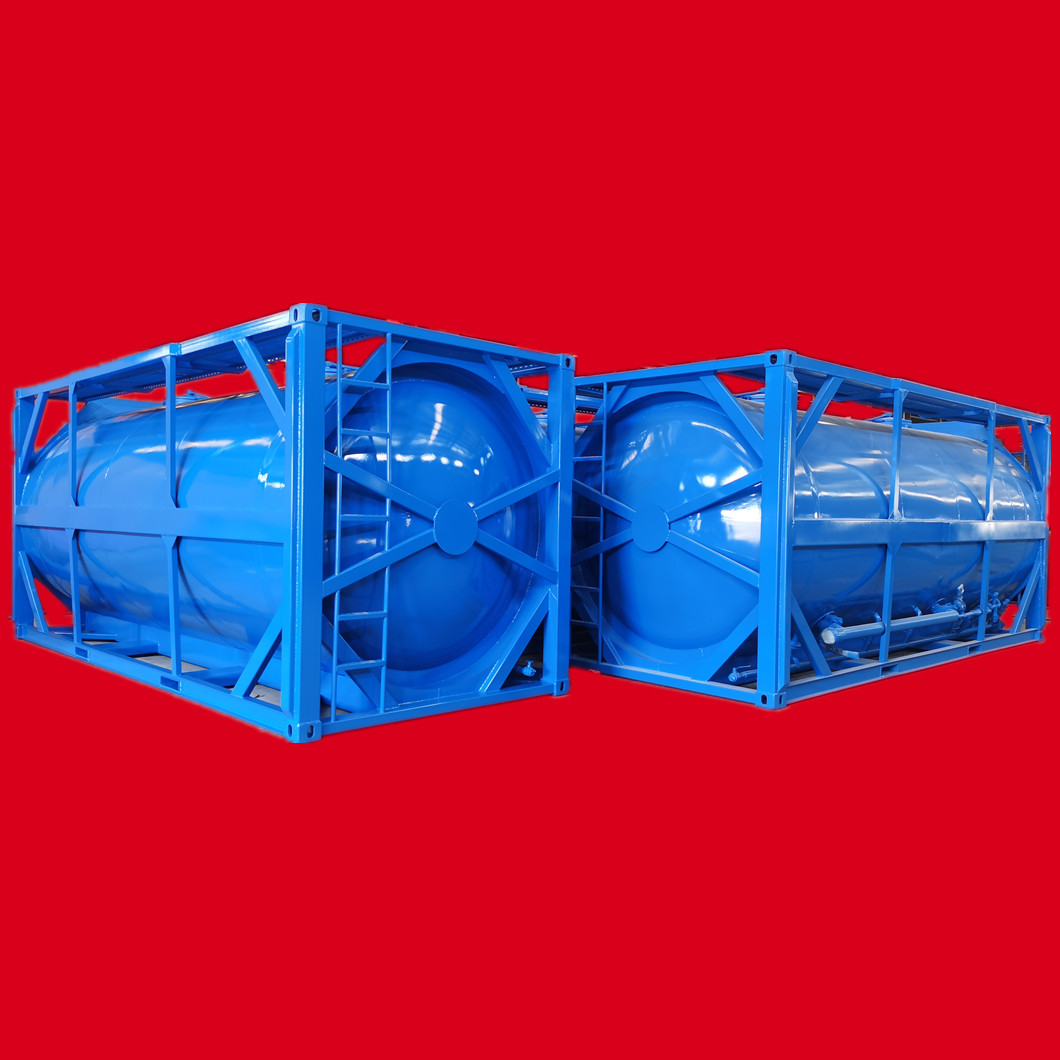

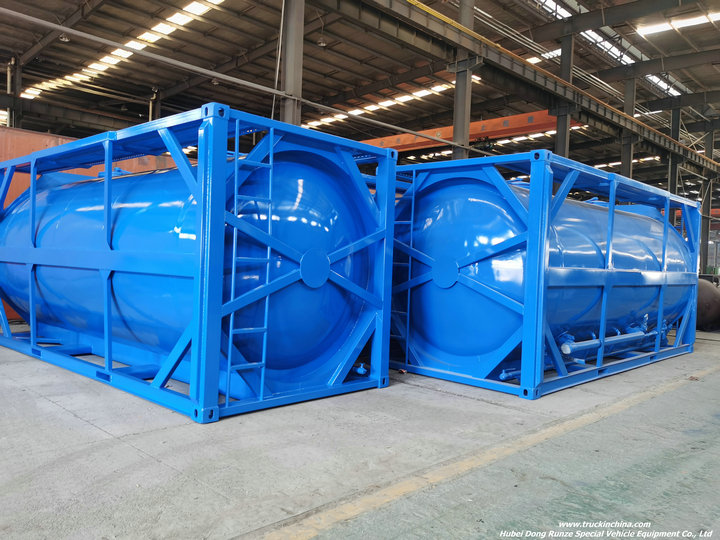

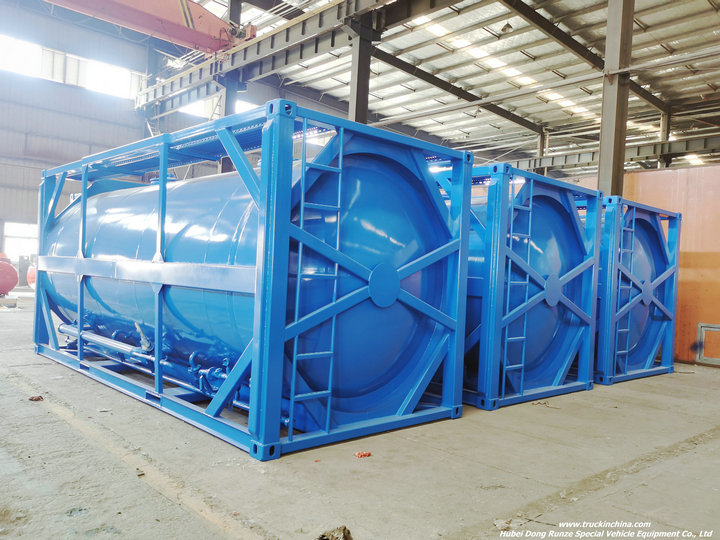

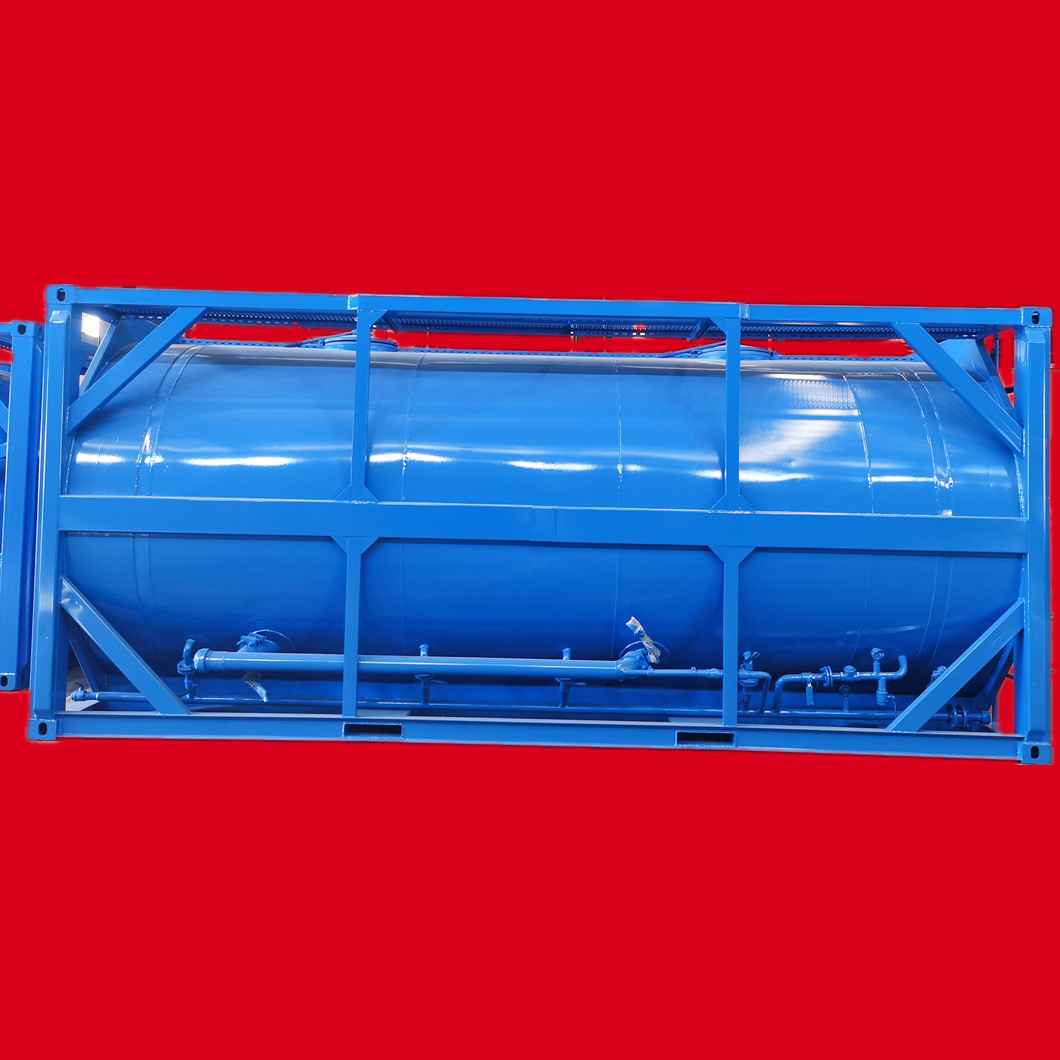

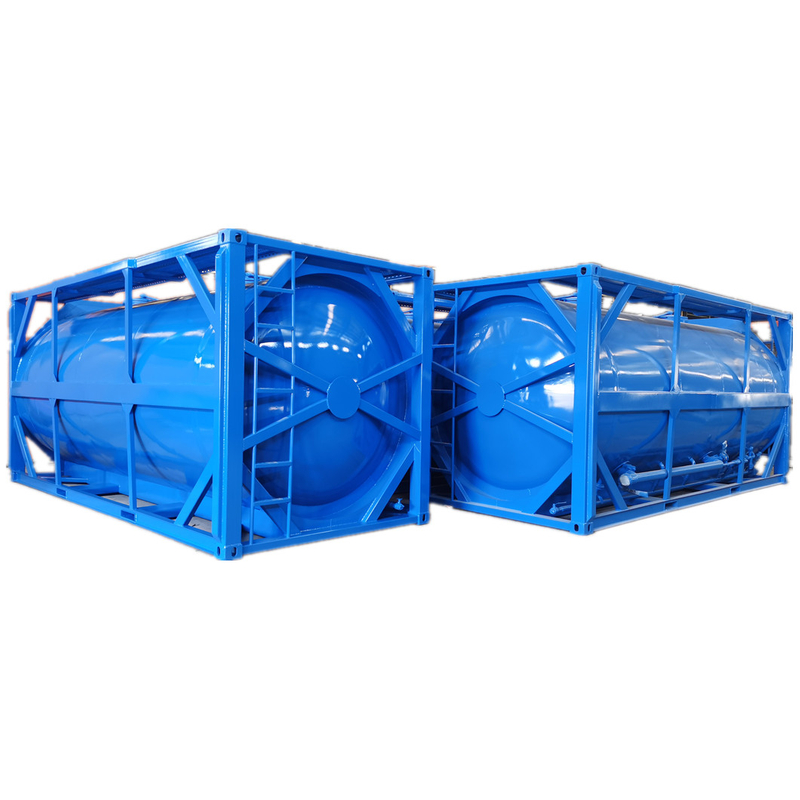

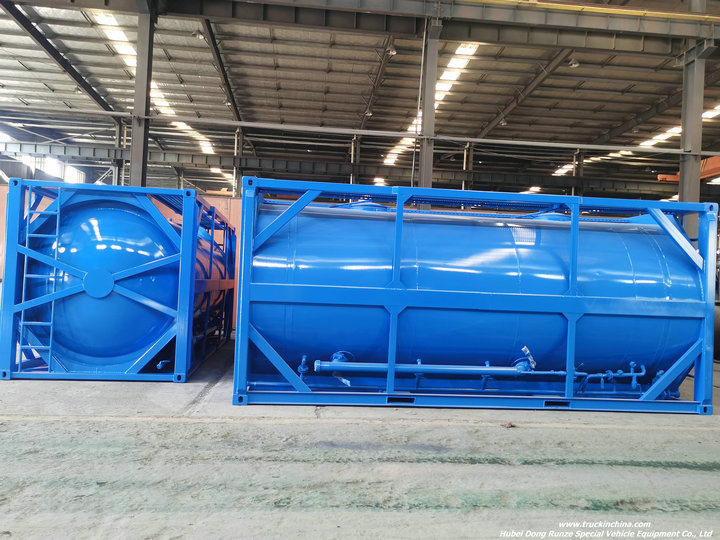

Bulk Cement Transport 20FT ISO Tank Container for cement / coal ash pneumatic ash fly container,coal ash tank container
ISO Bulk Cement Tank Container 20FT 20000L
The specification as below:
Bulk cement tank container: tank internal design concept: the use of domestic advanced production technology, innovative design, strong and durable. Air bag type bearing capacity, unloading speed, small residual. Integrated synthesis of the tank with high overall strength, good rigidity, good pressure, good performance and so on. The fluidized bed in the tank is designed scientifically and arranged reasonably, which can effectively shorten the discharging time, up to 1.4t /min, improve the volume utilization rate of the tank, reduce the ash remaining rate, and the ash remaining rate is 0.2%. The tank body of bulk cement carrier adopts double cone internal tilting horizontal structure, double pipe inlet and double cylinder feeding, and its discharging speed and surplus rate all meet the requirements of industry standards.
| Dong Run Ze 20feet tank container | Unit | DRAU | ||
| Ext. Length | mm | 6058 | ||
| Ext. Width | mm | 2438 | ||
| Ext. Height | mm | 2591 | ||
| M.G.W | kg | 30,480 | ||
| Tare | kg | 4,950 | ||
| Max. Payload | kg | 25,530 | ||
| Cubic Capacity | m³ | 20;22.5 | ||
| Stacking | Unit high | 5 | ||
| Air Source Pressure | Mpa | 0.25 | ||
| Air Supply | m³/min | 20 | ||
| Air Inlet Dia. | mm | 50 | ||
| Cargo Inlet Dia. | mm | 450 | ||
| Cargo Outlet Dia. | mm | 150 | ||
| Loading Temp. | °C | <80 | ||
| Ave. Speed of Discharging (pump into silo in 30m far and 30m high) | t/min | 2.0-2.5 | ||
| Residual Ratio | ≤3 | |||
| Standard Fittings: | ||||
| Manlid | 500mm (20") diameter, 6 point fixing, 14mm x 12mm seal, located centre. | |||
| Air-inlet diameter | 100mm cam lock type joint. | |||
| Outlet diameter | 4" male adaptor. | |||
| Average speed of discharge (conveying cement to the place 30m high, 30m far) | Cement: 1.0~1.5 t/min. | |||
| Remnant Ratio | % cement: ≤0.3 (Cement: Not more than 100kg). | |||
| Gaskets & Seals | Parts in contact with cargo, PTFE/Teflon. | |||

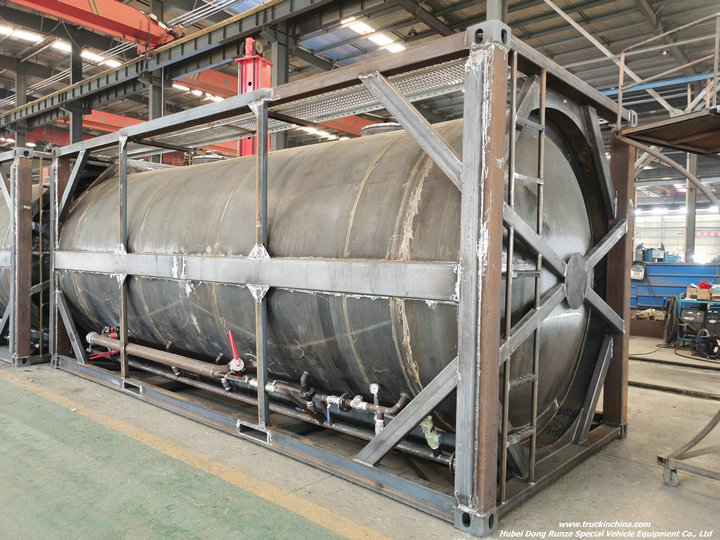

| Pipe System | The dry compressed airflow via 100 mm cam-lock type joint enters into a main pipe with a 2.5" one-way valve, a 2" safety valve, 1/2"safety valve and a pressure gauge, then goes into two air cavities at each side of the inside of the tank through two branch pipes which separately connected to the tank and main pipe. Another airflow goes through a 1" ball valve and a 1" one-way valve into the unloading pipe in order to speed up unloading cement. The diameter of maim pipe is 76mm and the branch pipe is 57mm. | |||
Unloading pipe | 4" steel pipe. One discharge butterfly valve and one 4" male adaptor are fixed on the discharge pipe. | |||
| Data Plate / Markings | Stainless steel data plate detailing specifications fitted rear end. | |||

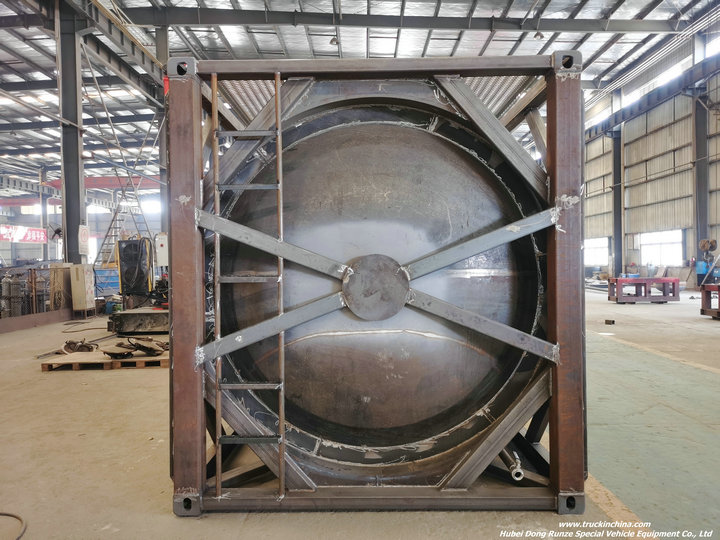

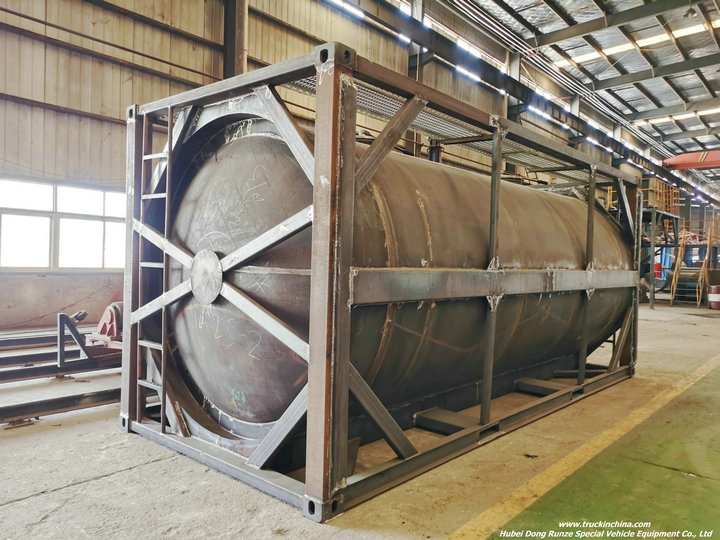

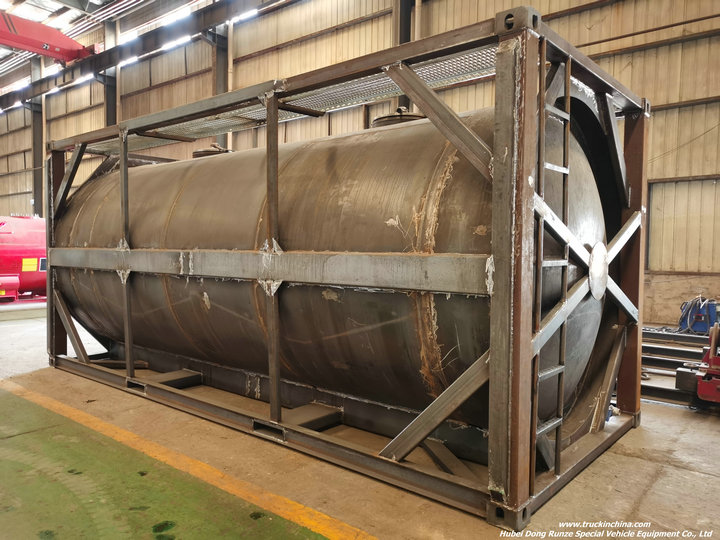

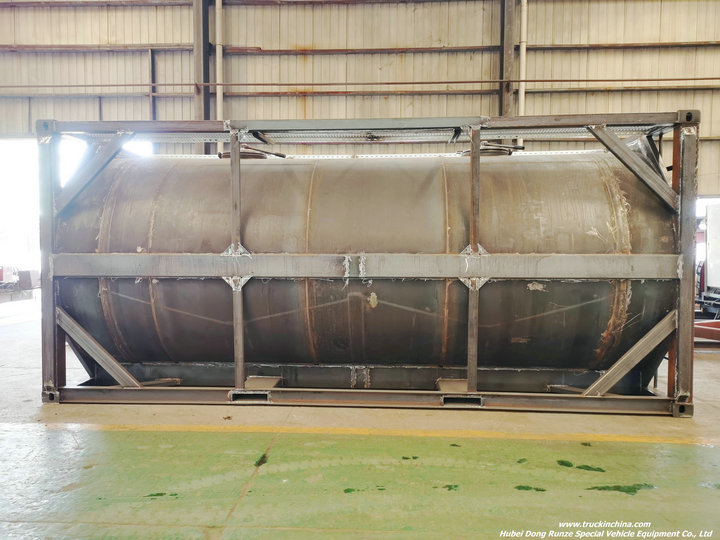

| Frame | Frame is composed of front and rear end frames, top and bottom. Each end frame is constructed by two (2) corner posts, top and bottom end rails, and four (4) thick diagonal corner plates. side rails, two (2) barrel supports, two (2) saddle s, eight (8) corner fittings. | |||
| Walkway | 400MM-wide non-slip steel. One longitudinal walkway and three short transverse walkways at the front and rear | |||
| Tank container main Technical Parameters | |||||
| 20FT tankcontainer | 30FT tank container | 40FT tank container | |||
| Overall dimension(mm) | 6058×2438×2438/2591 | 9144×2438×2438/2591 | 12192×2438×2438/2591 | ||
| Working temperature(ºC) | -12C-50C | ||||
