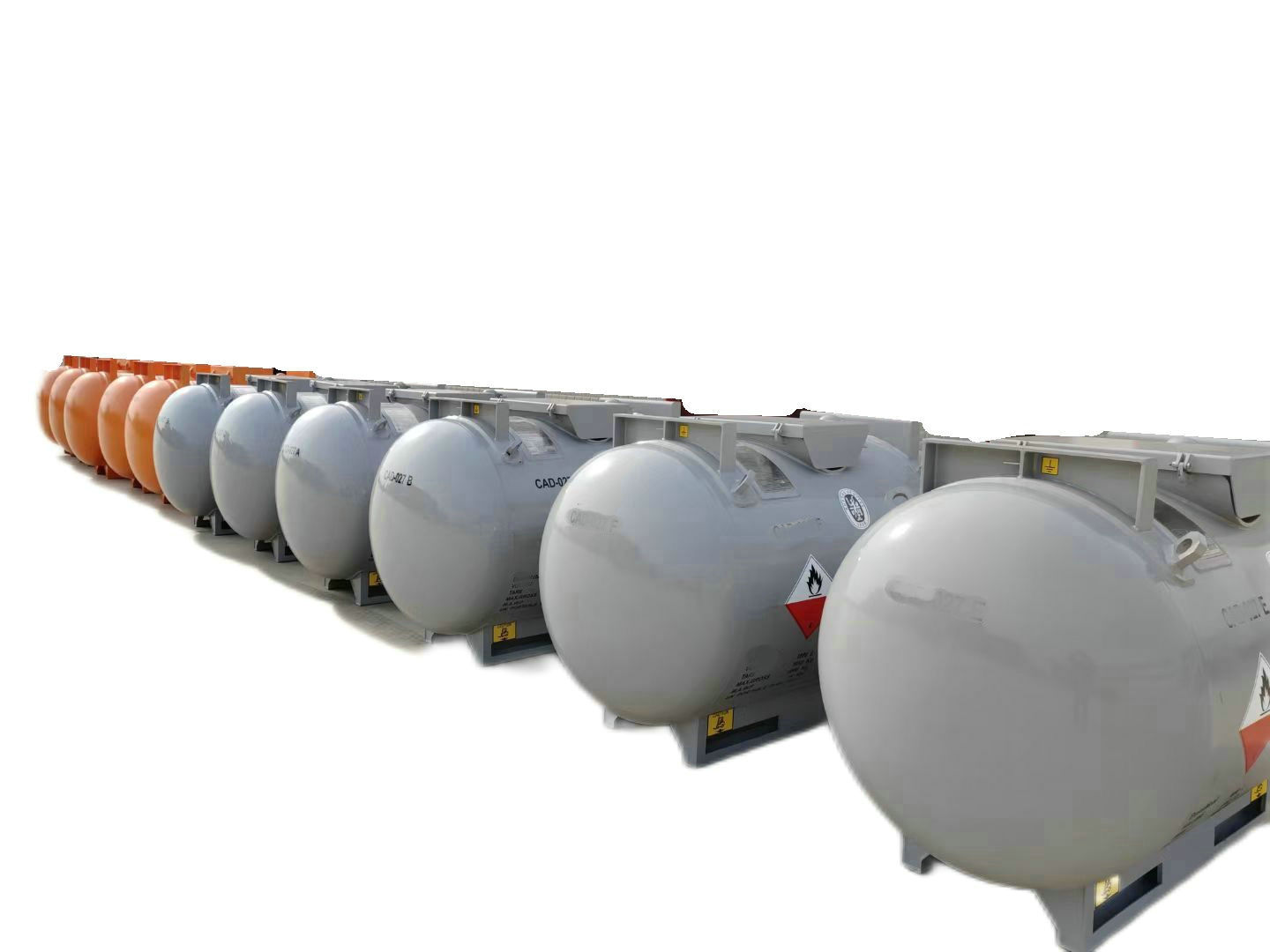

6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP
Views: 2112 Author: Tom Publish Time: 2023-12-22 Origin: Dong Runze
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP
Marks | Description of goods | Quantity | N.W/G.W | DIMENSIONS (LxWxH)(cm) |
N/M | PORTABLE TANK T21 (EMPTY AND NEW TANKS) START UP AND COMMISSIONING SPARE PARTS 200% GASKETS & 20% BOLTS & NUTS ( 4 SETS OF EACH SIZE) , I PCE OF 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), I PCE OF 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) | 6 UNITS 1 LOT | 6552 KGS | 212.8X114.8X138.8 X6 (1 X 40GP) |
Country of origin: China
Max. gross weight : 4000 kg
Tare : 1050 kg
Payload : 2950 kg
Portable Tank instruction : T21 ADR/RID
tank code : N/A Special provisions : TP2 TP7 TP36 TP41
Model : KS1880-T21
ISO size/type code : N/A Type : UN Portable
Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm
Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C
Maximum allowable working pressure : 14 bar
Test pressure : 21 bar
APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21
US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023
SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
STATEMENT OF THE MANUFACTURER : I, certify that the above mentioned tank has been manufactured and inspected in the same way as the basic prototype tank certified by BUREAU VERITAS under n° BVCT2370646/S
Manufacturer’s stamp CHARACTERISTICS INSPECTIONS GENERAL DRAWING N° : KS1880-00 Rev.1
DESIGN Design code : ASME VIII DIV.1
Design temperature : -40 ~ 65 °C
Design pressure : 14 bar
External design pressure : -1.03 bar
ADR/RID calc. pressure : - bar
MATERIALS Frame : SA-516M Gr.485+GB/T 713 Q345R
Tank Shell : SA-516M Gr.485
Tank Heads : SA-516M Gr.485
TANK External diameter : 1148 mm
Number of compartments : 1 Number of baffles : 0 Design thickness
Shell Nominal : 12.00 mm Minimum : 9.87 mm
Heads Nominal : 12.00 mm Minimum : 9.87 mm
Equivalent thickness in reference steel Shell : 12.15 mm Heads : 12.15 mm
External tank area : 8.6 m²
EQUIPMENT Heater type : None
Heater work pressure : N/A bar Heater test pressure : N/A bar Surface area : N/A m²
Outlet Top : Yes Closures : 2 Bottom : N/A Closures : -
SAFETY DEVICES Relief valve : 1 Setting : 15.4 bar
Relief valve type : XinGuang/A412F-25P-(3B)
Flame resistant gauze : No
Relief valve serial no. : 202308176 Rupture disc :
NO Setting : N/A bar Mounting : N/A Installed vent capacity : 1.35 Nm³/s
Minimum vent capacity : 0.788 Nm³/s COATING / INSULATION Internal : No
External: Painting TESTS R : 4000 kg

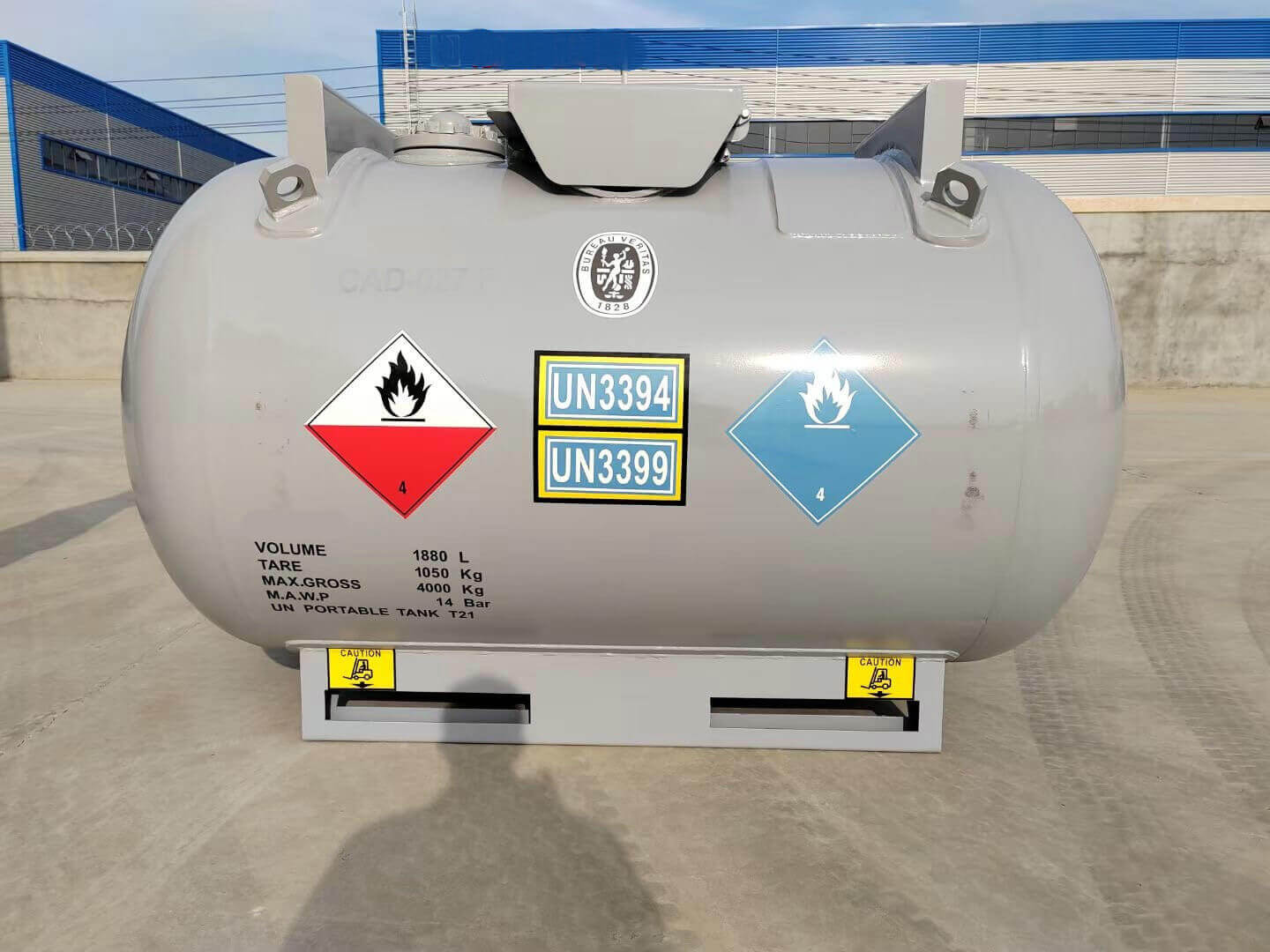

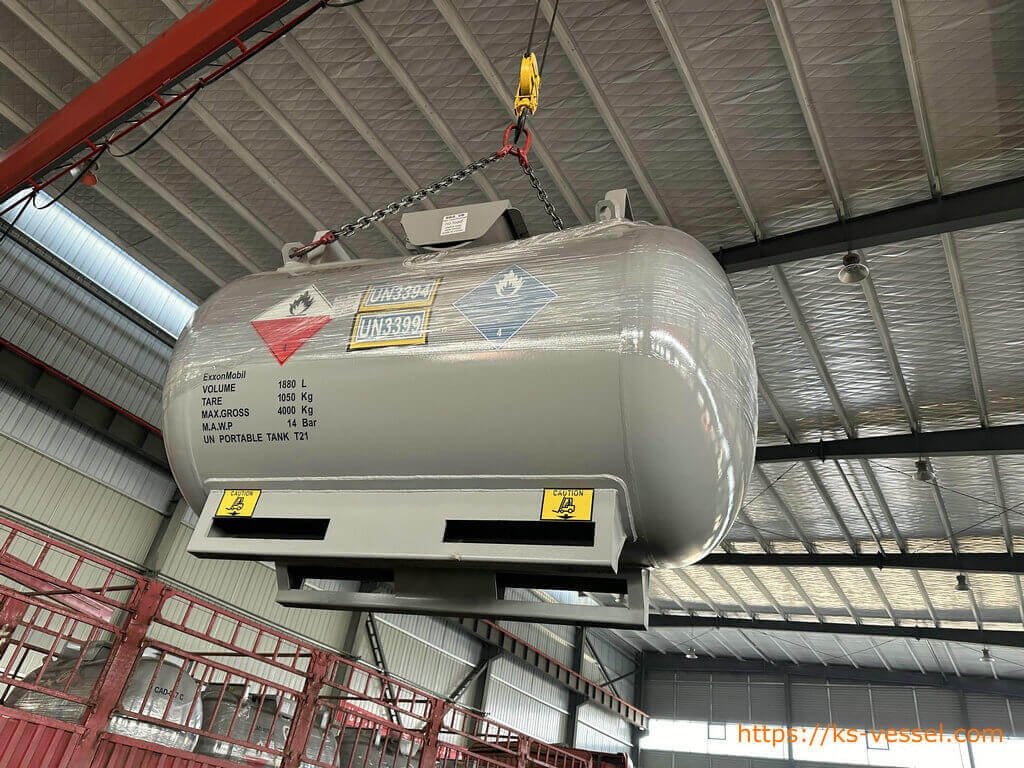

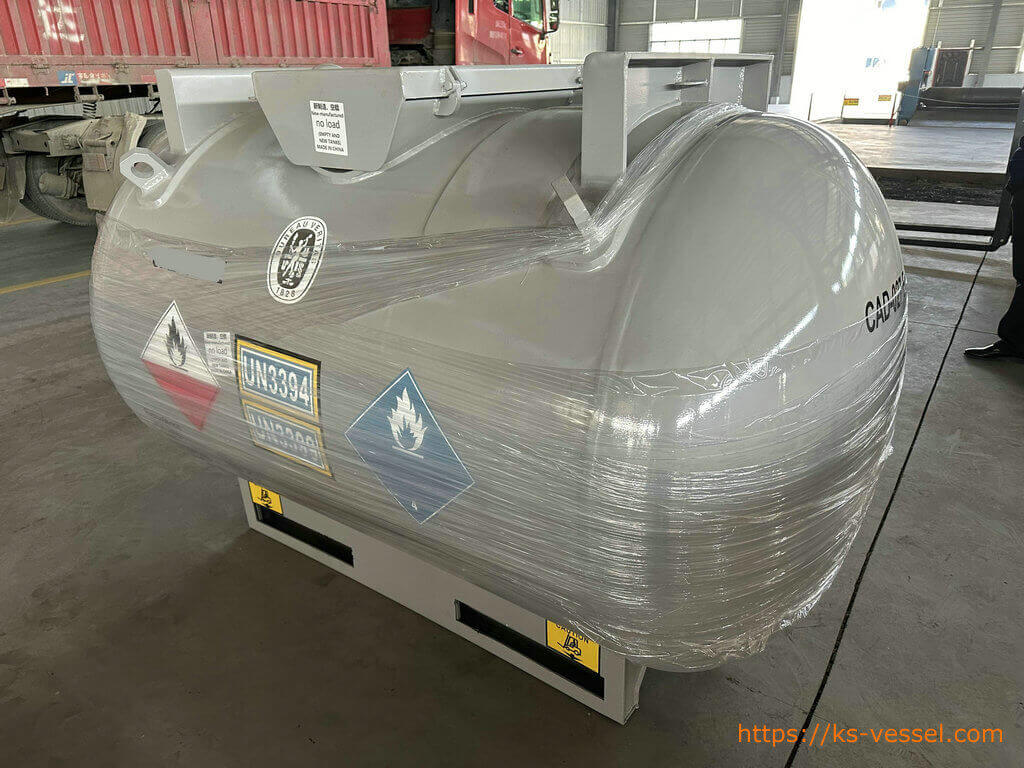

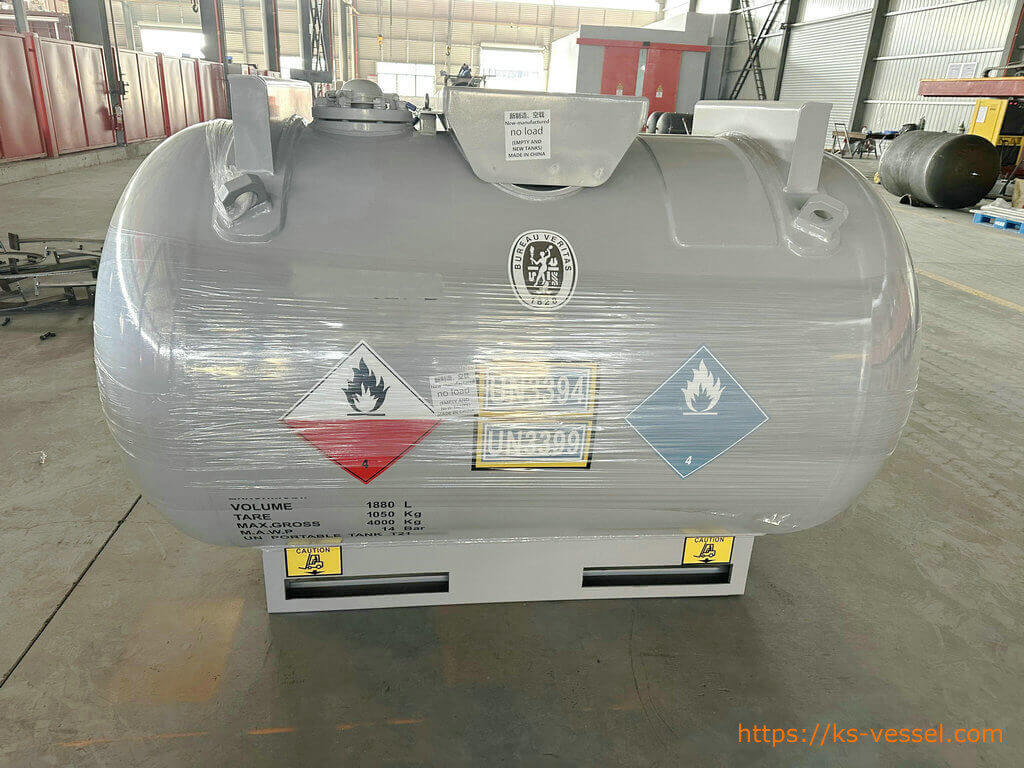

UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA
Adr/Rid Organometallic Substance, Liquid, Water- Reactive
C-430 Saddle Type Portable Tank , tank capacity 1630L
C-480 Saddle Type Portable Tank, tank capacity 1880L
C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
Triethylaluminum (TEAL) Alky Portable Tank Container
tank capacity 1880L/1.88m3
FOR UN3394 ,UN3399
with fusible plug in addition to the Relief valve
ADR/RID BV ASME CERTIFICATE
All Gaskets firms Klingersil, the same fittings as Nouryon company Tanks
With Rotatable Liquid Vavles And Gas Vavles , High Quality Strong Safty Valve
Both Tanks inner outer shell and Dishhead sandblasted
Product: UN T21 TEAL Tank
C430 Specifications
1-Water capacity:1880 litre
2-Max.Gross mass:4000kg
3-Max. Tare mass:1070kg
WATER CAPACITY | |
MAX GROSS MASS | 4000kg |
MAX TARE MAS | 1070kg |
EXTERNAL DIMENSIONS | 2128mm*1148mm*1388mm |
M.A.W.P | 14bar 1.4Mpa /-0.13MPa at 65 oC |
DESIGN TEMPERATURE | -40oC to +65oC |
MATERIAL | SA-516M Gr.485 / 16MnDR |
SHELL THICKNESS | 12mm,14mm |
PRESSURE VESSEL CODE | T21 UN ,IMDG，ADR/RID，49CFR，TIR，USDOT，ASME，BV |
APPLICABLE CARGOS | TRIETHYL ALUMINUM UN3394 UN3399 |
