10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India

Views: 2144     Author: Dong Runze Special Vehicle     Publish Time: 2024-04-09      Origin: Site

10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India

10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India


Those 10 Units UN1790 HF Acid  T14 ISO Tank Containers are Repurchased order after 2 Sets Hydrofluoric Acid 20Ft Tank Container deliveried to Chennai India in 2022.

Tank Container Specification Sheet


T14 ISO TANK CONTAINER MAIN TECHNICAL PARAMETERS

20FT TANK CONTAINER

Hydrochloric Acid Un1789  33% HCl

Hydrofluoric Acid  Un1790  48% HF

OVERALL DIMENSION(MM)

6058×2438× 2591

WORKING TEMPERATURE(ºC)

-20 ℃ ~+65 ℃


Insulating performance

Design according to user’s requirement


Water testing pressure(MPa)

0.6


Insulating materials and thickness(mm)

optional


Capacity(m3)

21000L


Host materials

Middle Steel  Q345/16MnDR + LLDPE7042 (PE)


Thickness of shell materials(mm)

6


Thickness of Seal Head materials(mm)

8( 6.5-7.3)


Corner post materials

16Mn


Standard fittings  Manhole cover, valve

As design


Capacity

Tare weight

Max gross weight


21KL

5150kg

36000


Dimensions

Metric

Imperial

Length

6,058mm

19'10"

Width

2,438mm

8'0"

Height

2,591mm

8'6"


Pressures

Bar

MPa

Working pressure

4.0

0.4

Test pressure

6.0

0.6

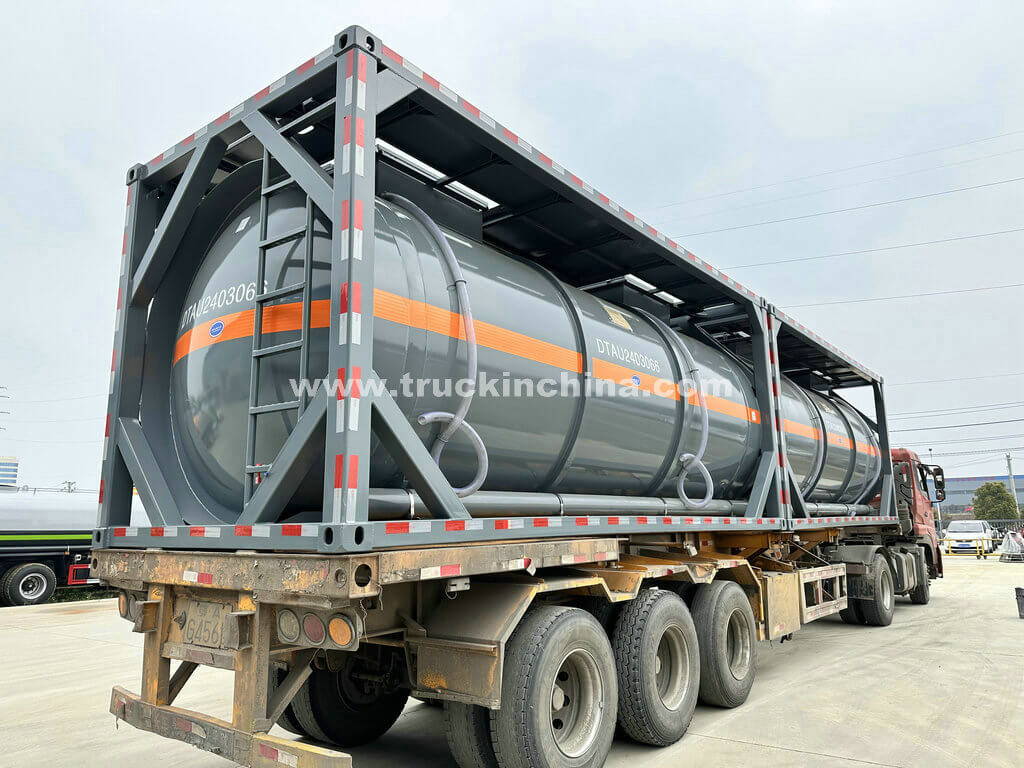

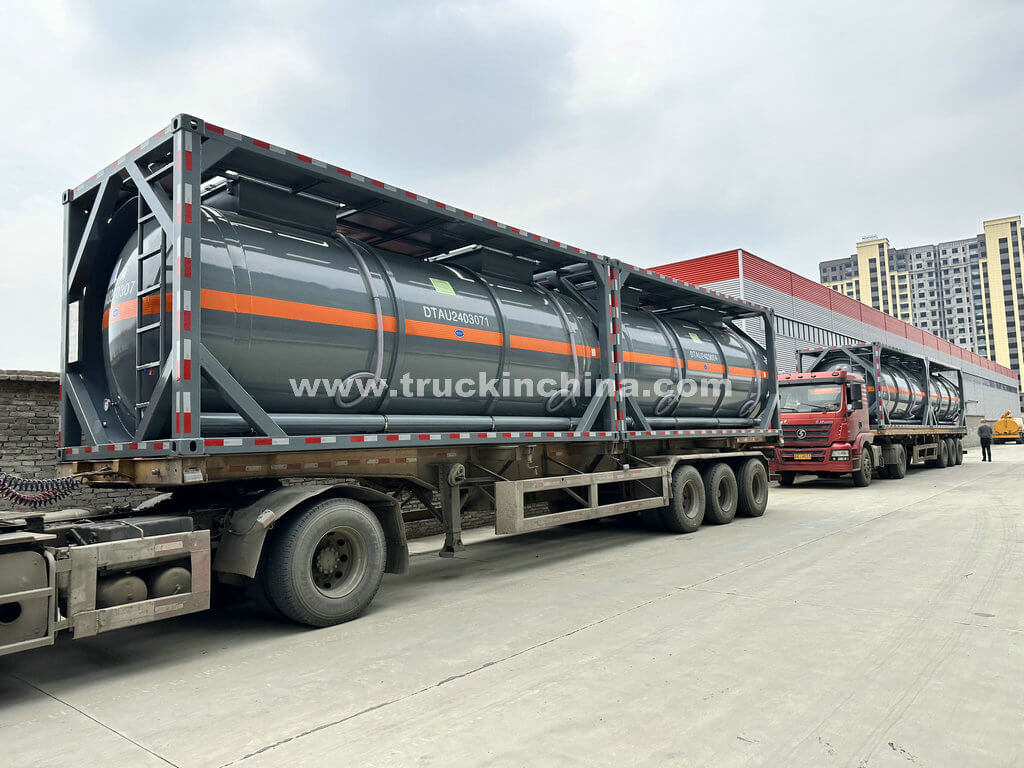

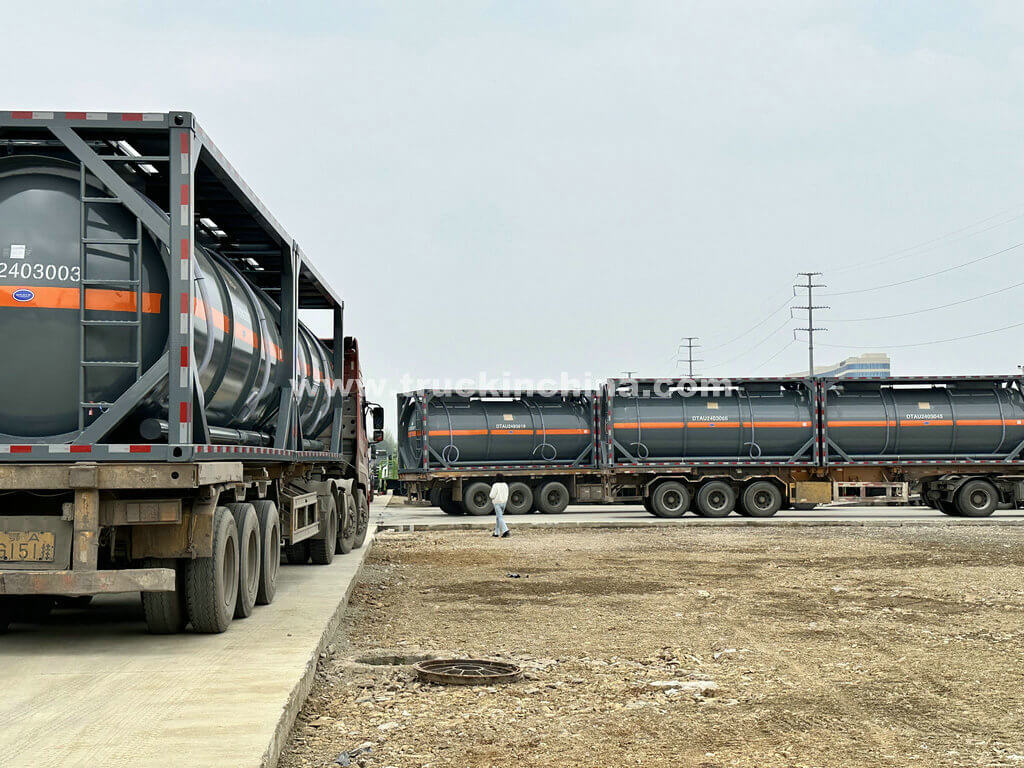

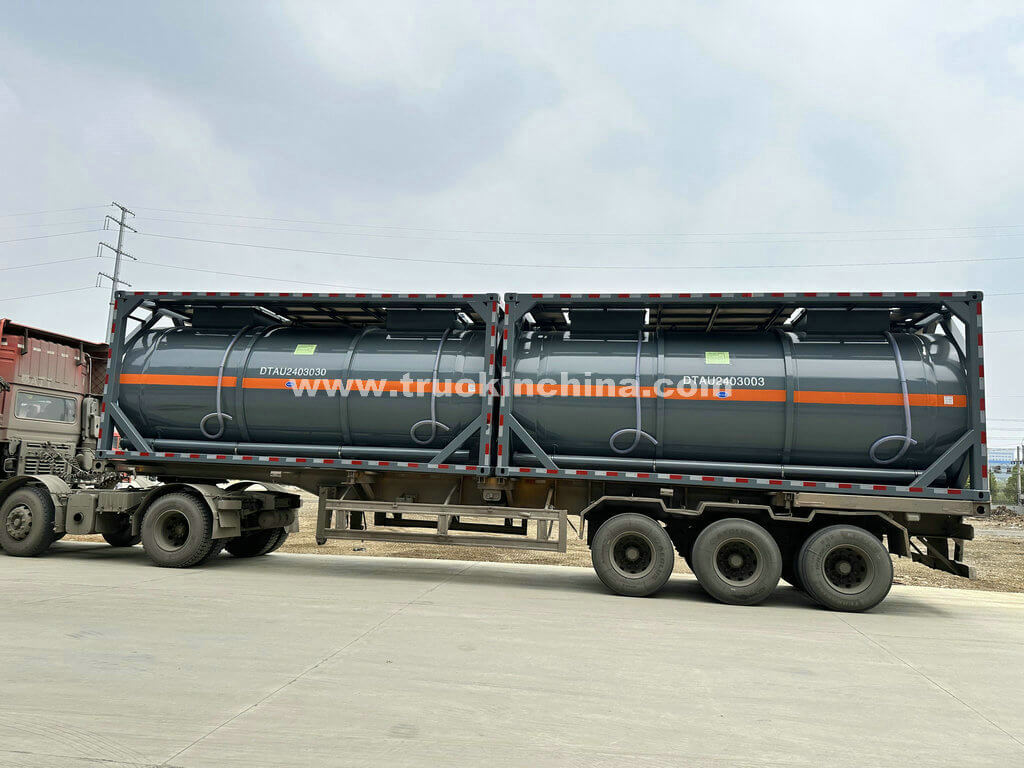

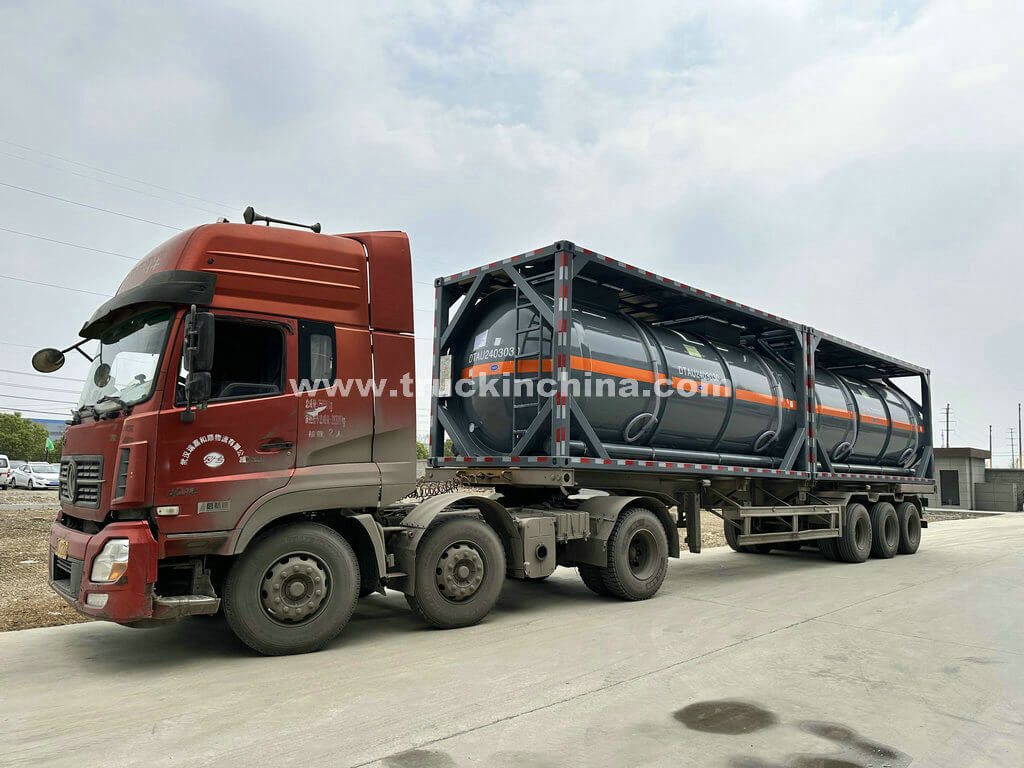

 T14 ISO Tank Container For Hydrofluoric Acid (63)T14 ISO Tank Container For Hydrofluoric Acid (60)T14 ISO Tank Container For Hydrofluoric Acid (13)T14 ISO Tank Container For Hydrofluoric Acid (80)T14 ISO Tank Container For Hydrofluoric Acid (59)


Tank number for ease identification

TANK NO.:

DTAU240300 3,

DTAU240301 9 ,

DTAU240302 4 ,

DTAU240303 0,

DTAU240304 5,

DTAU240305 0,

DTAU240306 6 ,

DTAU240307 1 ,

DTAU240308 7,

DTAU240309 2
