2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji

Views: 862     Author: Dong Runze Special Vehicle     Publish Time: 2022-12-28      Origin: Combined Vacuum And Jetting Trucks

2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji

2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck  Combined Vacuum Sewer Jetting to Suva Port Fiji


Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water )
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW

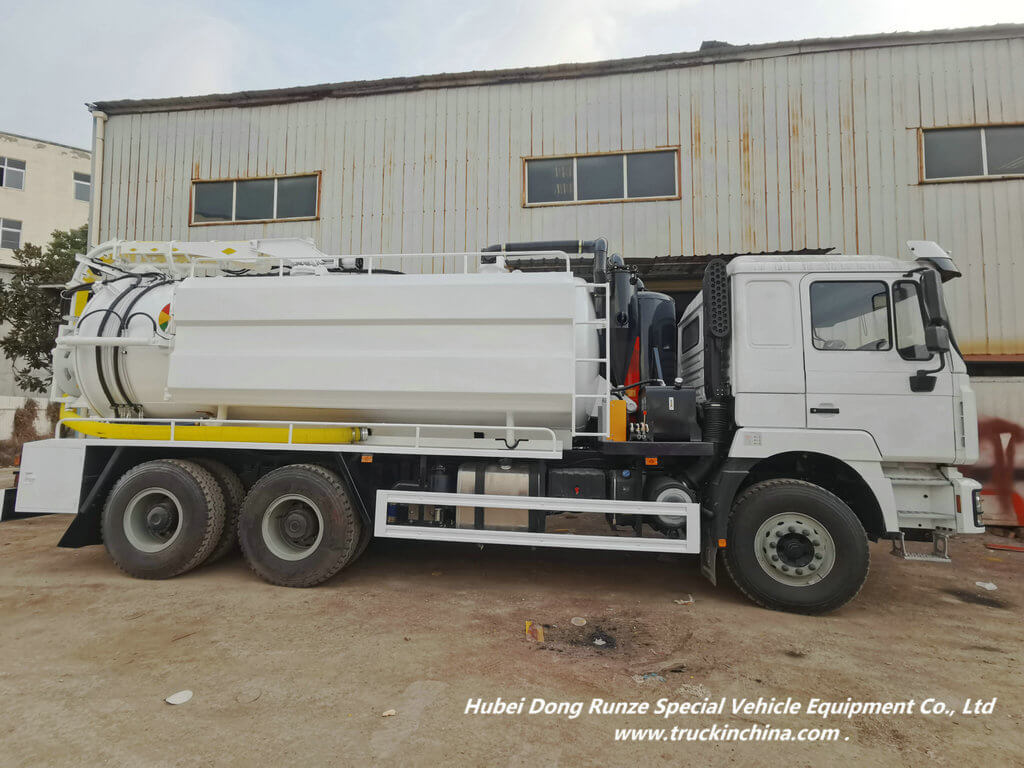

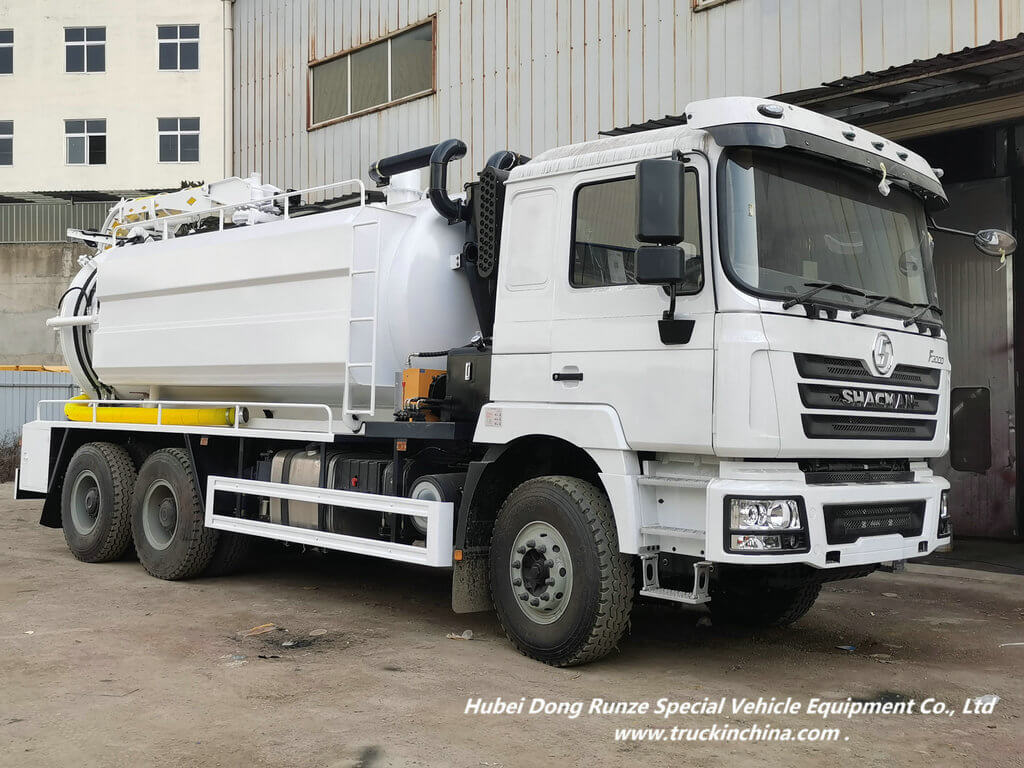

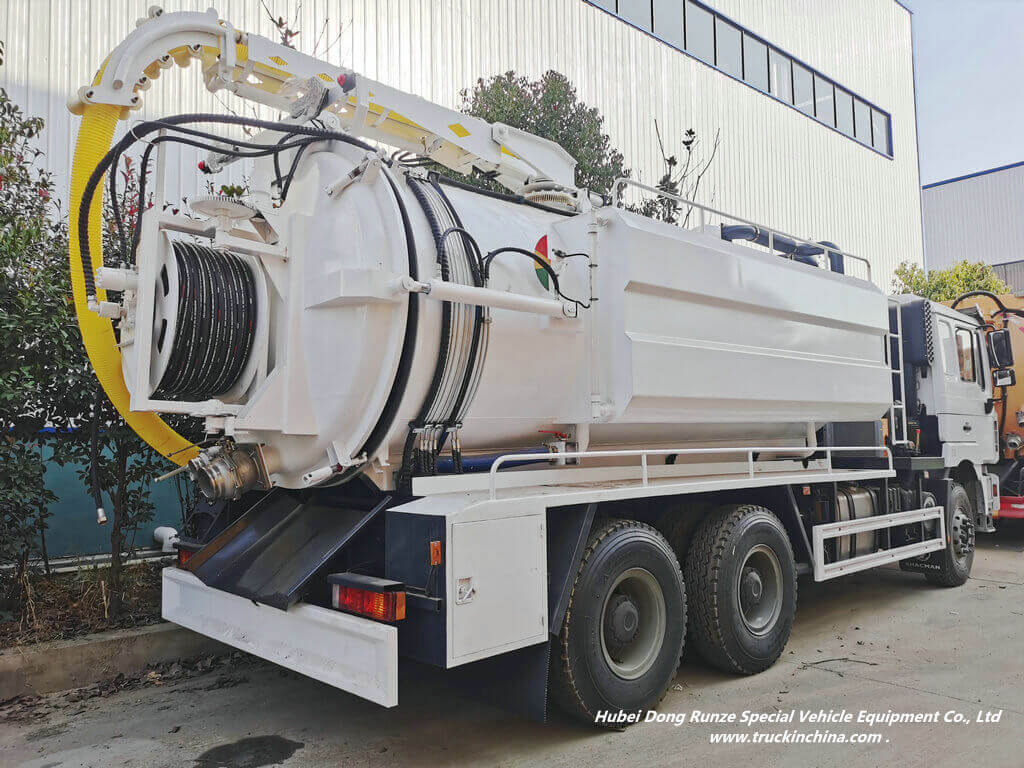

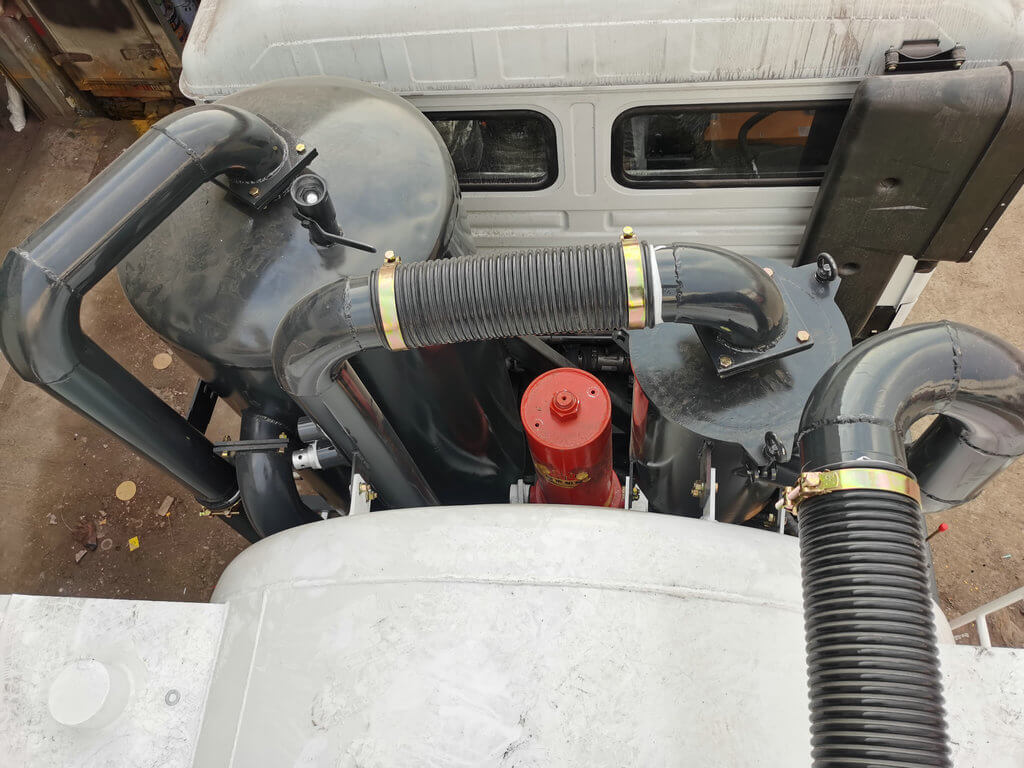

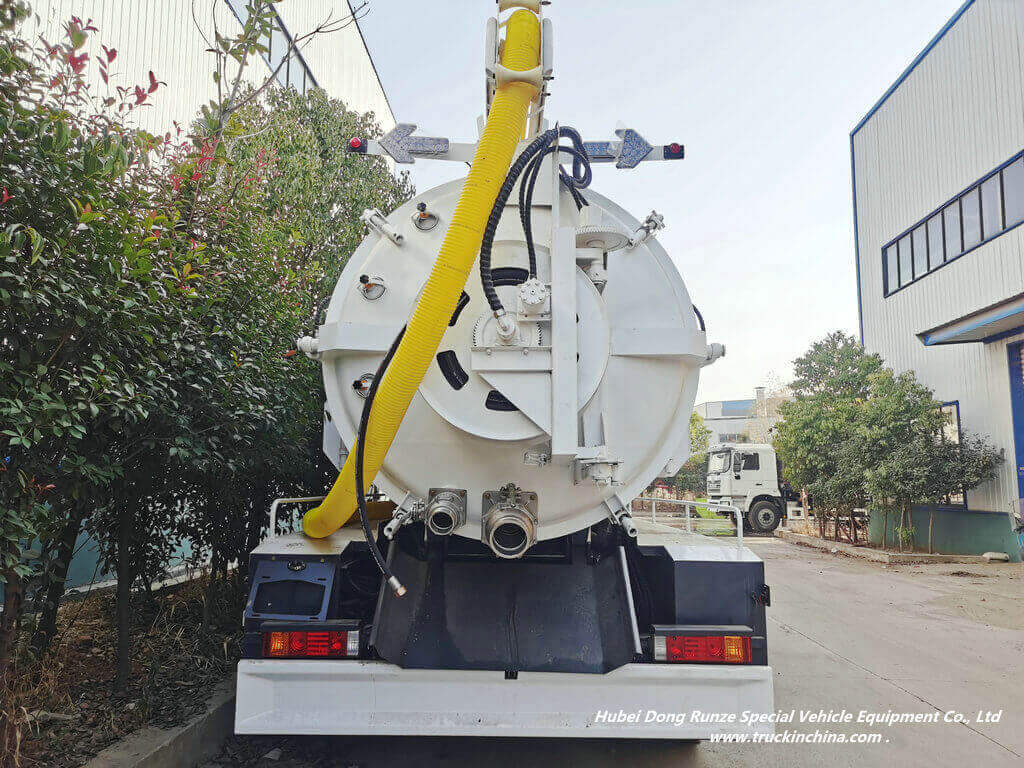

Shacman Hydro Excavators Truck Sewer Jet Suction Units (131)_1Shacman Hydro Excavators Truck Sewer Jet Suction Units (130)_1Shacman Hydro Excavators Truck Sewer Jet Suction Units (153)_1Shacman Hydro Excavators Truck Sewer Jet Suction Units (144)_1

Chassis brand & Year

SHACMAN F3000

Wheel Drive

6x4, RHD SX1258DR434R

Overall Dimension

10250*2500*3250mm

Material of Sewage Tank

High quality carbon steel Q235,  8mm tank body and seal head

Gross Weight

25000kg

Curb Weight

17000kg

Max loading Weight

20 Tons

Engine

WEICHAI  336HP  Euro 4 /5

Wheelbase

4350+1350mm

1st

MAN 7.5T

3rd and 4th axle

MAN 13T

Tires:

12+1, 12.00R20

Cabin

SHACMAN  M3000 luxury cab,  RHD

Transmission

Manual,10JSD180, 10 front gears and 1 rear gear

Brake

Full air brake

Max Speed

90km/h

Fuel Tank

300L

Vacuum Jetting Tank

General

Make & Model

DRZ

Dimension


Superstructure


Tank

Tank Capacity

13500 Litres

Tank Material

Carbon -  optional lined PE

Stainless steel

Tank Thickness

8 mm

Vacuum Pump

Water ring VAC pump with vice engine .Highly efficient, vacuum rate 93%, quick suction and discharge

Suction Valve

5//6in

Discharge Valve

5//6in /manual valve or /24” hydraulic opened valve


The tank could be hydraulic lifted and rear door can be hydraulic opened for complete discharge of solid stuff.

All standard accessories: anti-fill valve, sight glass, tool kit, English manual……..

Optional

Tanks Capacity




Vacuum sewage tank

Capacity

10-14CBM

Hose Diameter (mm)

100-150mm( 4in-6in)

Discharging Angle (°)

45

Degree of Vacuum (kPa)

93-96

Available Suction (m)

7-30

Tank Filling Time (min)

5

Water tank

Capacity

2-4CBM

Washing Efficiency

95%

Water Pressure Jet Pump Flow (L/min)

300-350
