30FT /40Foot ISO Tank Container T50 UN Portable Tank for Ethylene Oxide UN1040 Stainless Plate Insulated PUF

30FT /40Foot ISO Tank Container T50 UN Portable Tank for Ethylene Oxide UN1040 Stainless Plate Insulated PUF
MAWP 10bar T50 UN Portable Tank 32K8
Price for refer only. Final Price Offer Discount.
Price: $ 59800 / set
Discount Price: $ 56800 / set
Availability:
Quantity:

  • Shanghai, China
  • 3000
  • T/T



30FT /40Foot ISO Tank Container T50 UN Portable Tank for Ethylene Oxide  UN1040  Stainless Plate Insulated PUF

MAWP 10bar T50 UN Portable Tank 32K8

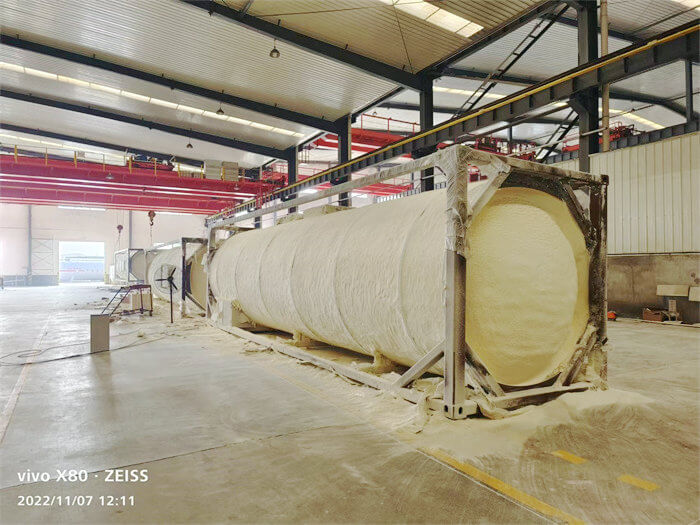

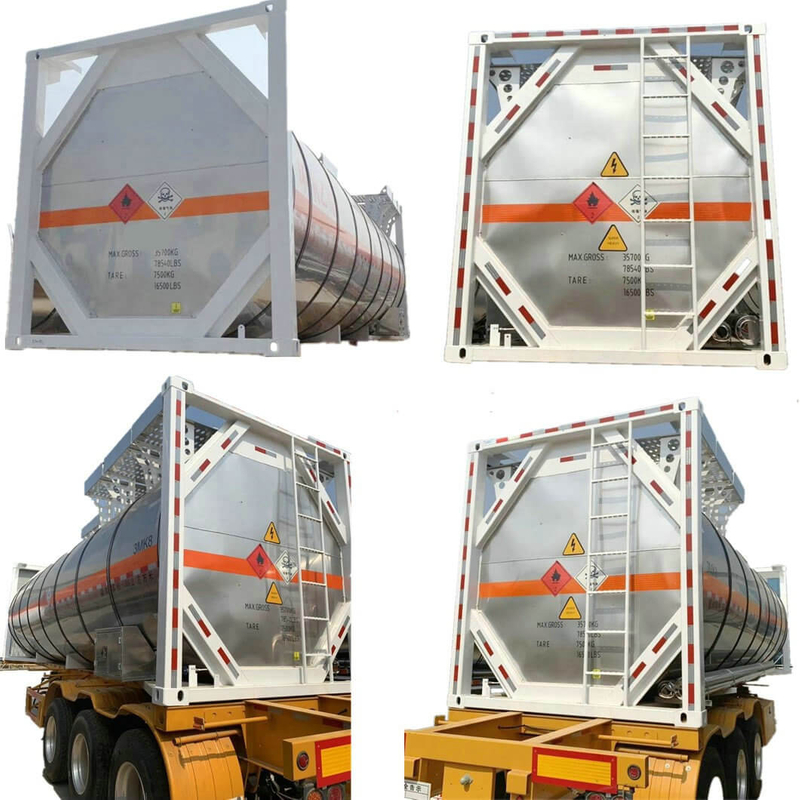

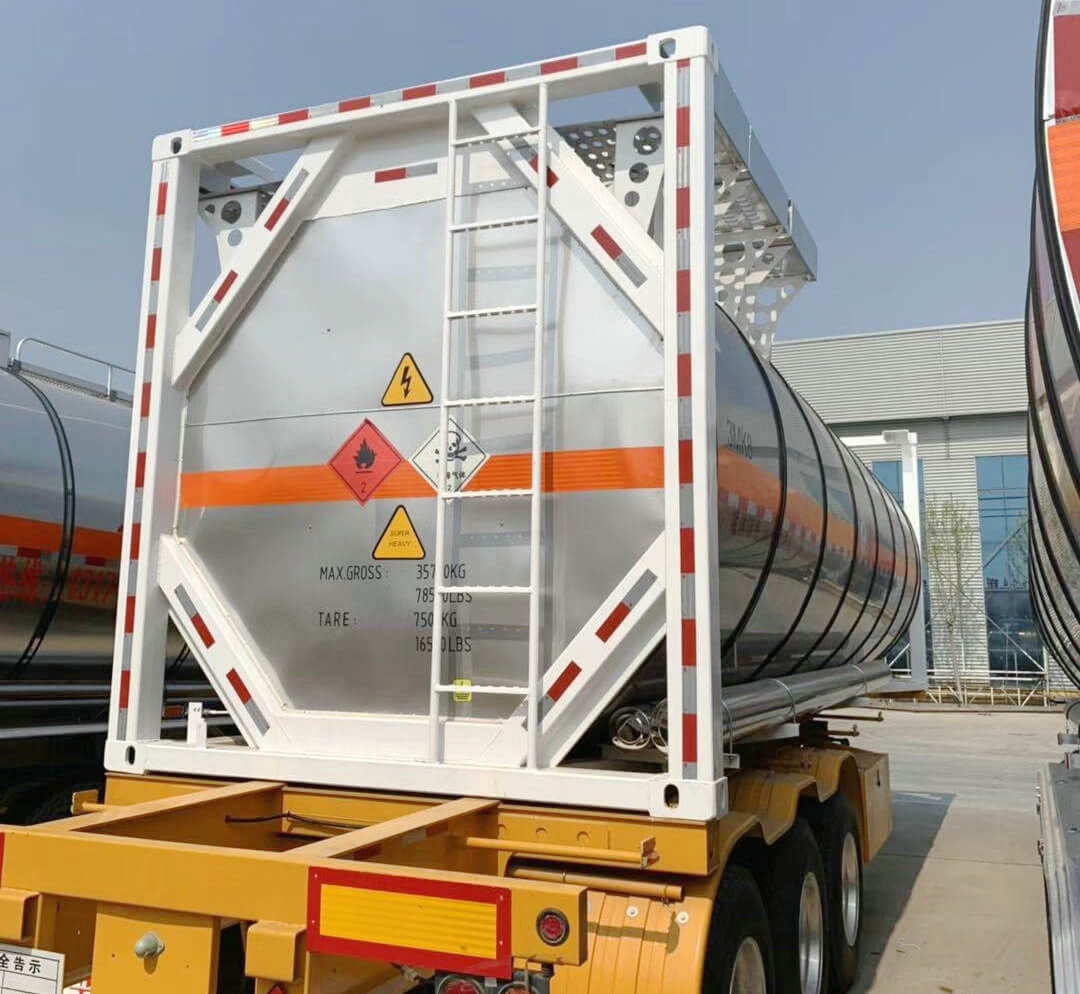

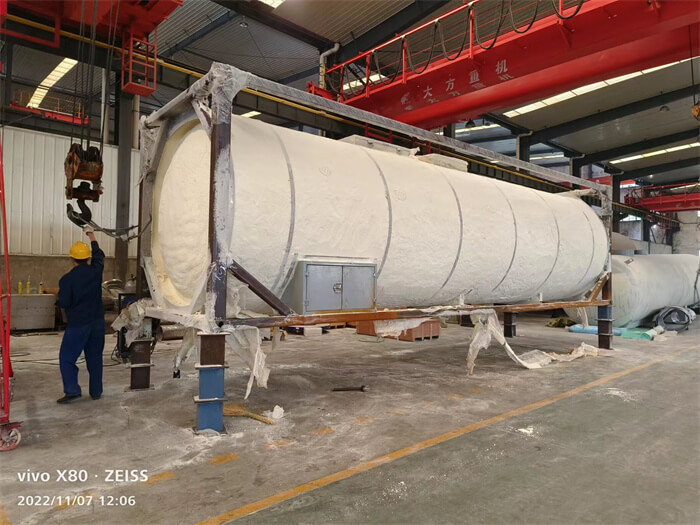

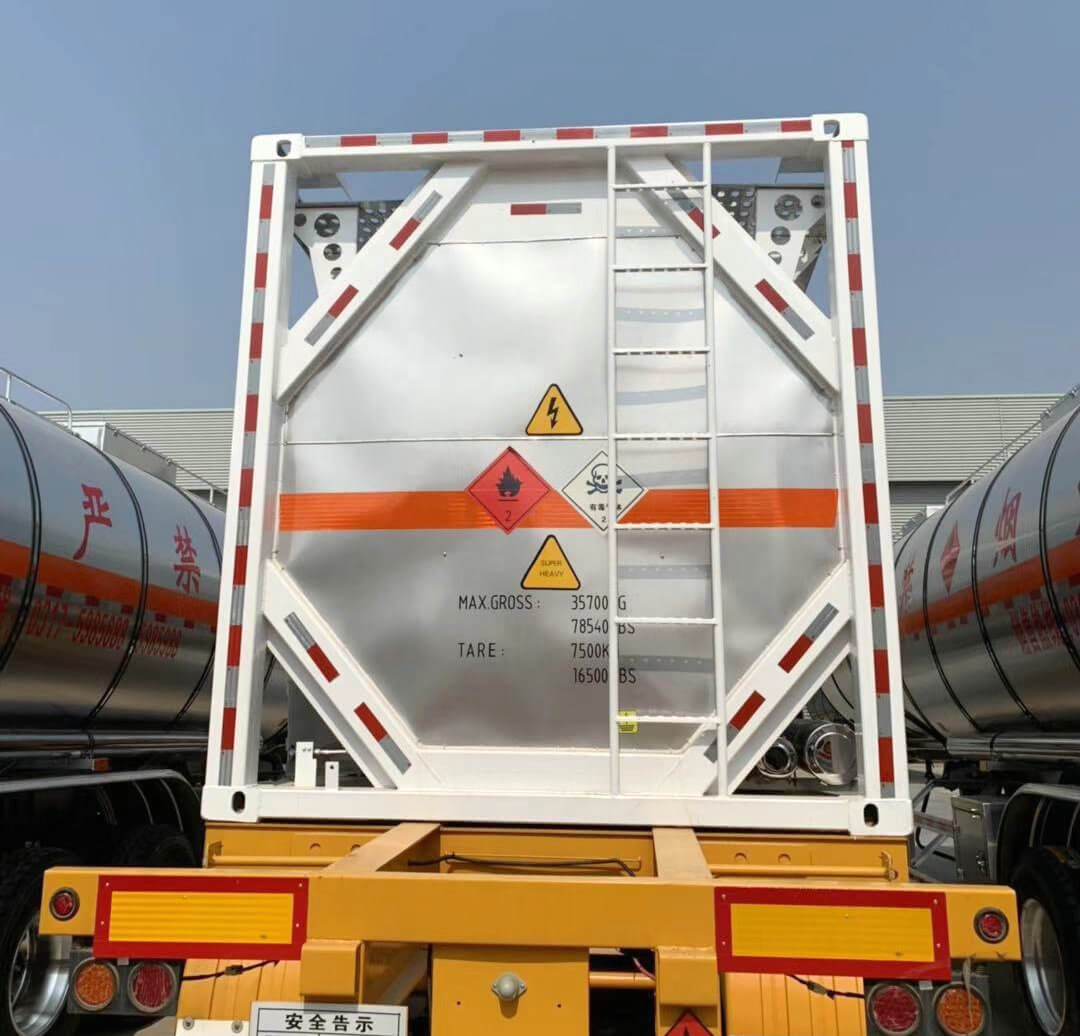

Ethylene Oxide iso Tank container (14)Ethylene Oxide iso Tank container (22)

Ethylene Oxide iso Tank container (27)Ethylene Oxide iso Tank container (21)


Ethylene Oxide iso Tank container (19)Ethylene Oxide iso Tank container (3)Ethylene Oxide iso Tank container (17) Tank Specification for refer only

Design Code

Chinese GB standard ISO 20FT with BV/ASME

Capacity

25m 3

Liquid

UN 1040, ETHYLENE OXIDE

Max.Gross Mass

27450kgs

Loading

19500kgs

Tare Weight

7950kgs

Working Pressure

0.8MPa ; 1.0MPa 10Bar

Design Pressure

1.0MPa =10Bar

Hydro test pressure

1.3MPa=13Bar

Design temp

--40-65

Overall Dimension

6058*2438*2591mm

Shell Material

SS30408

Head Material

SS30408

Head Type

Double Elliptical Heads

Design Code

Chinese GB standard ISO 30FT with CCS

Capacity

34.87 m3

Liquid

UN 1040, ETHYLENE OXIDE

Max.Gross Mass

35728kgs

Loading

27198kgs

Tare Weight

8510kgs

Working Pressure

0.8MPa ; 1.0MPa 10Bar

Design Pressure

1.0MPa =10Bar

Hydro test pressure

1.3MPa=13Bar

Design temp

--40-65

Overall Dimension

9125*2438*2591mm

Shell Material

SS30408

Head Material

SS30408

Head Type

Double Elliptical Heads

View more at Youtu.be and follow us.

https://youtu.be/77W3oSM7KAU

https://youtu.be/pAEXHFBdGdY

https://youtu.be/3Y0tT7nknXM

https://youtu.be/3Yb2diEGXyY

https://youtu.be/VKVIcC02974

https://youtu.be/uqva7K_GLB4

https://youtu.be/YViOkhVwMKg

https://youtu.be/II0khjBNAPs

https://youtu.be/sUpZG9wYqnU

https://youtu.be/x4GxDsDI1N0


ISOTANK List

The Main Technical Parameters of Tanks (ASME Standard)


Item

Loading Medium

Model

Capacity
(m3)

Design
Pressure
(Mpa)

Design
Temperature
(c)

Tank Material

Nominal Tank
Thickness (mm)

Insulation

Tare weight
(Kg)

Max. Gross Weight
(Kg)

Dimension
(LX WX H)(mm)

Loading Method

1

R134a

T50

24

1.38

-40 /+55

SA-612N

11

Sunshade

6400

34000

6058 X 2438 X2591

Down load unload

2

R22

22

2.1

-40/+50

18

8800

3

R143a

22

2.42

20

9500

4

R125

22

2.75

21

9500

5

R32

20

3.44

25

10900

6

AHF

T19

21

1.0

-40/+55

SA516M NGr.485

12

No

6900

Up load unload

7

Trichlorosilan

T14

21

0.5

-40/+50

Q345R
(16MnR)

12

No

6780

34000

6058 X 2438 X2591

8

Liquid Chlorine

T50

20

1.7

-40/+50

16

8300

9

21.72

1.62

16

8900

10

Liquid
Ammonia

T50

21.6

2.2

-40/+50

06Cr19Ni10

22

Packing Insulation

11970

11

SO2

T20

21

1.03

40 /+60

16MnDR

12

No

6900

12

Cryogenic Liquid

T75

19.8,20

0.75-2.35

-196/+50

Inner Tank: 06Cr19Ni10
Outside Tank:Q345R


Vacuum With Mutli-wrapped

8600/12880

Down load unload

The Main Technical Parameters of Tanks (China Standard)


Item

Loading Medium

Model

Capacity
(m3)

Design
Pressure
(Mpa)

Design
Temperature
(c)

Tank Material

Nominal Tank
Thickness (mm)

Insulation

Tare weight
(Kg)

Max. Gross Weight
(Kg)

Dimension
(LX WX H)(mm)

Loading Method

1

R134a

T50

24

1.38

-40 /55

Q345 (16MnR)

12

Sunshade

6500

34000

6058 X 2438 X2591

Down load unload

2

R22

20

2.1

-40/+50

16

7850

3

24

18

9100

4

R125

22

2.75

22

9900

5

R32

22

3.44

28

12000

6

23.7

-40 /55

12700

Portable tank instruction

PORTABLE TANK INSTRUCTIONS

Portable tank instructions also permitted

T1

T2, T3, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T2

T4, T5, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T3

T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T4

T5, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T5

T10, T14, T19, T20, T22

T6

T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T7

T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T8

T9, T10, T13, T14, T19, T20, T21, T22

T9

T10, T13, T14, T19, T20, T21, T22

T10

T14, T19, T20, T22

T11

T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22

T12

T14, T16, T18, T19, T20, T22

T13

T14, T19, T20, T21, T22

T14

T19, T20, T22

T15

T16, T17, T18, T19, T20, T21, T22

T16

T18, T19, T20, T22

T17

T18, T19, T20, T21, T22

T18

T19, T20, T22

T19

T20, T22

T20

T22

T21

T22

T22

None

T23

None

The IMO classifications for ISO Tank Containers has been replaced by the 'T' code system.
The T-Code system specifies the test pressure of each type of tank container, its shell thickness, the pressure relief set-up and the bottom and top outlet arrangement. T-Code instructions apply to dangerous goods in classes 1 and 3 through 9. Class 2.
The T-Code system for tank containers was introduced in 2001. The T-Code system identifies tank containers from T1 through T22 and identifies the type of cargoes each container is designed to carry.
ISO tank containers have to be manufactured in accordance with strict international codes fCryogenic Tank Container T70or worldwide carriage of by liquids whether by land or sea.
Whilst the following isn't a complete listing of the IMO types, it provides an indication of the original system of classification.
IMO Type 1 - Hazardous Tanks - approved for transportation of substances of Class 1 and Classes 3 through 9 where the liquids have a flashpoint of less than 0°C. Some examples of the types of liquids include explosives, flammable liquids, corrosive and toxic substances.
IMO Type 2 - Low Hazardous Tanks - approved for transportation of Class 3 substances that have a flashpoint of 0 - 61°C. Some examples of combustible liquids include diesel and cooking oils.
IMO Type 5 - Gas Tanks -  approved for transport of non-refrigerated liquefied gases of Class 2.

T Code System for ISO Tank Containers and specifications:

T-Code

Minimum Test Pressure (bar)

Minimum Shell Thickness

Pressure-Relief Requirements

Bottom Opening Requirements

T1

1.5

> or = 6mm

normal

2 shut-off devices (Int + Ext)

T2

1.5

> or = 6mm

normal

3 shut-off devices (Int + Ext + cap/blank)

T3

2.65

> or = 6mm

normal

2 shut-off devices (Int + Ext)

T4

2.65

> or = 6mm

normal

3 shut-off devices (Int + Ext + cap/blank)

T5

2.65

> or = 6mm

normal + rupture disc

Not Allowed

T6

4

> or = 6mm

normal

2 shut-off devices (Int + Ext)

T7

4

> or = 6mm

normal

3 shut-off devices (Int + Ext + cap/blank)

T8

4

> or = 6mm

normal

Not Allowed

T9

4

6mm

normal

Not Allowed

T10

4

6mm

normal + rupture disc

Not Allowed

T11

6

> or = 6mm

normal

3 shut-off devices (Int + Ext + cap/blank)

T12

6

> or = 6mm

normal + rupture disc

3 shut-off devices (Int + Ext + cap/blank)

T13

6

6mm

normal

Not Allowed

T14

6

6mm

normal + rupture disc

Not Allowed

T15

10

>or = 6mm

normal

3 shut-off devices (Int + Ext + cap/blank)

T16

10

> or = 6mm

normal + rupture disc

<3 shut-off devices (Int + Ext + cap/blank)/td>

T17

10

6mm

normal

3 shut-off devices (Int + Ext + cap/blank)

T18

10

6mm

normal + rupture disc

Not Allowed

T19

10

6mm

normal + rupture disc

3 shut-off devices (Int + Ext + cap/blank)

T20

10

8mm

normal + rupture disc

Not Allowed

T21

10

10mm

normal

Not Allowed

T22

10

10mm

normal + rupture disc

Not Allowed

T Code System for ISO Tank Containers and specifications:

In addition to the above types of ISO tank container, there are 2 others, namely, a T50 and a T70.

The T50 is a gas tank and has a minimum test pressure of 57.6 bar. Under the IMO system, this was classified IMO5.

The T70 is a cryogenic tank container designed for carrying liquefied gases. Under the IMO system, this was classified IMO7.



T23 PORTABLE TANK INSTRUCTION T23

UN No. Substance Minimum test pressure (bar)
3109 ORGANIC PEROXIDE, TYPE F, LIQUID
tert-Butyl hydro- peroxidea, not more than 72% with water
Cumyl hydro-peroxide, not more than 90% in diluent type A
Di-tert-butyl peroxide, not more than 32% in diluent type A
Isopropyl cumyl hydro- peroxide, not more than 72% in diluent type A
p-Menthyl hydro- peroxide, not more than 72% in diluent type A
Pinanyl hydro- peroxide, not more than 56% in diluent type A
4
3110 ORGANIC PEROXIDE TYPE F, SOLID
Dicumyl peroxide b
4
3119 ORGANIC PEROXIDE, TYPE F, LIQUID, TEMPERATURE CONTROLLED 4
tert-Amyl peroxyneodecanoate, not more than 47% in diluent type A
tert-Butyl peroxyacetate, not more than 32% in diluent type B
tert-Butyl peroxy-2- ethylhexanoate, not more than 32% in diluent type B


a Provided that steps have been taken to achieve the safety equivalence of 65% tert-Butyl hydroperoxide and 35% water.
b Maximum quantity per portable tank: 2000 kg.

UN
No.
Substance Minimum test pressure (bar) Control tempe- rature Emergency temperaturef
3119
(Cont'd)
tert-Butyl peroxypivalate, not more than 27% in diluent type B
+5 °C +10 °C
tert-Butyl peroxy- 3,5,5-trimethyl- hexanoate, not more than 32% in diluent type B
+35 °C +40 °C
Di-(3,5,5-trimethyl- hexanoyl) peroxide, not more than 38% in diluent type A or type B
0 °C +5 °C
Peroxyacetic acid, distilled, type F, stabilized d
+30 °C +35 °C
3120 ORGANIC PEROXIDE, TYPE F, SOLID, TEMPERATURE CONTROLLED 4 c c
3229 SELF-REACTIVE LIQUID TYPE F 4

3230 SELF-REACTIVE SOLID TYPE F 4

3239 SELF-REACTIVE LIQUID TYPE F, TEMPERATURE CONTROLLED 4 c c
3240 SELF-REACTIVE SOLID TYPE F, TEMPERATURE CONTROLLED 4 c c



UN No. Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated; respectivelya Openings below liquid level Maximum filling ratio
1005 Ammonia, anhydrous 29.0
25.7
22.0
19.7
Allowed 0.53
1009 Bromotrifluoromethane (Refrigerant gas R 13B1) 38.0
34.0
30.0
27.5
Allowed 1.13
1010 Butadienes, stabilized 7.5
7.0
7.0
7.0
Allowed 0.55
1010 Butadienes and hydrocarbon mixture, stabilized
Allowed
1011 Butane 7.0
7.0
7.0
7.0
Allowed 0.51
1012 Butylene 8.0
7.0
7.0
7.0
Allowed 0.53
1017 Chlorine 19.0
17.0
15.0
13.5
Not Allowed 1.25
1018 Chlorodifluoromethane (Refrigerant gas R 22) 26.0
24.0
21.0
19.0
Allowed 1.03
1020 Chloropentafluoroethane (Refrigerant gas R 115) 23.0
20.0
18.0
16.0
Allowed 1.06
1021 1-Chloro-
1,2,2,2-tetrafluoroethane (Refrigerant gas R 124)
10.3
9.8
7.9
7.0
Allowed 1.20
1027 Cyclopropane 18.0
16.0
14.5
13.0
Allowed 0.53


UN
No.
Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated; respectivelya Openings below liquid level Maximum filling ratio
1028 Dichlorodifluoromethane (Refrigerant gas R 12) 16.0
15.0
13.0
11.5
Allowed 1.15
1029 Dichlorofluoromethane (Refrigerant gas R 21) 7.0
7.0
7.0
7.0
Allowed 1.23
1030 1,1-Difluoroethane (Refrigerant gas R 152a) 16.0
14.0
12.4
11.0
Allowed 0.79
1032 Dimethylamine, anhydrous 7.0
7.0
7.0
7.0
Allowed 0.59
1033 Dimethyl ether 15.5
13.8
12.0
10.6
Allowed 0.58
1036 Ethylamine 7.0
7.0
7.0
7.0
Allowed 0.61
1037 Ethyl chloride 7.0
7.0
7.0
7.0
Allowed 0.80
1040 Ethylene oxide with nitrogen up to a total pressure of 1MPa (10 bar) at 50 °C -
-
- 10.0
Not Allowed 0.78
1041 Ethylene oxide and carbon dioxide mixture with more than 9% but not more than 87% ethylene oxide
Allowed
1055 Isobutylene 8.1
7.0
7.0
7.0
Allowed 0.52


UN
No.
Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated respectivelya Openings below liquid level Maximum filling ratio
1060 Methylacetylene and propadiene mixture, stabilized 28.0
24.5
22.0
20.0
Allowed 0.43
1061 Methylamine, anhydrous 10.8
9.6
7.8
7.0
Allowed 0.58
1062 Methyl bromide with not more than 2% chloropicrin 7.0
7.0
7.0
7.0
Not Allowed 1.51
1063 Methyl chloride (Refrigerant gas R 40) 14.5
12.7
11.3
10.0
Allowed 0.81
1064 Methyl mercaptan 7.0
7.0
7.0
7.0
Not Allowed 0.78
1067 Dinitrogen tetroxide 7.0
7.0
7.0
7.0
Not Allowed 1.30
1075 Petroleum gases, liquefied
Allowed
1077 Propylene 28.0
24.5
22.0
20.0
Allowed 0.43
1078 Refrigerant gas, n.o.s.
Allowed
1079 Sulphur dioxide 11.6
10.3
8.5
7.6
Not Allowed 1.23
1082 Trifluorochloroethylene, stabilized
(Refrigerant gas R 1113)
17.0
15.0
13.1
11.6
Not Allowed 1.13


UN
No.
Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated respectivelya Openings below liquid level Maximum filling ratio
1083 Trimethylamine, anhydrous 7.0
7.0
7.0
7.0
Allowed 0.56
1085 Vinyl bromide, stabilized 7.0
7.0
7.0
7.0
Allowed 1.37
1086 Vinyl chloride, stabilized 10.6
9.3
8.0
7.0
Allowed 0.81
1087 Vinyl methyl ether, stabilized 7.0
7.0
7.0
7.0
Allowed 0.67
1581 Chloropicrin and methyl bromide mixture with more than 2% chloropicrin 7.0
7.0
7.0
7.0
Not Allowed 1.51
1582 Chloropicrin and methyl chloride mixture 19.2
16.9
15.1
13.1
Not Allowed 0.81
1858 Hexafluoropropylene (Refrigerant gas R 1216) 19.2
16.9
15.1
13.1
Allowed 1.11
1912 Methyl chloride and methylene chloride mixture 15.2
13.0
11.6
10.1
Allowed 0.81
1958 1,2-Dichloro-1,1,2,2- tetrafluoroethane (Refrigerant gas R 114) 7.0
7.0
7.0
7.0
Allowed 1.30
1965 Hydrocarbon gas, mixture liquefied, n.o.s.
Allowed
1969 Isobutane 8.5
7.5
7.0
7.0
Allowed 0.49


T50 PORTABLE TANK INSTRUCTION (cont'd) T50

This portable tank instruction applies to non-refrigerated liquefied gases and chemicals under pressure (UN Nos. 3500, 3501, 3502, 3503, 3504 and 3505). The general provisions of Section 4.2.2 and the requirements of Section
6.7.3 shall be met.
UN
No.
Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated respectivelya Openings below liquid level
Maximum filling ratio
1973 Chlorodifluoromethane and chloropentafluoroethane mixture with fixed boiling point,
with approximately 49% chlorodifluoromethane (Refrigerant gas R 502)
28.3
25.3
22.8
20.3
Allowed Normal 1.05
1974 Chlorodifluorobromomethane (Refrigerant gas R 12B1) 7.4
7.0
7.0
7.0
Allowed Normal 1.61
1976 Octafluorocyclobutane (Refrigerant gas RC 318) 8.8
7.8
7.0
7.0
Allowed Normal 1.34
1978 Propane 22.5
20.4
18.0
16.5
Allowed Normal 0.42
1983 1-Chloro-2,2,2-trifluoroethane (Refrigerant gas R 133a) 7.0
7.0
7.0
7.0
Allowed Normal 1.18
2035 1,1,1-Trifluoroethane (Refrigerant gas R 143a) 31.0
27.5
24.2
21.8
Allowed Normal 0.76
2424 Octafluoropropane (Refrigerant gas R 218) 23.1
20.8
18.6
16.6
Allowed Normal 1.07
2517 1-Chloro-1,1-difluoroethane (Refrigerant gas R 142b) 8.9
7.8
7.0
7.0
Allowed Normal 0.99
2602 Dichlorodifluoromethane and 1,1-difluoroethane azeotropic mixture with approximately 74% dichlorodifluoromethane (Refrigerant gas R 500) 20.0
18.0
16.0
14.5
Allowed Normal 1.01


T50 PORTABLE TANK INSTRUCTION (cont'd) T50

This portable tank instruction applies to non-refrigerated liquefied gases and chemicals under pressure (UN Nos. 3500, 3501, 3502, 3503, 3504 and 3505). The general provisions of Section 4.2.2 and the requirements of Section
6.7.3 shall be met.
UN
No.
Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated; respectivelya Openings below liquid level Pressure- relief requirementsb Maximum filling ratio
3057 Trifluoroacetyl chloride 14.6
12.9
11.3
9.9
Not allowed
1.17
3070 Ethylene oxide and dichlorodifluoromethane mixture with not more than 12.5% ethylene oxide 14.0
12.0
11.0
9.0
Allowed
1.09
3153 Perfluoro (methyl vinyl ether) 14.3
13.4
11.2
10.2
Allowed Normal 1.14
3159 1,1,1,2-Tetrafluoroethane (Refrigerant gas R 134a) 17.7
15.7
13.8
12.1
Allowed Normal 1.04
3161 Liquefied gas, flammable, n.o.s.
Allowed Normal
3163 Liquefied gas, n.o.s.
Allowed Normal
3220 Pentafluoroethane (Refrigerant gas R 125) 34.4
30.8
27.5
24.5
Allowed Normal 0.87
3252 Difluoromethane (Refrigerant gas R 32) 43.0
39.0
34.4
30.5
Allowed Normal 0.78
3296 Heptafluoropropane (Refrigerant gas R 227) 16.0
14.0
12.5
11.0
Allowed Normal 1.20
3297 Ethylene oxide and chlorotetrafluoroethane mixture, with not more than 8.8% ethylene oxide 8.1
7.0
7.0
7.0
Allowed Normal 1.16


T50 PORTABLE TANK INSTRUCTION (cont'd) T50

This portable tank instruction applies to non-refrigerated liquefied gases and chemicals under pressure (UN Nos. 3500, 3501, 3502, 3503, 3504 and 3505). The general provisions of Section 4.2.2 and the requirements of Section
6.7.3 shall be met.
UN
No.
Non-refrigerated liquefied gases Max. allowable working pressure (bar): Small; Bare; Sunshield; Insulated; respectivelya Openings below liquid level
Maximum filling ratio
3298 Ethylene oxide and pentafluoroethane mixture, with not more than 7.9% ethylene oxide 25.9
23.4
20.9
18.6
Allowed Normal 1.02
3299 Ethylene oxide and tetrafluoroethane mixture, with not more than 5.6% ethylene oxide 16.7
14.7
12.9
11.2
Allowed Normal 1.03
3318 Ammonia solution, relative density less than 0.880 at 15 °C in water, with more than 50% ammonia
Allowed

3337 Refrigerant gas R 404A 31.6
28.3
25.3
22.5
Allowed Normal 0.84
3338 Refrigerant gas R 407A 31.3
28.1
25.1
22.4
Allowed Normal 0.95
3339 Refrigerant gas R 407B 33.0
29.6
26.5
23.6
Allowed Normal 0.95
3340 Refrigerant gas R 407C 29.9
26.8
23.9
21.3
Allowed Normal 0.95
3500 Chemical under pressure, n.o.s.
Allowed
TP43c
3501 Chemical under pressure, flammable, n.o.s.
Allowed
TP4c
3502 Chemical under pressure, toxic, n.o.s.
Allowed
TP4c
3503 Chemical under pressure, corrosive, n.o.s.
Allowed
TP4c
3504 Chemical under pressure, flammable, toxic, n.o.s.
Allowed
TP4c
3505 Chemical under pressure, flammable, corrosive, n.o.s.
Allowed
TP4c


Previous:
Next:

Related Products

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com,
TEL: +86-152-7135 7675 (Mr. King) ; TEL: +86-135-9782 8741 (Mr. Xi);
 WeiChat: king253725877 ; Keanxisong
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
