10PCS T21 TEAL PORTABLE TANK CONTAINER to BUSAN KOREA

Views: 2028     Author: Tom     Publish Time: 2024-06-18      Origin: Dong Runze

10PCS T21 TEAL PORTABLE TANK CONTAINER to BUSAN KOREA

10UNITS T21 PORTABLE TANK

(EMPTY AND NEW TANKS WITH ADDITIONAL SPARE VALVES AND GASKETS)

HS CODE:8609009000

KSVU2400011

KSVU2400027

KSVU2400032

KSVU2400048

KSVU2400053

KSVU2400069

KSVU2400074

KSVU2400080

KSVU2400095

KSVU2400109

10 UNITS 10700.000 KGS 33.9000 CBM

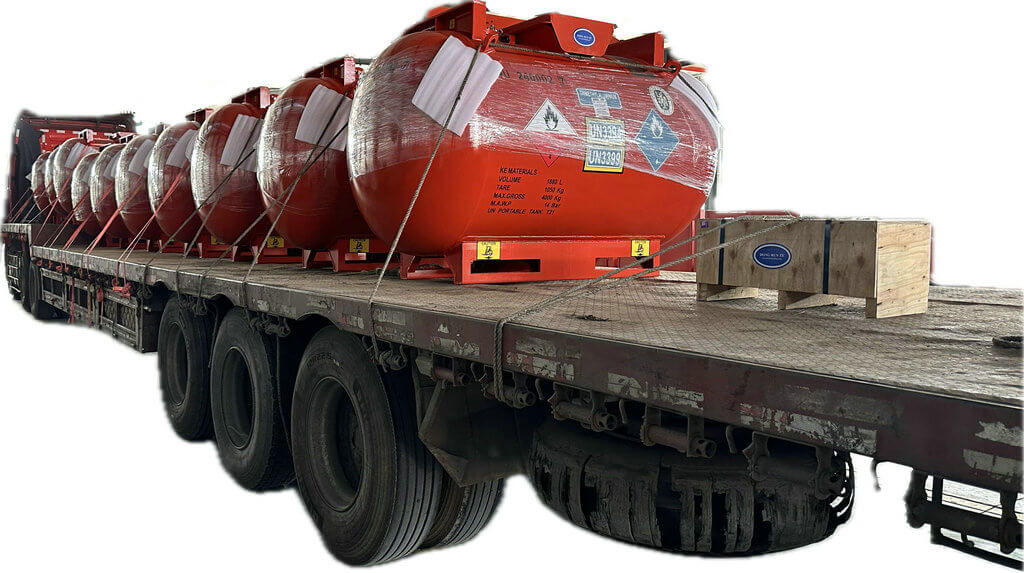

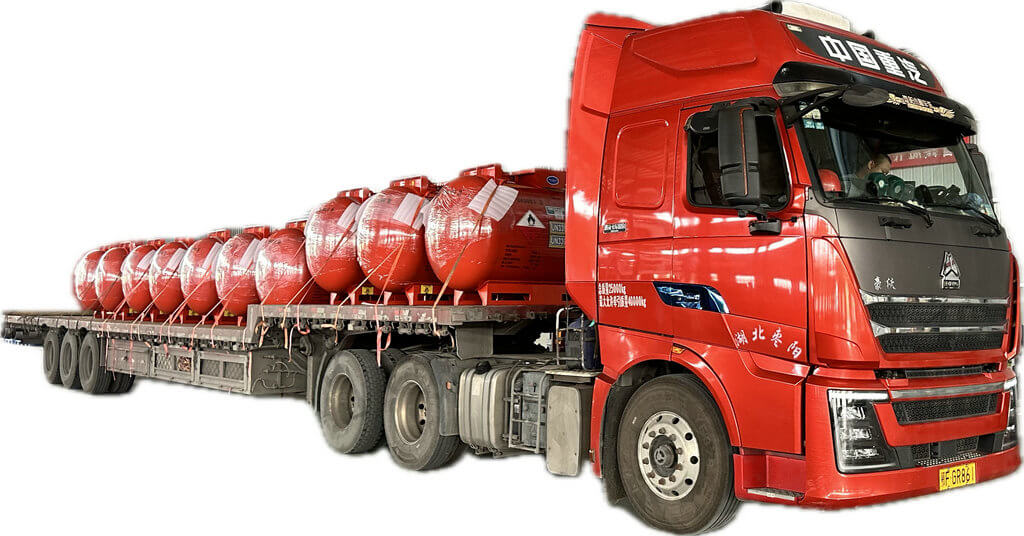

 T21 PORTABLE TANK CONTAINER (5)T21 PORTABLE TANK CONTAINER (6)

US DOT: UN Portable Tank

SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment.  (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399

Max. gross mass : 4000 kg

Tare : 1050 kg   Payload : 2950 kg

 ASME Certification Mark with U; Fusible element setting 177°C

Portable Tank Instruction : T21 ADR/RID Tank Code : Speciai Provisions: TP2 TP7 TP36 TP41

Model : KS1880-T21

Serial N: C240004

ISO size/Type code : NA Type: UN Portable Tank Prototype

Ref : BVCT2370646/S

Dimensions : 2128x1 148x1388 mm

SUBSTANCES SUITABLE FOR TRANSPORT  UN3394+UN3399
Nominal capacity : 1880 L Measured capacity : 1880L at 20°C Max. alowable working pressure : 14.00 bar Test pressure : 21.00 bar APPROVALS** IMDG : F/BV/23/194-T21 ADR/RID : F/9151/BV/24 TIR* : GB/C 26839 BV/2023 US-DOT CFR49 : UN Portable Tank

GENERAL  DRAWING  N°  KS1880-00  Rev.1

DESIGN

Design  code  ASME  VIII-1  2023ED

Design  temperature  min  -40℃  max  65℃

Design  pressure  14.00  bar

External  design  pressure  1.03  bar

MATERIALS

Frame  SA-516M  Gr.485+GB/T  713  Q345R

Tank  Shell  SA-516M  Gr.485

Tank  Heads  SA-516M  Gr.485

TANK External  diameter  1148.00  mm

Design  thickness

Shell  Nominal  12.00mm  Minimum  9.87  mm

Heads  Nominal  12.00  mm  Minimum  9.87  mm

Equivalent  thickness  in  reference  steel

Shell  12.15  mm

Heads  12.15  zu  mm

External  tank  area  8.60

EQUIPMENT

Heater  type  None

Heater  work  pressure  N/A

Heater  test  pressure  N/A

Surface  area  m²

Outlet  Top  Yes  Closures

Bottom  No  Closures

SAFETY  DEVICES

Relief  valves  NB

Relief  valve  1  type  SF/A412F-25P-(3B)  Serial  N°  202404147  Setting  +15.40  bar

Installed  vent  capacity  1.35  Nm³/S

Minimum  vent  capacity  0.788  Nm³/S

COATING/INSULATION

Internal  External  None

PROTOTYPE  TESTS

R  4000  kg

MARKING  Drawing.  N°  KS1880-20  Rev.0&KS1880-24  Rev.0


   UN T21 Portable Tank Container 1880L Cylinder For  TEAL Metal Alkyls UN3394 UN3399  to USA

 Adr/Rid Organometallic Substance, Liquid, Water- Reactive

C-430 Saddle Type Portable Tank , tank capacity 1630L
C-480 Saddle Type Portable Tank, tank capacity 1880L

C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L

 T21 UN Portable tank


Triethylaluminum (TEAL) Alky Portable Tank Container

tank capacity 1880L/1.88m3

FOR UN3394 ,UN3399

with fusible plug in addition to the Relief valve

ADR/RID BV ASME CERTIFICATE

All Gaskets firms Klingersil, the same fittings as Nouryon company Tanks

With Rotatable Liquid Vavles And Gas Vavles , High Quality Strong Safty Valve

Both Tanks inner outer shell and Dishhead sandblasted


Product: UN T21 TEAL Tank

C430 Specifications
1-Water capacity:1880 litre
2-Max.Gross mass:4000kg
3-Max. Tare mass:1070kg

WATER CAPACITY

1650L / 1880L  /C480, C430

MAX GROSS MASS

4000kg

MAX TARE MAS

1070kg

EXTERNAL DIMENSIONS

2128mm*1148mm*1388mm

M.A.W.P

14bar  1.4Mpa /-0.13MPa at 65 oC

DESIGN TEMPERATURE

-40oC to +65oC

MATERIAL

SA-516M Gr.485 / 16MnDR

SHELL THICKNESS

12mm,12mm

PRESSURE VESSEL CODE

T21 UN ,IMDG,ADR/RID,49CFR,TIR,USDOT,ASME,BV

APPLICABLE CARGOS

TRIETHYL ALUMINUM UN3394 UN3399

SPARE VALVES AND GASKETS Parts List Model Quantity
Stainless steel P N40-360 degree rotatable top flange valve KV-MTFF DN15 5
Stainless steel PN40-360 degree rotatable top flange valve KV-MTFE DN20 5
Gaskets K4430 -DN15 K4430 -DN15 10
Gaskets K4430 -DN20 K4430 -DN20 10
Gaskets For Safety valve K4430 DN50 10
