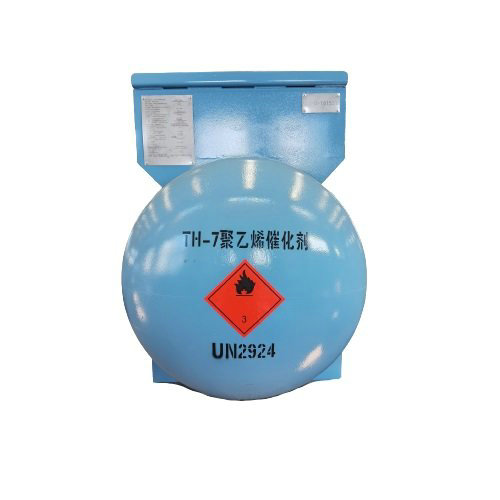

TH-7 Ziegler-Natta Horizontal Polyethylene Catalyst T21 Portable Tank UN2924
Triethyl Aluminum Transport Tank
Ziegler-Natta Ti-Mg Series Slurry Polyethylene Catalyst Portable Tank
Net Loading Weight: 273KGS
Tare Weight : 347KGS
Max Groos:6200KGS
Total Volume:450Liters/ 0.45m3
| Quantity: | |
|---|---|
|
| |
-
UN2924 Ziegler-Natta tank
-
Shanghai, China
-
3000
-
T/T
-
10
TH-7 Ziegler-Natta Horizontal Polyethylene Catalyst T21 Portable Tank UN2924
Net Loading Weight: 273KGS
Tare Weight : 347KGS
Max Groos:6200KGS
Total Volume:450Liters/ 0.45m3
Shell thickness:6mm
working temperature:-35~+60℃
working pressure :0.9Mpa
Specifications :1726*612*977mm
Container type Mobile pressure vessel IBCS
Testing : TS, CCS certification
Number of stacking layers :2
Painting :Two coats of epoxy primer and three coats of polyurethane finish
Pressure of safety valve :1.38Mpa
Material :Stainless steel - Carbon steel
Triethyl Aluminum Transport Tank
Ziegler-Natta Ti-Mg Series Slurry Polyethylene Catalyst Portable Tank
TH-5 Catalyst grades, index and resin applications | |||||
Catalyst | MFR,g/10 min | Density,g/cm3 | Comonomer | Resin applications | Note |
TH-5A | 0.6 | 0.937 | Hexene | Cool&hot water pipes, | In commercial plant |
0.5 | 0.917 | Hexene | Mulching film | In pilot plant | |
1.0 | 0.918 | Hexene | Blow molding stretch film, food packaging bag, multilayer films | In pilot plant | |
2.3 | 0.917 | Hexene | Packaging film | In pilot plant | |
3.5 | 0.915 | Hexene | Packaging film | In pilot plant | |
Catalyst | MFR,g/10 min | Density,g/cm3 | Comonomer | Resin applications | Note |
TH-5C | 0.5 | 0.935 | Hexene | Heat shrinkable film | In commercial plant |
0.6 | 0.937 | Hexene | Floor heating pipe(PERT) | In commercial plant | |
0.9 | 0.934 | Hexene | Heavy duty sacks | In commercial plant | |
1.3 | 0.926 | Hexene | General film | In commercial plant | |
0.8 | 0.925 | Hexene | Packaging film | In pilot plant | |
1.0 | 0.920 | Hexene | Composite membrane,mulching film | In pilot plant | |
2.3 | 0.916 | Hexene | Packaging film | In pilot plant | |
| Chemical grades and indicators | ||||||
| TH-1 series | Activity (kgPE/kgCAT) | Resin bulk density (g/cm³) | ||||
| TH-1A | 5000~6000 | ≥0.36 | ||||
| TH-1B | >6000 | ≥0.38 | ||||
| TH-1H | 4000~5000 | ≥0.37 | ||||
Polyethylene catalyst
Category | Catalyst series | Brand | Form | Capacity t/a | Polymerization Process | Resin Application |
PE | Ti series | TH-1 | Powder | 200 | Unipol, Spherilene, Innovene G | Film grade,injection molding grade, rotational molding grade |
TH-1LA | Slurry | 300 | Unipol | Film grades,injection molding grade, rotational molding grades | ||
TH-4 (bimodal) | Powder | 240 | Borstar | Film grade,pipe grade (PE100), communication cable resin | ||
TH-7 | Powder Slurry | 300 | CX, Hostalen, Innovene S | Pipe grade (PE100), film grade, injection molding grade | ||
Chrome series | TH-2 | Powder | 360 | Unipol, Spherilene,Innovene G | Film grade,pipe grade, hollow container grade | |
TH-3A | Powder | 50 | Unipol, Spherilene,Innovene G | Communication cable resin with coating layer | ||
TH-3B | Powder | 50 | Unipol, Spherilene,Innovene G | Film grades, pipe grade, hollow container grade | ||
metallocene series | TH-5 (Unimodal) | Powder | 300 | Unipol, Spherilene,Innovene G | Film grade, PE-RTⅡ pipe grade, injection molding grade, rotational molding grade | |
TH-6 (Bimodal) | Slurry | 100 | Unipol | Film grades, pipe grade | ||
pp | Ti series | TH-8 | Powder Slurry | 100 | Spheripol, ST,Unipol, Innovene, SPG, Spherizone | Film grade, pipe grade, monofilament material, injection molding grade |
metallocene series | TH-9 | Powder | In developing | Spheripol | Film grade, monofilament material, injection molding grade |
T21 Portable Tank to contain TMA(Trimethyl aluminium), TEA(Triethyl aluminium), TMG(Trimethyl gallium), TEG(Triethyl gallium)(TMGa, TEGa, TMIn, TMAl Cylinders)
Triethylaluminum (TEAL) Alky Portable Tank Container
| Portable tank | Volume (90% full) | Dimensions Length | Diameter | Height |
| C-250 | 829 l (219 gal) | 208 cm (82 in) | 81 cm (32 in) | 96.5 cm (38 in) |
| C-430 dome | 1,465 l | 208 cm | 107 cm | 122 cm |
| type | (387 gal) | (82 in) | (42 in) | (48 in) |
| C-430 saddle | 1,465 l | 208 cm | 107 cm | 128 cm |
| type | (387 gal) | (82 in) | (42 in) | (50.5 in) |
| C-1980 | 6,745 l /7495 (1782 /1980 gal) | 305 cm (120 in) | 190 cm (74.8 in) | 224 cm (88.2 in) |
| ISO a | 19,200-21,150 l (5,068-5,584 gal) | 606 cm (239 in) | 244 cm (96 in) | 259 cm (102 in) |
T21 TEAL TANK Portable Containers
Chemicals | CAS # | Characteristics | Unit | Specification | Packaging Type |
Teal C-1980 | 97-93-8 | Aluminium | % | > 22.7 | C-1980 Container |
| Tri-ethylaluminium | % | > 94 | |||
| Tri-n-butylaluminium | % | < 6 | |||
| Tri-iso-butylaluminium | % | < 0.1 | |||
| Hydride< 0.1% | % | < 0.1 | |||
| Appearance | Colourless liquid | ||||
Teal Iso Portable Tank | 97-93-8 | Aluminium | % | > 22.7 | 20 m3 Isocontainer |
| Tri-ethylaluminium | % | > 94 | |||
| Tri-n-butylaluminium | % | < 6 | |||
| Tri-iso-butylaluminium | % | < 0.1 | |||
| Hydride< 0.1% | % | < 0.1 | |||
| Appearance | Colourless liquid | ||||
Teal C-430 (Saddle Type) | 97-93-8 | Aluminium | % | > 22.7 | C-430 Saddle Type Container |
| Tri-ethylaluminium | % | > 94 | |||
| Tri-n-butylaluminium | % | < 6 | |||
| Tri-iso-butylaluminium | % | < 0.1 | |||
| Hydride< 0.1% | % | < 0.1 | |||
Appearance | Colourless liquid |
↵
| For | Triethyl aluminium |
| Abbreviation: | TEAL |
| Molecular formula: | (C2H5)3Al |
| Molecular weight: | 114.2 |
| Density: | 0.835g/cm3(at25ºC) |
| Boiling point: | 186.6ºC(760mmHg) |
| CAS No.: | 97-93-8 |
| Use: | Catalyst in polyolefin industry, intermediate in organic compound manufacture. |
| Technical index: | No.Test itemsIndex1AppearanceTransparent liquid2Aluminium (Wt%)≥23.03Triethyl aluminium (Wt%)≥95.04Tributylaluminium (Wt%)≤5.05Aluminum hydride (Wt%)≤0.05 |
| Packing: | 1200kg-1400kg/tank |
| Note: | Customize solutions in various |
