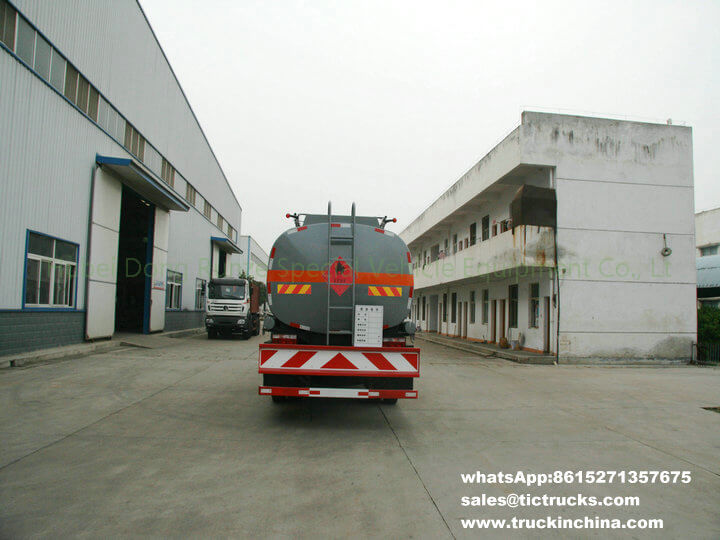

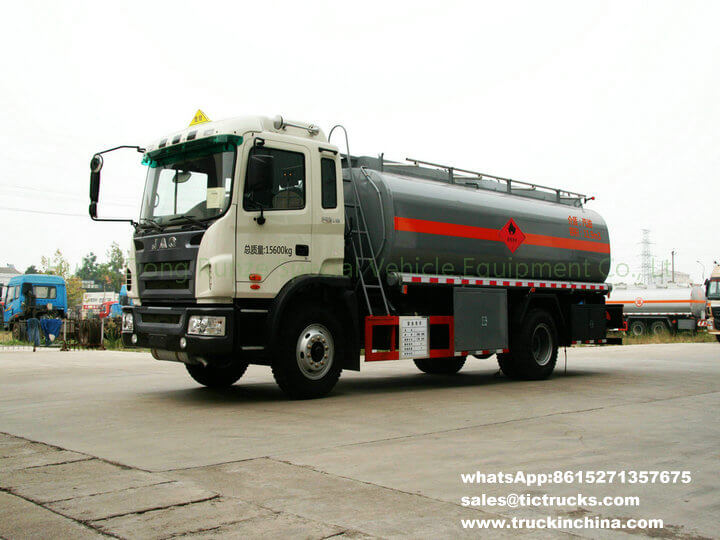

JAC 4x2 Diesel refueling vehicle 12000L
Overall dimensions 8500X2500X3150mm Curb weight 7405kg
Tank dimensions 5600X2150X1480mm Tank volume 12000L
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
DRZ5161GYYH
-
JAC
-
8705909990
JAC 4x2 Diesel refueling vehicle 12000L
- See more at: http://www.truckinchina.com/ISUZU-FTR-refueling-vehicle-16000L-pd6384955.html#sthash.AIzFDX0M.dpuf JAC 4x2 Diesel refueling vehicle 12000L
- See more at: http://www.truckinchina.com/ISUZU-FTR-refueling-vehicle-16000L-pd6384955.html#sthash.AIzFDX0M.dpuf JAC 4x2 Diesel refueling vehicle 12000L
Vehicle Model DRZ5161GYYH
Overall dimensions 8500X2500X3150mm Curb weight 7405kg
Tank dimensions 5600X2150X1480mm Tank volume 12000L
Chassis parameters
Chassis model HFC1161P3K2A47F Chassis brand JAC
Overall dimensions 7230x2495x3070mm Wheel base 4700mm
Front/rear wheel track 1963 ,1800 mm Front/rear suspension 1530/1000mm
Approach/departure angle 20/19° Maximum speed 95km/h
Chassis Manufacturer Anhui Jianghuai Automobile Co., Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder
Color Red, other color is optional
Engine Model YC4E160-42
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 160hp, rated power speed 2600rpm
Displacement 4260ml
Max.torque 550N.m
Bore x stroke 110X112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 6+1 nos
Clutch Φ430 diaphragm clutch
Frame 245X75X7mm
Fuel tank 300L iron oil tank
Rear axle Boying 8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Fuel tank structure parameters
Tank dimensions 5600X2150X1480mm Tank volume 12000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system
Related Keywords
JAC Diesel Transport Truck , Diesel Carrying Vehicle , Diesel Carrying Truck , FAW Diesel Transport Truck , JAC Oil Transport Truck , JAC Fuel Transport Truck , JAC Grain Transport Truck , JAC Diesel Transport Vehicle
Oil Fuel Trucks refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Fuel Trucks For Sale
According to the different transport medium, oil Fuel Trucks can be called, oil tanker, Fuel Trucks For Sale , tanker, fuel trucks, JAC oil delivery tanker, JAC flow oil truck, JAC refueling vehicle, computer JAC refueling truck, JAC diesel delivery vehicles, JAC gasoline delivery vehicles, JAC oil transport vehicle, JAC edible oil transport vehicle, JAC crude oil transport vehicle, JAC heavy oil truck, JAC oil truck.
According to the brand oil tanker truck can be divided into, Yuejin Fuel Trucks For Sale , Dongfeng Fuel Trucks For Sale, FAW Fuel Trucks For Sale , Foton Fuel Trucks For Sale, Sinotruk Fuel Trucks ,Auman Fuel Trucks For Sale , North-Benz Fuel Trucks For Sale ,JAC Fuel Trucks For Sale , Shacman Fuel Trucks , CAMC oil transport Fuel Trucks For Sale , JAC Fuel Trucks For Sale , JMC Fuel Trucks For Sale , etc.
JAC 4x2 Diesel refueling vehicle 12000L
Vehicle Model DRZ5161GYYH
Overall dimensions 8500X2500X3150mm Curb weight 7405kg
Tank dimensions 5600X2150X1480mm Tank volume 12000L
Chassis parameters
Chassis model HFC1161P3K2A47F Chassis brand JAC
Overall dimensions 7230x2495x3070mm Wheel base 4700mm
Front/rear wheel track 1963 ,1800 mm Front/rear suspension 1530/1000mm
Approach/departure angle 20/19° Maximum speed 95km/h
Chassis Manufacturer Anhui Jianghuai Automobile Co., Ltd
Cab Configuration A row and a half deluxe cab(with sleeping berth), allowable 3 passengers, air condition, electric window, traveling data recorder
Color Red, other color is optional
Engine Model YC4E160-42
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 160hp, rated power speed 2600rpm
Displacement 4260ml
Max.torque 550N.m
Bore x stroke 110X112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd
Tire Size 11.00R20 steel wire tire
Number 6+1 nos
Clutch Φ430 diaphragm clutch
Frame 245X75X7mm
Fuel tank 300L iron oil tank
Rear axle Boying 8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions gearbox CA6T138-85, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Fuel tank structure parameters
Tank dimensions 5600X2150X1480mm Tank volume 12000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system
Related Keywords
JAC Diesel Transport Truck , Diesel Carrying Vehicle , Diesel Carrying Truck , FAW Diesel Transport Truck , JAC Oil Transport Truck , JAC Fuel Transport Truck , JAC Grain Transport Truck , JAC Diesel Transport Vehicle
Oil Fuel Trucks refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Fuel Trucks For Sale
According to the different transport medium, oil Fuel Trucks can be called, oil tanker, Fuel Trucks For Sale , tanker, fuel trucks, JAC oil delivery tanker, JAC flow oil truck, JAC refueling vehicle, computer JAC refueling truck, JAC diesel delivery vehicles, JAC gasoline delivery vehicles, JAC oil transport vehicle, JAC edible oil transport vehicle, JAC crude oil transport vehicle, JAC heavy oil truck, JAC oil truck.
According to the brand oil tanker truck can be divided into, Yuejin Fuel Trucks For Sale , Dongfeng Fuel Trucks For Sale, FAW Fuel Trucks For Sale , Foton Fuel Trucks For Sale, Sinotruk Fuel Trucks ,Auman Fuel Trucks For Sale , North-Benz Fuel Trucks For Sale ,JAC Fuel Trucks For Sale , Shacman Fuel Trucks , CAMC oil transport Fuel Trucks For Sale , JAC Fuel Trucks For Sale , JMC Fuel Trucks For Sale , etc.
shipping parking
1, attached parts and tools put into standard export box.
2, Oil Tank Truck will be cleaned and covered with wax before delivery.
3, Oil Tank Truck will be covered by waterproof cloth at the departure port.
4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.
5,some small Oil Tank Truck can be put into container according to its overall dimensions.
- See more at: http://www.truckinchina.com/ISUZU-FTR-refueling-vehicle-16000L-pd6384955.html#sthash.AIzFDX0M.dpuf
shipping parking
1, attached parts and tools put into standard export box.
2, Oil Tank Truck will be cleaned and covered with wax before delivery.
3, Oil Tank Truck will be covered by waterproof cloth at the departure port.
4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.
5,some small Oil Tank Truck can be put into container according to its overall dimensions.
- See more at: http://www.truckinchina.com/ISUZU-FTR-refueling-vehicle-16000L-pd6384955.html#sthash.AIzFDX0M.dpuf
