DRZ51609GYYQ ISUZU 4x2 Oil Tank Truck Capacity 18CBM

Views: 2511 Author: Dong Runze Publish Time: 2017-04-25 Origin: Dong Runze Special Vehicl

ISUZU 4x2 Oil Tank Truck Capacity 18CBM

Vehicle Model DRZ51609GYYQ
Overall dimensions 9000X2465X2900mm Curb weight 7500kg
Tank dimensions 6100X2400X1400mm Tank volume 18000L

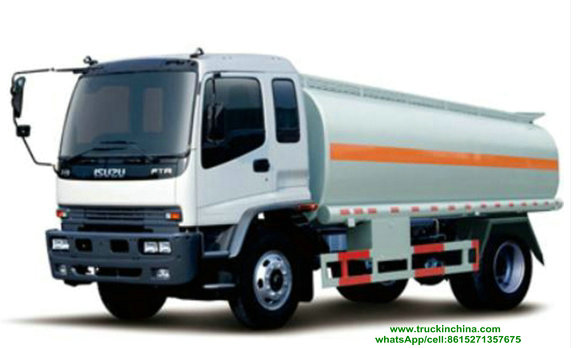

ISUZU 4x2 Oil Tank Truck Capacity 18CBM.jpg

Chassis parameters
Chassis model QL11609NFRY Chassis brand ISUZU
Overall dimensions 8785X2465X2780mm Wheel base 5000mm
Front/rear wheel track 1900/1855mm Front/rear suspension 1335/2450mm
Approach/departure angle 26/12° Maximum speed 95km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration ISUZU FTR cab,a row and a half cab,allowable 3 passengers,with air conditioner.
Color White,other color is optional
Engine Model 4HK1-TCG40
Emission Euro 4
Type 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine.
Rated power 190hp
Displacement 5193ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 10.00-20 nylon tire
Number 6+1 nos
Frame 258X85(10+4)mm
Front axle 6.3 tons
Rear axle 13.0 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions ISUZU MLD six speed transmission, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
ISUZU gasoline delivery vehicles
Fuel tank structure parameters

Tank dimensions 6100×2400×1400mm Tank volume 18000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.

ISUZU refueling vehicle -18T_1.jpg

ISUZU ISUZU oil transport vehicle-15T Related Keywords

Oil Truck Tanker , Isuzu Fuel Transport Vehicle , Aluminium Oil Tank Truck , Fuel Truck Tanker , Chemical Truck Tanker , Dung Truck Tanker , Water Truck Tanker , Heavy Fuel Oil Truck Tanker

Oil Petrol Tank truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Petrol Tank truck

According to the different transport medium, oil Petrol Tank truck can be called, oil tanker, Petrol Tank truck , tanker, fuel trucks, ISUZU oil delivery tanker, ISUZU flow oil truck, ISUZU refueling vehicle, computer ISUZU refueling truck, ISUZU diesel delivery vehicles, ISUZU gasoline delivery vehicles, ISUZU oil transport vehicle, ISUZU edible oil transport vehicle, ISUZU crude oil transport vehicle, ISUZU heavy oil truck, ISUZU oil truck.

According to the brand oil tanker truck can be divided into, Yuejin Petrol Tank truck , Dongfeng Petrol Tank truck , FAW tanker truck, Foton Petrol Tank truck , Sinotruk Petrol Tank truck ,Auman tanker truck, North-Benz Petrol Petrol Tank truck ,JAC tanker truck, Shacman Petrol Tank truck , CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
