Views: 4249 Author: Dong Runze Publish Time: 2017-04-24 Origin: Dong Runze Special Vehicle

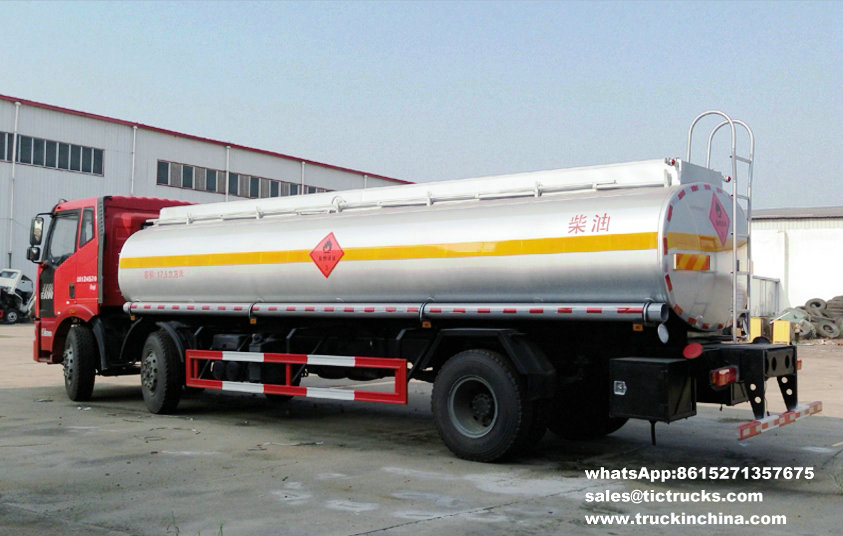

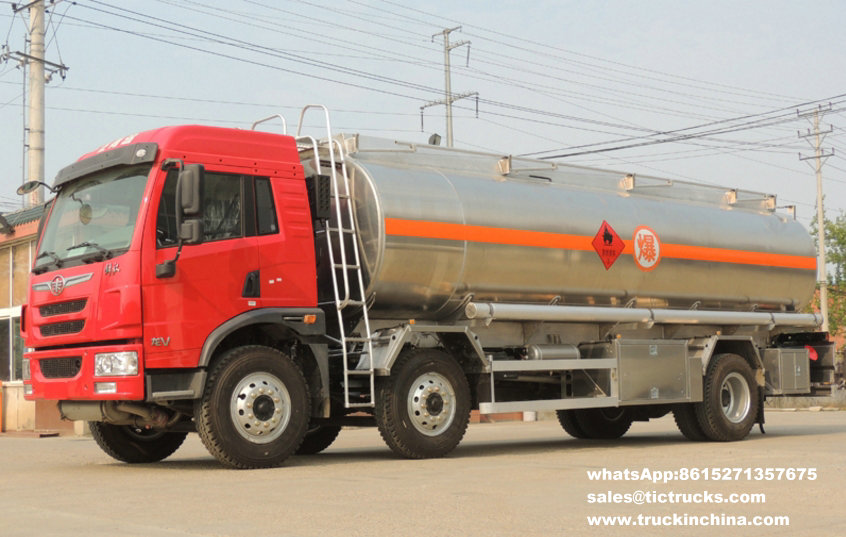

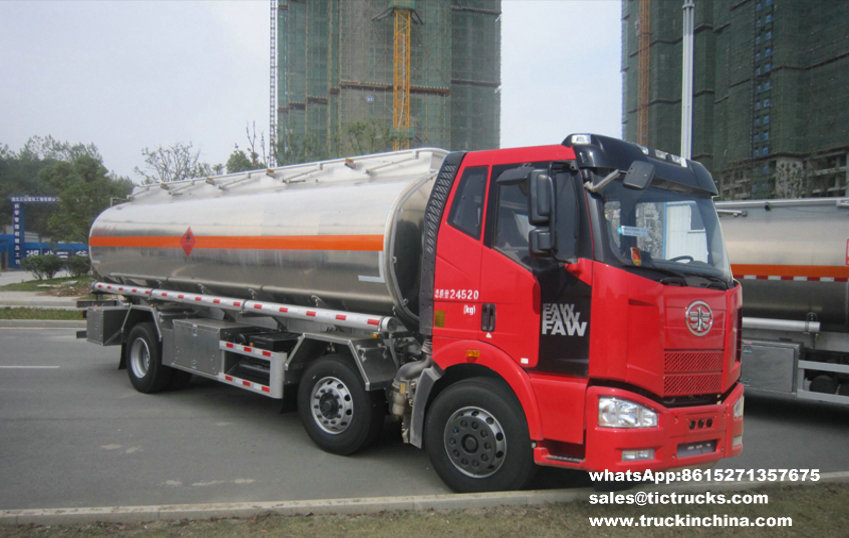

FAW 6X2 aluminium oil tank truck for sale
Vehicle Model DRZ5250GYYC4L
Overall dimensions 10700×2500×3200mm Curb weight 10325kg
Tank dimensions 7800×2300×1500mm Tank volume 22500L
carbon steel Unit Price: USD 44000.00 - 46000.00 / Set/Sets
Aluminium alloy Unit Price: USD 55000.00 - 58000.00 / Set/Sets
Chassis parameters
Chassis model CA5250GYYP62K1L6T3E4 Chassis brand FAW
Overall dimensions 10700x2477x2805mm Wheel base 1900+4700 mm
Front/rear wheel track 1890/1890,1847mm Front/rear suspension 1400/2700mm
Approach/departure angle 17/12° Maximum speed 79km/h
Chassis Manufacturer China FAW Group Corporation
Cab Configuration J6L flat cab,allowable 3 passengers, manual mirrors, mechanical damping driver`s seat, Automatic air conditioning, manual hydraulic lifting device, aluminum radiator, front disc brake, speed limiting device, exhaust pipe front, front protection device
Color Red, other color is optional
Engine Model BF6M2012-22E4
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke, turbo inter-cooling, electronically controlled common rail, diesel engine
Rated power 220hp, rated power speed 2500rpm
Displacement 6060ml
Max.torque 770N.m
Bore x stroke 101X126mm
Manufacturer DEUTZ FAW (Dalian) Diesel Engine Co., Ltd
Tire Size 10.00R20 steel wire tire
Number 8+1 nos
Clutch Φ 395 diaphragm clutch
Frame 270X75X(7+5)mm
Fuel tank 400L aluminum oil tank
Front axle 1800 front axle
Rear axle 457 axle, casting type, main reduction ratio 4.875
Drive form 6X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions FAW CA6T138, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above, please take the actual product as the standard
Fuel tank structure
Tank dimensions 7800×2300×1500mm Tank volume 22500L
Tank material Aluminium alloy 5083 Tank thickness 6mm
Head thickness 6.3mm Color and Logo Optional
Standard configuration Chassis, Aluminium alloy 5083, sub frame, Aluminum Alloy manhole, 2.5 inch valve gravity flow, Aluminum outer aisle and rear ladder, Aluminum Alloy barrel and side guardrail, steel toolbox and rear protection.
Selective configuration Pumping system, flow meter, European standard configuration, OPW download system
Related Keywords
FAW Aluminium Oil Tank Truck , FAW Aluminium Oil Truck , FAW Aluminium Oil Tanker Truck , Aluminium Oil Tank Truck , FOTON Aluminium Oil Tank Truck , FOTON Aluminium Oil Tanker Truck , Aluminium Fuel Tank Truck , KAMA Aluminium Fuel Tank Truck
Oil mobile Refueling Truckrefers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.
According to the different transport medium, oil mobile Refueling Truckcan be called, oil tanker, tank truck, tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.
According to the brand oil mobile Refueling Truck can be divided into, Yuejin tank truck, Dongfeng mobile Refueling Truck , FAW tanker truck, Foton tank truck, Sinotruk mobile Refueling Truck ,Auman tanker truck, North-Benz mobile Refueling Truck , JAC transport tanker truck, mobile Refueling Truck , Shacman oil mobile Refueling Truck , CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
