DRZ5110GYYE Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM

Views: 1746     Author: DRZ     Publish Time: 2017-04-20      Origin: Dong Runze Special Vehicle

DRZ5110GYYE Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM

DRZ5110GYYE Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM

  Unit Price: USD 15300.00 - 16300.00 / Set/Sets


Related Keywords

Dongfeng Plastic Tanker Vehicle , Dongfeng Refueling Vehicle , Dongfeng Acid Tanker Vehicle , Dongfeng Acid Tank Vehicle , Dongfeng Anti-corrosion Tank Vehicle , Dongfeng Pedrail Machine Transport Vehicle

Overall dimensions 7400X2365X2580mm Curb weight 4755kg
Tank dimensions 5000×2000×1130mm Tank volume 8000L

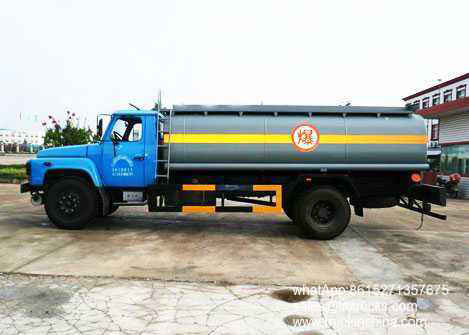

Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM 2_1.jpg

Chassis parameters
   Chassis model EQ1100FKJ Chassis brand DONGFENG
Overall dimensions 6605x2364x2370mm Wheel base 3950mm
Front/rear wheel track 1810x1800mm Front/rear suspension 1065/1340mm
Approach/departure angle 34/30° Maximum speed 85km/h
Chassis Manufacturer Dongfeng Motor Corporation
Cab Configuration single row cab,allowable 3 passengers
Color Blue,other color is optional
Engine Model YC4E140-33
Emission Euro 3
Type 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 140hp,rated power speed 2800rpm
Displacement 4257ml
Max.torque 500N·m
Bore x stroke 110x112mm
Manufacturer Guangxi Yuchai Machinery Group Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame 232mm
Fuel tank 120L,steel
Front axle 2.8T
Rear axle 8.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions 5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner,steel wire tire
If there is a slight change in the chassis parameters above,please take the actual product as the standard

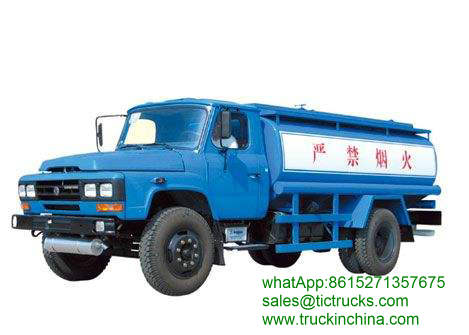

Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM 3_2.jpgFuel tank structure

Tank dimensions 5000×2000×1130mm Tank volume 8000L

Tank material Carbon steel Tank thickness 5mm

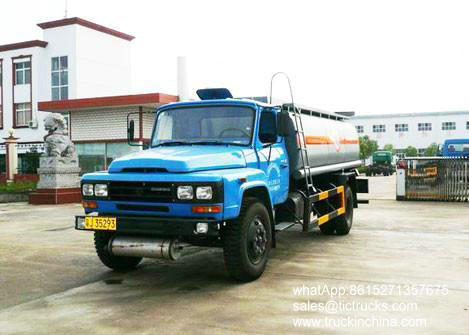

Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM 4_1.jpgColor and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

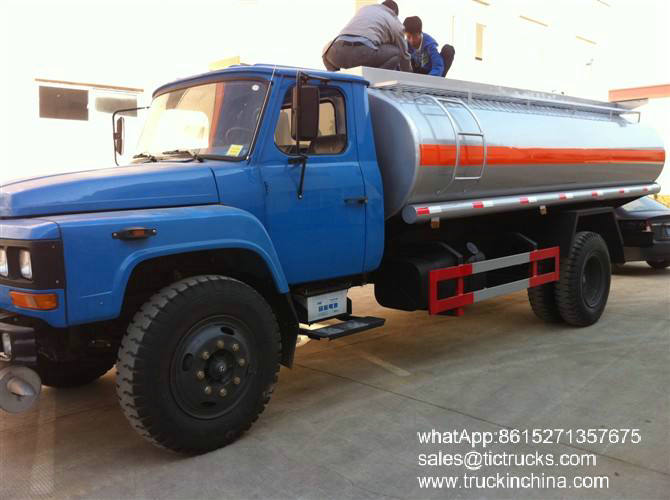

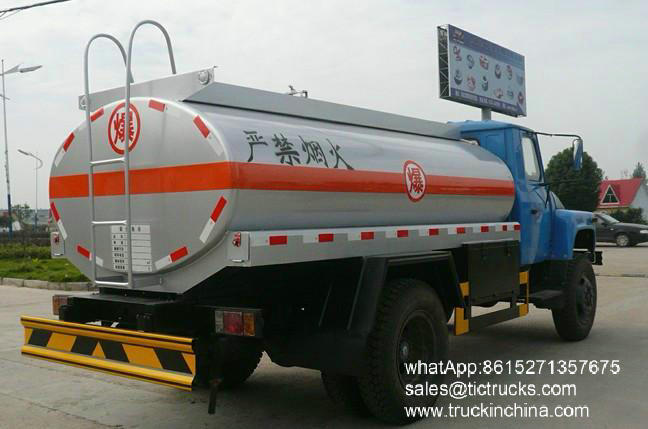

Dongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM 22_1.jpgDongfeng 4x2 Heavy Fuel Oil Truck Tanker Capacity 8CBM 7_1.jpg
