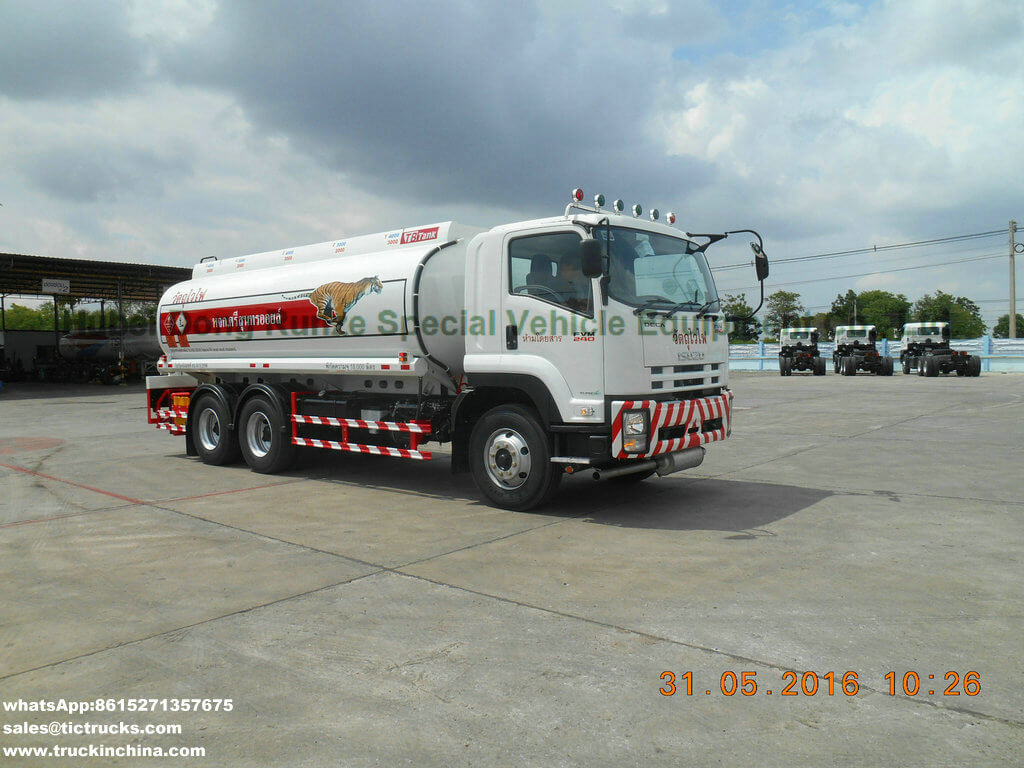

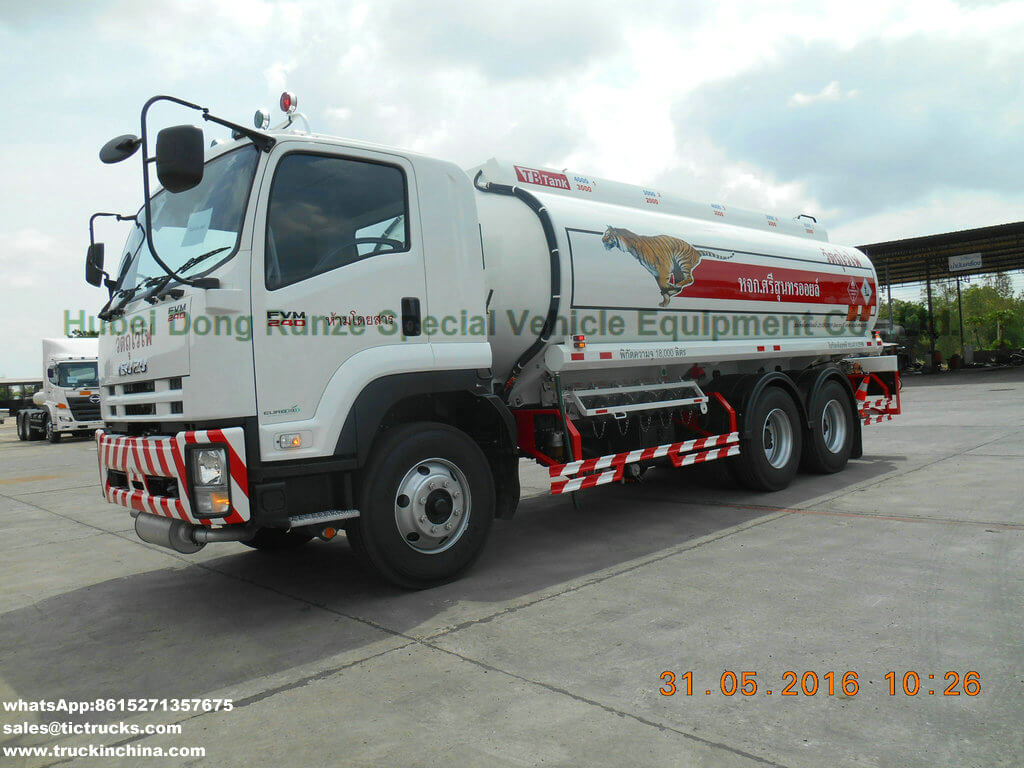

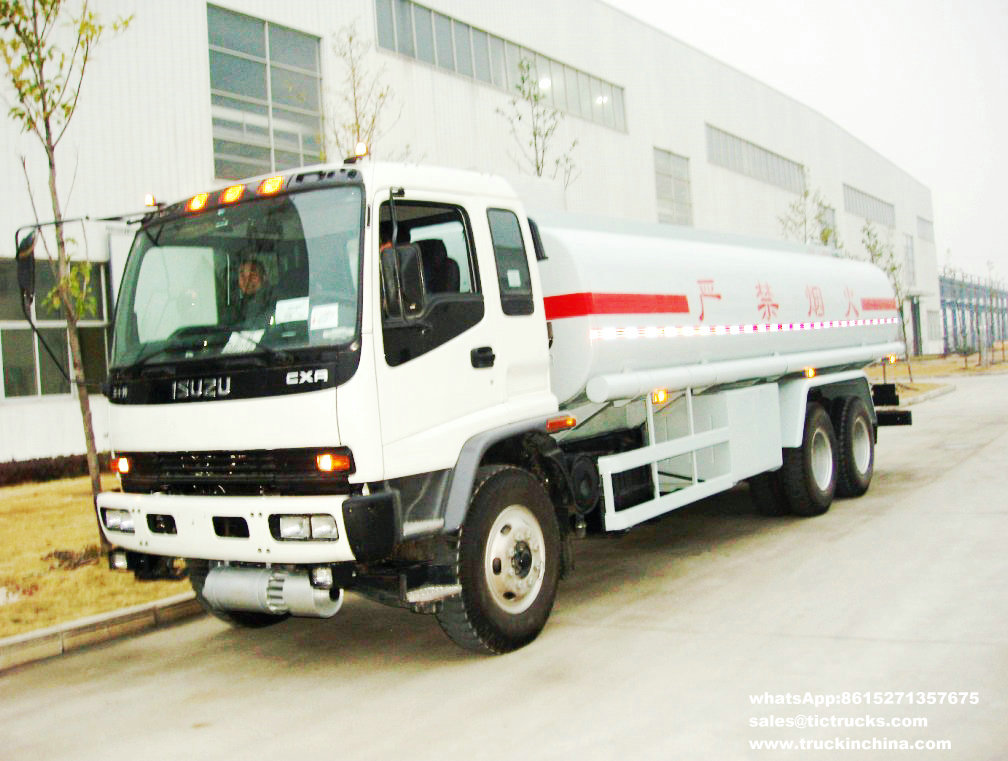

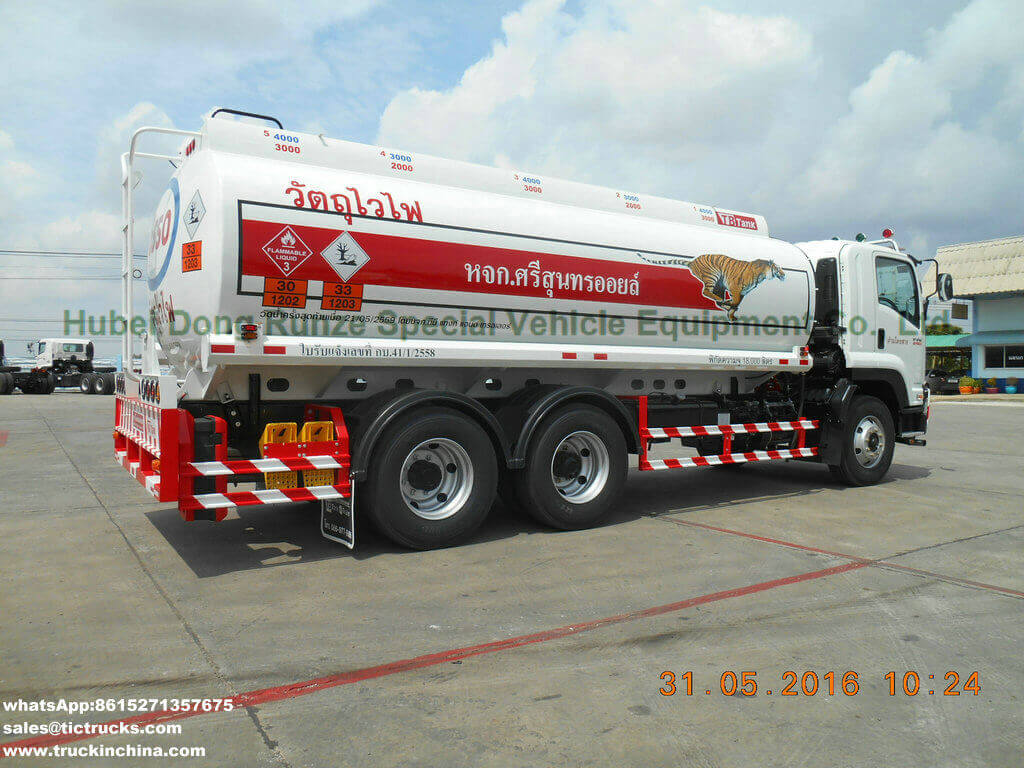

DRZ5250GYYQ ISUZU 6x4 FVZ Refuelling Oil Tank Truck Capacity 22000L for sale
Views: 4131 Author: Dong Runze Special Vehicle Publish Time: 2017-04-25 Origin: Dong Runze Special Vehicle
DRZ5250GYYQ ISUZU 6x4 FVZ Refuelling Oil Tank Truck Capacity 22000L for sale
carbon steel Unit Price: USD 65000.00 - 66600.00 / Set
stainless steel /Aluminium alloy Unit Price: USD77800.00 - 79800.00 / Set
ISUZU Aluminium Gasoline Transport Truck , ISUZU Diesel Transport Vehicle , ISUZU Aluminium Diesel Carrying Vehicle , JAC Gasoline Transport Truck , SHACMAN Aluminium Oil Transport Truck , FOTON Aluminium Oil Transport Truck , Dongfeng Gasoline Transport Truck , FOTON Aluminium Gasoline Carrying Truck
ISUZU Refueling Vehicle , ISUZU Refueling Truck , Oil Carrier Vehicle , ISUZU Refuelling Oil Truck , ISUZU Refuelling Fuel Truck , Shacman Refuelling Fuel Vehicle , ISUZU Acid Tank Vehicle , ISUZU Diesel Transport Vehicle
Vehicle Model DRZ5250GYYQ
Overall dimensions 9480X2495X3550mm Curb weight 10650kg
Tank dimensions 7350×2460×1630mm Tank volume 22000L
Chassis parameters
Chassis model QL1250DNFZY Chassis brand ISUZU
Overall dimensions 9000x2465x2810mm Wheel base 4350+1300mm
Front/rear wheel track 1960/1855/1855mm Front/rear suspension 1335/2015mm
Approach/departure angle 26/14° Maximum speed 90km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration FVZ,a row and a half cab(with sleeping berth),allowable 3 passengers,with air conditioner, central locking, electric windows,USB audio, cab can be flipped.
Color White,other color is optional
Engine Model 6HK1-TCSG40
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke,exhaust gas turbo, air-to-air inter-cooling,diesel engine
Rated power 280hp
Displacement 7790ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 11.00-20 18PR nylon tire
Number 10+1 nos
Frame 258X85(10+4)mm
Front axle 7.0 tons
Rear axle 18.0 tons
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox 9JS119TA,9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire:1000R20,1100-20,1100R20
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Fuel tank structure parameters
Tank dimensions 7350×2460×1630mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system
Fuel tank structure parameters
Tank dimensions 7350×2460×1630mm Tank volume 22000L
Tank material Aluminium alloy 5083 Tank thickness 6mm
Head thickness 6.3mm Color and Logo Optional
Oil Petrol Tank truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Fuel Trucks For Sale
According to the different transport medium, oil Petrol Tank truck can be called, oil tanker, Fuel Trucks For Sale , tanker, fuel trucks, ISUZU oil delivery tanker, ISUZU flow oil truck, ISUZU refueling vehicle, computer ISUZU refueling truck, ISUZU diesel delivery vehicles, ISUZU gasoline delivery vehicles, ISUZU oil transport vehicle, ISUZU edible oil transport vehicle, ISUZU crude oil transport vehicle, ISUZU heavy oil truck, ISUZU oil truck.
According to the brand oil tanker truck can be divided into, Yuejin Fuel Trucks For Sale , Dongfeng Fuel Trucks For Sale, FAW Fuel Trucks For Sale , Foton Fuel Trucks For Sale, Sinotruk Petrol Tank truck ,Auman Fuel Trucks For Sale , North-Benz Fuel Trucks For Sale ,JAC Fuel Trucks For Sale , Shacman Petrol Tank truck , CAMC oil transport Fuel Trucks For Sale , Isuzu Fuel Trucks For Sale , JMC Fuel Trucks For Sale , etc.
