DRZ5250GYYD Dongfeng Tianlong 6x4 Oil Tanker Truck Capacity 22000L

Views: 1718     Author: DRZ     Publish Time: 2017-04-20      Origin: www.truckinchina.com

DRZ5250GYYD Dongfeng Tianlong 6x4 Oil Tanker Truck Capacity 22000L

DRZ5250GYYD Dongfeng Tianlong 6x4 Oil Tanker Truck Capacity 22000L

Overall dimensions 11080X2480X3500mm Curb weight 14435kg
Tank dimensions 8100×2400×1600mm Tank volume 22000L

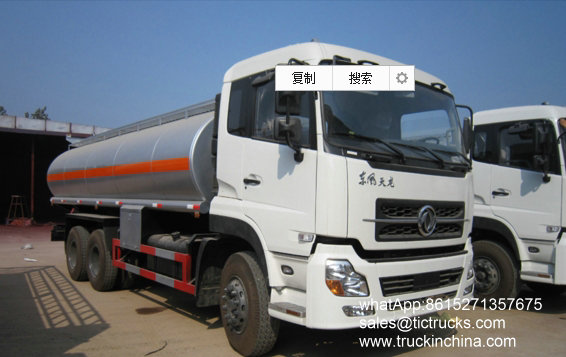

 6x4 Oil Tanker Truck Capacity 22000L_1

Chassis parameters
Chassis model DFL1250A9 Chassis brand DONGFENG
Overall dimensions 10460x2480x3030mm Wheel base 5350+1300mm
Front/rear wheel track 1986/1860/1860mm Front/rear suspension 1460/2350mm
Approach/departure angle 20/16° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration D310 standard flat roof a row and a half deluxe cab(with sleeping berth),cab,air conditioner,electric glass,hydraulic mechanical flip, channel type instrument panel,central lock,allowable 3 passengers
Color white,other color is optional
Engine Model C260 33
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 260hp,rated power speed 2200rpm
Displacement 8300ml
Max.torque 1090N·m
Bore x stroke 114x135mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 11.00R20,steel wire tire
Number 10+1 nos
Brake Double loop air brake system, exhaust brake
Clutch Push type diaphragm spring clutch,Φ430
Frame (300×80×[8+4])mm
Fuel tank 350L aluminum fuel tank
Front axle DANA 7.0T
Rear axle DANA 10.0T
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119T-B, 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

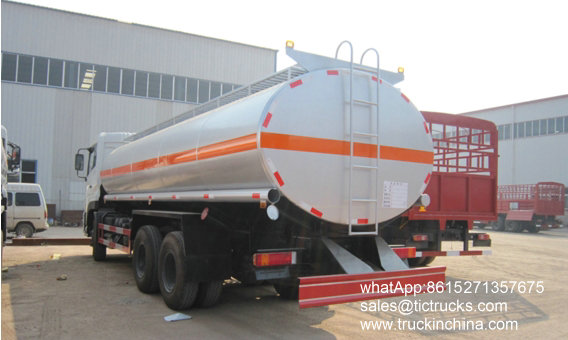

Dongfeng Fuel Truck Tanker_1.jpg
Fuel tank structure

Tank dimensions 8100×2400×1600mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.
