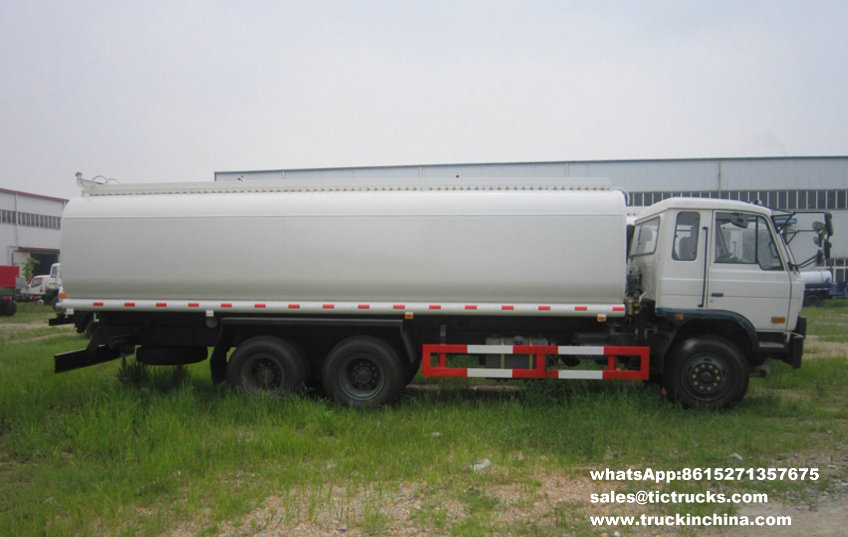

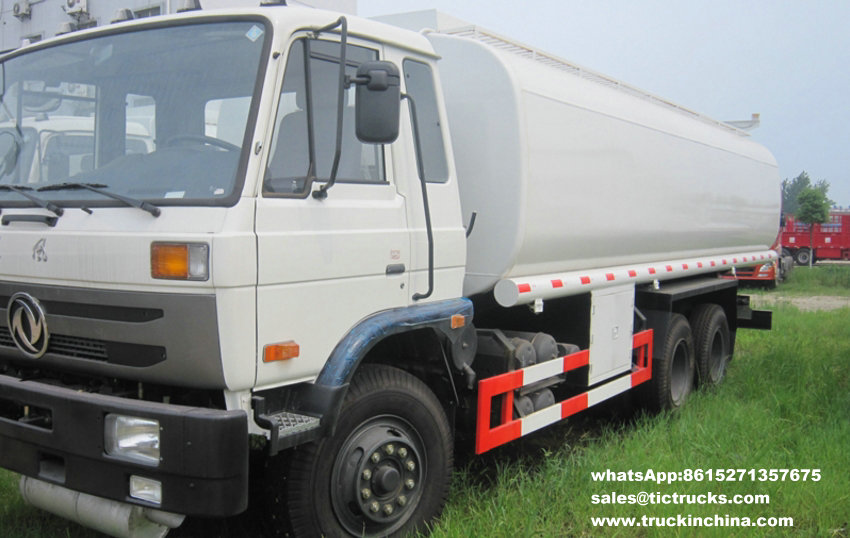

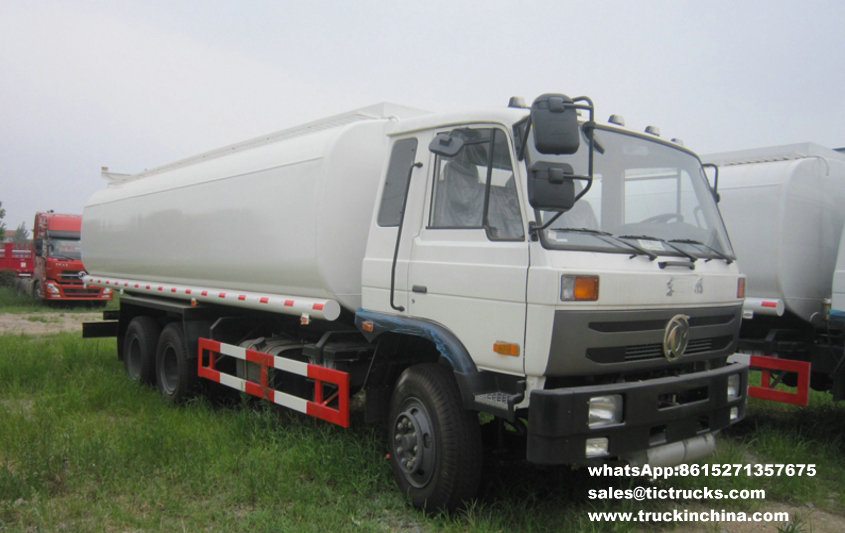

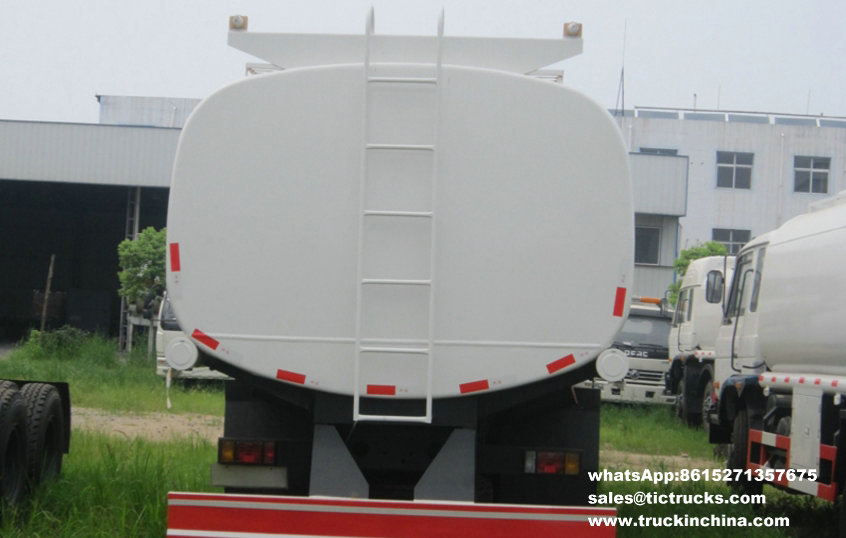

DRZ5253GYYE Dongfeng 6x4 22000L Aluminium Oil tank Transport Truck for Sale
Views: 425 Author: Dong Runze Publish Time: 2017-04-24 Origin: Dong Runze Special Vehicle
DRZ5253GYYE Dongfeng 6x4 22000L Aluminium Oil tank Transport Truck for Sale
carbon steel ;Unit Price: USD 29000.00 - 30000.00 / Set/Sets
Aluminium alloy ;Unit Price: USD 46000.00 - 50000.00 / Set/Sets
Vehicle parameters
Vehicle Model DRZ5253GYYE
Overall dimensions 9950,10350×2480×3550mm Curb weight 10505kg
Tank dimensions 7350×2460×1630,7800×2460×1580mm Tank volume 22000L
Chassis parameters
Chassis model EQ5253GFJ2 Chassis brand DONGFENG
Overall dimensions 9565x2470x2850mm Wheel base 4350+1300mm
Front/rear wheel track 1940/1860/1860mm Front/rear suspension 1245/2670mm
Approach/departure angle 28/15° Maximum speed 85km/h
Chassis Manufacturer Dongfeng Motor Corporation
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Red,other color is optional
Engine Model B210 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 210hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 700N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 10.00-20 nylon tire
Number 10+1 nos
Frame 280×80×(7+5)mm
Fuel tank 200L,steel
Front axle 5.0T
Rear axle 10.0T
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gearbox 8JS118, 8 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner,steel wire tire,wheel base 4750+1300mm,engine YC6A240-33(240hp),new driver`s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Fuel tank structure
Tank dimensions 7350×2460×1630,7800×2460×1580mm Tank volume 22000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system
Related Keywords
Used Fuel Oil Tanker Truck , Fuel Tanker Truck for Sale , Second Hand Fuel Tanker Truck , Used Fuel Tanker Truck , RHD Used Fuel Tanker Truck , Fuel Oil Tanker Truck 4x2 , Fuel Tanker Truck , Beiben Oil Tanker Truck
Oil road tanker truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.
According to the different transport medium, oil road tanker truck can be called, oil tanker, refueling vehicle , tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.
According to the brand oil road tanker truck can be divided into, Yuejin refueling vehicle , Dongfeng road tanker truck, FAW tanker truck, Foton refueling vehicle , Sinotruk road tanker truck,Auman tanker truck, North-Benz road tanker truck, JAC transport tanker truck, road tanker truck, Shacman oil road tanker truck, CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
