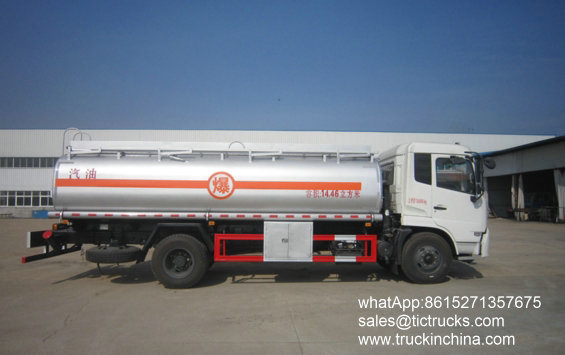

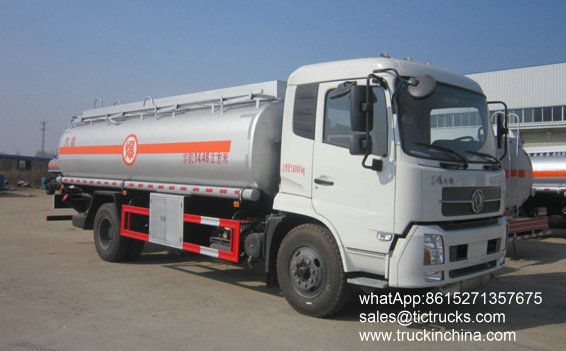

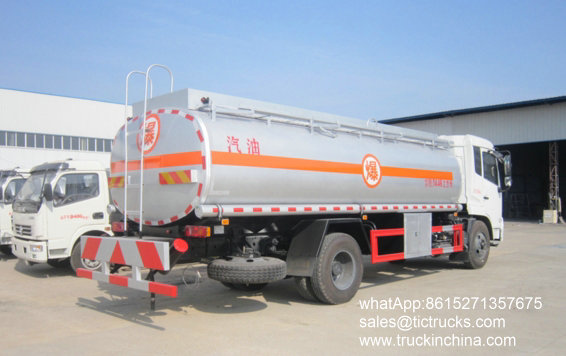

DRZ5160GYYD Oil tanker truck USD 26000.00 - 27500.00 /
refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.
According to the different transport medium, oil tanker truck can be called, oil tanker, tank truck, tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.
According to the brand oil tanker truck can be divided into, Yuejin tank truck, Dongfeng tanker truck, FAW tanker truck, Foton tank truck, Sinotruk tanker truck,Auman tanker truck, North-Benz tanker truck, JAC transport tanker truck, tanker truck, Shacman oil tanker truck, CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
Vehicle Model DRZ5160GYYD
Overall dimensions 8700×2460×2900mm Curb weight 7605kg
Tank dimensions 6200×2050×1445mm Tank volume 15000L
Chassis parameters
Chassis model DFL1160BX Chassis brand DONGFENG
Overall dimensions 8290x2370x2760mm Wheel base 4700mm
Front/rear wheel track 1880/1800mm Front/rear suspension 1430/2160mm
Approach/departure angle 20/13° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration Tianjin a row and a half deluxe cab(with sleeping berth),,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers
Color white,other color is optional
Engine Model B190 33
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 190hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 640N·m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Clutch push type diaphragm spring clutch,Φ395mm
Frame (250x80x[7+4])mm
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T main reduction ratio 5.286
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S750, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Fuel tank structure
Tank dimensions 6200×2050×1445mm Tank volume 15000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.
Packaging & Shipping
1, attached parts and tools put into standard export box.
2, Fuel Tanker Truck will be cleaned and covered with wax before delivery.
3, Fuel Tanker Truck will be covered by waterproof cloth at the departure port.
4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.
5,some small Fuel Tanker Truck can be put into container according to its overall dimensions.
FAQ
1, How to purchase the Fuel Tanker Truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.
2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, You can entrust third party individuals or organizations to inspect our products before delivery.
3, How to visit your factory?
After you arriving at China, you can fly to Wuhan airport. Wuhan airport is located in Wuhan City, Hubei Province. Our driver will meet you at Wuhan airport and take you to our city by car.
