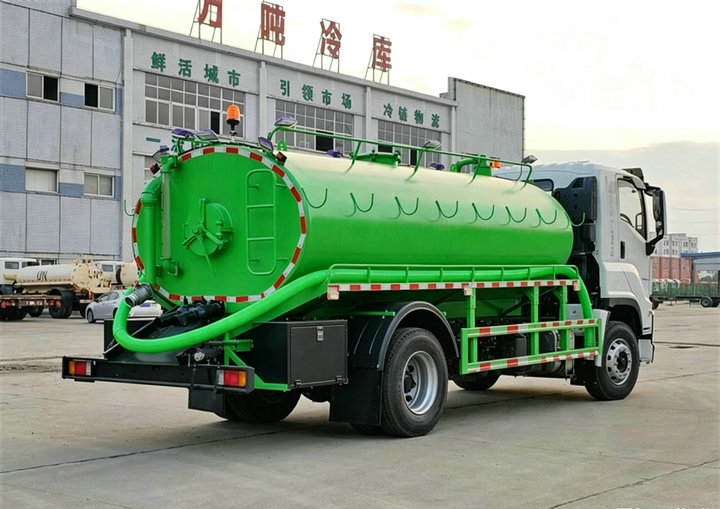

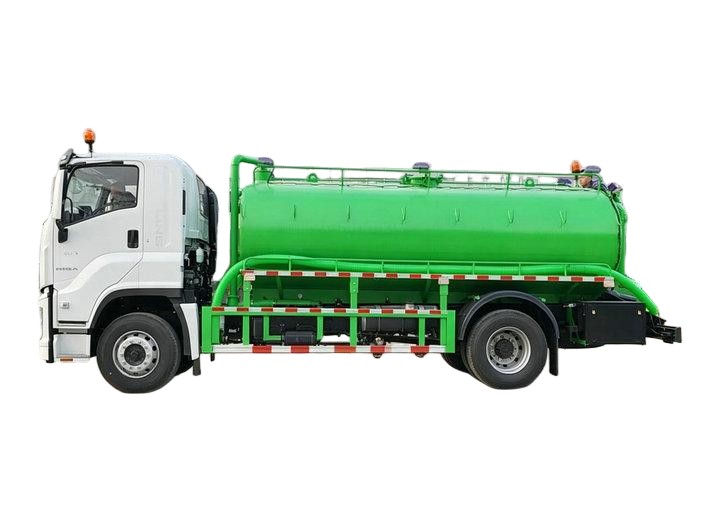

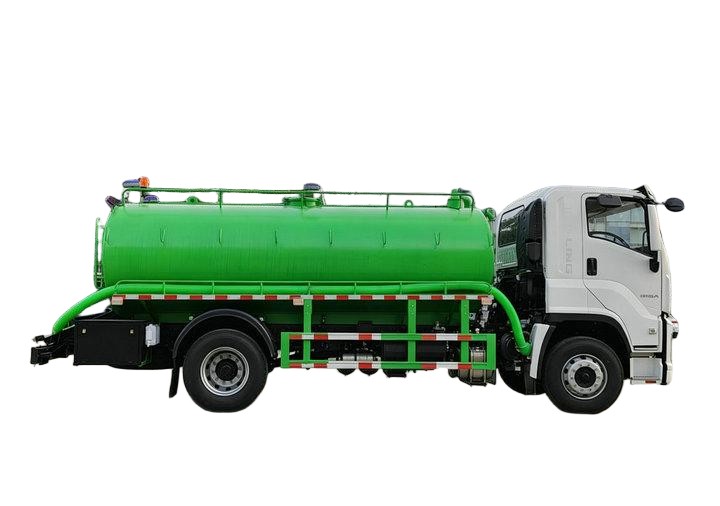

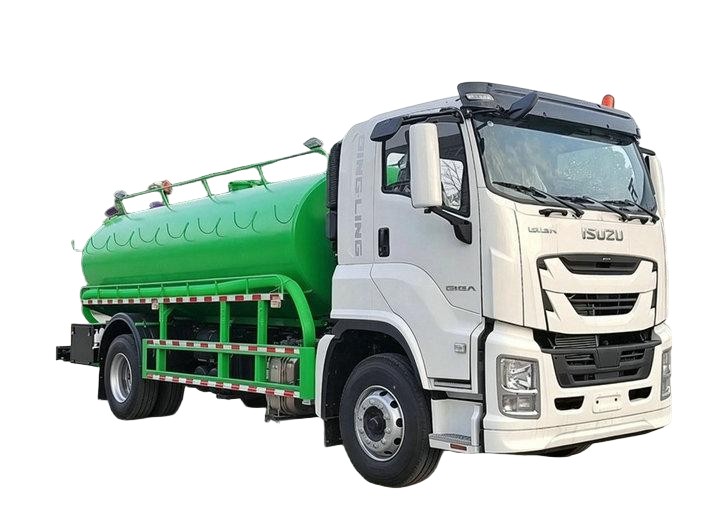

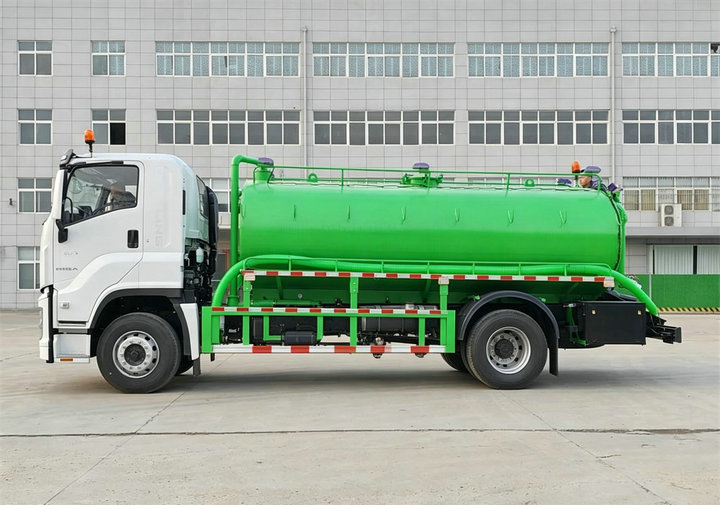

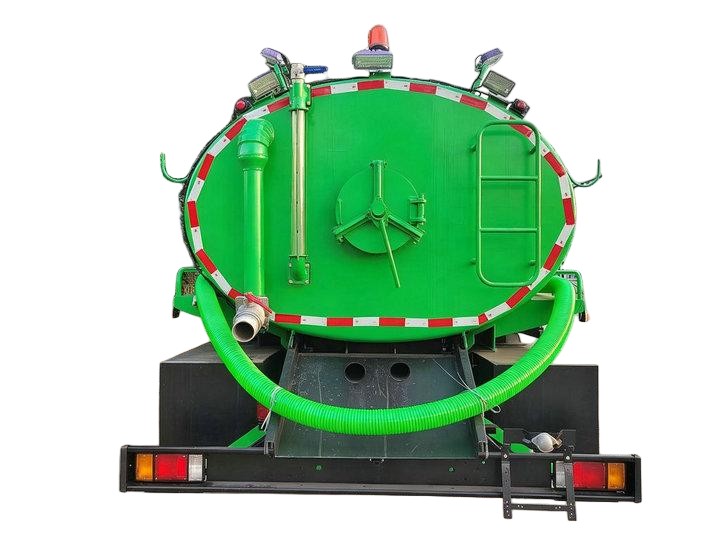

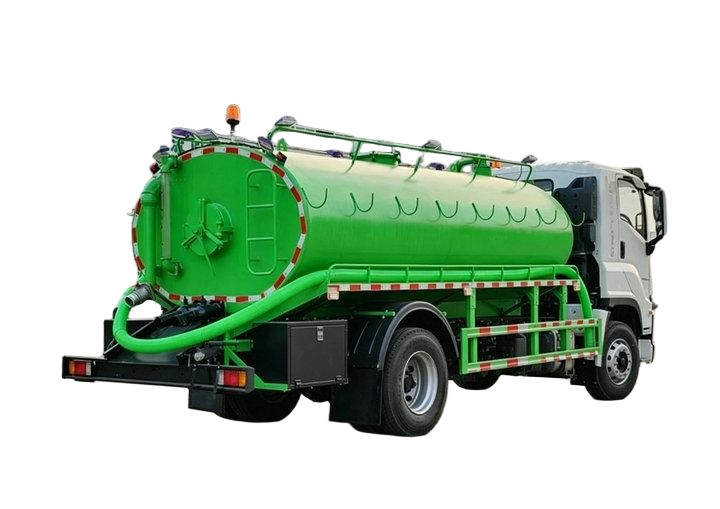

ISUZU FVR Sewer Septic Vacuum Truck 10KL Sewage Tanker
| ISUZU FVR Sewer Pump Truck Specifications | ||
| General | Vehicle Model | DRZ5180GXWQL |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8400 * 2550 * 3200 mm | |
| GVW / Kerb Weight | 18,000kg / 8,100kg | |
| Cab | Cab Capacity | 2 passengers allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Model | 6HK1-TCG61 | |
| Power | 240HP (177KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro 6 | |
| Chassis | Drive Type | 4X2 (left hand drive) |
| Transmission | Manual, FAST, 8-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tire Specification | 295/80R22.5 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Vacuum tank capacity | 10,000 Litres |
| Tank material | Carbon Steel, 6mm thickness | |
| Suction hose | 10 m | |
| Vacuum pump brand | WEILONG | |
| Pumping speed | 68L/s | |
| Ultimate pressure | 7000 Pa | |
| Vacuum Pump advantage | High efficient, vacuum rate 93%, quick suction and discharge, suction lift 7m | |
| Hose | High quality, wire strengthened hose | |
| Control panel | English | |
| All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual... | ||
| Optional | ** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional WL Series Septic Tank Vacuum Pump Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump 50QZXDF-98/8500 1000 8500Pa(91.5%) 98 5.5 For 3-5 Ton Vacuum tanker 65QZXDG-68/400 500 400Pa(99.6%) 68 For 8 -20Ton Vacuum tanker Jurop Vacpump PN84D Liquid Waste Vacuum pumps | |

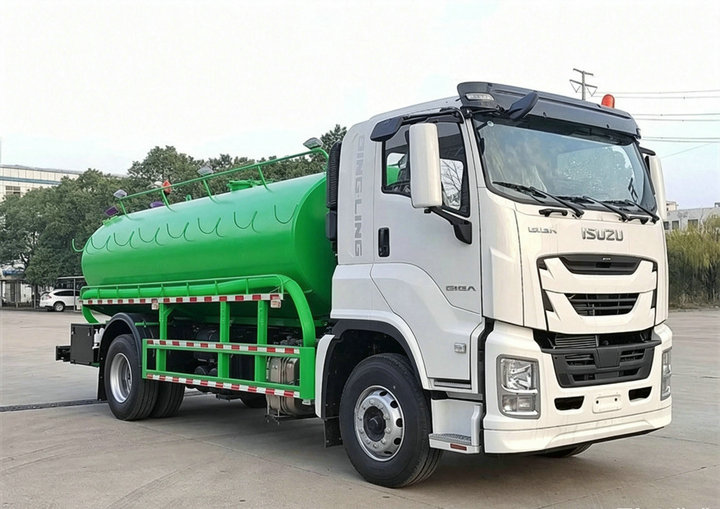

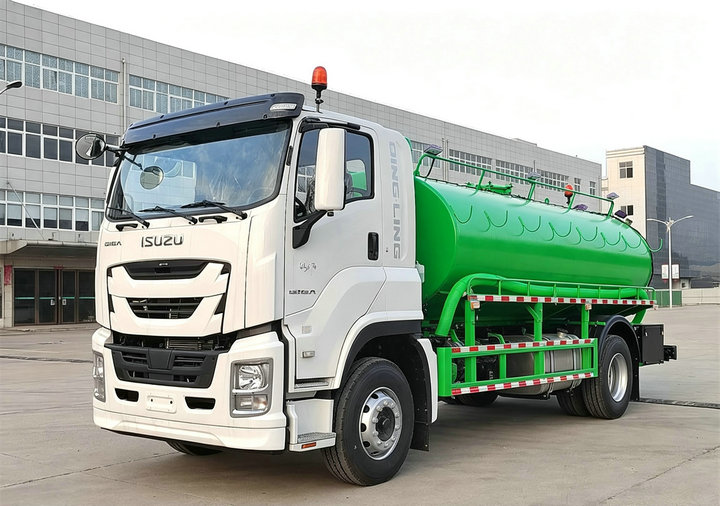

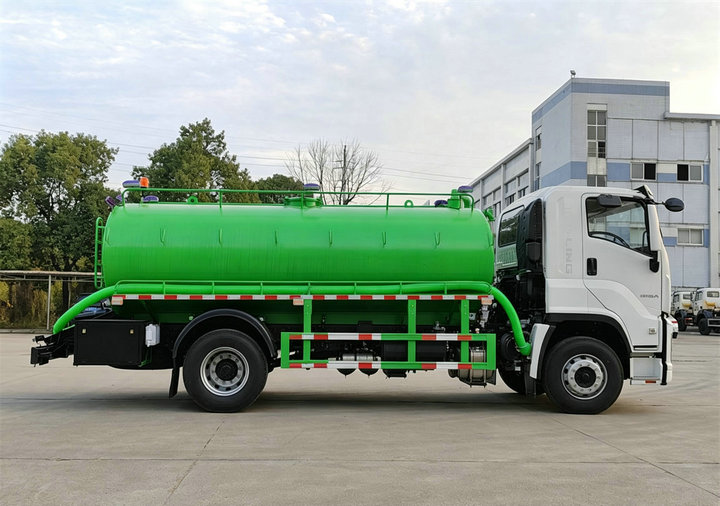

ISUZU FVR Sewer Pump Truck
Tank Capacity: 10000 Liters | Drive Mode: 4×2 Engine Power: 240 HP | Engine Model: 6HK1-TCG61 Send Inquiry
Products Description
Our ISUZU FVR sewer vacuum truck is a professional customized sewage suction vehicle modified on genuine ISUZU FVR chassis QL1180EQ, specially manufactured for municipal urban sanitation, sewer dredging and septic tank cleaning work.

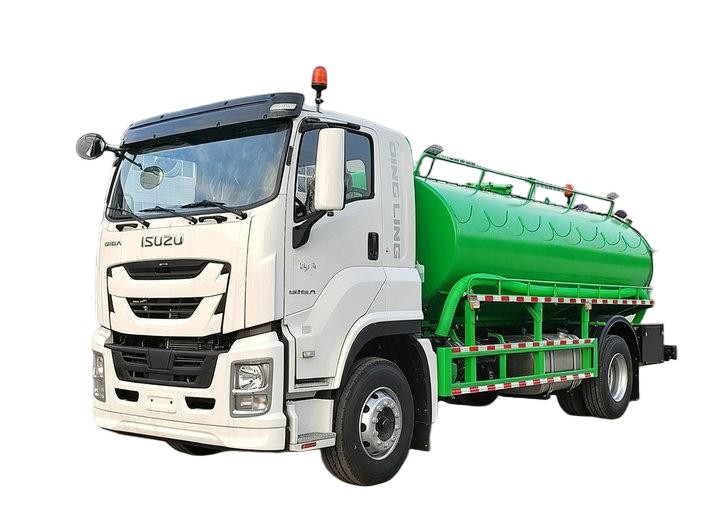

This ISUZU FVR septic tank pump truck adopts ISUZU GIGA 5X VC61 spacious cab, bringing drivers comfortable and wide vision driving experience. With standard 4×2 wheel drive layout, the vacuum sewer truck owns outstanding road stability and flexible maneuverability, easy to operate in downtown communities, narrow industrial zones and rural roads.
Powerful & Fuel-Saving Power System
The core power of the ISUZU FVR sewer pump truck comes from original ISUZU 6HK1-TCG61 diesel engine. At rated speed 2400rpm, the engine reaches max power 177KW (241HP), offering steady, sufficient torque for long-distance sewage transportation and heavy-duty suction work. Diesel fuel configuration greatly cuts daily operation cost, meeting strict municipal environmental emission standards for sanitation fleets.

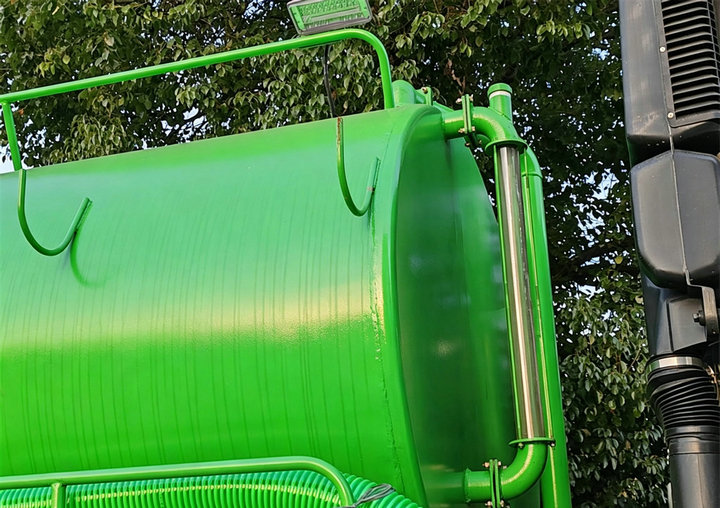

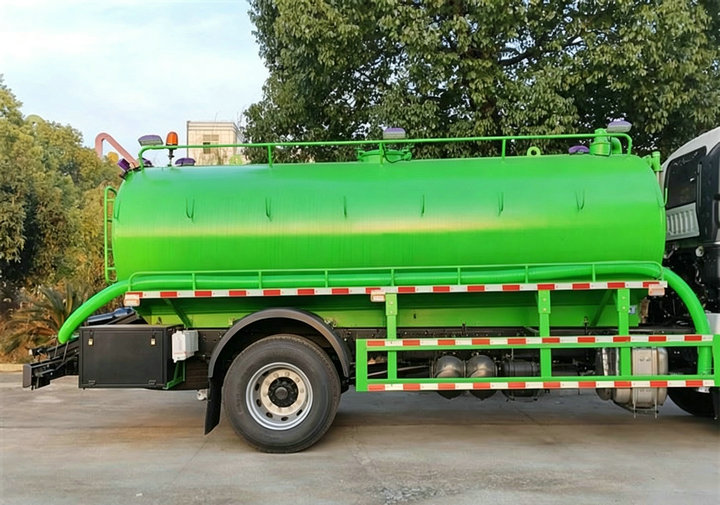

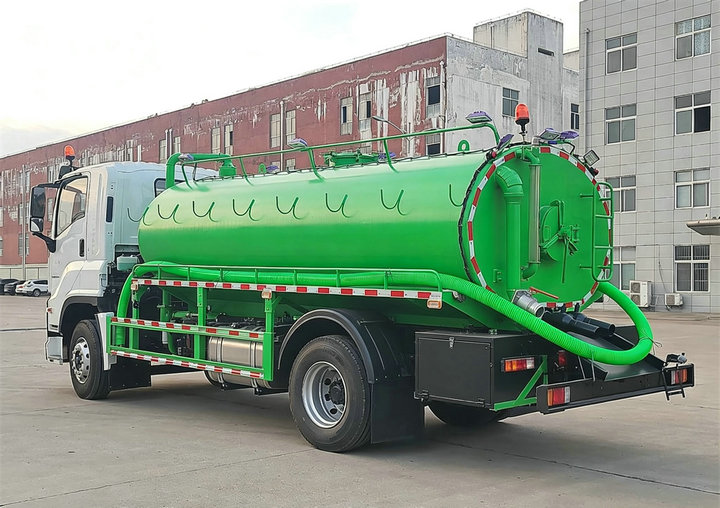

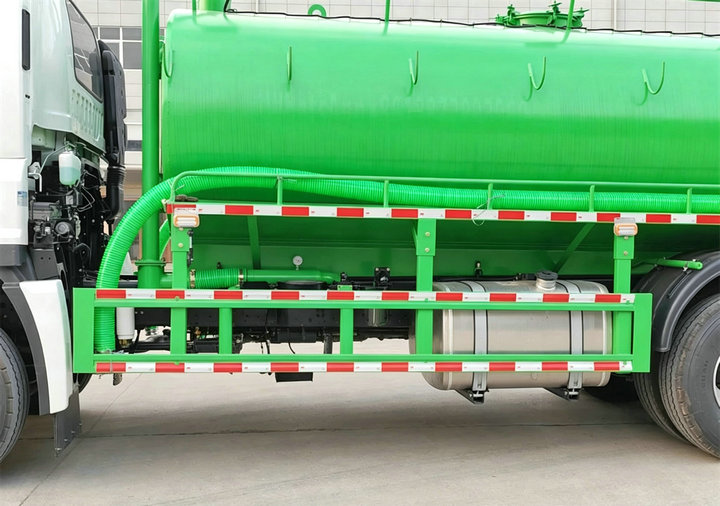

10000L Anti-Corrosion Carbon Steel Septic Tank
The 10000L large-capacity septic tank is the key component of this ISUZU vacuum suction truck:
Raw material: 6mm thick high-strength carbon steel, anti-collision and long service life;
Internal structure: Equipped with anti-wave baffles to restrain sewage sloshing during transit, improve driving safety;
Surface treatment: Full internal & external anti-corrosion coating, effectively resist sewage corrosion and extend tank service cycle. 10 cubic meter large storage capacity meets full-day continuous sewer cleaning and septic tank emptying without frequent round trips.
High Flow 68/7000 Model Vacuum Pump System
This ISUZU FVR septic vacuum truck is fitted with domestic well-known brand 68/7000 vacuum pump, maximum flow rate up to 68L/s. Advantages of the vacuum pump unit: high rotation speed, super strong suction force, low failure rate and smooth running. It can rapidly suck sludge, fecal sewage and blockages into the storage tank, greatly boosting the working efficiency of municipal sewage treatment projects.
Wide Application Scenarios of ISUZU FVR Sewer Vacuum Truck
Our ISUZU FVR sewer pump truck serves multiple sanitation cleaning fields:
Municipal urban works: Main road sewer dredging, community septic tank emptying, pipeline sludge cleaning;
Industrial & commercial zones: Factory sewage collection, catering waste sewage cleaning, industrial wastewater transport;
Rural environmental governance: Village septic tank cleaning, rural domestic sewage disposal, rural waste sludge clean-up.
With reliable chassis quality, stable vacuum suction performance and low maintenance cost, our ISUZU FVR septic tank pump truck has gained consistent trust from sanitation companies, environmental engineering contractors and government municipal departments worldwide.
