ELF KV100
-
DONG RUN ZE
-
8705909990
-
Shanghai, China
-
1000
-
T/T, Western Union
-
Nil
-
1

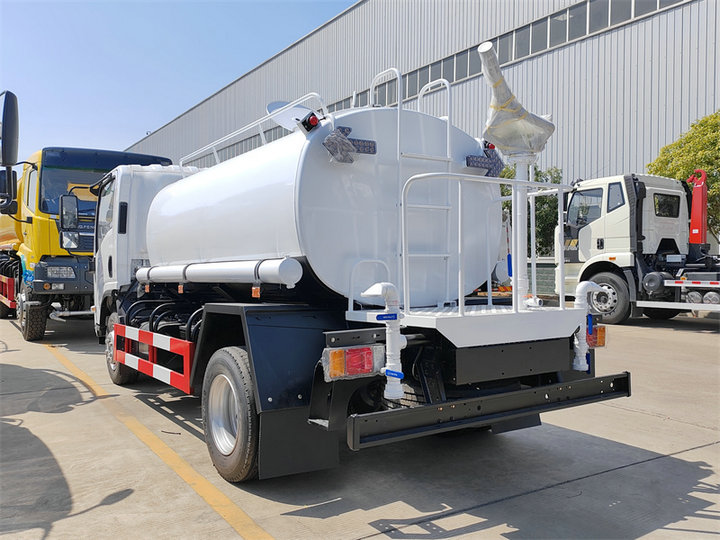

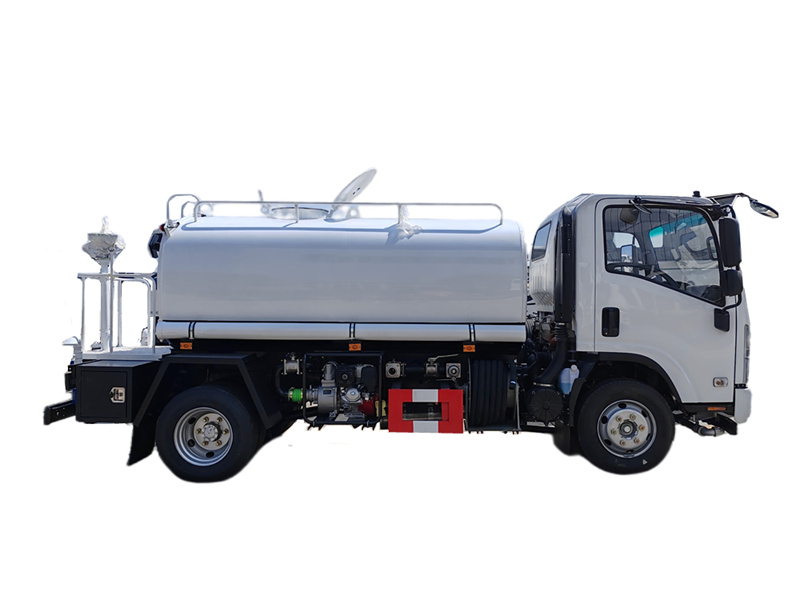

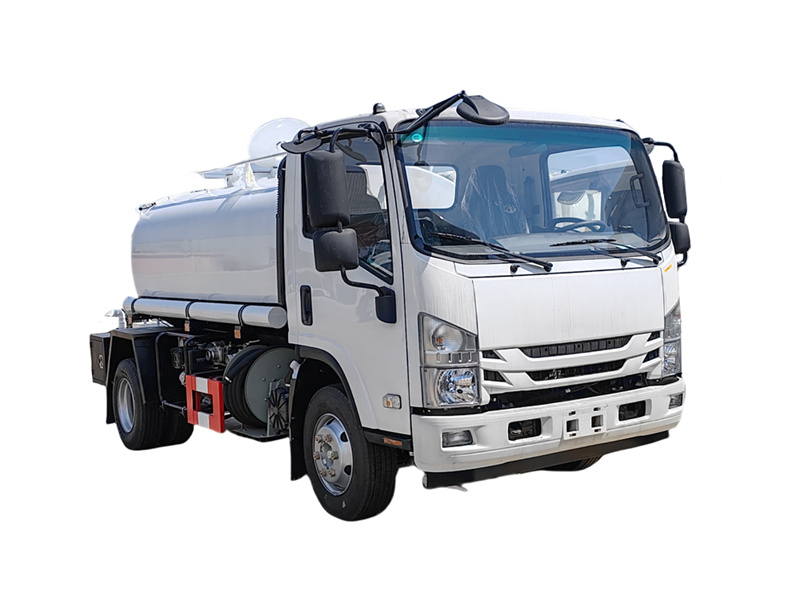

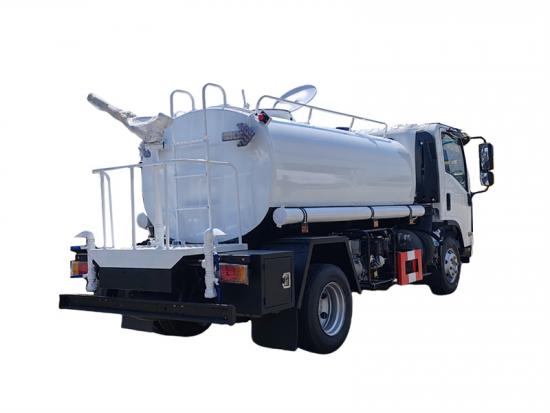

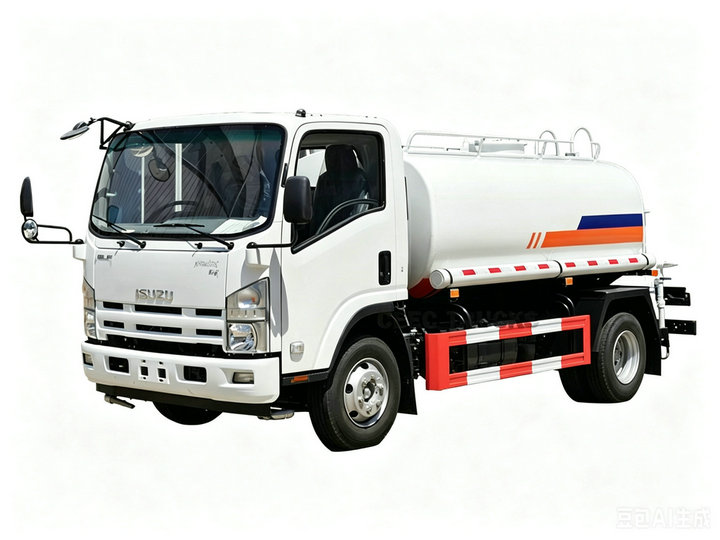

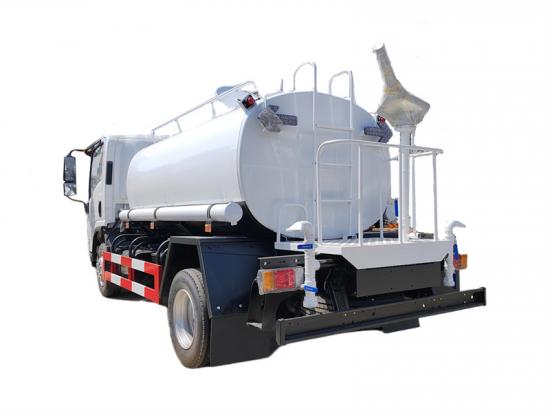

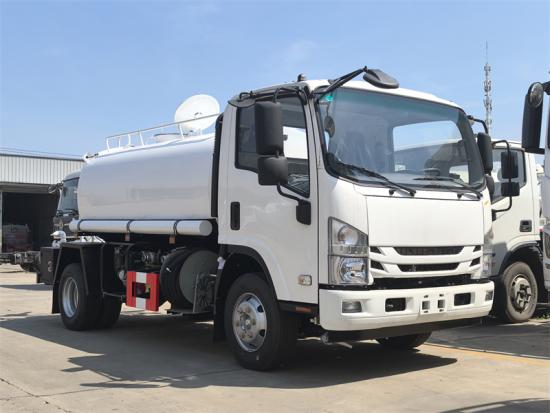

Isuzu Elf 120HP Dust Control Water Tanker 2KL -4KL
| Work Capacity: | 2,3,4cbm |
| Dimension ( Mm ): | 5750 * 1980 * 2300 |
| Wheelbase ( Mm ): | 3360 |
| Engine Power: | 120HP |
| Engine Type: | 4KH1CN6L .B |
| Axle Drive: | 4x2, LHD |
| ( jear Box: | MSB 5 speeds ,5 forwards,1 reverse gear,manual operation |
Isuzu Elf street washing sprinkler
Isuzu 120HP road sprinkling truck
Isuzu 100P 4cbm water spray truck
| Isuzu Elf street washer water trucks | |
| Main Technology Parameter | |
| Truck Model | DRZ5070GXY |
| Driving Type | 4×2,left hand drive |
| Color | White,yellow,box can choose |
| Weights | |
| Gvw(kg) | 7300 |
| Curb weight(kg) | 3150 |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Overall Dimension(mm) | 5750*1980*2300 |
| Tank capacity | 5cbm |
| Max speed(km/h) | 115 |
| Engine | |
| Engine model | 4KH1CN6LB |
| Engine power | 120HP/88Kw |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(L) | 2.999 |
| Emission standard | Euro 6 |
| Drive Line | |
| Transmission | MSB 5 speeds ,5 forwards,1 reverse gear,manual operation |
| Steering | Power steering |
| Brake | Oil brake |
| Cab | |
| Cabin | Isuzu ELF |
| Standard configuration | with A/C,oil brake with vacuum booster pump,power steering |
| Axle | |
| Front axle | 2580kg |
| Rear axle | 4720kg |
| Tire specification | |
| Tire specification | 7.00R16, standard tire,6 tires+1 spare tire |
| Water truck | |
| Water tanker material | Of high quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥20m Range≥50m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, which can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |

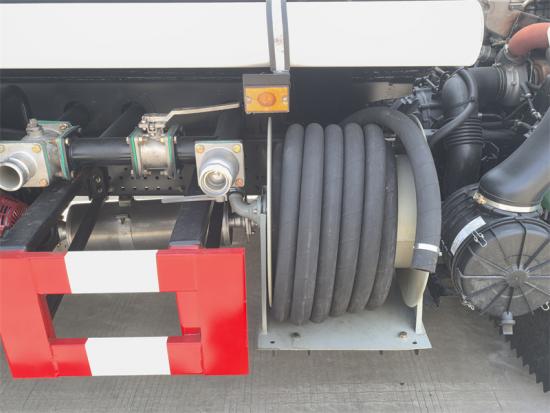

| Horse reels | Two hose reels at each side of the truck |

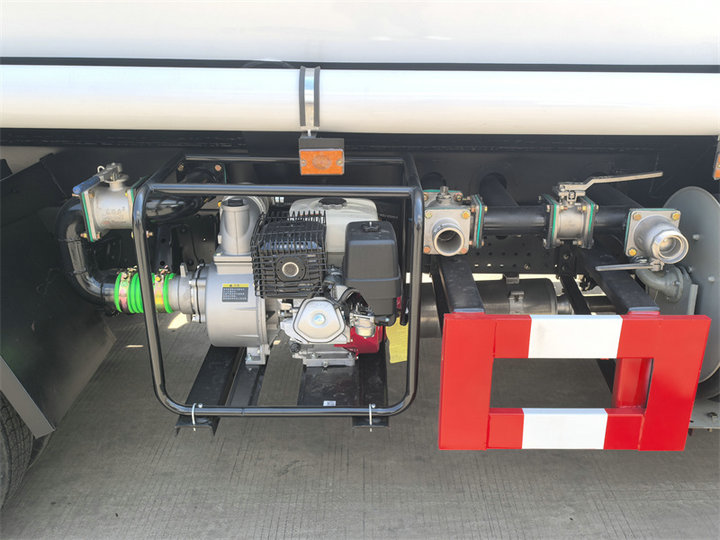

| Water pump | Water pump model:65QZF-40/50 |
| Water pump flow rate(L/m): 40m3/h | |
| Head of delivery(m): 50m | |
| Self-priming function(min/4m):1.5 | |
| Related rotate speed(r/min)1450 | |
| matched power(kw):9.25 | |
The cleaning system of the Isuzu 100P road sprinkling truck is designed to be efficient. It usually consists of a high-pressure water pump that delivers a powerful stream of water to the street surface, and a series of nozzles and spray bars that distribute water evenly across the width of the truck. The system removes dirt, grime and other debris from street surfaces, leaving them clean and pollution-free.
Isuzu ELF street cleaning water tank truck, is a versatile and efficient machine designed specifically for the demanding tasks of street cleaning and maintenance. This Isuzu Elf Street Washer Water Truck combines the ruggedness and durability of an Isuzu truck with the specialized capabilities of a street washer, making it an invaluable asset for municipalities, construction sites, and any other organization that requires high-quality street cleaning services .
