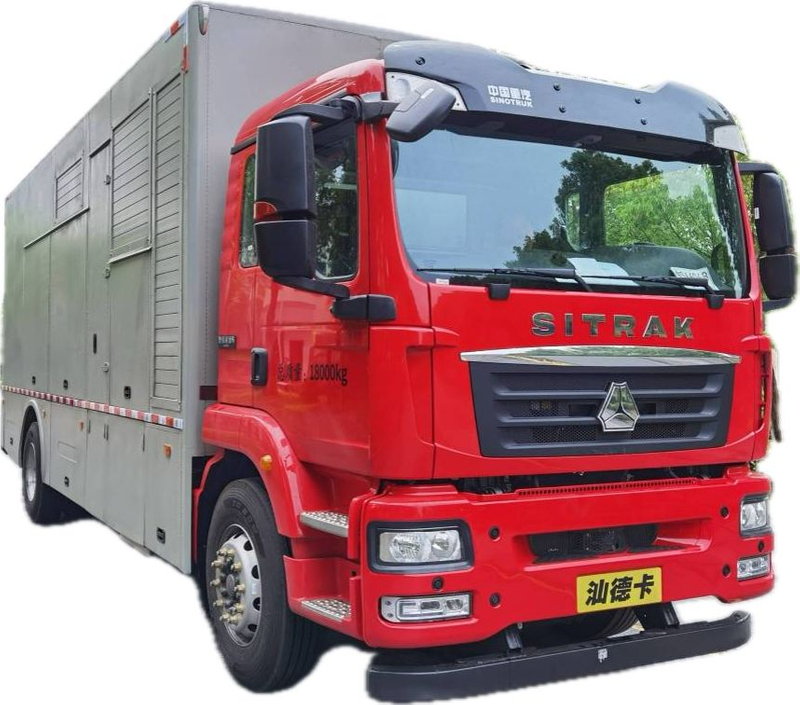

SITRAK Flood Rescue Vehicle Electric Drainage Pump 5000M3/h

SITRAK Flood Rescue Vehicle Electric Drainage Pump 5000M3/h

Reflective marking paramete

Maximum speed ≥110km/h,

Brake force distribution, body electronic stability system.

The cab is equipped with seat belt, air conditioning system, central control lock, rearview mirror, electric glass, cab air seat, etc. Special additional noise reduction and heat insulation for floor and engine connections; Hydraulic turning mechanism is installed to turn forward.

Electrical system: (1) All kinds of indicators: turn signal display, far, near light, battery charging indicator, parking brake indicator, front fog light, rear fog light. (2) Emergency warning light: brake system low pressure alarm, engine lubrication system low pressure alarm, air filter blockage alarm, etc. (3) Switch: equipped with a total power switch, maintenance-free battery needs to be installed in a reasonable place, easy to replace. (4) When the installation equipment needs to change the use of chassis gas system to take gas, it can only take gas from the secondary gas system, and must not change the main gas system.

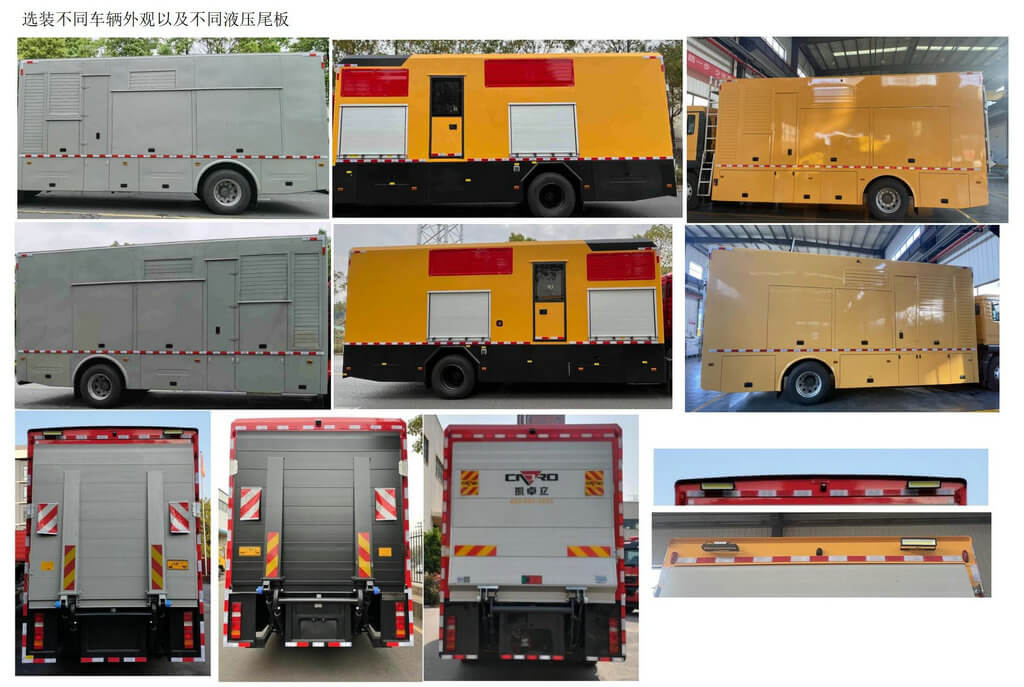

The vehicle structure layout is reasonable, the water pump and accessories have a fixed position, the carriage is an integrated fully closed structure, with sound insulation function, the body can be fire, flame retardant, rain, dust, rust, noise reduction, vibration isolation, with long-term seismic structure, operating noise ≤85dB.

Equipped with automatic hydraulic leg, vehicle four corner load bearing design, with a key switch function, the total load of the leg ≥20t, can be manually levelled.

The whole vehicle is equipped with hydraulic pump taking device.

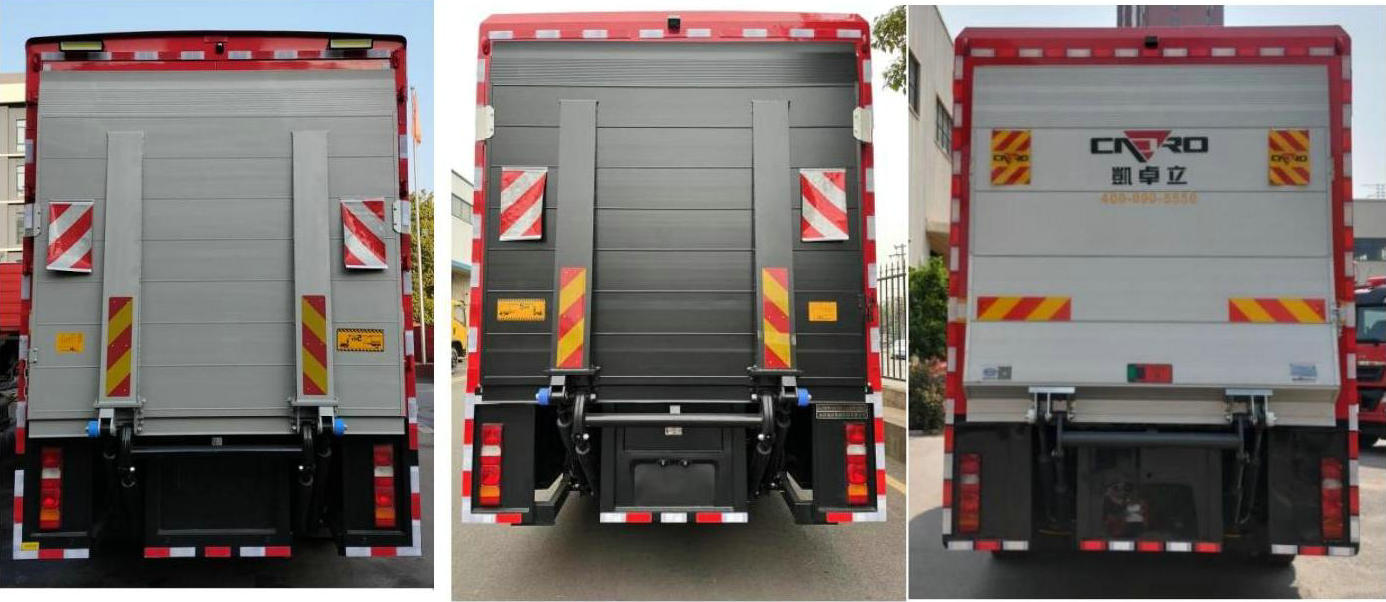

The vehicle is equipped with a hydraulic tailplate.

Hydraulic tailplate lifting load ≥1000kg.

Vehicle displacement ≥5000m³/h.

In order to meet the needs of different rescue situations, it is equipped with ≥7 diving stations.

Pump type A: When the displacement of a single pump is ≥1000m³/h, the head is ≥10

Meters; When the displacement is ≥700m³/h, the lift is ≥ 15m.

In order to meet different emergency rescue conditions, the pump type A single pump can realize the function of rapid exchange between large flow and high head by replacing the drainage module, and the bicycle needs to be equipped with a set of high head drainage module.

Pump type A after the replacement of high lift drainage module to reach a single pump flow ≥400m³/h, lift ≥30 meters.

Pump type A single pump power ≥40kW, weight ≤75kg, speed ≤2500rpm.

Pump type A supporting water outlet diameter ≥DN300mm, working pressure ≥0.8Mpa, bursting pressure ≥2.5Mpa, elongation ≤3%, expansion rate ≤3%, adhesion strength ≥80 (N/25mm).

Pump type B: When the displacement of a single pump is ≥600m³/h, the lift is ≥ 10 meters. (

Pump type B Single pump power ≥22kW, weight ≤24kg, speed

Pump type B submersible pump can pass particle diameter ≥20mm.

Pump type B control cabinet weight ≤20kg.

Pump type B supporting water outlet diameter ≥DN200mm, working pressure ≥0.8Mpa, bursting pressure ≥3Mpa, elongation ≤4%, expansion rate ≤4%, adhesion strength ≥30 (N/25mm).

Single water pump with hose: the material is synthetic fiber long axis braid, coated with wear-resistant waterproof resin, it should be wear-resistant and puncture proof, folding up, equipped with hose length ≥80m, each drain pipe has a hose adapter

And stainless steel fast clamp. In order to facilitate access to the water belt, install the water belt hydraulic lifting mechanism on the side of the vehicle, size: length ≥1400mm, width ≥500mm,

Motor protection grade ≥IP68, motor cold insulation resistance ≥50MΩ.

Submersible pump diving depth ≥20m.

The submersible electric pump is made of lightweight high-strength alloy pump shell material, and the impeller is made of stainless steel material.

The core components of submersible electric pump impeller, impeller chamber, deflector coating microhardness Vickers hardness (HV) :1300 or more.

Each pump should have its own submersible cable ≥50 meters, and IP67 and above waterproof joints should be used between the cables.

Cable length ≥40 meters.

Submersible pump control cabinet shell protection grade ≥IP44.

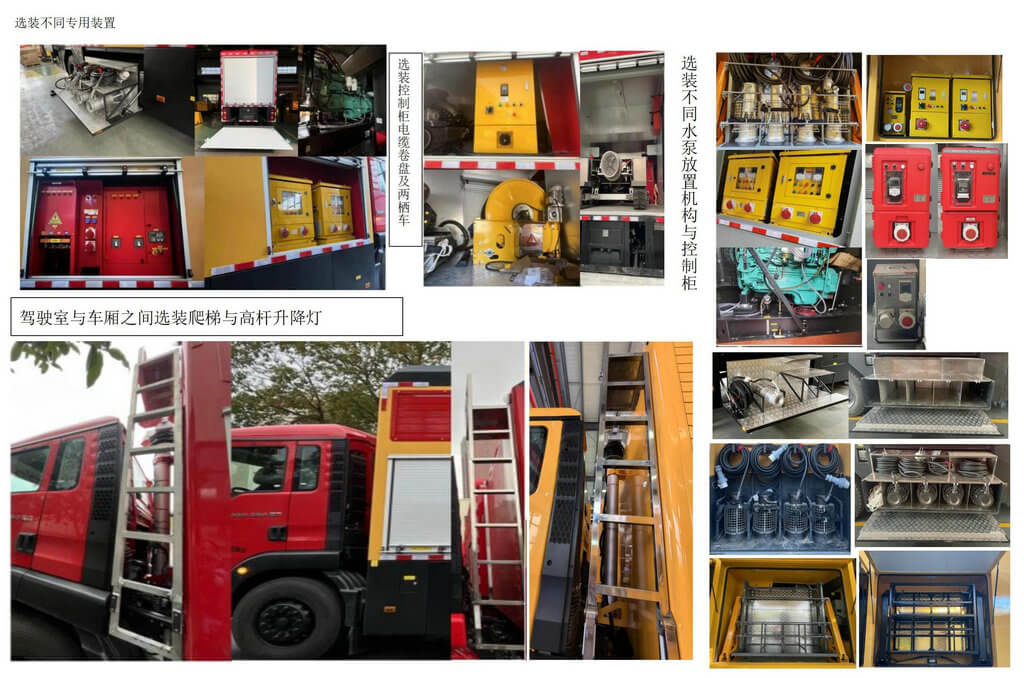

The color of the control cabinet can be customized according to the requirements of the purchaser. The handle is installed on both sides. The water pump supports two modes of diesel generator and mains drive.

Each pump is equipped with a mobile drainage emergency unit control system.

The mobile drainage emergency unit control system is concentrated in the variable frequency control cabinet, with a visual operation interface, real-time monitoring of operating parameters, with leakage, current overload, phase loss, over voltage, under voltage, over frequency, under frequency, motor overheating and other protection, can realize the soft start and soft stop of the pump, can adjust the pump speed, control the displacement.

Electric shock protection and protection circuit integrity of submersible pump control system, leakage protection circuit breaker (RCBO) under the condition of residual current to verify the operating characteristics, power frequency withstand voltage test in line with national standards.

Power of generator set ≥270kW.

Rated voltage: line voltage 380V earth 10%, phase voltage 220V±10%.

Automatic speed control, automatic speed control, make the output stable. Mains power supply is available. Cooling method: closed water circulation cooling.

The fuel tank volume of the generator can be guaranteed under the working condition of maximum displacement

Continuous operation ≥8h.

Output interface: equipped with not less than the number of pumps rated output interface (rated voltage, current and pump matching), in addition to two sets of high-power output interface.

The vehicle type design comes with lifting lights, and there is no need to disassemble the vehicle when it is registered and audited annually.

Lamp brightness: luminous flux ≥350000Lm.

Light lifting height ≥7 meters.

Lifting lighting power ≥4×1000W; Lifting lights can be controlled by wireless and wired remote control, remote control operation distance ≥25m, light source adjustable, can focus light can flood light, horizontal rotation 360°, vertical rotation 180°, lifting lights rise to the maximum height, down to the maximum speed of the driving position: 30mm/s ~ 50mm/s, the working voltage is AC220V/DC24V, the working current is less than 20A.

Equipped with portable emergency lighting: for emergency rescue rescue workers or drivers in the field of portable emergency lighting. The overall dimension of the lamp (outer diameter × length) ≤25×135mm; Light weight ≤110g.

Portable emergency lighting: The lamp holder can be rotated from 0° to 90°, with strong light, low light, explosion flash can be switched, explosion flash flashing frequency ≥8Hz.

Portable emergency lighting fixture: Measure the spot center illuminance at 2m after the fixture works for 10 minutes. The strong light center illuminance is ≥2500 lx, and the weak light center illuminance is ≥1000 lx; The test distance is 2m, the test beam diameter is 150mm, the average measured value of strong light illuminance is ≥2200 lx, the minimum measured value is ≥2000 lx, the average measured value of weak light illuminance is ≥800lx, the minimum measured value is ≥600 lx. Portable emergency lighting lamps: the lamps have OLED display, screen resolution ≥128×80, can realize the text, digital display of strong light, low light, flash, electricity, remaining battery life information.

Portable emergency lighting: explosion-proof grade Ex ibⅡC T4 Gb;

Built-in hidden Type-C charging interface, rated power capacity ≥1900mAh; Continuous discharge time: ≥4h (strong light), ≥8h working light), full charge time after full discharge ≤4h. Portable emergency lighting: shell protection grade ≥IP66; Equipped with chest light bracket, can meet the chest wearing lighting scene application.

Equipped with vehicle intelligent drainage monitoring system, including but not limited to the following functions: (1) equipment conditions: display real-time displacement, historical cumulative displacement, real-time parameters of generator operation, real-time parameters of pump operation; (2) Fault information: real-time fault information reminder; (3) Monitoring: video monitoring real-time field dynamics; (4) Maintenance: according to the running time of each part of the machine, initiate active maintenance reminders; (5) Intelligent after-sales: users can initiate after-sales needs at any time, and after-sales processing progress can be viewed at any time; (6) The above related functions can be accessed and used through mobile phones, and feasible solutions can be provided (including selection of component models and implementation paths, and automatic charging and inflating devices are equipped with successful use.
