DR5290
-
Dong Run Ze
-
8705905900
-
1

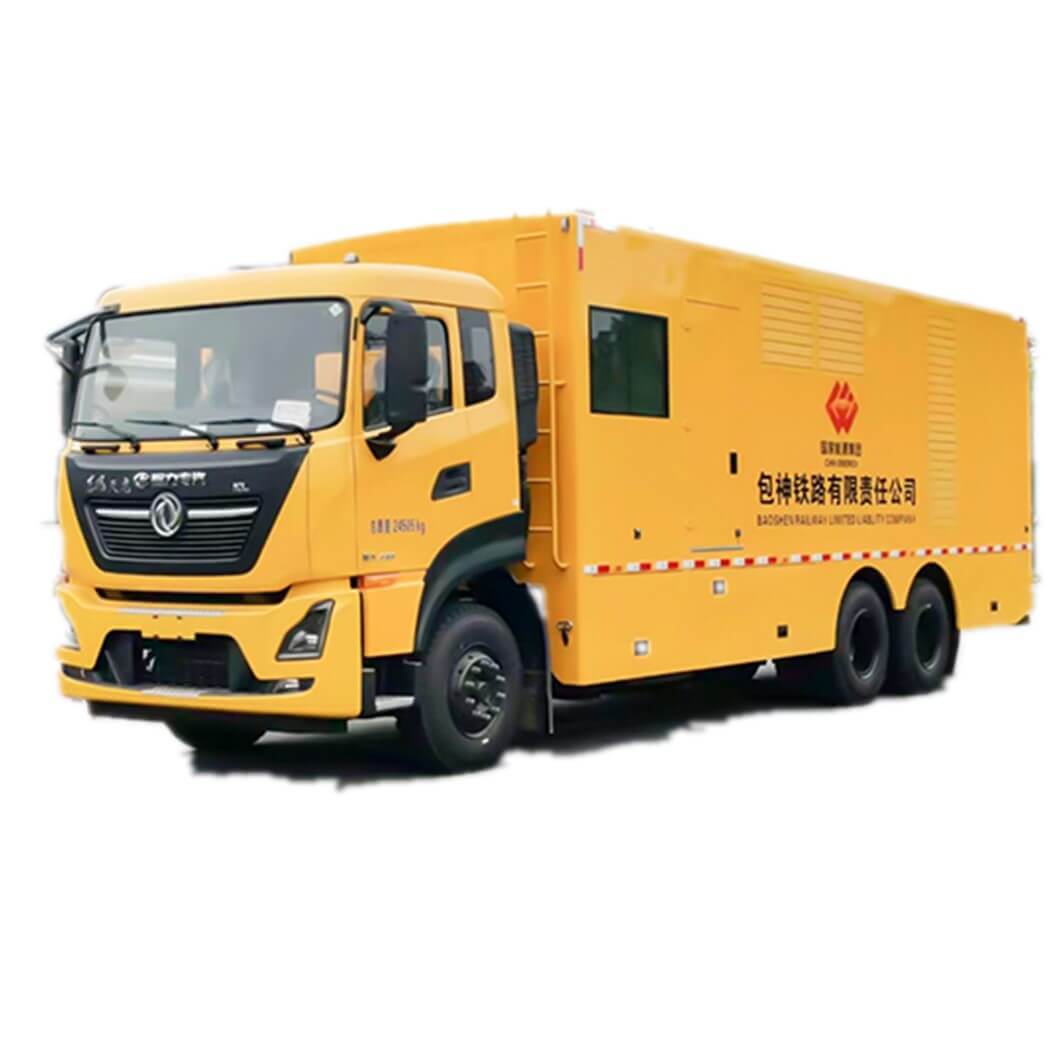

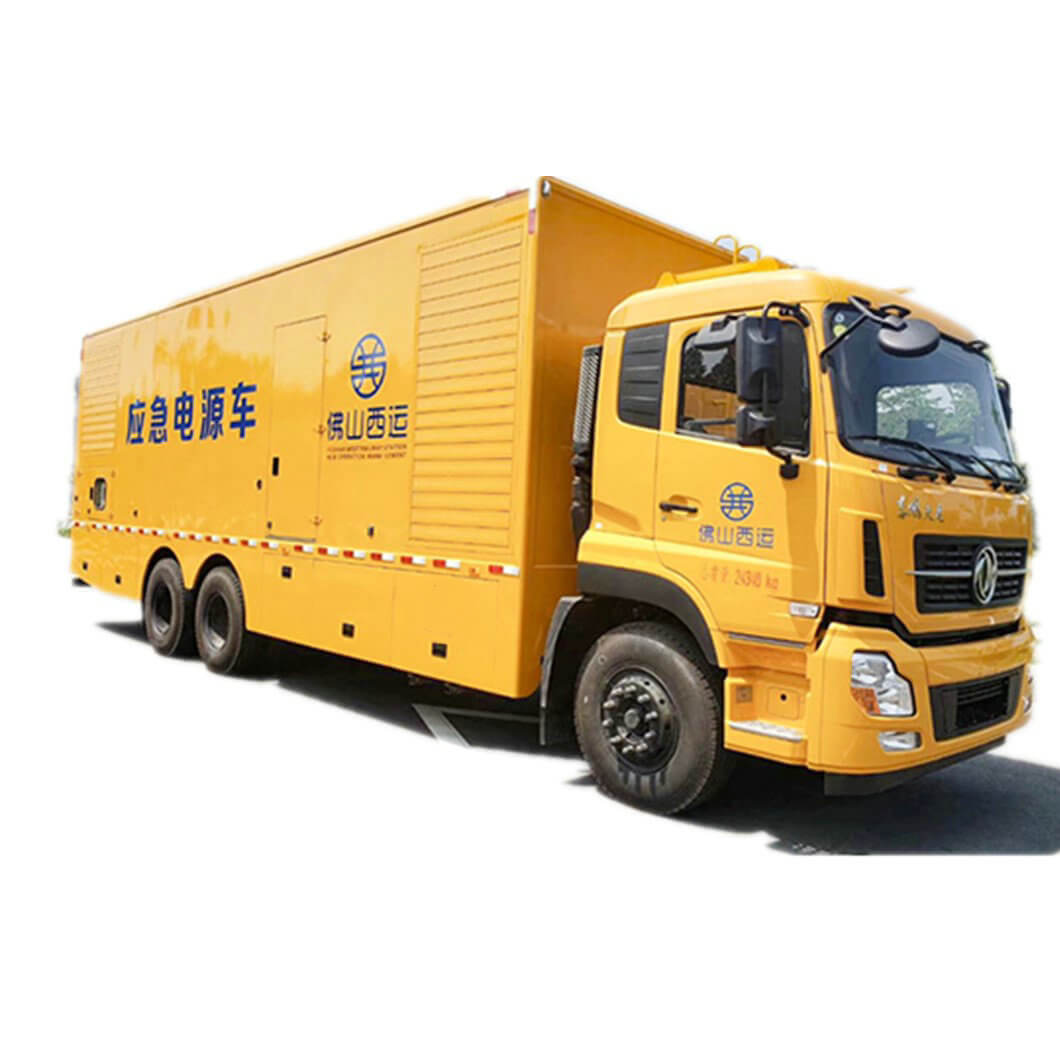

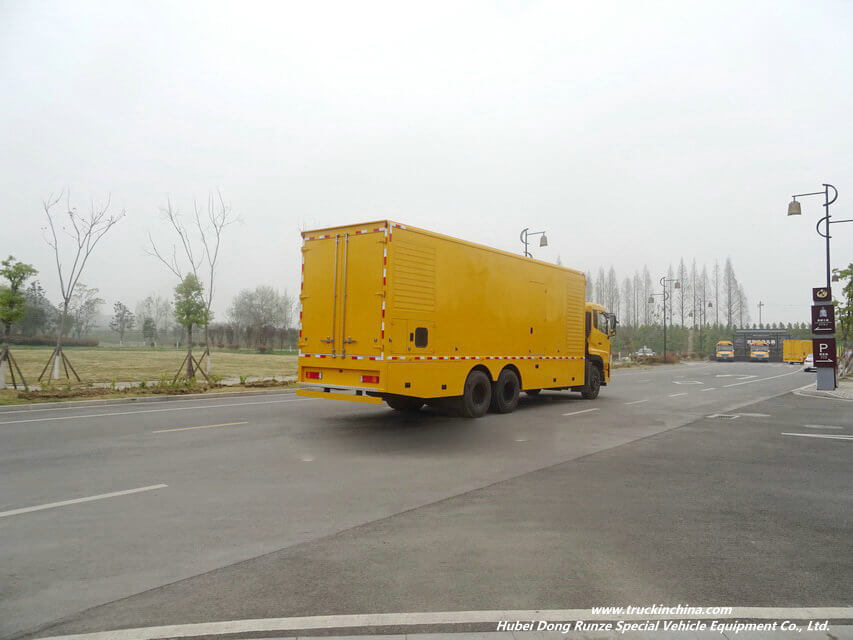

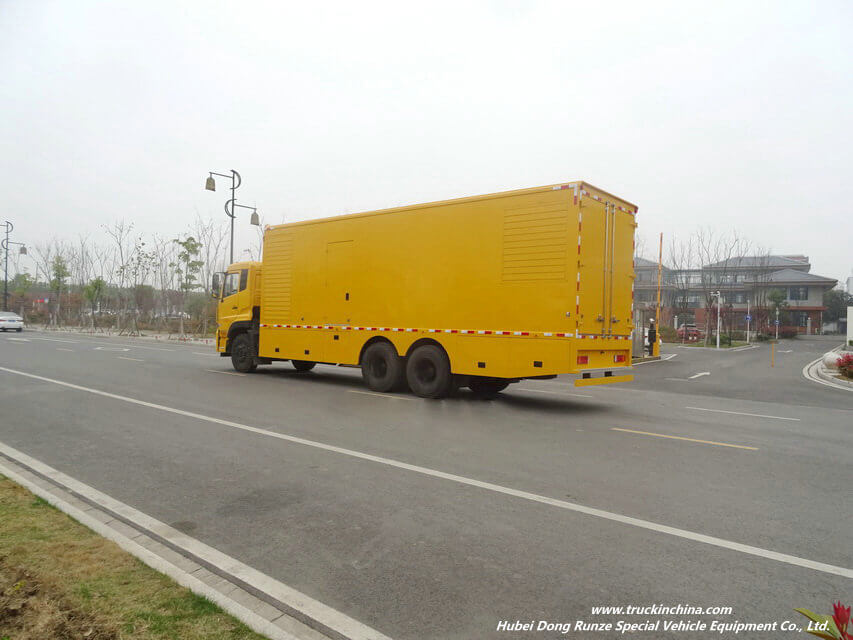

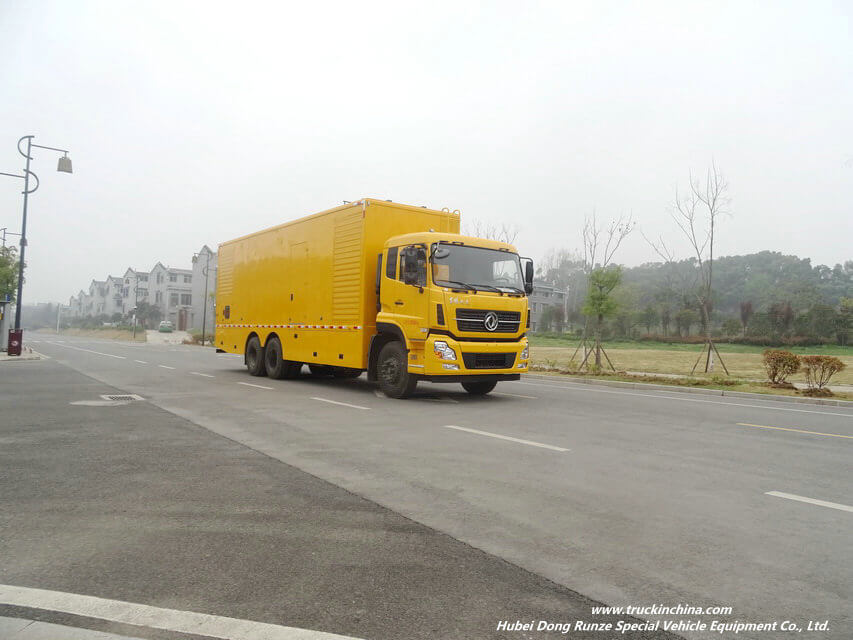

DFAC 10 Wheeler Truck Mounted Smart Generator 300-800KW
20KWa-1000KWa 4x2,4x4, 6x4,6x6,8x4 Mobile Generator Truck for your selection, LHD and RHD cabin are both available.
Product Features:
Chassis Model: DFH1250D4
Approaching/Departuring Angle: 20/10(°)
Front/Rear Overhang: 1480/2850,1500/2830(mm)
Axle Load: 7000/18000(For a group of two rear axles)
Number of Axles: 3
Front Wheel Track: 2010,2040,2070(mm)
Rear Wheel Track: 1860/1860,1880/1880(mm)
Number of Leaf Spring: 3/10,3/4,9/10
Number of Tires: 10
Customizing Electric 200KW-800KW Emergency Power Supply Vehicle
Mobile Generators | Parameters | ||
Vehicle parameters | Chassis | Power Supply Truck Truck Mounted Generator | |
Overall dimension | L×W×H(mm) | 10530x24550x3500 | |
Total mass | (Kg) | 25000 | |
Rated load mass | (Kg) | ||
curb weight | (Kg) | 24870 | |
Chassis parameters | wheelbase | (mm) | 4350+1350 |
Chassis brand and model | DFH1250D4 | ||
Engine brand and model | D6.7NS6B290 | ||
Power / horsepower | (Kw)/（Hp） | 213/290 | |
Emission Standard | Euro 6 | ||
Fuel type | Diesel Oil | ||
Tire specifications | 295/80R22.5 | ||
Mobile Emergency Power Supply Truck 1000kw Power Supply Vehicle Multi-Function Mobile Generator Truck
Dongfeng 6*4 emergency power truck with 800 kilowatt generator set
| DFH1250D4 chassis parameters | |||
| Front axle load (T) | 7 | Fuel type | diesel fuel |
| Rear axle load (T) | 10 | Front track(mm) | 2010, 2040, 2070 |
| Number of tires | 10 | Rear Track(mm) | 1860/1860,1880/1880 |
| Tire specifications | 295/80R22.5 18PR, 11.00R20 18PR | Number of leaf springs | 8/9,8/10,9/10 |
| Wheelbase(mm) | 4350+1350,5350+1350,5700+1350 | Gearbox Description | 9th gear |
| Axle load | 7000/18000 (two-axis group) | Brake System Description | pneumatic |
| number of axes | 3 | The number of occupants in the cab | 2, 3 |
| Engine parameters | |||
| engine model | D6.7NS6B290 | Displacement (ml) | 6700 |
| Engine manufacturer | Dongfeng Cummins Engine Co., Ltd. | Power(KW) | 213 |
Generators are a flexible power source, which makes them a valuable addition to job sites and disaster response teams. More and more commercial fleets are adding truck-mounted generators to their vehicles. This allows even more flexibility and convenience when it comes to power generation. Whether your trucks are used in construction, emergency response, disaster relief or transportation, there are many reasons to consider an integrated portable generator system.
Truck-Mounted Generator
The ability to have clean, reliable power wherever your vehicle is allows you to power machinery, lighting and electronics at any job site. Transporting a generator already mounted to your truck gives you the ability to deliver power in emergencies, even to remote locations. Other reasons to invest in a truck generator system include operating food trucks and mobile clinics, as well as camping.
The benefits of a truck-mounted generator include the ability to move from location to location, and drive to refueling locations. When the generator is not in use, your truck is still useful. Maintenance can be easier than with a standalone generator as well, both because the generator is mobile and because it can be serviced by your truck’s mechanic in many cases.
TRUCK MOUNTED GENERATORS
According to the user's requirements for the capacity and performance of the diesel generator set, choose a chassis car with beautiful appearance and excellent performance, and install the diesel generator set with high reliability, stability and excellent usability in the standard compartment to transform it into a high sound absorption effect and suitable for diesel The silent compartment where the generator set is running is combined into a perfect mobile on-board power station. Its low noise, convenient movement, fast speed, and reliable performance provide users with the possibility to realize long-distance emergency power supply, and meet customer requirements to the greatest extent!
DFAC 10 Wheeler Truck Mounted Smart Generator 300-800KW
20KWa-1000KWa 4x2,4x4, 6x4,6x6,8x4 Mobile Generator Truck for your selection, LHD and RHD cabin are both available.
Product Features:
Chassis Model: DFH1250D4
Approaching/Departuring Angle: 20/10(°)
Front/Rear Overhang: 1480/2850,1500/2830(mm)
Axle Load: 7000/18000(For a group of two rear axles)
Number of Axles: 3
Front Wheel Track: 2010,2040,2070(mm)
Rear Wheel Track: 1860/1860,1880/1880(mm)
Number of Leaf Spring: 3/10,3/4,9/10
Number of Tires: 10
Customizing Electric 200KW-800KW Emergency Power Supply Vehicle
Mobile Generators | Parameters | ||
Vehicle parameters | Chassis | Power Supply Truck Truck Mounted Generator | |
Overall dimension | L×W×H(mm) | 10530x24550x3500 | |
Total mass | (Kg) | 25000 | |
Rated load mass | (Kg) | ||
curb weight | (Kg) | 24870 | |
Chassis parameters | wheelbase | (mm) | 4350+1350 |
Chassis brand and model | DFH1250D4 | ||
Engine brand and model | D6.7NS6B290 | ||
Power / horsepower | (Kw)/（Hp） | 213/290 | |
Emission Standard | Euro 6 | ||
Fuel type | Diesel Oil | ||
Tire specifications | 295/80R22.5 | ||
Mobile Emergency Power Supply Truck 1000kw Power Supply Vehicle Multi-Function Mobile Generator Truck
Dongfeng 6*4 emergency power truck with 800 kilowatt generator set
| DFH1250D4 chassis parameters | |||
| Front axle load (T) | 7 | Fuel type | diesel fuel |
| Rear axle load (T) | 10 | Front track(mm) | 2010, 2040, 2070 |
| Number of tires | 10 | Rear Track(mm) | 1860/1860,1880/1880 |
| Tire specifications | 295/80R22.5 18PR, 11.00R20 18PR | Number of leaf springs | 8/9,8/10,9/10 |
| Wheelbase(mm) | 4350+1350,5350+1350,5700+1350 | Gearbox Description | 9th gear |
| Axle load | 7000/18000 (two-axis group) | Brake System Description | pneumatic |
| number of axes | 3 | The number of occupants in the cab | 2, 3 |
| Engine parameters | |||
| engine model | D6.7NS6B290 | Displacement (ml) | 6700 |
| Engine manufacturer | Dongfeng Cummins Engine Co., Ltd. | Power(KW) | 213 |
Generators are a flexible power source, which makes them a valuable addition to job sites and disaster response teams. More and more commercial fleets are adding truck-mounted generators to their vehicles. This allows even more flexibility and convenience when it comes to power generation. Whether your trucks are used in construction, emergency response, disaster relief or transportation, there are many reasons to consider an integrated portable generator system.
Truck-Mounted Generator
The ability to have clean, reliable power wherever your vehicle is allows you to power machinery, lighting and electronics at any job site. Transporting a generator already mounted to your truck gives you the ability to deliver power in emergencies, even to remote locations. Other reasons to invest in a truck generator system include operating food trucks and mobile clinics, as well as camping.
The benefits of a truck-mounted generator include the ability to move from location to location, and drive to refueling locations. When the generator is not in use, your truck is still useful. Maintenance can be easier than with a standalone generator as well, both because the generator is mobile and because it can be serviced by your truck’s mechanic in many cases.
TRUCK MOUNTED GENERATORS
According to the user's requirements for the capacity and performance of the diesel generator set, choose a chassis car with beautiful appearance and excellent performance, and install the diesel generator set with high reliability, stability and excellent usability in the standard compartment to transform it into a high sound absorption effect and suitable for diesel The silent compartment where the generator set is running is combined into a perfect mobile on-board power station. Its low noise, convenient movement, fast speed, and reliable performance provide users with the possibility to realize long-distance emergency power supply, and meet customer requirements to the greatest extent!
