Fog Cannon with Fog Generator Dust Supression System Unit (Sprayer Water Mist 50m-200m Citywide Disinfection Cannon, Sterilization Spray Machine)
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T, Western Union
Fog Cannon With Fog Generator Dust Supression System Unit (Sprayer Water Mist 50m-200m Sterilization Spray Machine ,Citywide Disinfection Cannon)
sterilization spray, city-wide sterilization , city-wide sterilization spray machine , citywide disinfection cannon , fog generator , sterilization pouches , sterilization spray , sterilization spray machine , disinfection sterilization spray machine
Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with low price

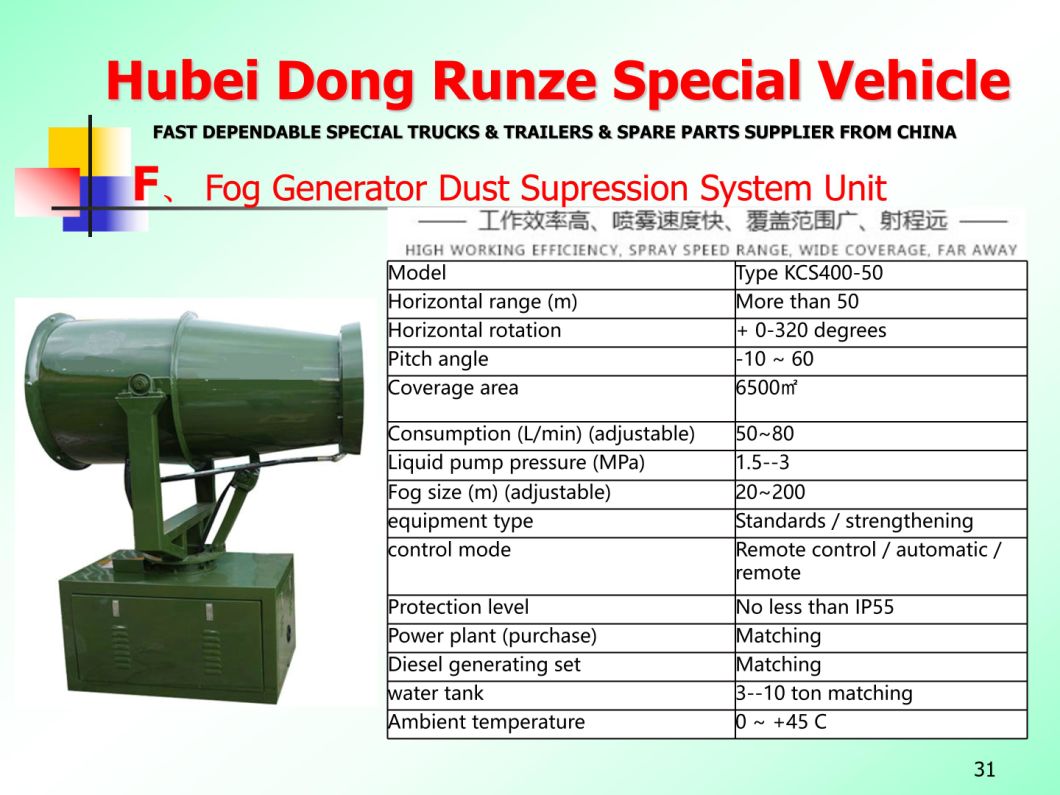

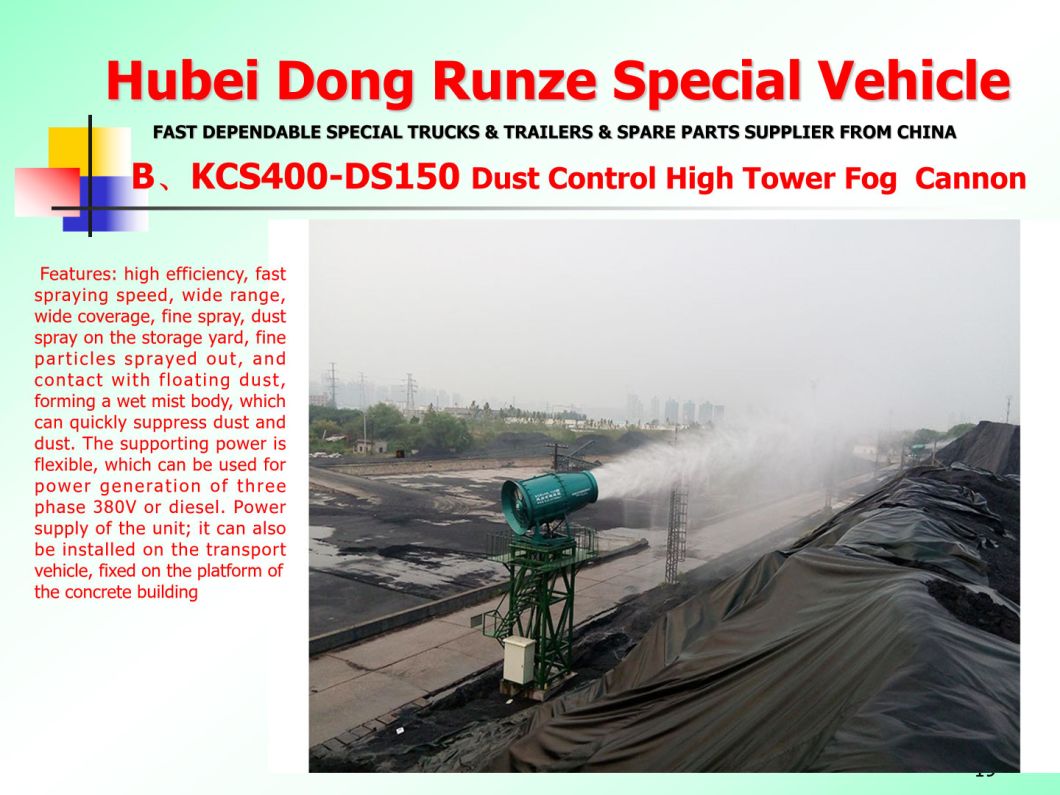

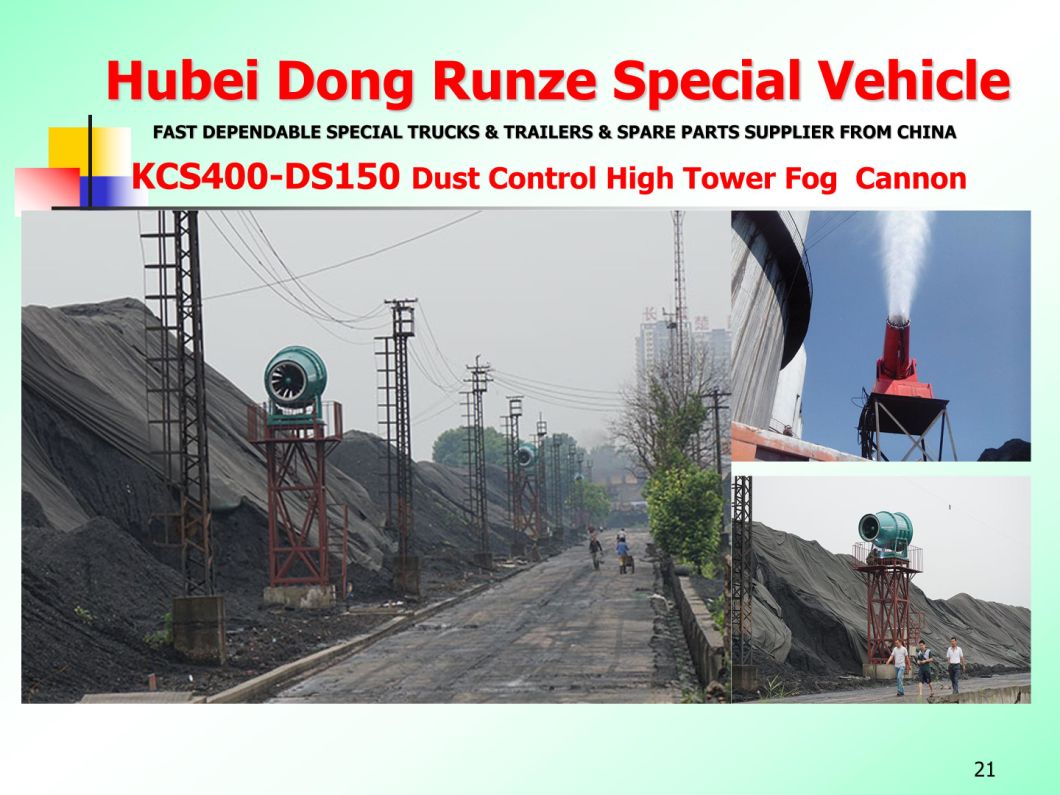

Fog cannon | KCS-400/DS-120 | KCS-400/DS-100 | KCS-400/DS-80 | KCS-400/DS-60 | KCS-2000/DS-50 | KCS-400/DS-40 | KCS-1000/DS-35 | KCS-500/DS-30 |
Horizontal range | 120M | 100M | 80M | 60M | 50M | 40M | 35M | 23M |
Flow | 110-250L/min | 110-180 L/min | 60-118 L/min | 60-85 L/min | 42-52 L/min | 25-29 L/min | 25-29 L/min | 25-29 L/min |
Pump pressure | 3.0-4.0MPa | 2.0-4.0 MPa | 2.0-3.5 MPa | 2.0-3.5 MPa | 1.5-3.5 MPa | 1.5-3.5 MPa | 1.5-3.5 MPa | 1.5-3.5 MPa |
The fog particle size | 50-300um | 50-200um | 50-200um | 50-200um | 50-150um | 50-150um | 50-150um | 50-150um |
Wind pressure | 1650Pa | 1450 Pa | 1300 Pa | 1080 Pa | 1080 Pa | 1080 Pa | 1080 Pa | 1080 Pa |
Air volume | 4000/min | 3050/min | 1800/min | 990/min | 990/min | 990/min | 990/min | 990/min |
Horizontal rotation Angle | 360° | 360° | 359° | ±320° | -0°~280° | 360° | 360° | 360° |
Remote control | -10°~55° | -10°~55° | -10°~55° | -10°~55° | -10°~55° | -10°~90° | -10°~90° | -10°~90° |
Pitch Angle | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 |
The control mode | Remote control/automatic/remote | |||||||
Diesel generator set | WD 150KW | 120KW | 100KW | 50KW | 30KW | 20KW | 15KW | 7KW |
ater truck special function | A. Water tank capacity(L):6000L -30,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.

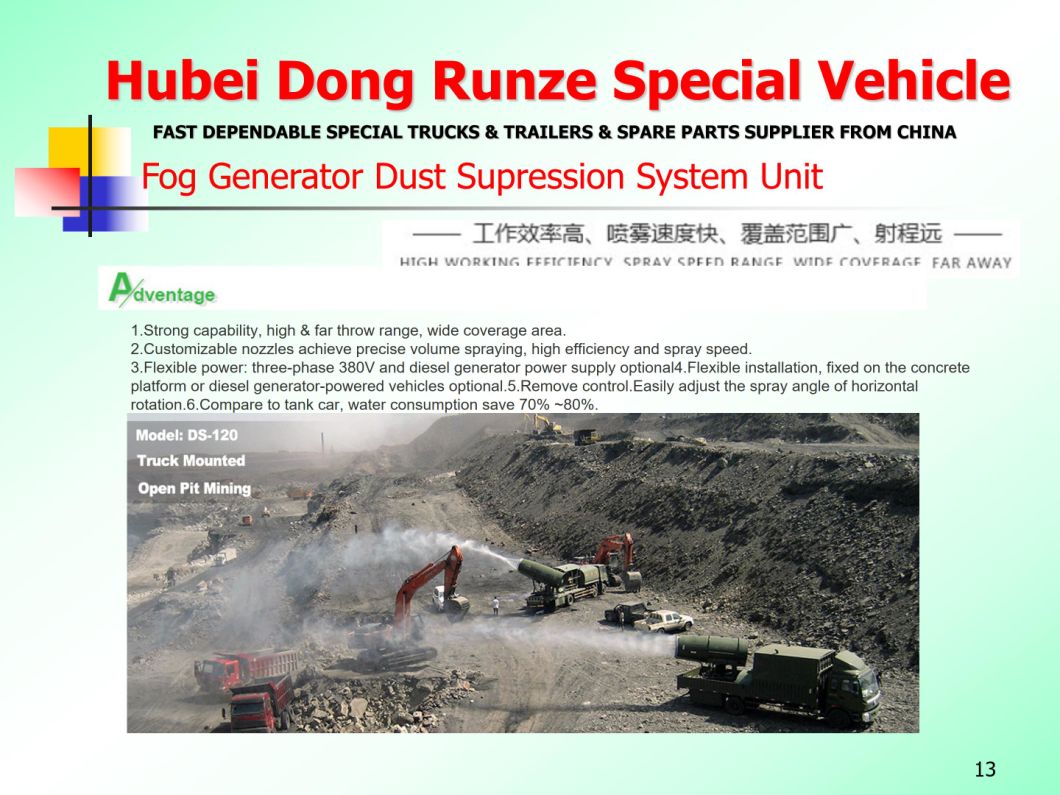

1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
| Fog cannon | HZ-50 | HZ-60 | HZ-70 | HZ-80 | HZ-90 | HZ-100 |
| Ram motor | 3kw | 5.5kw | 15kw | 18kw | 22KW | 30kw |
| Water pump motor | 3kw | 3kw | 5.5kw/100 | 5.5kw/120 | 7.5kw/150 | 7.5kw/180 |
| Horizontal range | 25-35M | 35-45M | 45-55M | 55-65M | 65-75M | 75-85M |
| Inlet diameter | 500mm | 500MM | 700/500 | 700/500 | 800/550 | 900/600 |
| The number of nozzles | 12+ | 12+ | 16+ | 26+ | 39+ | 46+ |
| Droplet particle (um) | 40--200 | 40--200 | 40--200 | 40--200 | 40--200 | 30--200 |
| Horizontal rotation Angle | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º |
| Pitch Angle | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º |
| Equipment operating environment | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC |
| Up and down drive | micro-motor | micro-motor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor |
| The control mode | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic |
| Generator | 8.5Kw (Gasoline Generator) | 30kw | 30kw | 50kw | 50kw | 100kw |
EXW /FOB $USD | $2740 | $4830 | $6450 | $10480 | $12580 | $14190 |
$USD Price for refer only | $4740/set (2sets $3740*2) | $6830/set (2sets $5830*2) | $8450/set (2sets $7450*2) | $14480 | $16580 | $18190/set |
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |

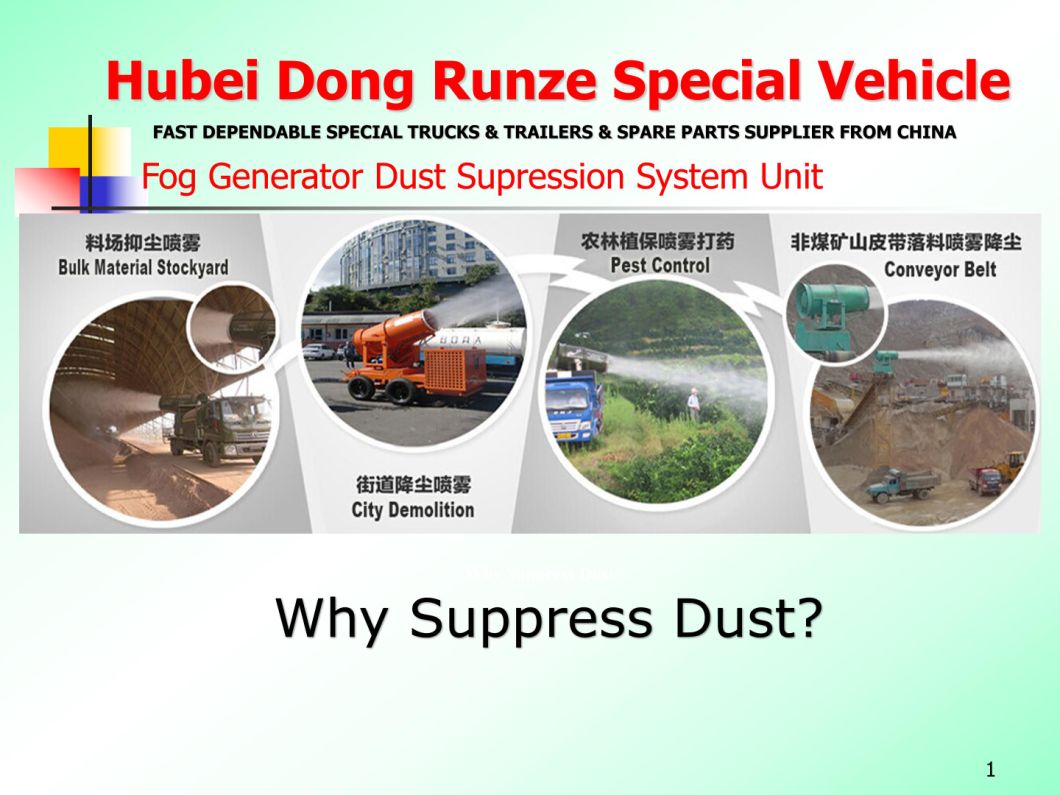

The reasons for suppressing dust are numerous and vary for particular industries; however, the main points are:
Loss of valuable material
Up to 5% of finished products can be lost due to wind erosion from stockpiles alone.
Environmental problems
Dust can contaminate the atmosphere, surrounding areas and local villages. It can also enter the food chain by polluting potable water sources and the soil.
Health hazard
Dust is responsible for certain diseases including silicosis and pneumoconiosis (black lung disease).
Reduced Visibility
Atmospheric pollution can cause hazardous working conditions for vehicle drivers and plant operators.
Explosion/Oxidation
Very fine (10 - 20 micrometres) combustible particles constitute a high explosion risk.
Coal stockpiles can also oxidise and develop "hot spots" if not capped by chemical film formers
Machine maintenance
Dust particles can contaminate machinery such as bearings, air filters and various engine parts.
Reduced capital investment
Generation of dust means investment in equipment e.g. spray bars, pumps and bowsers. Employing a chemical reagent can therefore reduce equipment costs.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
DS series(DS-30~DS200) sprayer's water fog droplet size is about 20~300µm, water fog droplet can
mixture with dust particles, then absorb other dust particles and fall down to the ground rapidly.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm |
Fog Cannon With Fog Generator Dust Supression System Unit (Sprayer Water Mist 50m-200m Sterilization Spray Machine ,Citywide Disinfection Cannon)
sterilization spray, city-wide sterilization , city-wide sterilization spray machine , citywide disinfection cannon , fog generator , sterilization pouches , sterilization spray , sterilization spray machine , disinfection sterilization spray machine
Multi-functional Water Sprinkler Dust Suppression Truck dust control truck with low price
Fog cannon | KCS-400/DS-120 | KCS-400/DS-100 | KCS-400/DS-80 | KCS-400/DS-60 | KCS-2000/DS-50 | KCS-400/DS-40 | KCS-1000/DS-35 | KCS-500/DS-30 |
Horizontal range | 120M | 100M | 80M | 60M | 50M | 40M | 35M | 23M |
Flow | 110-250L/min | 110-180 L/min | 60-118 L/min | 60-85 L/min | 42-52 L/min | 25-29 L/min | 25-29 L/min | 25-29 L/min |
Pump pressure | 3.0-4.0MPa | 2.0-4.0 MPa | 2.0-3.5 MPa | 2.0-3.5 MPa | 1.5-3.5 MPa | 1.5-3.5 MPa | 1.5-3.5 MPa | 1.5-3.5 MPa |
The fog particle size | 50-300um | 50-200um | 50-200um | 50-200um | 50-150um | 50-150um | 50-150um | 50-150um |
Wind pressure | 1650Pa | 1450 Pa | 1300 Pa | 1080 Pa | 1080 Pa | 1080 Pa | 1080 Pa | 1080 Pa |
Air volume | 4000/min | 3050/min | 1800/min | 990/min | 990/min | 990/min | 990/min | 990/min |
Horizontal rotation Angle | 360° | 360° | 359° | ±320° | -0°~280° | 360° | 360° | 360° |
Remote control | -10°~55° | -10°~55° | -10°~55° | -10°~55° | -10°~55° | -10°~90° | -10°~90° | -10°~90° |
Pitch Angle | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 |
The control mode | Remote control/automatic/remote | |||||||
Diesel generator set | WD 150KW | 120KW | 100KW | 50KW | 30KW | 20KW | 15KW | 7KW |
ater truck special function | A. Water tank capacity(L):6000L -30,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
| Fog cannon | HZ-50 | HZ-60 | HZ-70 | HZ-80 | HZ-90 | HZ-100 |
| Ram motor | 3kw | 5.5kw | 15kw | 18kw | 22KW | 30kw |
| Water pump motor | 3kw | 3kw | 5.5kw/100 | 5.5kw/120 | 7.5kw/150 | 7.5kw/180 |
| Horizontal range | 25-35M | 35-45M | 45-55M | 55-65M | 65-75M | 75-85M |
| Inlet diameter | 500mm | 500MM | 700/500 | 700/500 | 800/550 | 900/600 |
| The number of nozzles | 12+ | 12+ | 16+ | 26+ | 39+ | 46+ |
| Droplet particle (um) | 40--200 | 40--200 | 40--200 | 40--200 | 40--200 | 30--200 |
| Horizontal rotation Angle | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º | 0º±180º 0º--360º |
| Pitch Angle | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º | -10º- 45º |
| Equipment operating environment | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC | -0ºC-+45ºC |
| Up and down drive | micro-motor | micro-motor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor | Hydraulic/micromotor |
| The control mode | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic | Wireless/full automatic |
| Generator | 8.5Kw (Gasoline Generator) | 30kw | 30kw | 50kw | 50kw | 100kw |
EXW /FOB $USD | $2740 | $4830 | $6450 | $10480 | $12580 | $14190 |
$USD Price for refer only | $4740/set (2sets $3740*2) | $6830/set (2sets $5830*2) | $8450/set (2sets $7450*2) | $14480 | $16580 | $18190/set |
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.

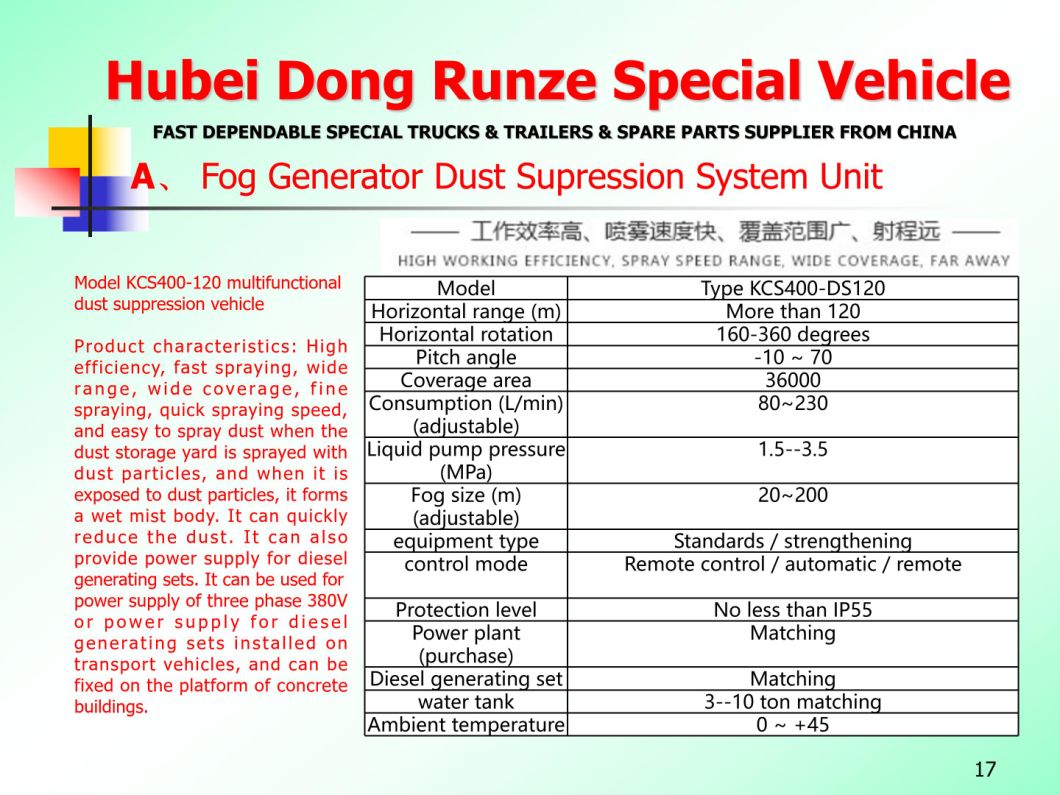

| Model | DS-120 |
| Throw | 120m without wind |
| Volume Flow | 120L-160L/min |
| Fog Droplet Size (Adjustable ) | 30-300μm |
| Water Pressure(Mpa) | 2.5-3.5Mpa |
| Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
| Pitching Angle (Adjustable ) | -10°~45° |
| Coverage Area | 34000~40000m² without wind |
| Product Size(L*W*H) | L295*W154*H275 (cm) |
| Water Tank Capacity (Optional) | 4000-20000L |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Warranty | 1year |
| Model | DS-100 |
| Throw (m) | 100 |
| Volume Flow (L/min) | 120~160 |
| Water Pressure (MPa) | 2.5~3.5 |
| Fog Droplet Size ( um ) | 30-200 |
| Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
| Pitching Angle (Remote Control) | -10°~45° |
| Coverage Area | 23000~27000m² without wind |
| Degree of Protection | Not less than IP55 |
| Overall Dimensions (L*W*H) | L277*W154*H271cm |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-30 |
| Throw | Horizontal: 30m; Vertical: 20m (without wind) |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150 μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 180° Manual |
| Overall Dimensions | L130 * W115 * H148 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Diesel generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-35 |
| Throw Distance | Horizontal: 35m; Vertical: 20m |
| Volume Flow | 9-18L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~90° |
| Horizontal Rotation Angle | 360° Automatic |
| Overall dimension | L145 * W113 * H176 (cm) |
| Water Tank Capacity (Optional) | 400-2000L |
| Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-40 |
| Throw | Horizontal: 40m; Vertical: 25m (no wind) |
| Volume Flow | 16-24L/min |
| Fog Droplet Size (Adjustable ) | 50-150μm |
| Water Pressure (Mpa) | 1.5~3.0MPa |
| Pitching Angle | -10~45° |
| Horizontal Rotation Angle | 180° Manual / 360° Automatic |
| Overall Dimension | L1560 * W750 * H1700 (mm) |
| Water Tank Capacity (Optional) | 400-4000L |
| Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
| Model | DS-50 |
| Max Throw | 50m*no wind condition |
| Discharge (Adjustable) | 16~30L/min (less water consumption) |
| Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
| Horizontal Rotation Angle | 180°manual control / 320°remote control |
| Pitching Angle | -10°~40° |
| Coverage Area | 5000~7000m² without wind |
| Water Pressure | 1.5~3.5MPa |
| Auxiliary Power Unit | 20KW Diesel Generator Set |
| Dimensions(L*W*H) | 158×145×175cm |
| Sprayer Tank | According to customer's requirements |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
| Model | DS-60 |
| Throw | ≥60m |
| Volume Flow | 70L-80L/min |
| Fog Droplet Size (Adjustable ) | 30-150 µm |
| Water Pressure(Mpa) | 2.0~3.5Mpa |
| Water Pressure(bar) | 20-35bar |
| Water Pressure(kg) | 20-35kg |
| Motor RPM | 2900 |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | -10°~45° |
| Coverage Area | 8,000 ~10,000m2 |
| Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
| Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
| Water Tank Capacity (Optional) | 4000-20000L |
The reasons for suppressing dust are numerous and vary for particular industries; however, the main points are:
Loss of valuable material
Up to 5% of finished products can be lost due to wind erosion from stockpiles alone.
Environmental problems
Dust can contaminate the atmosphere, surrounding areas and local villages. It can also enter the food chain by polluting potable water sources and the soil.
Health hazard
Dust is responsible for certain diseases including silicosis and pneumoconiosis (black lung disease).
Reduced Visibility
Atmospheric pollution can cause hazardous working conditions for vehicle drivers and plant operators.
Explosion/Oxidation
Very fine (10 - 20 micrometres) combustible particles constitute a high explosion risk.
Coal stockpiles can also oxidise and develop "hot spots" if not capped by chemical film formers
Machine maintenance
Dust particles can contaminate machinery such as bearings, air filters and various engine parts.
Reduced capital investment
Generation of dust means investment in equipment e.g. spray bars, pumps and bowsers. Employing a chemical reagent can therefore reduce equipment costs.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
DS series(DS-30~DS200) sprayer's water fog droplet size is about 20~300µm, water fog droplet can
mixture with dust particles, then absorb other dust particles and fall down to the ground rapidly.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.

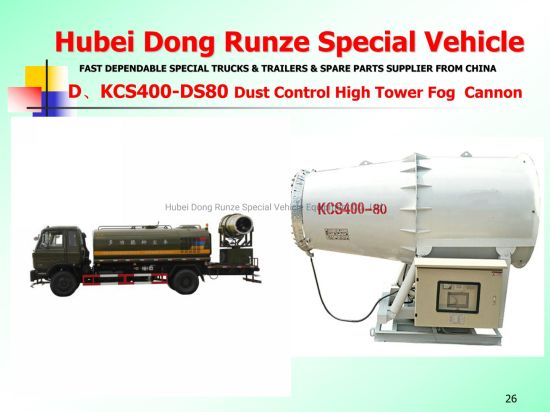

| Model | DS-80 |
| Throw | 80m no wind |
| Volume Flow (Adjustable) | 105L-118L/min |
| Fog Droplet Size (Adjustable ) | 30-150um |
| Water Pressure (Mpa) | 2.5~3.5Mpa |
| Horizontal Rotation Angle | ±160° Automatic |
| Pitching Angle | 10° +45° |
| Coverage Area | 15000~17000m² without wind |
| Overall Dimensions (L*W*H) | L241*W153*H250(cm |
