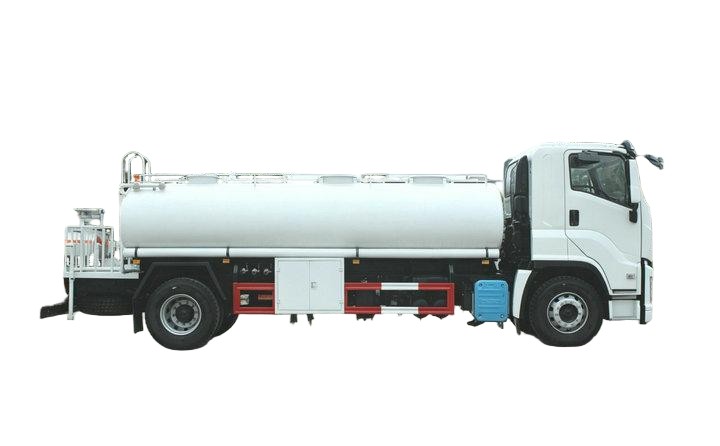

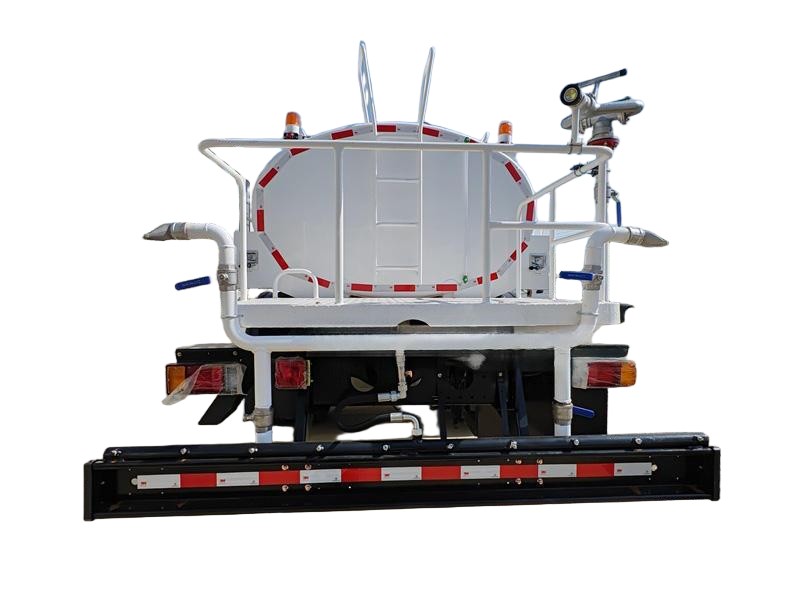

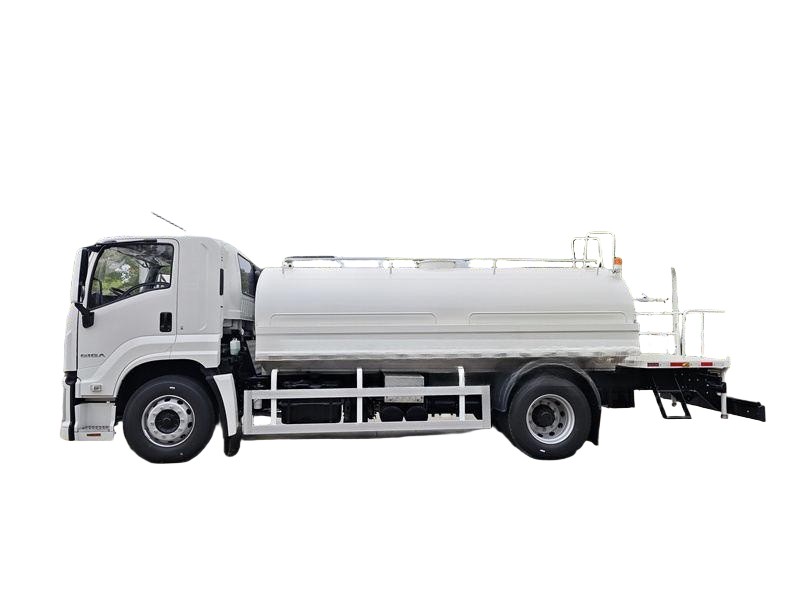

ISUZU GIGA Stainless Steel Drinking Water Potable Water Spray Bowser Truck 14m3

ISUZU GIGA Stainless Steel Drinking Water Potable Water Spray Bowser Truck 14m3
Remarks: Water tank capacity can be customized 14KL- 16KL
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 61800
Discount Price: $ 59800
Availability:
Quantity:

  • GIGA 5X

  • DONG RUN ZE

  • 8705909990

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • Nil

  • 1

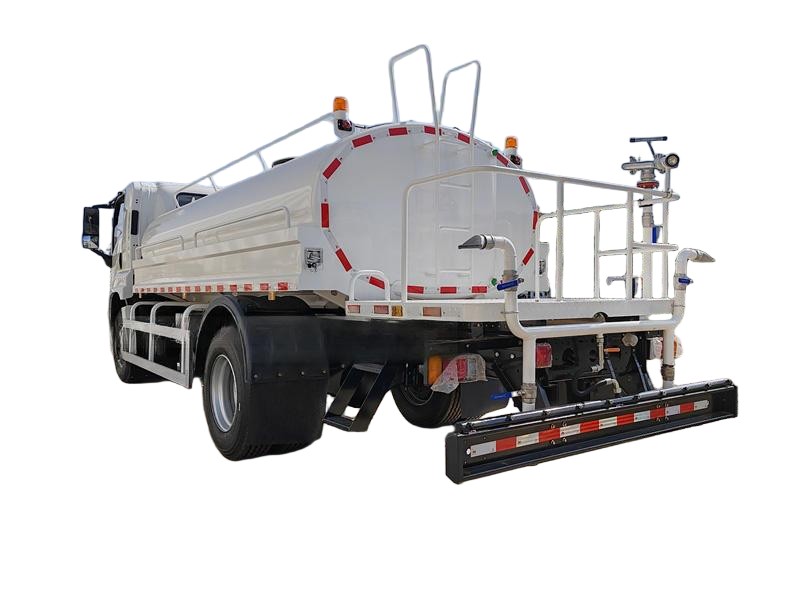

ISUZU GIGA Stainless Steel Drinking Water Potable Water Spray Bowser Truck 14m3

Cabin Driving type 4x2. Left hand driven
Equipped with the new Isuzu 5X-class VC61 cab, heating and cooling air conditioner, power steering, central locking, power windows, a multi-function steering wheel, a multi-function LCD instrument panel, ABS, and air brakes.

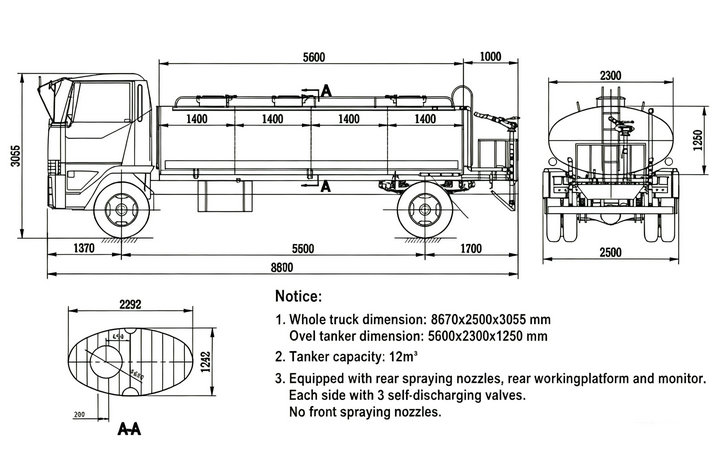

Vehicle Main Dimensions Overall dimensions (L x W x H)mm 8770×2540×3040
Wheel base  (mm) 4500
Front axles loading capacity 6.3 Ton
Rear axles loading capacity 9 Ton
Max. driving speed(km/h) 89
Engin Brand ISUZU
Model 6HK1-TCG61
Horse Power(HP) 240HP
Emission Standard Euro VI
Type Inline 6-cylinder, turbocharged, intercooled
Torque 850N.M
Displacement 7.79L
Fuel Type Diesel
Gearbox FAST 8JS95TE-C
Tire Model 295/80R22.5
6 pieces with one spare
Steering Power steering, Left hand driven
Chassis Model QL1180EQFRY
Tank volume 12-14-16m³ (12000L,14000L,16000L)
Tank shape Oval
Color As requirements Head material and thickness: 304 stainless steel, 4mm
Tank material and thickness 3042B food grade stainless steel
Cylinder thickness: 4mm
Head thickness: 4mm.

Compartments Single compartment
Top guard Protective handrails are installed on both sides of the tank top
Climb the ladder Welded independent climbing ladder at the tail of the tank
Water pipe Quantity: 2
Material: transparent steel wire hose with 304 stainless steel male and female end joints
Subframe Q345 Carbon steel material independent
Manhole cover 20" diameter with steel wing nuts, located at the  top center
Pipe material 304 stainless steel.

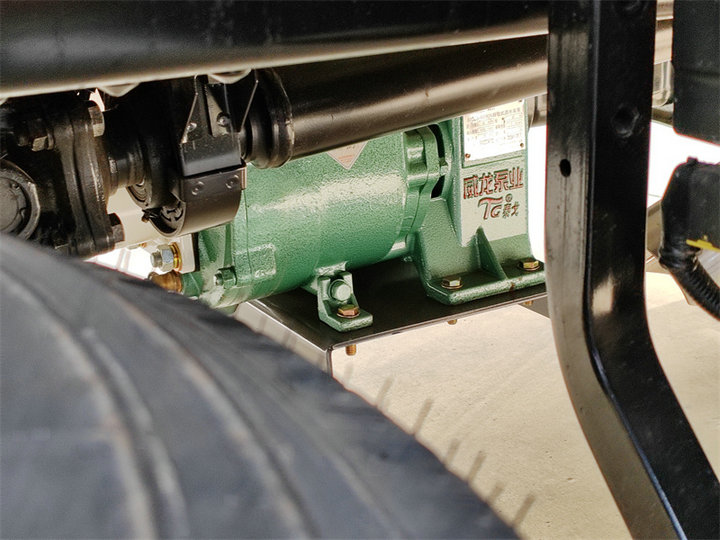

Water pump model Weilong 60/90 stainless steel water pump

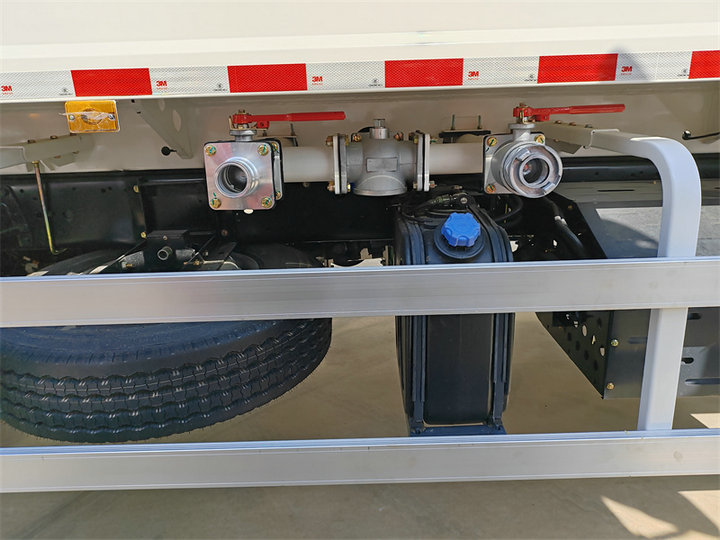

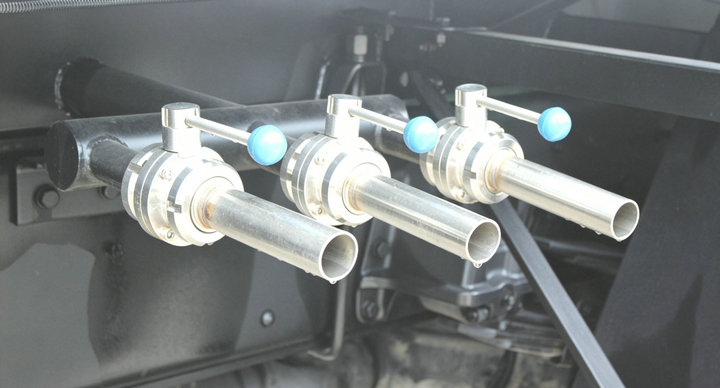

Valve Type Pump inlet and outlet valves (four-position three-way, filter three-way, square ball valve, fire ball valve)
Other Accessories Tail Self-Drain Valve,Flange
In-tank treatment ·
Pickling and passivation treatment
Warranty One Year for key parts: engine, gearbox and axle , tank body and Vacuum Pump

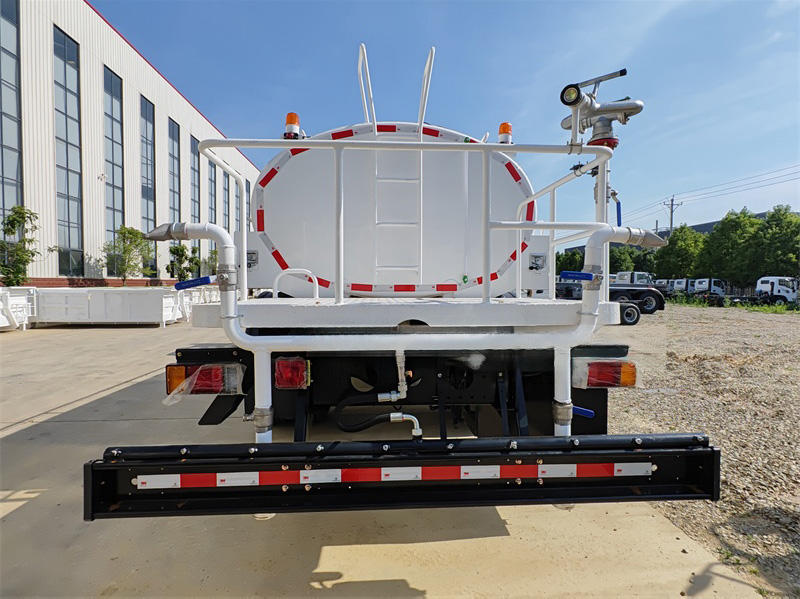

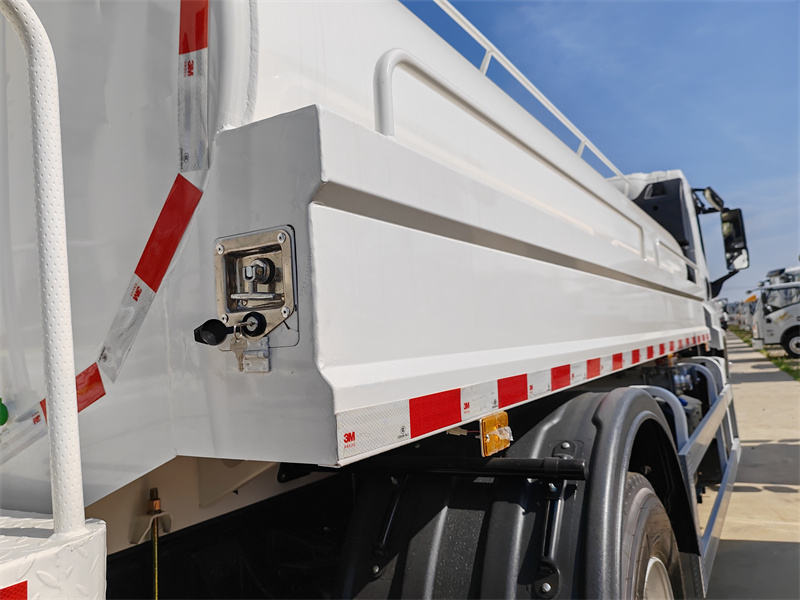

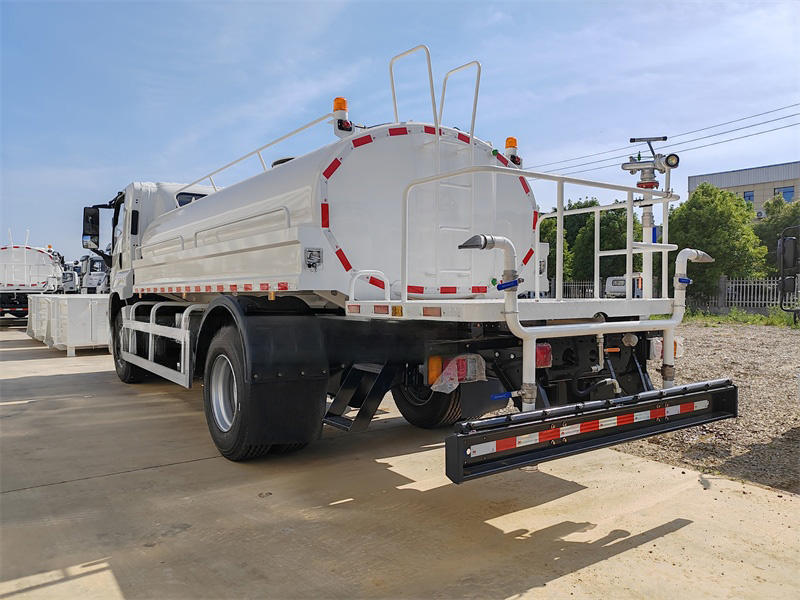

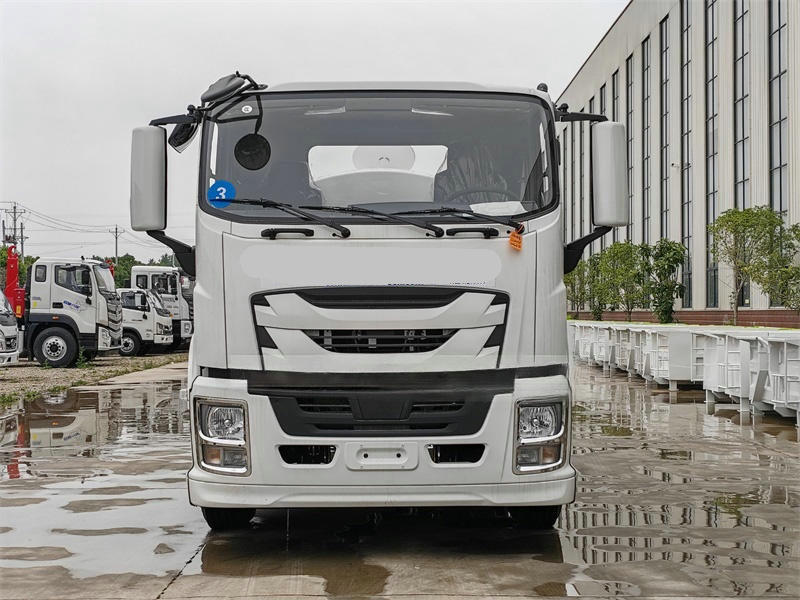

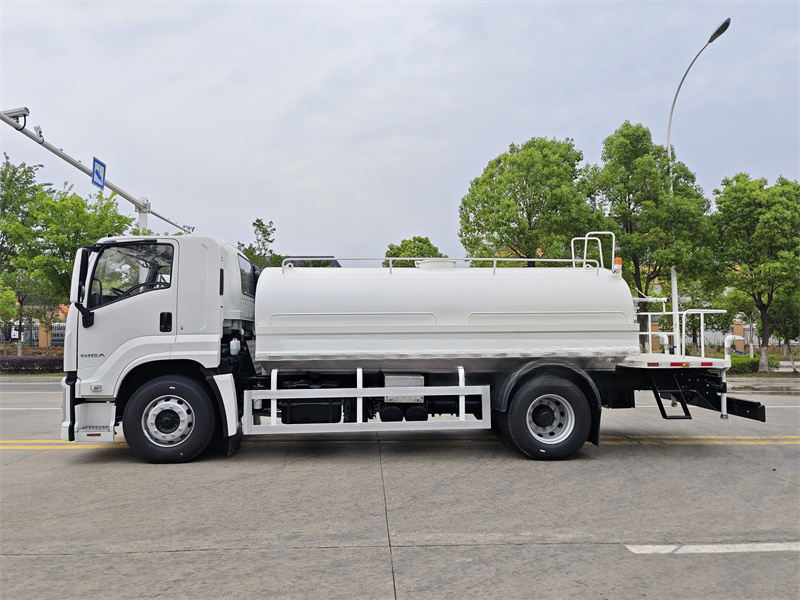

ISUZU GIGA 5X Stainless Steel Drinking Water Truck 14m3 (6)ISUZU Stainless Steel Water tank Truck (7)ISUZU Stainless Steel Water tank Truck (9)ISUZU Stainless Steel Water tank Truck (1)ISUZU Stainless Steel Water tank Truck (8)ISUZU Stainless Steel Water tank Truck (11)ISUZU Stainless Steel Water tank Truck (5)ISUZU Stainless Steel Water tank Truck (6)ISUZU GIGA 5X Water Sprinkler Truck

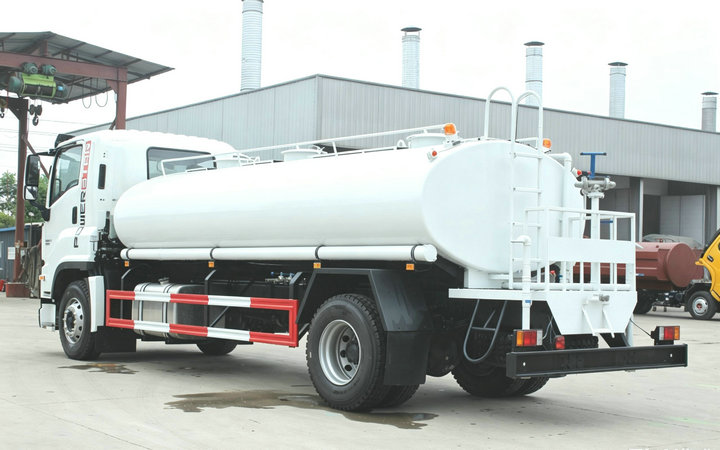

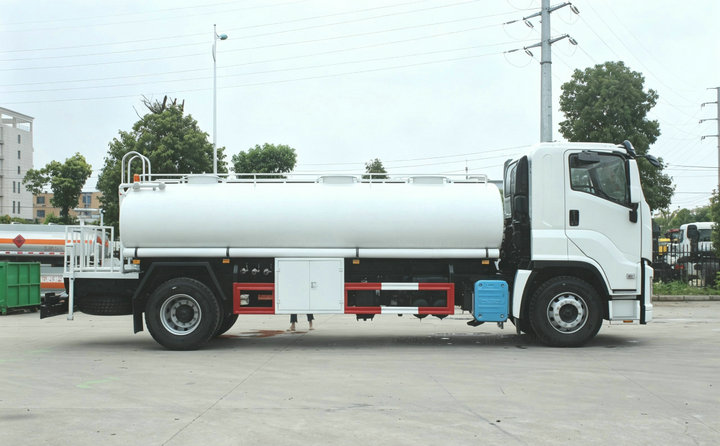

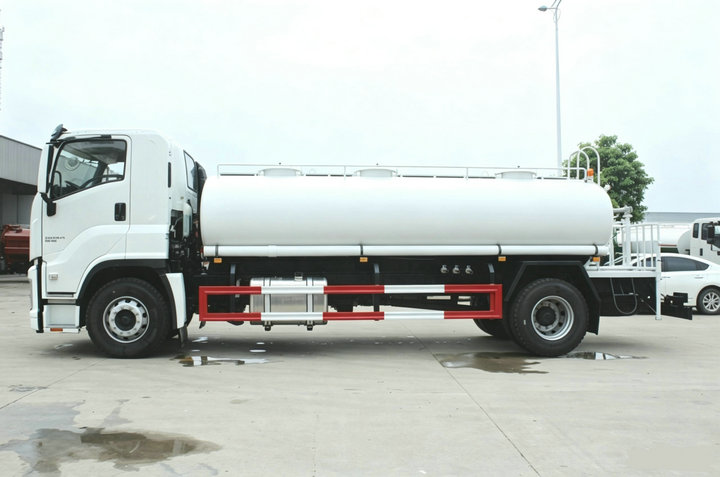

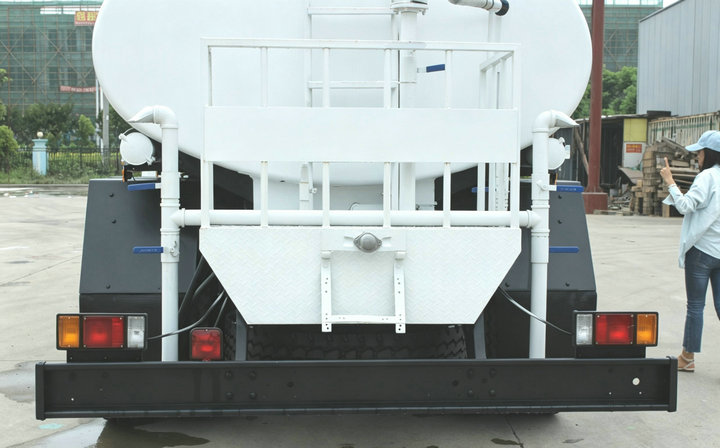

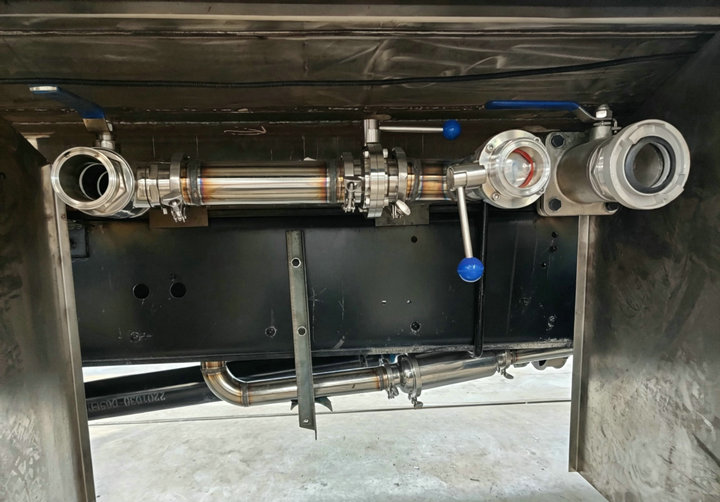

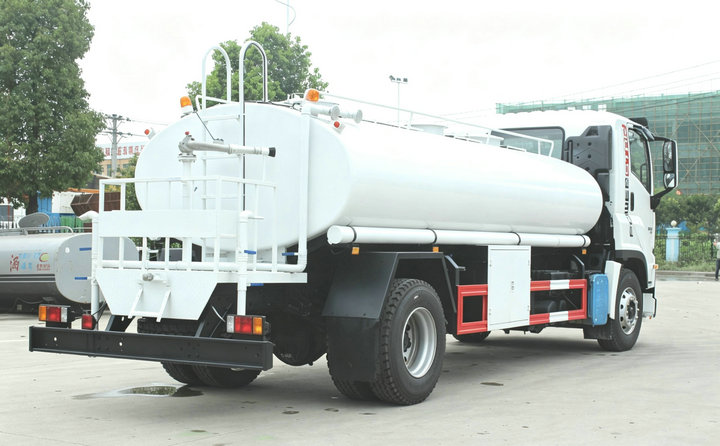

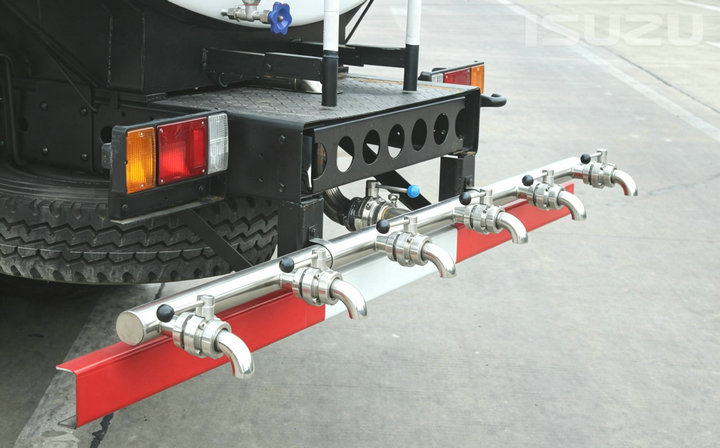

ISUZU GIGA 5X Water Sp (1)ISUZU GIGA 5X Water Sp (2)ISUZU GIGA 5X Water Sp (3)ISUZU GIGA 5X Stainless Steel Drinking Water Truck 14m3 (20)ISUZU GIGA 5X Stainless Steel Drinking Water Truck 14m3 (24)ISUZU GIGA 5X Stainless Steel Drinking Water Truck 14m3 (25)ISUZU GIGA 5X Stainless Steel Drinking Water Truck 14m3 (27)ISUZU GIGA 5X Stainless Steel Drinking Water Truck 14m3 (29)

Customize DFAC/FAW/SHACMAN/SINOTRUCK HOWO/JAC /ISUZU/JMC
