Isuzu ELF 100P Stainless Steel Water Tanker Sprinkling Truck 4KL

Share to:

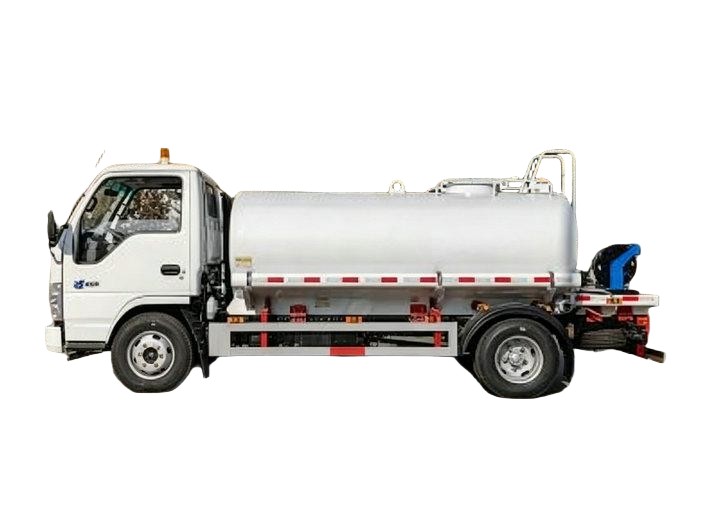

Isuzu ELF 100P Stainless Steel Water Tanker Sprinkling Truck 4KL with Ultra-high Pressure Cleaning Machine

Isuzu ELF 100P Stainless Steel Water Tanker Sprinkling Truck 4KL
Ultra-high pressure cleaning machine
Remarks: Water tank capacity can be customized
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675

Price: $ 24800

Discount Price: $ 23800

Availability:

Quantity:

Model:
ELF 100P
Brand:
DONG RUN ZE
Code:
8705909990
Port:
Shanghai, China
Production Capacity:
1000
Payment Terms:
T/T, Western Union
Transport Package:
Nil
Min. Order:
1

Product Description

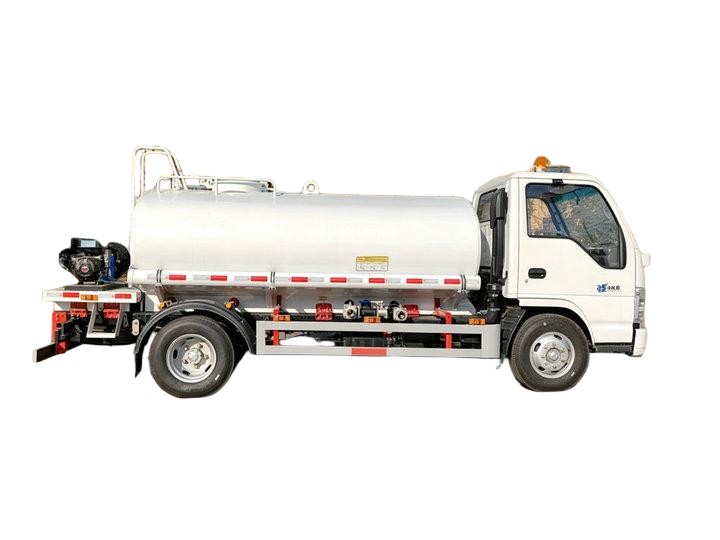

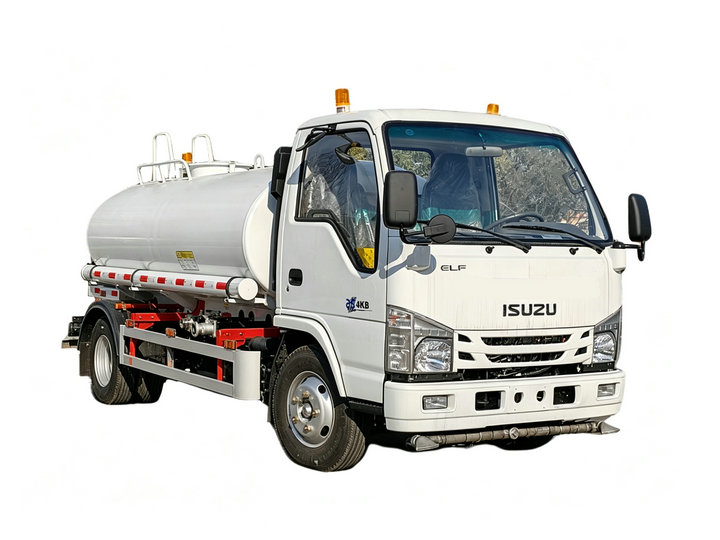

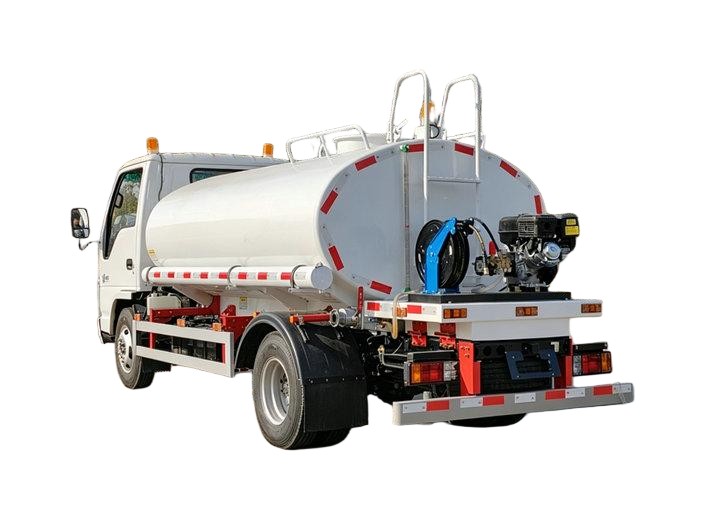

Isuzu ELF 100P Stainless Steel Water Tanker Sprinkling Truck 4KL with Ultra-high pressure cleaning machine

Isuzu ELF 100P 4000L water spray truck
Chassis Specification
Driving Type			4*2 Left hand driving
Max Speed (km/h)			115
Overall Dimension (mm)			575020002420
GVW (kg)			7300
Curb Weight (kg)			2150
Wheelbase (mm)			3360mm
F/R overhang (mm)			1110/2830
Tire			7.00R16
Clutch			Single-plate dry diaphragm spring clutch
Steering			Hydraulic steering with power assistance
Gear Box			Isuzu MSB 5-speed，manual
Bridge	Front axle		2500kg
	Rear axle		4800kg
Engine	Brand		Isuzu
	Model		Isuzu 4KH1CN6LB
	Fuel Type		Diesel fuel
	Emission Standard		Euro 5 / Euro6
	Type		4-cylinder inline,water-cooled,four-stroke,direct injection, turbocharged
	Exhaust (ml)		2999
	Max output power		120HP/88Kw
	Max torque		290N.m
Upper Parts Specification
Sprinkler		Front sprinkler, rear water inlet, rear high-pressure cleaning hose

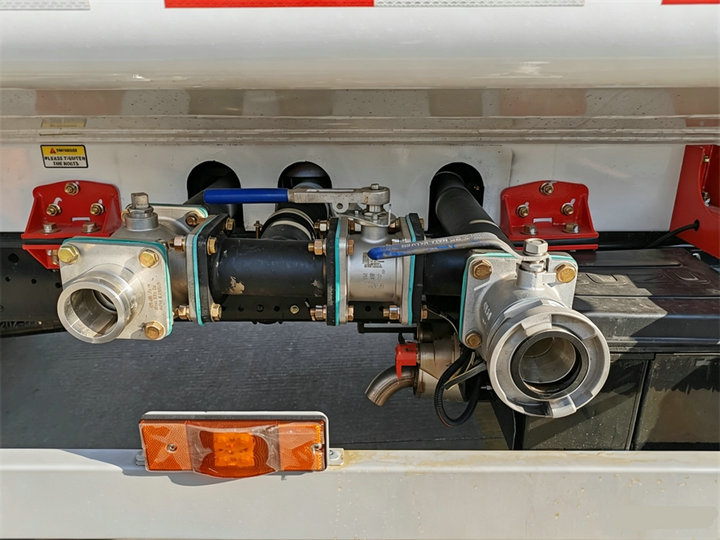

Valves		Fire valve and water valve
Tank shape		Ellipse
Material of tanker		5mm Stainless steel
Water pump		Model		65QZF-40/50
		flux		40m³/h
		Rating speed		1450r/min
		self-suction height		7.5m
		Matched power		9.25kw
Ultra-high pressure cleaning machine		Model		LCM190 Mounted truck Hot Tags : Isuzu ELF Water Tanker Sprinkling Truck 4,000L Isuzu Sprinkler Truck Factory Isuzu 4x2 4000 liters water spraying truck Isuzu ELF 4000 liters street washer water truck Isuzu ELF light water bowser truck Isuzu 100P 4cbm water spray truck
		Flow		15 L/min(4 gpm)
		Preesure		250 bar / 3625 P. S. I / 25 Mpa
		Speed		2900 R. P. M
		Power		15HP/11Kw
Introduction of function		Front spray, there is a working platform at the rear of the vehicle, equipped with a high-pressure cleaner and a high-pressure water gun, which can be adjusted according to needs, and equipped with a high-quality sprinkler pump, equipped with a fire interface and an overflow valve, with a self-priming function.
Fittings		PTO water pump
		Ultra-high pressure cleaning machine
		One Manhole
		water hose box fitted on both side of tank
		One spare tire
		Ladder: For access to top of tank
		Heavy-duty rear bumper

Isuzu ELF Water Tanker Sprinkling Truck (3)

Ultra-high pressure cleaning machine Isuzu ELF Water Tanker Sprinkling Truck (4)

Isuzu ELF Water Tanker Sprinkling Truck

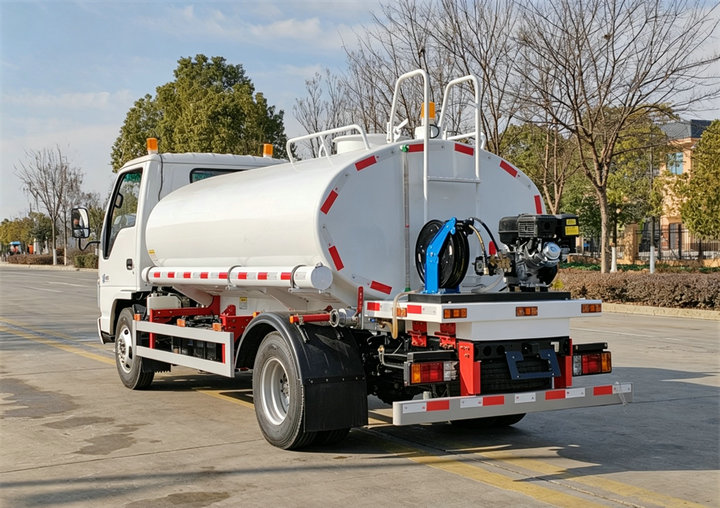

Isuzu ELF Water Tanker Sprinkling Truck (6)

4,000L Isuzu Sprinkler Truck Factory

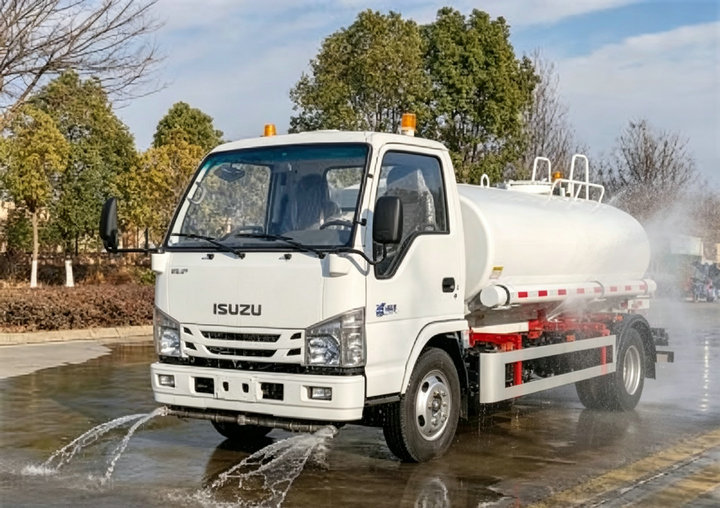

Isuzu ELF Water Tanker Sprinkling Truck (10)

Isuzu ELF 4000 liters street washer water truck

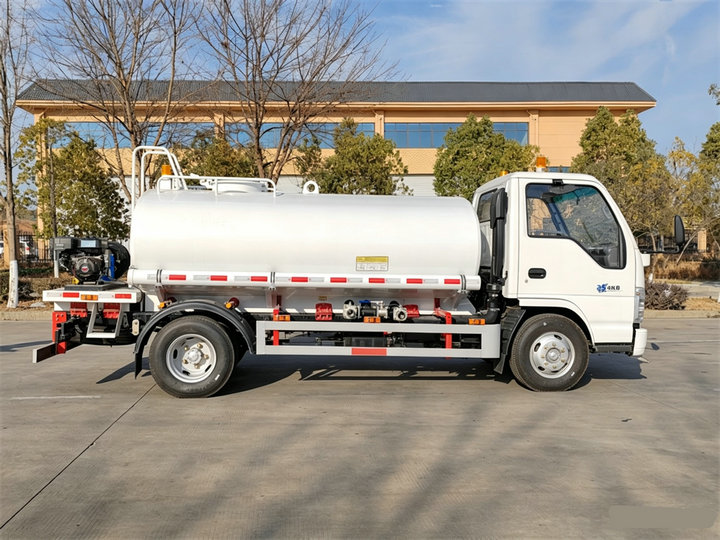

Isuzu ELF Water Tanker Sprinkling Truck (7)

Isuzu ELF light water bowser truck

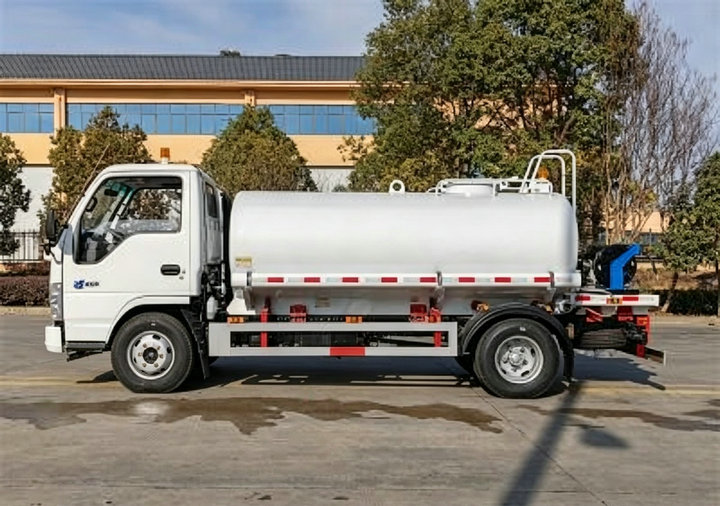

Isuzu ELF Water Tanker Sprinkling Truck (11)

Isuzu 100P 4cbm water spray truck

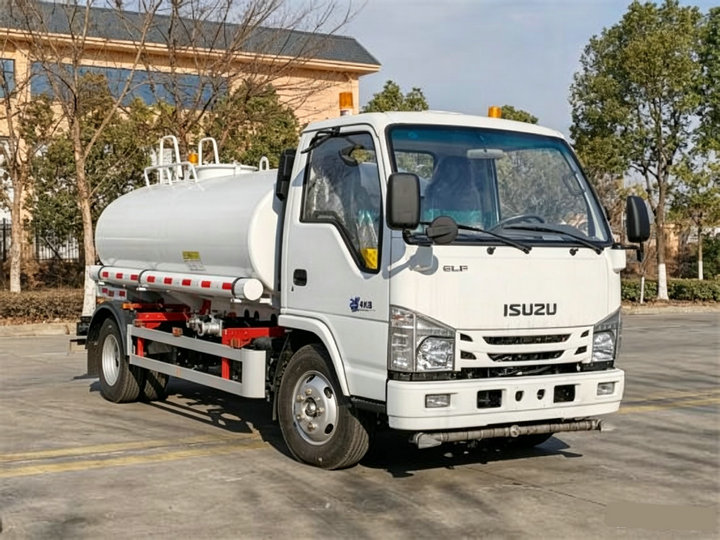

Isuzu ELF Water Tanker Sprinkling Truck (2)

Isuzu ELF 5000L Water Tanker Sprinkling Truck

Product Overview

The Isuzu ELF 5000L Water Tanker Sprinkling Truck is professionally engineered for urban sanitation, road maintenance, environmental cleaning and diverse industrial cleaning scenarios, integrating reliable driving performance, high operational efficiency and superior practicality. Fitted with a 5000L oval anti-corrosion water tank, the vehicle supports long-duration and high-frequency daily operations with excellent durability.

Equipped with a core 65QZF-40/50 high-pressure water pump, the truck features adjustable water pressure and a stable flow rate of 40-50m³/h, enabling flexible switching between large-area uniform watering and precise dust suppression. Further upgraded with a rear-mounted LCM190 fuel-powered ultra-high pressure washer (25MPa working pressure), it delivers powerful deep cleaning to eliminate road stubborn stains, sediment and surface attachments, realizing multi-functional integrated cleaning operations.

Core Key Features

Premium Isuzu Chassis: Adopts original Isuzu ELF 100P chassis with stable performance, strong bearing capacity and excellent driving stability, adapting to complex urban and road working conditions.
High-Power Durable Engine: Equipped with Isuzu 4KH1 diesel engine, delivering 120HP maximum power and 290N.m peak torque, achieving 100,000-kilometer maintenance-free operation for high reliability.
Optimized Structural Design: Streamlined vehicle appearance and compact oval tank structure ensure flexible maneuverability in narrow urban streets with reasonable space layout.
High-Efficiency Water Supply System: Matched with professional high-flow water pump, supporting fast water inflow and outflow with stable water pressure for efficient and uniform sprinkling.
Multi-Functional Integrated Cleaning: Integrates front spraying, conventional watering and ultra-high pressure deep cleaning to meet full-scenario sanitation and cleaning needs.

Product Description

The Isuzu ELF 100P 5cbm water sprinkler truck is a high-efficiency sanitation vehicle tailored for urban road cleaning, greening maintenance and environmental dust reduction. Powered by a reliable Isuzu 4KH1CN6LB inline four-cylinder diesel engine (2999ml displacement), it provides stable power output and outstanding acceleration performance, ensuring smooth operation under various road conditions.

In terms of transmission, the vehicle is equipped with an original Isuzu MSB 5-speed manual gearbox, featuring precise and smooth shifting. It perfectly adapts to diverse operational speed requirements, whether for high-speed road transportation or low-speed uniform watering.

The 5000L oval carbon steel water tank adopts an optimized structural design, which not only guarantees large water storage capacity but also reduces vehicle body volume effectively. This greatly improves the truck’s flexibility in narrow urban roads, community lanes and construction sites. Cooperated with the 65QZF-40/50 professional water pump, it maintains stable flow and uniform water pressure, ensuring consistent and high-efficiency sprinkling operation.

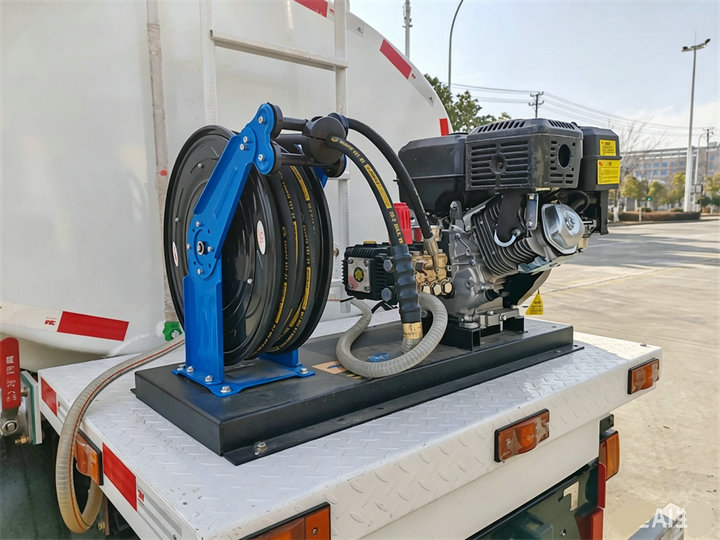

A major highlight of this model is the rear-mounted LCM190 fuel-powered ultra-high pressure cleaning system. Different from ordinary sprinkler trucks, it realizes dual functions of conventional watering and high-pressure deep cleaning. The 25MPa ultra-high pressure water flow can thoroughly remove road oil stains, gum residues, dust deposits and various stubborn attachments. Combined with the front spray device that expands the operation coverage, the vehicle achieves full-coverage blind-spot-free cleaning, effectively optimizing urban environmental sanitation.

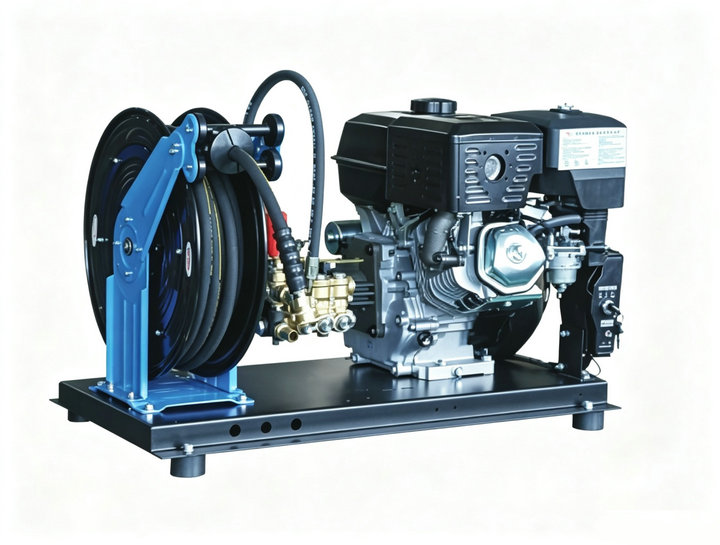

Core Configuration Advantage | LCM190 Fuel-Powered Ultra-High Pressure Washer

The imported LCM190 fuel-powered ultra-high pressure washer is the core upgraded configuration of this Isuzu 5-ton sprinkler truck, providing professional-grade deep cleaning capacity for municipal sanitation and engineering cleaning scenarios. Its detailed performance advantages are as follows:

High-Efficiency Water Output: Features a maximum flow rate of 15L/min (4gpm), realizing large-area rapid water spraying and cleaning, greatly improving daily operation efficiency.
Super-High Cleaning Pressure: Supports 250bar (3625PSI / 25MPa) ultra-high working pressure, which can penetrate and strip stubborn road dirt, meeting strict deep cleaning standards.
Stable Continuous Operation: Runs at a rated speed of 2900RPM, with high-speed stable pump body operation, strong durability and long continuous working life, suitable for high-intensity daily operations.
Strong Power Support: Equipped with a 15HP (11KW) dedicated power unit, providing continuous and stable power output to cope with complex road surfaces and diverse cleaning working conditions.

In practical application, the ultra-high pressure cleaning system cooperates with the conventional sprinkling system to form a dual-mode cleaning solution. It replaces traditional chemical cleaning methods with high-pressure water cleaning, realizing environmental protection, energy saving and zero secondary pollution, fully complying with modern urban green sanitation and efficient management requirements.

Full Product Specifications

Chassis Basic Parameters

Item	Parameter
Driving Type	4×2, Left Hand Drive
Maximum Speed	115km/h
Overall Dimension (L×W×H)	5750×2000×2420mm
Gross Vehicle Weight (GVW)	7300kg
Curb Weight	2150kg
Wheelbase	3360mm
Front/Rear Overhang	1110mm/2830mm
Tire Specification	7.00R16
Clutch Type	Single-plate dry diaphragm spring clutch
Steering System	Hydraulic power steering
Gearbox	Isuzu MSB 5-speed Manual
Front Axle Load	2500kg
Rear Axle Load	4800kg

Engine Parameters

Item	Parameter
Engine Brand & Model	Isuzu 4KH1CN6LB
Fuel Type	Diesel
Emission Standard	Euro VI
Engine Type	4-cylinder inline, water-cooled, four-stroke, direct injection, turbocharged
Displacement	2999ml
Maximum Power	120HP / 88KW
Maximum Torque	290N.m

Upper Body & Sprinkler System Parameters

Item	Parameter
Sprinkler Configuration	Front spray, rear water inlet, rear high-pressure cleaning hose & gun
Valve Configuration	Fire control valve + water control valve + overflow valve
Tank Shape & Material	Oval, 5mm thick carbon steel
Water Pump Model	65QZF-40/50
Rated Flow	40m³/h
Rated Speed	1450r/min
Self-suction Height	7.5m
Matching Power	9.25KW
Ultra-High Pressure Washer Model	LCM190
Cleaning Flow	15L/min (4gpm)
Working Pressure	250bar / 3625PSI / 25MPa
Working Speed	2900RPM
Washer Power	15HP / 11KW

Standard Accessories & Fittings

PTO driving water pump system
