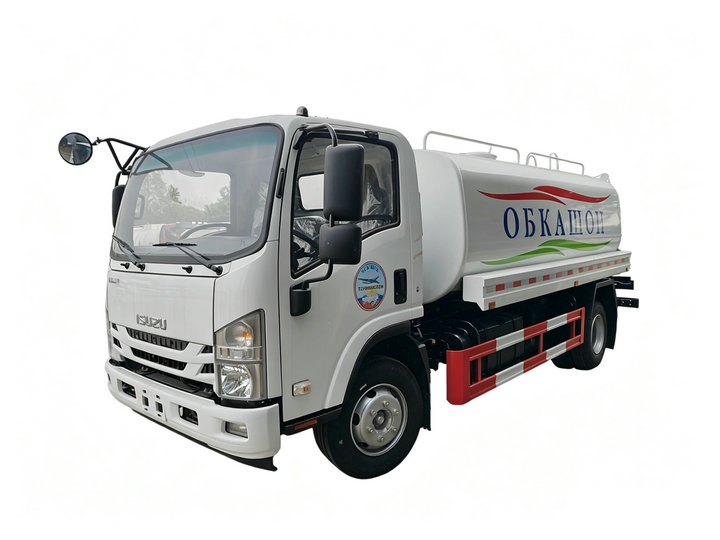

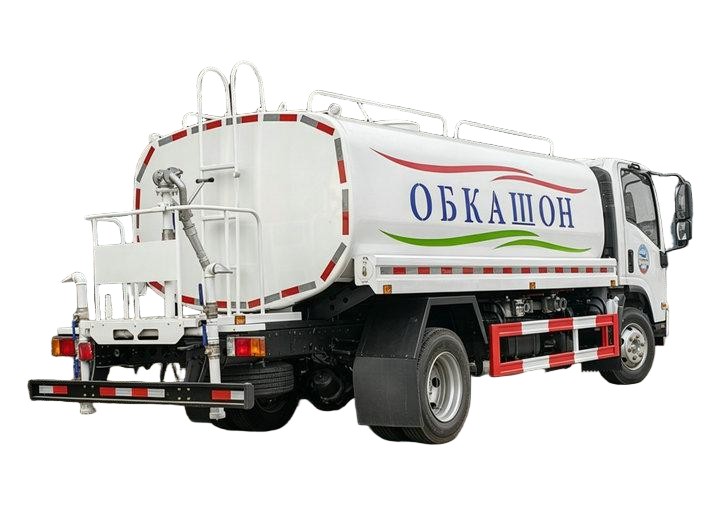

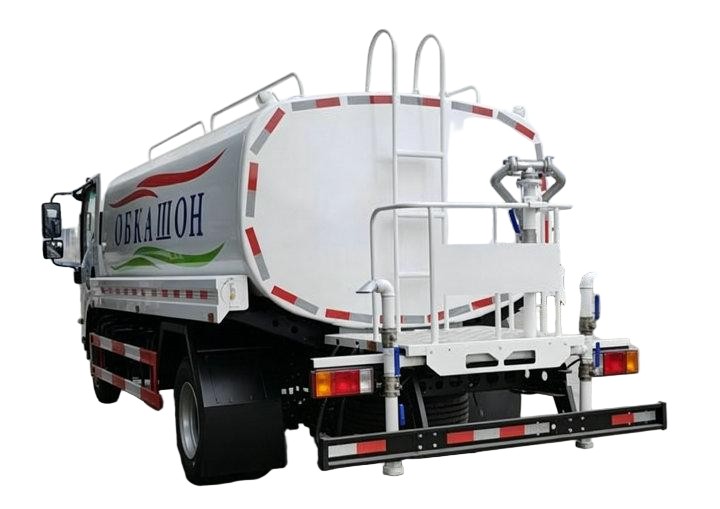

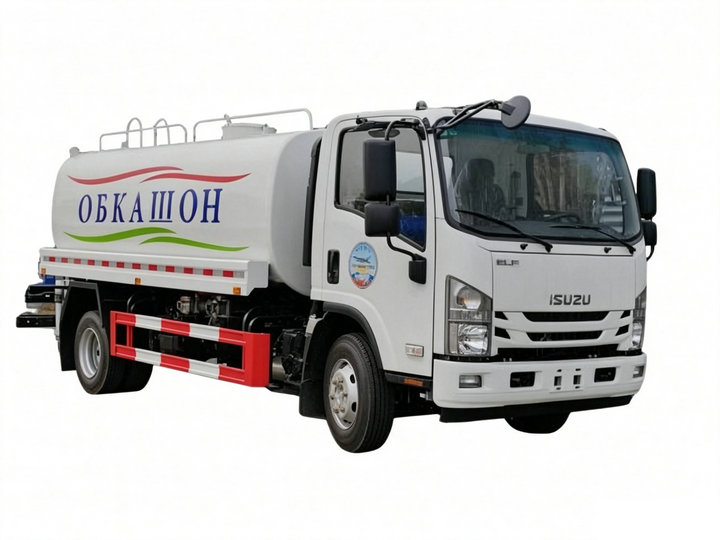

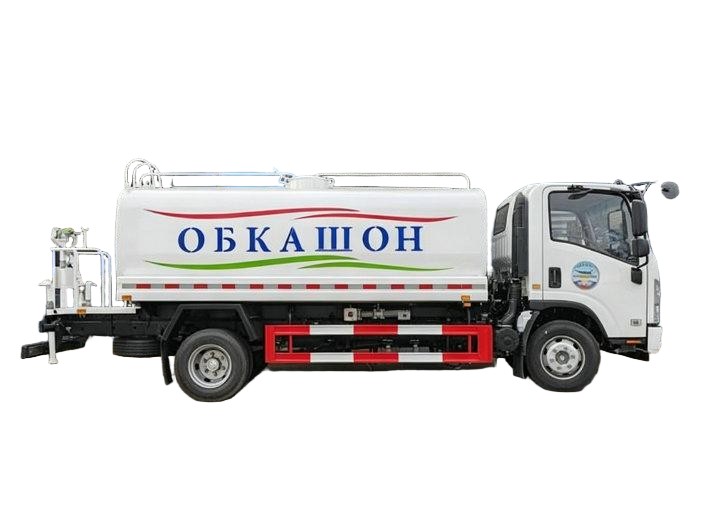

700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck

700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck
Remarks: Water tank capacity can be customized
Contact Us for Better Price, Cell /Wechat /WhatsApp:+8615271357675
Price: $ 36800
Discount Price: $ 35800
Availability:
Quantity:

  • ELF 700P

  • DONG RUN ZE

  • 8705909990

  • Shanghai, China

  • 1000

  • T/T, Western Union

  • Nil

  • 1

700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Truck

Key Features

---- ISUZU 700P chassis, perfect performance

---- ISUZU 4HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Nice shape, rational structure

---- Water pump super powerful, efficient pump in and out

Isuzu 700P 8000 liters water tanker truck

Chassis Specification

Driving Type

4*2 Left hand driving

Max Speed

105km/h

Overall Dimension

7200*2300*2550mm

GVW

11000kg

Truck Tare Weight

4050kg

Wheelbase

4175mm

Tire

235/75R17.5

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear Box

Isuzu MLD 6-speed,manual

Bridge

Front axle

4tons

Rear axle

7tons

Engine

Brand

Isuzu

Model

Isuzu 4HK1-TCG61

Fuel Type

Diesel fuel

Emission Standard

Euro VI

Type

Inline 4-cylinder, water-cooled four-stroke, direct injection, turbocharged

Displacement

5193ml

Max output power/rotate speed

190HP / 2600 rpm

Max torque/rotate speed

507 N.m /1600-2600 rpm

Upper Parts Specification

Tank

Sprinkler

Front,side,rear sprinklers

Tank shape

Ellipse

Material of tanker

Stainless steel

Tank volume

2000Gallons - 8000 liters

Tank thickness

Side 4 Bottom 5

Color of the tanker

According your demands

Water pump

Mode

65SQB-40/50L

Style

Self-priming centrifugal

Material

S304 stainless steel

Lift

45m

Input speed

1150-1450r/min

Self-priming performance

1min/5m

Shaft power

9.3Kw

Introduction of function

Front back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function.

Front Flushing

Horizontally clean width 15m

Rear Spray

Rear spray with fan-shaped range 14m

Side Spreading

Could Vertically control the dust with a range of 10m

Sprinkler(Water Canon)

Range with 28m

Fittings

PTO water pump

One Manhole

water hose box fitted on both side of tank

One spare tyre

Ladder: For access to top of tank complete with cat walk on top of tank

Heavy-duty rear bumper


Isuzu 8000L (2000 Gallon) Water Sprinkler Truck | ELF 700P/NPR 8CBM Water Bowser Truck

The Isuzu 2000-gallon (8000L/8CBM) water truck is a multi-functional, high-stability special vehicle tailored for municipal sanitation, road maintenance, dust control and greening irrigation. Fitted with a large-capacity 8 cubic meter water tank and all-round front, side and rear sprinkler systems, this Isuzu water bowser supports adjustable and diverse spraying modes, enabling flexible adaptation to various operational scenarios. It is widely applicable for urban sanitation, highway maintenance, construction site dust reduction, and landscape irrigation projects.

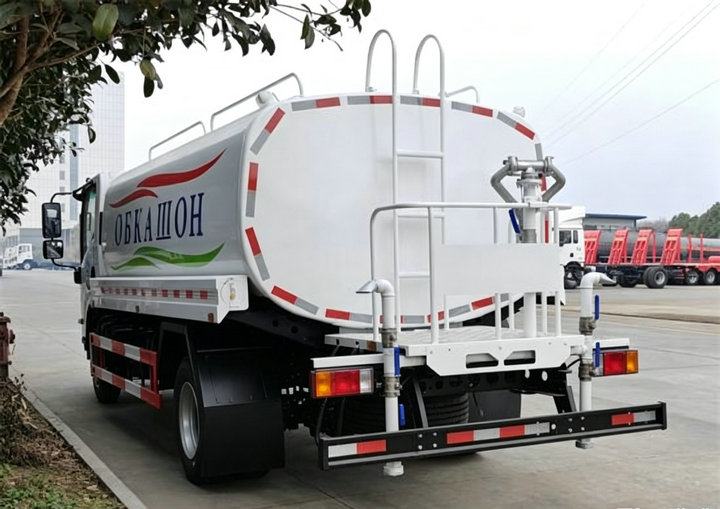

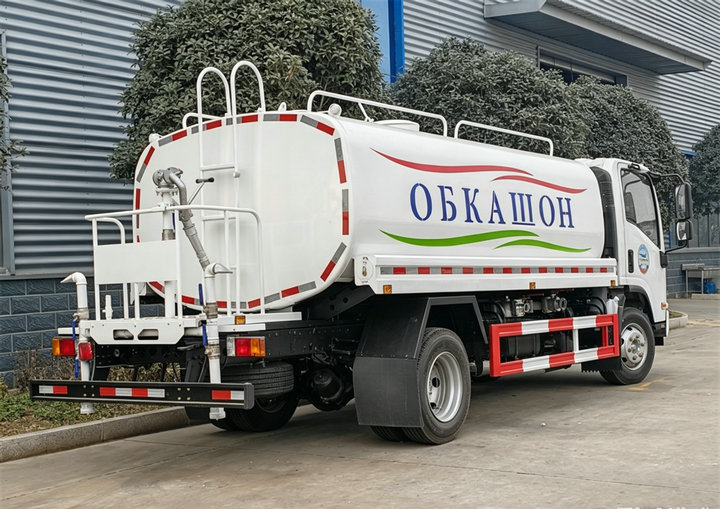

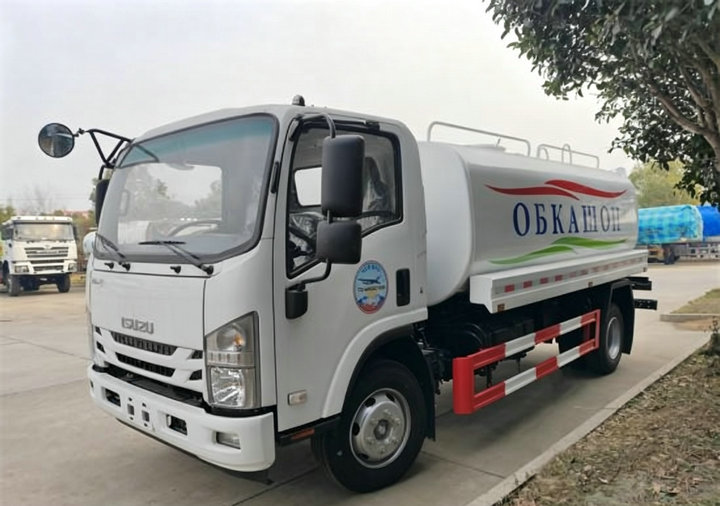

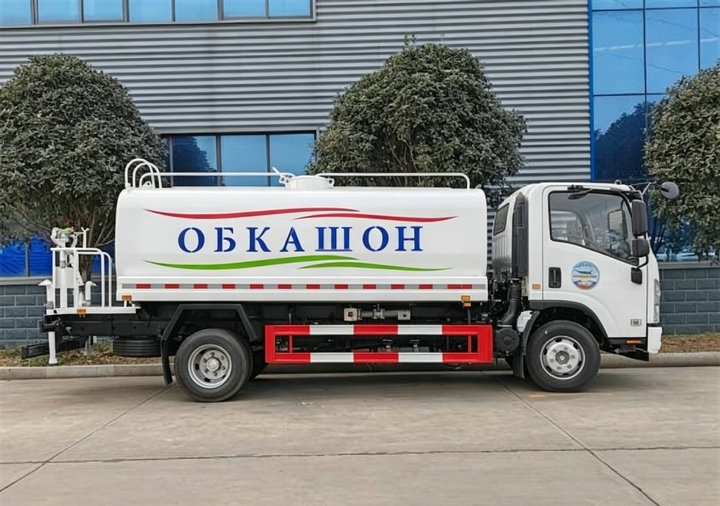

700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck (10)700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck (6)700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck (3)700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck (5)

Basic Configuration & Core Performance

Chassis & Power System

Built on the robust and durable Isuzu ELF 700P/NPR chassis, the water sprinkler truck is powered by a high-performance 4HK1 diesel engine, delivering stable and sufficient power output. The premium chassis and powertrain combination ensures reliable operation across diverse road conditions, supporting long-hour, high-efficiency continuous working requirements for commercial and municipal operations.

Large-Capacity Water Tank

Equipped with an 8 cubic meter (8000L/2000 gallon) integrated water tank, this Isuzu water hauling tanker features large water storage capacity, effectively reducing frequent water refilling times. It perfectly meets the demands of large-scale, long-distance and long-duration sprinkling and water transport operations.

Full-Range Sprinkler Device & Functional Features

Front Sprinkling System

The front-mounted sprinkler unit delivers uniform high-pressure water spraying, specially designed for road surface flushing and thorough street cleaning. It efficiently washes away road dust, sediment and debris, significantly improving urban road cleanliness and road surface conditions.

Side Sprinkling System

Dual side sprinklers are installed at the rear vehicle sides, mainly used for green belt irrigation and road surface cooling. With adjustable spraying angles and water flow intensity, the system achieves precise watering for urban greening facilities while effectively lowering road surface temperature, optimizing urban traffic and ecological environment.

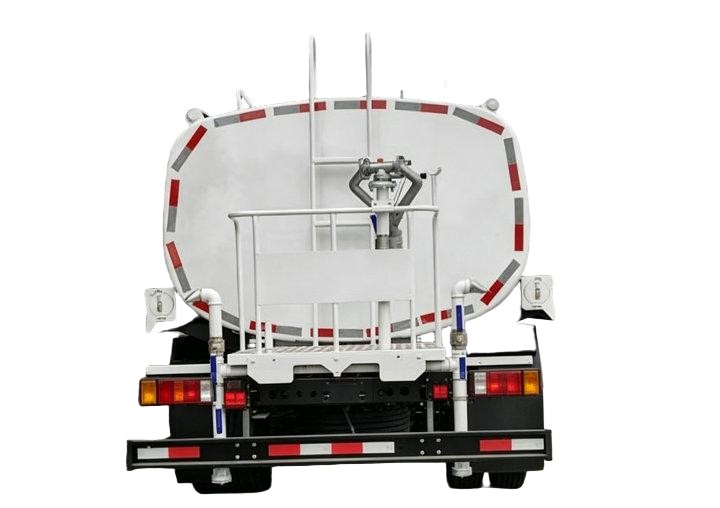

Rear Sprinkling System

The rear spray mechanism provides wide-coverage, adjustable water spray patterns, covering the full road width behind the vehicle. It is ideal for highway dust suppression, construction site post-cleaning and daily road maintenance. Operators can flexibly adjust the spraying width and water intensity to maximize water utilization efficiency and deliver optimal maintenance results.

Product Advantages & Comprehensive Performance

User-Friendly Operation & Full Safety Protection

This Isuzu water tanker adopts a humanized control system with simple and intuitive operation logic, allowing drivers to proficiently master all functional operations quickly. Meanwhile, it is equipped with a complete set of safety protection devices, ensuring stable and safe operation throughout the working process.

Diversified Adjustable Spraying Modes

To adapt to complex and diverse working scenarios, the Isuzu 700P 8CBM water spray truck supports multiple spraying modes, including continuous spraying, intermittent spraying and fan-shaped spraying. Operators can freely switch and adjust parameters according to actual working conditions to achieve customized watering and dust removal effects.

High Efficiency & Environmental Energy Saving

Fitted with high-efficiency professional water pumps and optimized pipeline systems, the vehicle realizes efficient water resource utilization and low energy consumption. It complies with strict environmental emission standards, effectively reducing operational pollution and meeting green construction and municipal environmental protection requirements.

Strong Terrain Adaptability & Customization

Featuring excellent overall stability and passing performance, the truck adapts to various road conditions including urban roads, rural roads and construction site roads. In addition, we support personalized customization and functional modification according to customers’ special working needs to cover more application scenarios.

Standard Operating Safety Precautions

1. Water Collection Operation

On-site supervision and manual operation are required during water collection. Avoid impurities entering the water pump and tank to prevent pipeline and nozzle blockage. Park the vehicle on solid and flat ground for water intake to prevent vehicle tilting or sinking.

2. Spraying Operation

  • Keep a close watch on pedestrians, electric vehicles and non-motor vehicles during operation to avoid water splashing on passers-by.

  • Control driving speed and water output strictly in accordance with safety specifications; maintain a constant driving speed and avoid irregular speed changes.

  • Turn on warning lights and working music during operation to remind passing vehicles and pedestrians to take evasive action.

  • Monitor road conditions in real time to prevent nozzle collision and damage.

3. Special Situation Handling

When encountering overhead wires, electrical equipment and other obstacles, lower the high-pressure water gun head and adopt short-distance spraying to prevent water splashing on electrical facilities and cause safety accidents. Stop all operations in severe weather such as heavy rain, snow and icy roads to avoid vehicle skidding risks.

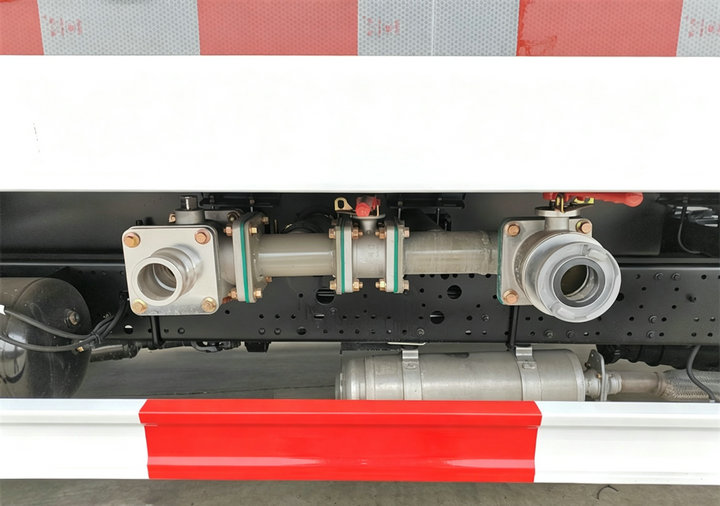

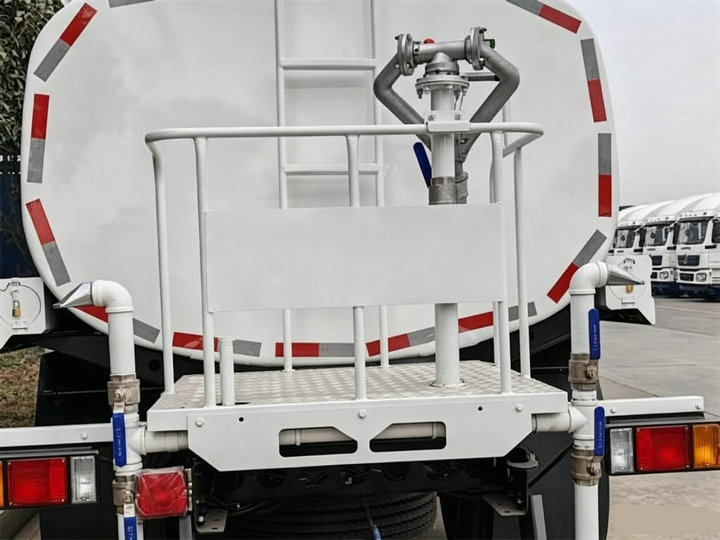

700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck (14)700P Isuzu 2000 Gallon - 8KL Stainless Steel Water Tanker Bowser Truck (8)
