ELF KV100
-
DONG RUN ZE
-
8705909990
-
Shanghai, China
-
1000
-
T/T, Western Union
-
Nil
-
1

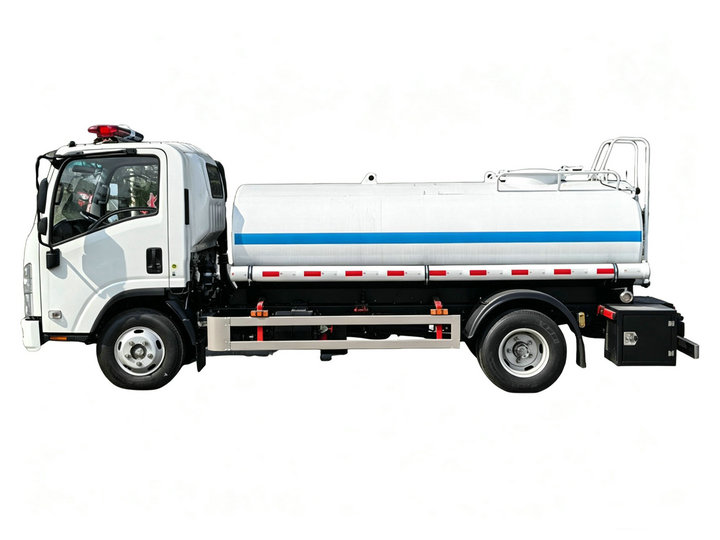

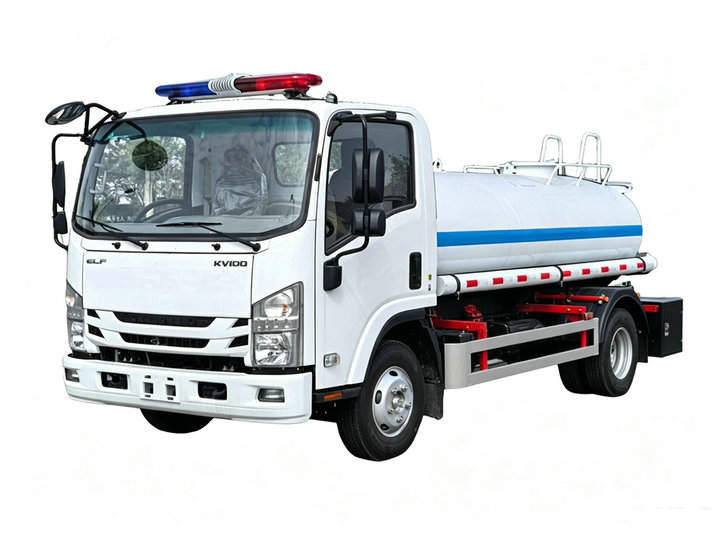

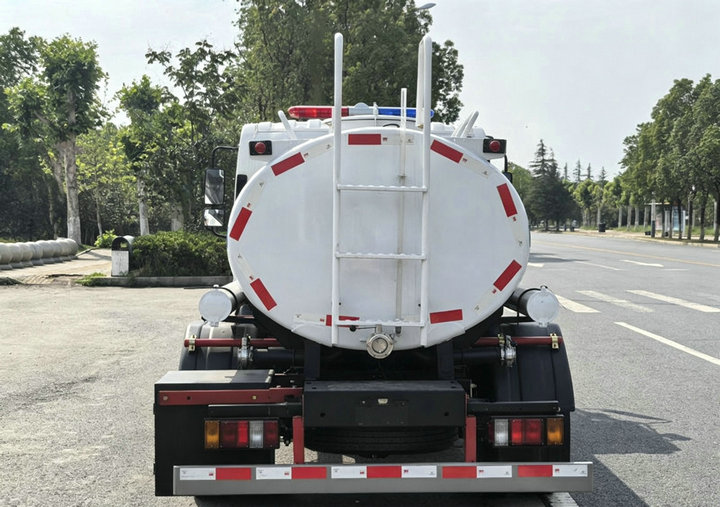

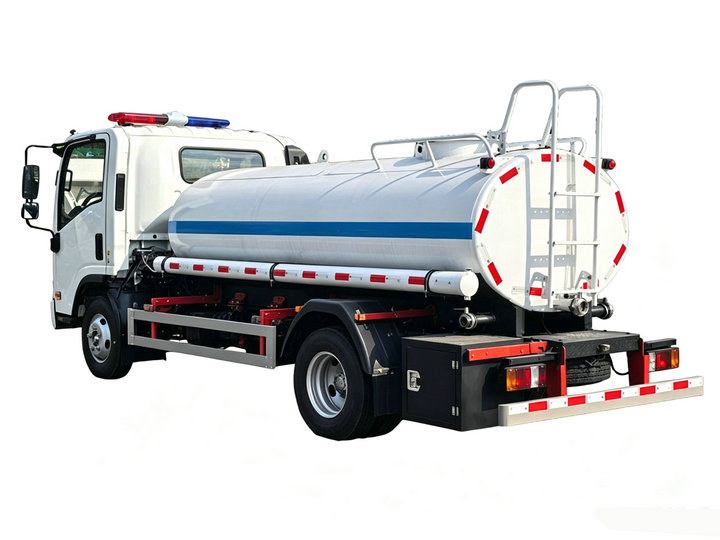

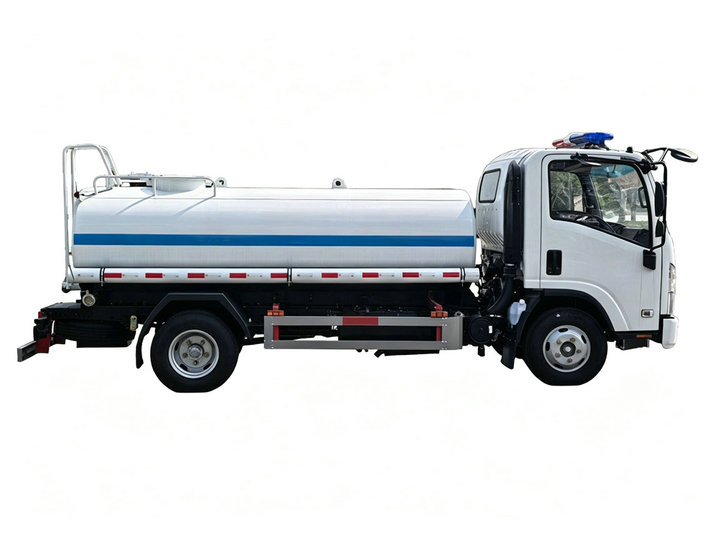

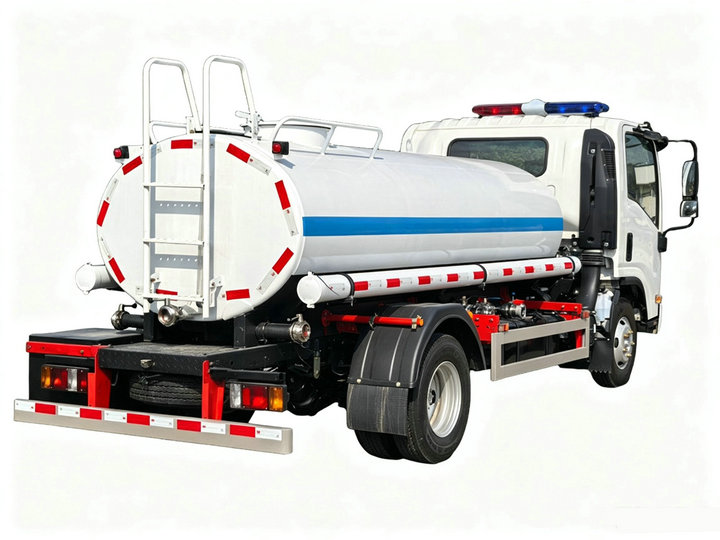

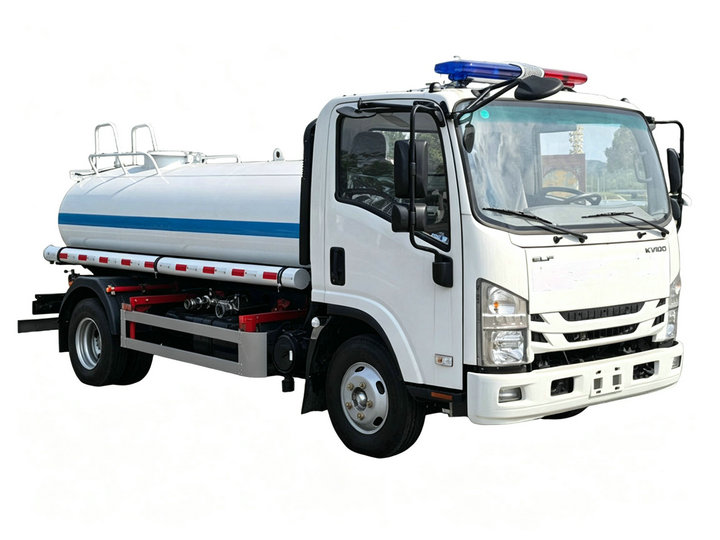

Suzu KV100 Stainless Steel Dust Control Water Bowser Sprinkler Truck 5000 L
Isuzu KV100 water bowser sprinkler | ||
Model Name | Isuzu ELF KV100 Stainless Steel water bowser | |
Driving Type | 4×2,left hand drive | |
Color | White,blue,color can choose | |
Engine | ||
Engine model | Isuzu 4KH1CN6LB | |
Horsepower | 120HP | |
Max. output (kw) | 88Kw | |
Displacement(L) | 2.999L | |
Drive Line | ||
Transmission | MSB 5 speeds ,5 forwards,1 reverse gear box, manual operation | |
Steering | Power steering | |
Brake | Air brake | |
Tire specification | ||
Tire specification | 700R16 standard tire,6 tires+1 spare tire | |
Water truck | ||
Tank volume | 5000L | |
Water tanker material | Stainless steel. Ellipse tank | |
Introduction | 1. Suction≥7m | |

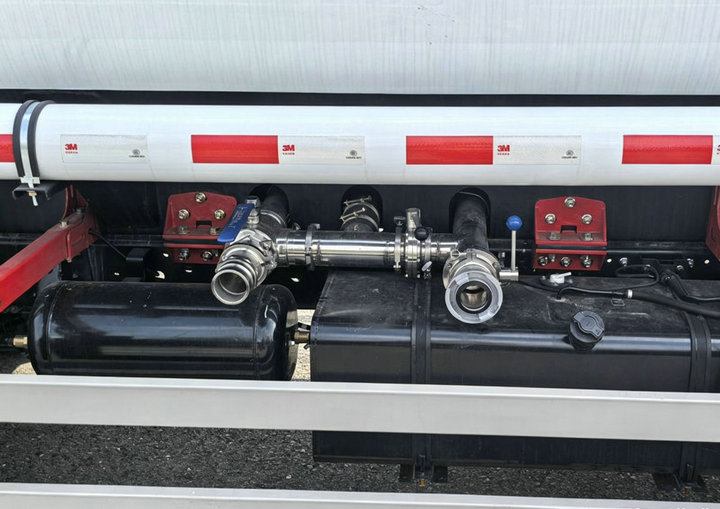

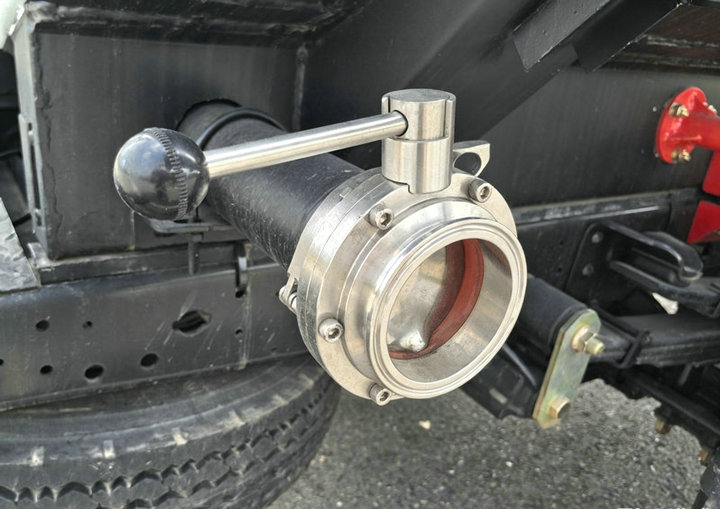

2.Water Inlet & Outlet control valves | ||
3. Equipped with pipeline storage box at the side of tank | ||
Horse reels | Two hose pipes on each side of the tank | |
Stainless steel water pump | Model | 40/50 water pump |
Type | Single stage centrifugal pump | |
Starting method | Electric start/hand start | |
● China best potable water truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service
Chassis configuration of Isuzu KV100 water bowser
●Chassis model: Isuzu ELF KV100 chassis, this chassis is known for its strong carrying capacity and excellent driving comfort, providing a solid foundation for the potable water truck.
●Engine: Equipped with 4KH1CN6LB engine, this is an inline 4-cylinder diesel engine, with its high efficiency, energy saving, low noise and low emissions, it ensures the stable operation and environmental protection performance of the potable water truck under various working conditions.
●Transmission: Matched with Isuzu MSB 5-speed manual transmission, smooth shifting, high transmission efficiency, effectively improving the vehicle's fuel economy and power response speed.
The material of the Isuzu ELF potable water truck
The core highlight of the Isuzu ELF potable water truck is its 5000L stainless steel tank. The stainless steel material gives the tank excellent corrosion resistance. Whether it is transporting ordinary domestic water or dealing with special water sources containing certain chemical components, it can ensure that the water quality is not polluted and always remains pure. At the same time, stainless steel has high strength and good toughness. It can withstand the bumps and pressure during transportation, greatly extending the service life of the tank and reducing the cost of use.
The characteristics of Isuzu KV100 Stainless Steel water bowser:
It has strong maneuverability and can flexibly shuttle under complex road conditions and quickly reach the water-using location. The high-power water pump and rationally designed pipe system make the pumping and drainage process efficient and smooth, greatly shortening the operation time. In addition, the vehicle also has perfect sealing and insulation functions. The sealing design prevents water leakage during transportation, and the insulation function can maintain the water temperature according to demand to meet the water requirements of different scenarios.
The wide application of Isuzu KV100 water bowser
●In drought-stricken areas, it delivers domestic water to residents to ease water problems;
●At construction sites, it provides necessary water sources for construction to ensure the progress of the project;
●At fire rescue sites, it is a powerful assistant to firefighters, providing sufficient water sources for firefighting;
●At large-scale event sites, it can also ensure water needs for sanitation, catering, etc.
