Dongfeng Water Tank Truck Mounted Attenuator TMA 70KM

Share to:

Dongfeng Water Tank Truck Mounted Attenuator TMA 70KM

Dongfeng Water Tank Truck Mounted Attenuator TMA 70KM
Scorpion Truck Mounted Attenuator (TMA) truck mounted attenuator with LED display
Price for refer only. Final Price Offer Discount.

Price: $ 39000 - 41000

Discount Price: $ 32800 - 34000

FOB:	LHD RHD
Availability:

Quantity:

Model:
2638
Brand:
FOTON
Code:
8705909990
Port:
Shanghai, China
Production Capacity:
1000
Payment Terms:
T/T, Western Union
Transport Package:
Nil
Min. Order:
1

Product Description

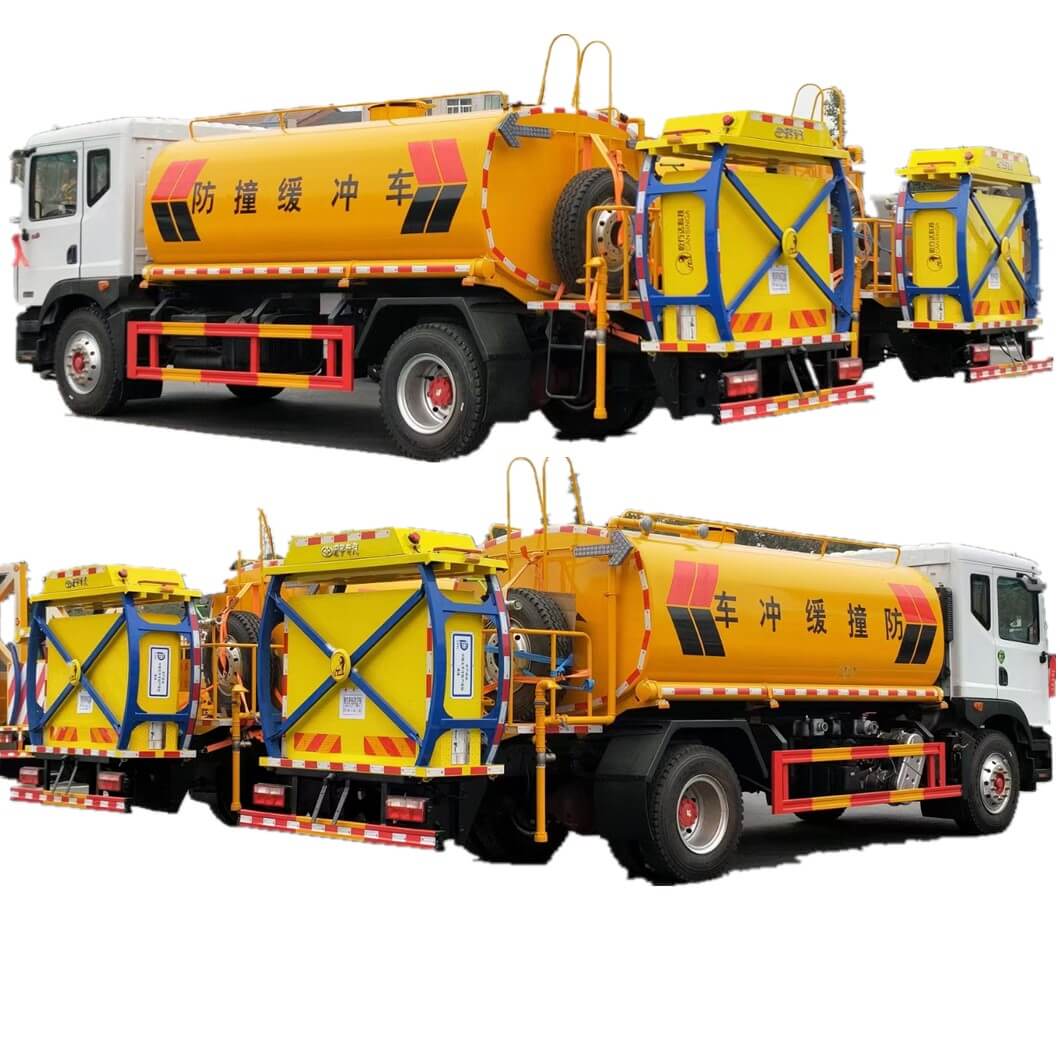

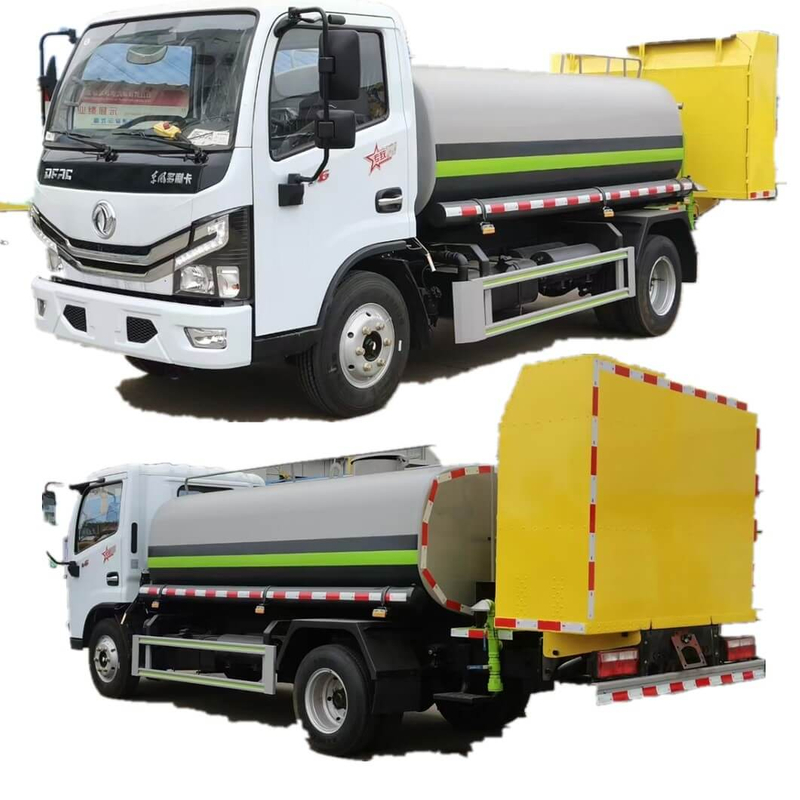

Dongfeng Water Tank Truck with Front Spray Nozzles, Rear Water Sprinkler Cannon Two Sides Bowser for Dust Control Water Truck Mounted Attenuator TMA (13)

Customizing Water Bowser Truck Mounted Attenuator Tma 70K/80K/100km (6-8m3 Water Tank)

Vehicle Parameters
Vehicle model	DRZ5060GSSE	Vehicle brand	DONG RUNZE
Vehicle dimension	5980X1980X2180mm	Curb weight	2950kg
Tank dimension	3500×1720×1150mm	Tank volume	6000L
Chassis Parameters
Chassis model	EQ1060TJ20D3	Chassis brand	DONGFENG
Overall dimensions	5820x1940x2080mm	Wheel base	3300mm
Cab	Single row cab,allowable 3 passengers
Engine	CY4100Q
	Horse power	90hp
	Emission	Euro 3
	Displacement	3707ml
Tire	7.00R16 steel wire tire	Transmission	5 speed forward 1 reverse
Steering device	Power assisted steering	Steering wheel	Left hand drive
Water Tank Parameters
Tank Volume	5000L 6000L	Tank dimension	3500×1720×1150mm
Tank material	Stainless Steel	Nozzle sprinkling width	≥14m
Range of water cannon	≥28m	Suction height	≥7m

Scorpion Truck Mounted Attenuator (TMA) truck mounted attenuator with LED display

TMA Specifications	70K	80 K	100K
VDC Rated voltage	24	24	24
Attenuator Ground clearance mm	200-300	200〜300	200-300
Attenuator Cushion length /mm	1650	1985	3125
Attenuator Cushion width /mm	2055	2300	2300
Attenuator Cushion thickness /mm	680	680	680
Attenuator Weight (excluding flipped structure) /kg	175	215	350

Scorpion Truck Mounted Attenuator (TMA) truck mounted attenuator with LED display

TMA 100UA ATM
	scorpions ATM
Flipping bracket drive method hydraulic drive	Flipping bracket drive method	hydraulic drive
Buffer level	NCHRP350TL-2	1 2000kg-100km/h
Deployment of anti-collision buffer device	4447mmX2452mmX747mm
buffer device retracted	3036mmX2482mmX2899mm
Effective interception detection	2482mm
Effective collision avoidance area	1. 03 m2

ERDEGRO 100NA ATM	VERDEGRO 70NA ATM
Flipping bracket drive method hydraulic drive	Flipping bracket drive method	hydraulic drive
Buffer level NCHRP350TL-3 2000kg-100km/h	Buffer level	NCHRP350TL-3 2000kg-70km/h
Deployment of anti-collision buffer device 4111mmX2307mmX813mm	Deployment of anti-collision buffer device	1975mmX20/12mmX730mm
buffer device retracted 1415mmX2307mmX3709mm	buffer device retracted	768mmX2042mmX2073mm
Effective interception detection 2300mm	Effective interception detection	2042mm
Effective collision avoidance area 1.87m2	Effective collision avoidance area	1. 07 m2

for Highway Anti-Collision with Warning Arrow
