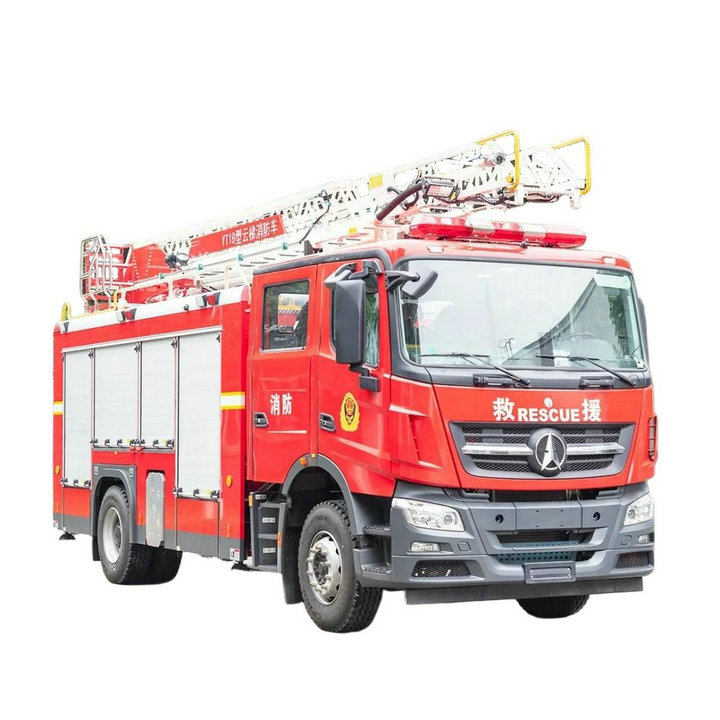

Specialized Beiben 18m Aerial Ladder Rescue Fire Fighting Truck Water Tank 3KL E6
18m ladder, fire cannon Pump Flow 50L/s
Water Tank 3000L
EXW/ FOB CNY ￥2,300,000RMB -Price for refer only.
| Quantity: | |
|---|---|
|
| |
-
5202JXFYT18SXF
-
DONG RUN ZE
-
8705301000

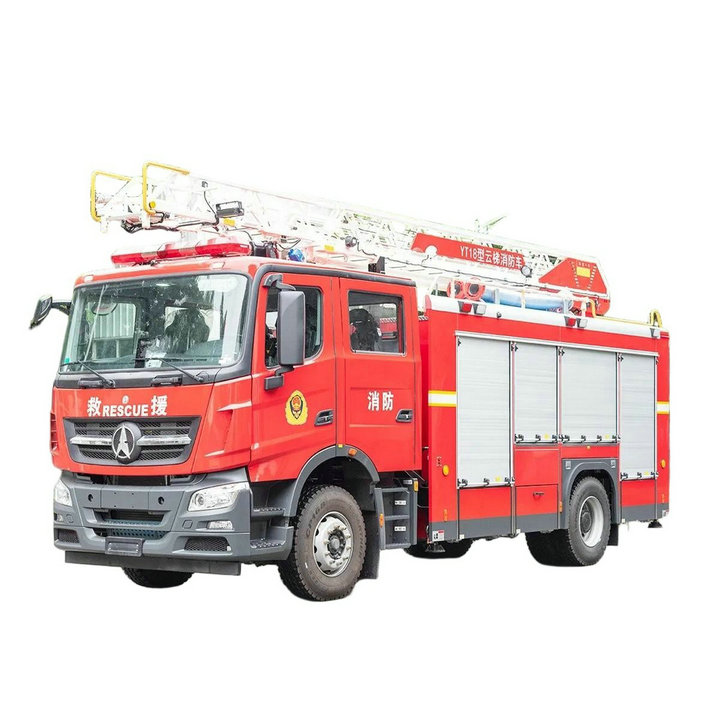

Specialized Beiben 18m Aerial Ladder Rescue Fire Fighting Truck E6 Water Tank 3KL
Aerial Ladder Fire Truck
Core Technical Parameters
Parameter | Value | Parameter | Value |
Overall Dimension | 8620×2550×3880 mm | GVW(Gross Vehicle Weight) | 19,700 kg |
Kerb Weight | 15,700 kg | Rated Payload | 3,550 kg |
Approach/Departure Angle | 17°/10° | Front/Rear Overhang | 1515/2125 mm |
Fuel Type | Diesel | Emission Standard | China National VI |
Axle Load | 6900/12800 kg | Wheelbase | 4800 mm |
Axle Quantity | 2 | Max Speed | 95 km/h |
Tire Quantity | 6 pcs | Tire Spec. | 315/80R22.5 20PR |
Fuel Consumption | L/100km | Leaf Spring Arrangement | 4/3+1 |
Front Track Width | 2051 mm | Rear Track Width | 1874 mm |
Engine Specifications
Engine Model | Manufacturer | Displacement(ml) | Rated Power(kW) |
WP8.350E62 | Weichai Power Co., Ltd. | 7800 | 257 |
Detail Information | |||
| Overall Dimension: | ≤8650mm×2550mm×3900mm | Total Weight: | ≤19800kg |
|---|---|---|---|
| Chassis: | Beiben ND5210TTZZ02，4×2 | Engine Power: | 257/2200（kW/rpm） |
| Cabin: | Double Row Cabin With 6 Seats | Superstructure: | Aluminum Alloy Welded Structure (Never In Rust) |
| Liquid Tank: | 3000L Water Tank & 550L Foam Tank & PP-C Material | Fire Pump Flow: | 50L/s |
| Fire Monitor Flow: | 48L/s | Max. Working Height: | 18 Meters |
| Max. Working Range: | 13 Meters | Painting: | Fire Red |
Beiben Aerial Ladder Rescue Fire Truck
1.Beiben Aerial Ladder Rescue Fire Truck
The heavy-duty water tower fire truck 5202JXFYT18SXF is a usual vehicle used in municipal fire department and industrial areas. The max. working height is 18m and the working range is 13 meters. It can take 3000L water tank & 550L foam tank. The fire pump flow rate is 50L/s and the fire monitor has 70m shoot distance.
2. The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 3.1 | Model | 5202JXFYT18SXF |
| 3.2 | Overall Dimension | ≤8650mm×2550mm×3900mm |
| 3.3 | Full Load Weight | ≤19800kg |
| 3.4 | Number of the Crew | 2+4 (include driver) |
| 3.5 | Max. Speed | 90km/h |
| 3.6 | Capacity | 3000L Water & 550L Foam. PP-C composite material liquid tank |
| 3.7 | Fire pump flow rate | 50L/s @ 10bar |
| 3.8 | Fire monitor | 48L/s. flow rate, 70m shoot range |
| 3.9 | Max. working height | 18m |
3. Chassis
3.1 Manufacturer: Beiben Trucks Group Co., Ltd.
3.2 Model: ND5210TTZZ02
3.3 Drive type: 4*2 optional 4x4
3.4 Wheelbase: 4800mm
3.5 Engine model: WP8.350E62
3.6 Engine type: In-line 6-cylinder diesel engine, electronically controlled high-pressure common rail, turbocharged and intercooled
3.7 Rated power: 257/2200(kW/rpm)
3.8 Gearbox form: Manual gearbox
3.9 PTO: Full power sandwich type, with additional cooling device
3.10 Fuel tank capacity: 200L fuel tank
Rated Flow Rate: 50L/s @ 10bar
Vacuum Pump:Integrated design with the water pump, directly driven through the pump shaft, no additional power required, no noise
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤60s
Location: Rear-mounted
Flow Rate: 48L/s.
Shoot Range: Water ≥ 70 m, Foam ≥ 60 m
Location: Top of the carriage
Control Manner: Electric remote control
Horizontal Rotation Angle:90° to the left, 90° to the right
Pitch Rotation Angle: -17°～75°
Capacity: Water 3000 Liters + Foam 550 Liters
Material: PP-C composite material and Never Rust
Structure: Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.

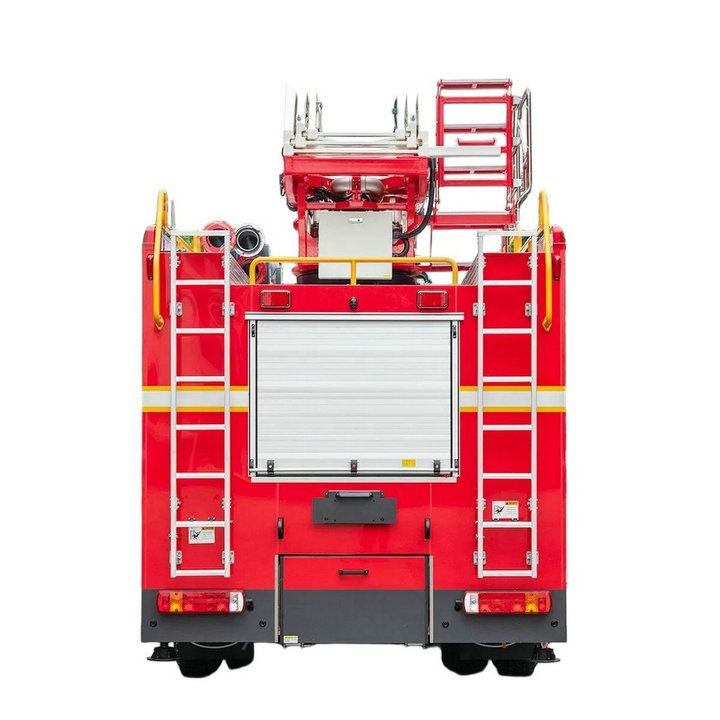

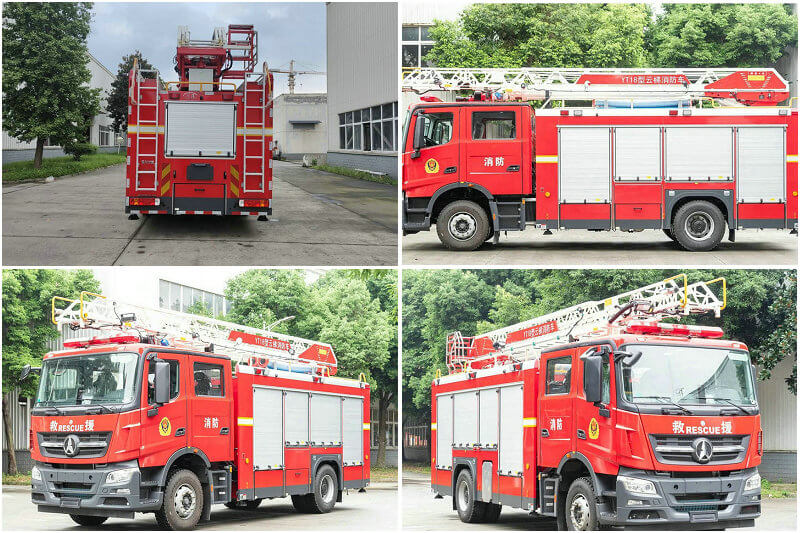

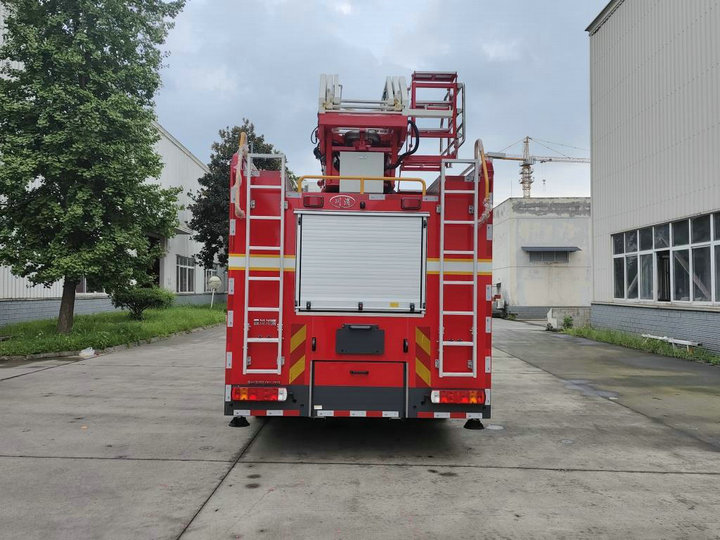

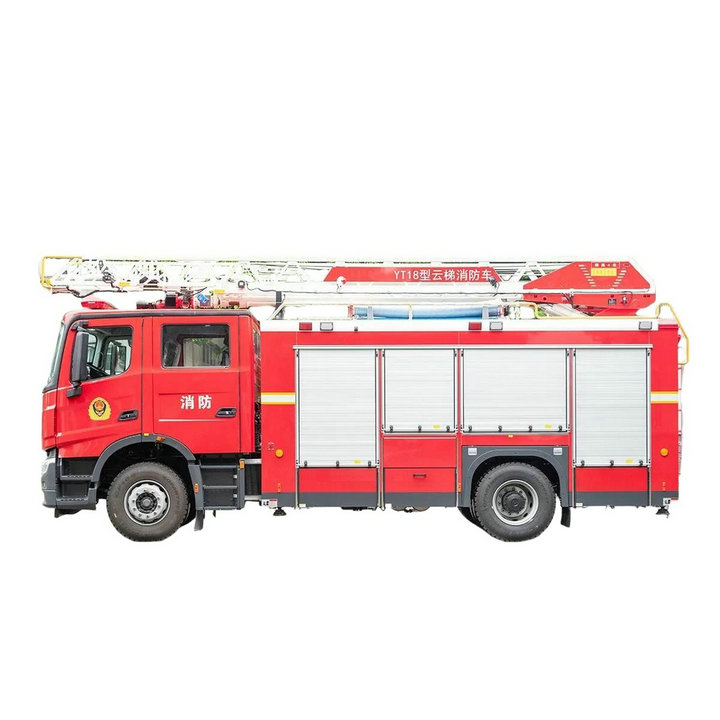

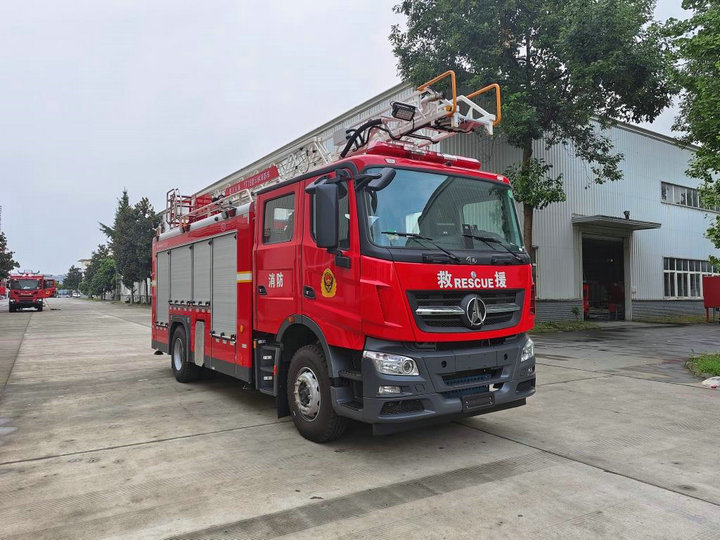

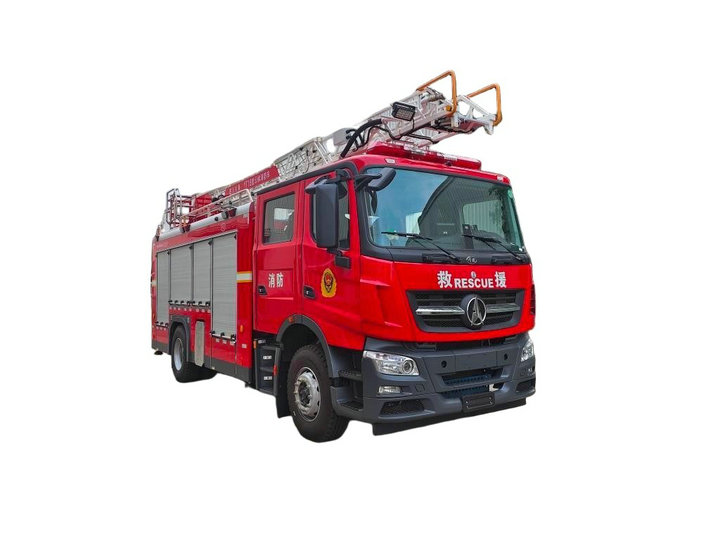

5. Beiben 18m Aerial Ladder Fire Truck Pictures for Reference
