SXT5196JXFYT32
DONG RUN ZE
8705301000

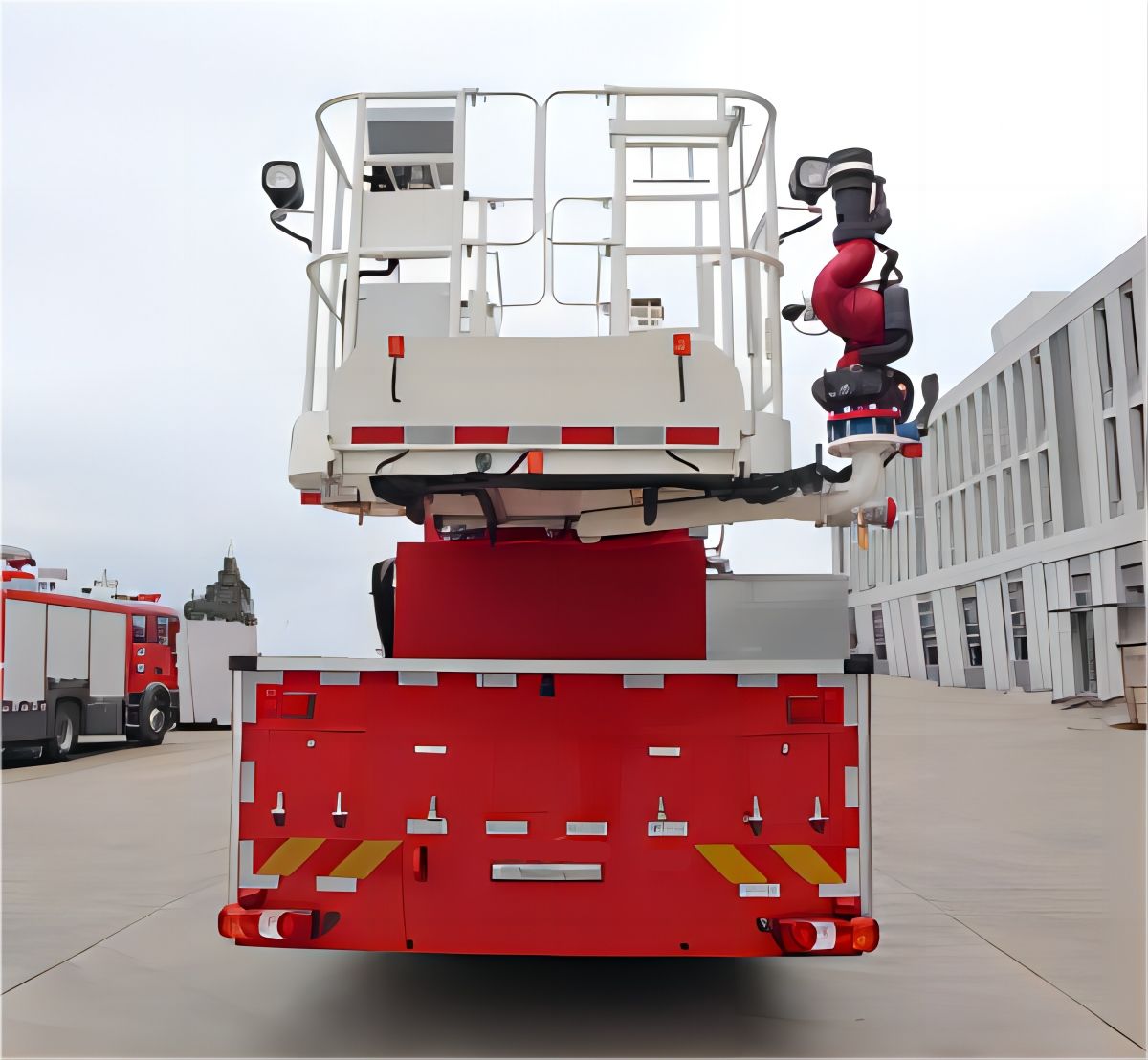

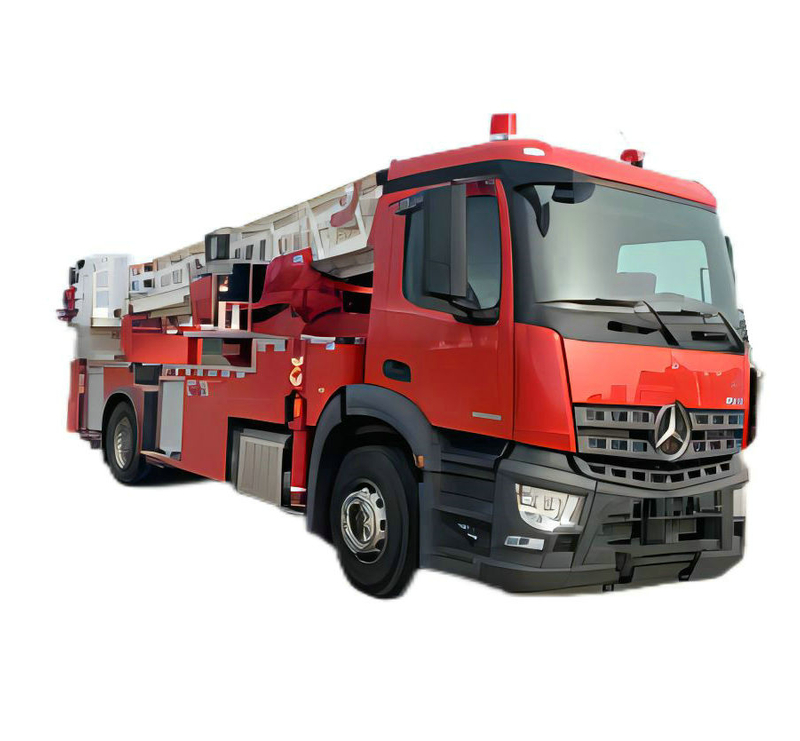

Arocs 32M Aerial Ladder Fire Truck
Overall dimensions: | 10250×2540×3320(mm) | Fuel Type: | Diesel oil |
Total mass: | 18850(Kg) | Net | 18700(Kg) |
Approach Angle/Departure Angle: | 15/11 (°) | Front/rear overhang: | 1500/2490(mm) |
Axle Load: | 6450/12400 | Wheelbase: | 5100(mm) |
Number of shafts: | 2 | Maximum speed: | 95(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 315/80 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/0 |
Front wheel base: | 2058(mm) | Rear wheel base: | 1804(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-60 | Daimler Trucks AG | 10677 | 241 |
SXT5196JXFYT32 Integrated side and rear protection structure, rear protection height from the ground :445mm, rear extension :1160mm.ABS production enterprise is WABCO, model EBS4+. The main special equipment are ladder rack, fire cannon. |
Technical parameters and requirements | ||
(I) Chassis | ||
1 | chassis | Benz-Arocs |
2 | Drive type | 4×2 |
3 | engine power rating | ≥240kw |
4 | Emisson standard | Euro 6 |
5 | G.W. | ≤18820kg |
6 | Engine type | In-line six-cylinder, supercharged medium cold, liquid cooled, compression ignition diesel engine. |
7 | Minimum turning diameter | ≤19m |
8 | maximum speed | ≥95km /h |
9 | Transmission form | Automatic control mode, with 12 forward gears. |
(2) Cab room | ||
1 | Seat setting | 1 row , 2 crews . |
2 | Internal equipped | Cab four-point suspension, cab hydraulic turning device, roof skylight, vent, central control door lock, electric adjustment can heat the rearview mirror, both sides can be heated wide Angle rearview mirror, passenger side lower mirror, front view mirror. Driver suspension seat, height, Angle, front and rear position adjustable, co -driver folding seat, backrest Angle adjustable, driving side and passenger side electric doors and Windows, radio, with USB interface,file storage space A 4 paper size, driving and passenger room environmental protection air conditioning system, warm air and defrost system, dust filter. Computer control dashboard, chart display system, instrument Board display brightness adjustment, intelligent maintenance system, on- board diagnosis system, reserved Chinese version of dashcam wiring port. |
3 | extras | Install the fire communication vehicle platform, equipped with a 360 ° panoramic dashcam. |
(3) Leg | ||
1 | Leg type | Type H (four horizontal legs, four vertical legs). |
2 | leg span | Longitudinal span: 6650mm, transverse span: 6050mm. |
3 | Leg extension, support and leveling time | ≤30s |
4 | The leveling way | The legs are equipped with two sets of leveling systems : computer one-key automatic leveling system and manual leveling system. |
5 | Leg position detection system | Each leg has two sensors to detect the leg stretch state. |
(4) Armstand |
1 | Arm frame type | Five sections of synchronous telescopic ladder frame. When the boom is recycled, the work bucket adopts the rear type of the car, the control table is placed in the middle of the ladder frame, and the boom adopts the mobile telescopic mode. Arm span Angle-12 ° - -75 °, 360 ° full swing |
2 | maximum workingheight | ≥30m |
3 | Maximum working range | ≥18m |
4 | The boom is raised at a rated height and rotated for a 90 ° time | ≤105s |
5 | advanced technique | The boom is equipped with an intelligent control system. |
6 | Working bucket rated load | ≥360kg |
7 | Recovery time of the boom (ladder) | ≤8 .5min |
8 | slewing gear | Motor drives the reducer to achieve continuous 360 ° rotation. The rotary mechanism is composed of planetary reducer with brake and hydraulic motor. The overall structure is compact, easy to repair,small size and light weight. Normally closed brake adopts upper type friction Narrow spring compression, braking torque is large, rapid and reliable braking. |
(5) Fire-fighting cannon | ||
2 | installation site | Front end of the work bucket, water / foam two electric remote control fire cannon. |
3 | ▲ rate of flow | ≥50L /s |
4 | ▲ Test the injection pressure | ≤1MPa |
5 | ▲ range | Water at 65m . |
6 | Remote control distance | 100 m wireless remote control. |
7 | corner | Hor izontal left and right swing angles> 46 ° and pitch angles> -40~ + 90. |
(VI), Pipeline system | ||
1 | Pipe material | Get off : stainless steel pipe + cast aluminum pipe ; Car board : telescopic water pipe, aluminum alloy seamless pipe ; Work bucket pipe, stainless steel pipe, soft connection pipe, stainless steel wire woven metal corrugated hose. |
(7) Car body and equ ipment box | ||
1 | railway carriage | The surface of the carriage is painted with fire red paint. In order to ensure the safety of night work, the body is equipped with fluorescence that meets the requirements of safety standards Reflective belt. |
2 | pigment | According to GB 7258-2017 and GB / T 3181-2008 R 03 red ;The top bar and the tank bar are bright white. |
3 | roll-up door | Using light and high quality aluminum alloy, large face rolling shutter door, flexible opening and closing, good sealing, low noise, beautiful appearance, light and reliable. The top is equipped with a diversion groove, equipped with sealing strip around, with good rain and dustproof sealing performance. Equipped with tie bar lock handle, one-point strap and two-point fixing seat ; and equipped with sensors,can pass through the cab Know the opening and closing state of the rolling shutter door |
4 | Equipment box structure | The skeleton is all aluminum alloy frame welding structure, the outer skin is aluminum alloy plate bonding technology; the interior equipment skeleton is made of aluminum alloy profile welding structure, which can flexibly layout the equipment box structure according to the requirements of the buyer Use rate. |
(8), Other requ irements |
1 | electrical system | Round alarm lights are installed on the top of the cab, and alarm, visual reversing monitor and reserved vehicle station interface are installed in the cab, Automatic out of the charging device, the work bucket installed anemometer, the work bucket overload alarm |
2 | Safety and security protection system | Horizontal leg action safety function: no contact induction switch, used to detect the vertical leg recovery state. The vertical leg movement is prohibited when the vertical leg is not withdrawn; Soft leg condition safety function: no touch induction switch, used to detect the leg support ground condition. All action on the bus is prohibited ;Horizontal leg full extension state safety function: no contact induction switch, used to detect whether the horizontal leg is in the whole body state, if not in the full extension state when the arm (ladder) frame operation range is limited ;Leg horizontal state safety function: the dual-axis inclination sensor is used to detect the horizontal tilt Angle of the car, providing sampling data for automatic leveling and realizing automatic leveling.At the same time, real-time monitoring of the level off, the tilt Angle of the car beyond the range ;Safety function of the arm back : the middle switch is used to detect the rotation position of the car, and the fall is not allowed when the arm (ladder) frame is not in the middle state ;Safety function of interlock on and off the bus : when the leg is not deployed to the operating state, it is forbidden to get on the car, and the leg action is prohibited when the arm (ladder) frame does not fall back ;Safety function of the working range of the boom : monitor the working position of the arm (ladder) frame in real time through the length and Angle sensor. When the position of the arm (ladder) frame, the arm (ladder) frame reaches the edge position of the operating range. Asguarantee the arm (Ladder) frame is within the scope of safe operation;Work bucket collision prevention safety system : work bucket ultrasonic radar sensor detects the distance between the work bucket and thebuilding The work bucket is prohibited to move near the building. |
I | Equipment name | quantity | unit | remarks |
1 | Fire-fighting hose type 20 | 4 | SETS | Φ 80X 20M |
2 | Fire-fighting hose type 20 | 4 | SETS | Φ 65X 20M |
3 | dry-chemical fire extinguisher | 1 |
| Chassis with |
4 | Water collector | 1 | piece | |
5 | Water suction tube wrench | 2 | piece | |
6 | rubber hammer | 1 | pcs | |
7 | Ground fire hydrant wrench | 1 | piece | |
8 | Diverse diameter interface is 80 / 65 | 2 | individ ual | |
9 | The belt bridge | 2 | assista nt | |
10 | Water belt wrapped cloth | 8 | pcs | |
11 | Water suction tube DN 150 | 4 | pcs | 2 Meters / root |
12 | Water filter: FLF 150 | 1 | pcs | |
13 | Wheel brake block | 2 | pcs | |
14 | Pump-suction tube DN 50 | 1 | pcs | |
15 | ABC spanner | 2 | pcs | |
16 | Air valve emergency manual wrench | 1 | pcs | |
17 | Leg pad | 4 | pcs | |
18 | Damable parts of hydraulic system | 1 | pcs | |
19 | driver's tool | 1 | pcs | |
20 | spare tire | 1 | pcs | |
21 | inner hexagon spanner | 1 | pcs | |
22 | Foam gun | 1 | pcs | |
23 | Full-body safety belt (with hook) | 4 | pcs |
