XGF5340JXFYT53/G3
-
DONG RUN ZE
-
8705301000

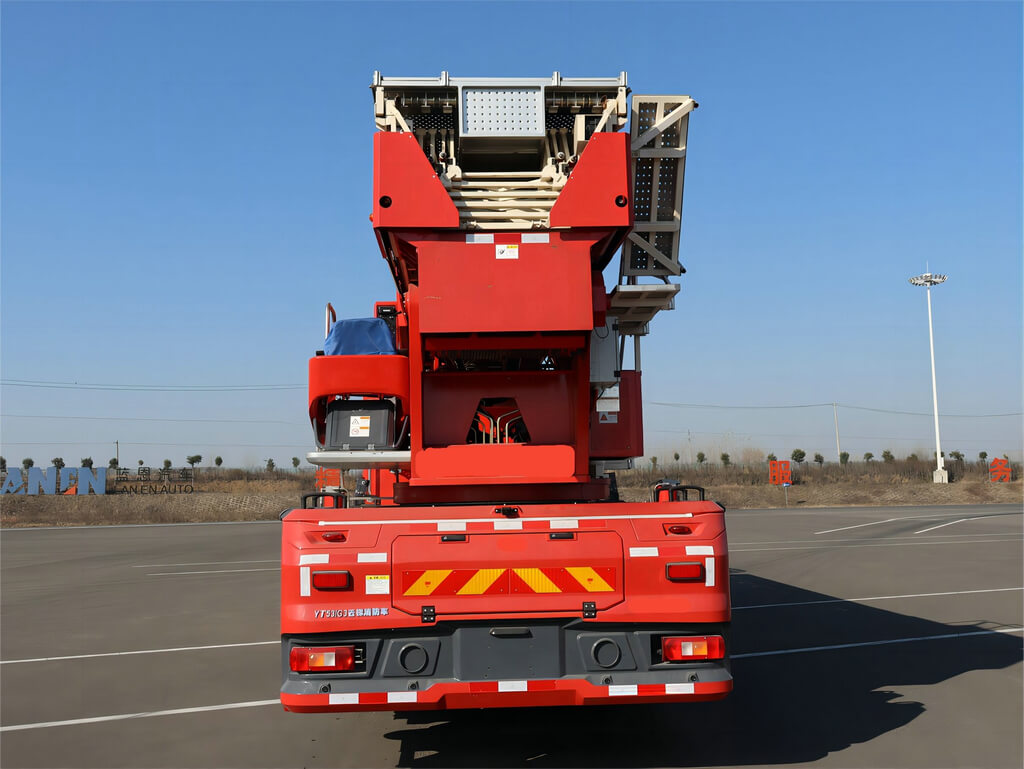

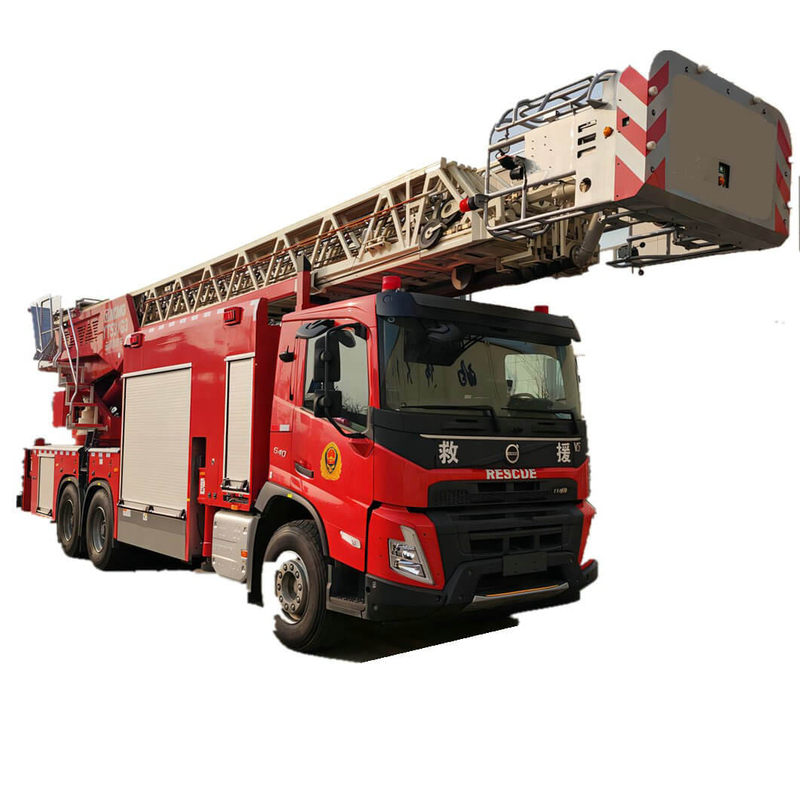

Volvo 53M Ladder Fire Truck
vehicle for fire fighting. Tank volume :2900L
YT53m ladder, fire pump, fire cannon
Vehicle parameters | |||
size: | About: length 12000mmx width 2500mmx 4000mm height | Total load quality: | ≥29000kg |
Hpower: | ≥300kw | ||
Can | Single row | Number of passenger | 1 + 1 crew member |
maximum speed: | ≥90km/h | Cannon rated flow: | ≥60L/s |
Tank capacity: | Water 3000L, foam 2000L | Fire Cannon range: | Foam 60m, water 65m |
maximum workingheight: | ≥53m | Maximum range of work: | ≥18m |
Platform rated load: | 360kg, 90kg when fire Pumpper working | maximum total mass: | ≥33000kg |
Aerial ladder fire truck Main technical parameters
Overall dimensions: | 12990×2510×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 33700(Kg) | ||
Net | 30650(Kg) | Rated load mass: | 2900(Kg) |
Axle Load: | 8800/12450/12450 | Wheelbase: | 4900+1370(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/55 r22. 5/315/70 r22. 5385/65 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3 |
Front wheel base: | 2109(mm) | Rear wheel base: | 1837/1837(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D13K540 EU6; D13K540E | Volvo Powertrains; Volvo Power Train Volvo Power Train | 12777; 12777 | 406; 406 |

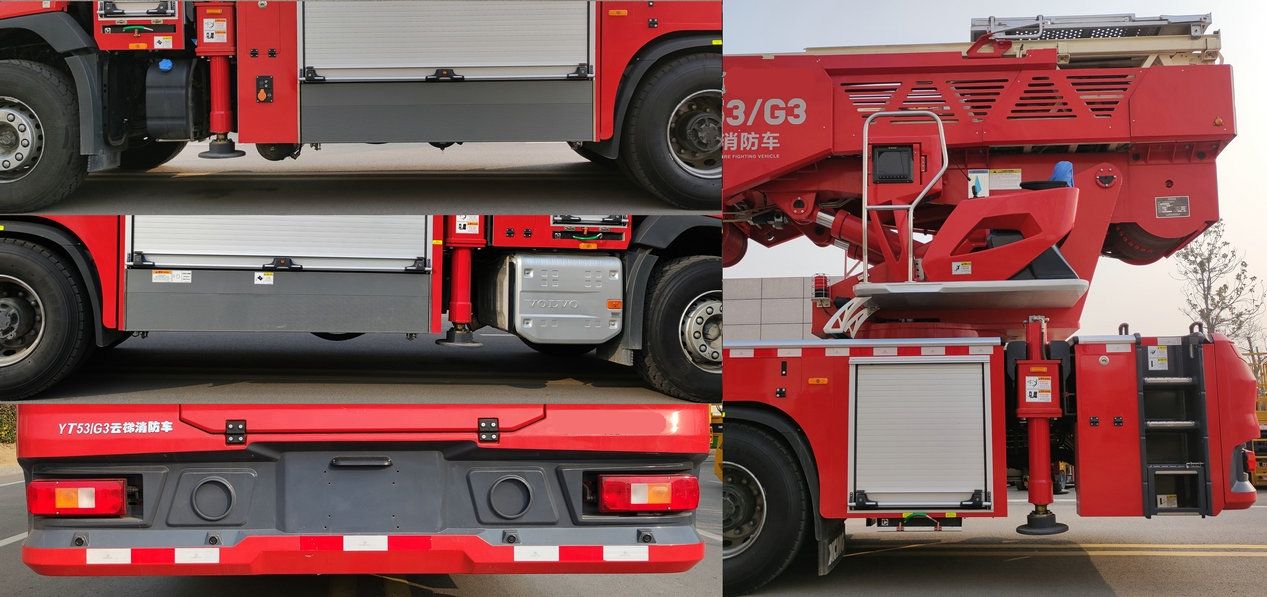

This model is a special operation vehicle for fire fighting. Tank volume :2.900 cubic meters, tank size :1480×1700×1200mm. Integrated side and rear protection structure, rear protection height from the ground :480mm, front :1600mm, rear :165mm.EBS manufacturer is KNORR, model EBS7 ECU. The main special devices are ladder, fire pump, fire cannon. The engine has a maximum net power of 405kW. | |||
