XZJ5317JXFYT60/C1, XZJ5311JXFYT60/K1
-
DONG RUN ZE
-
8705301000

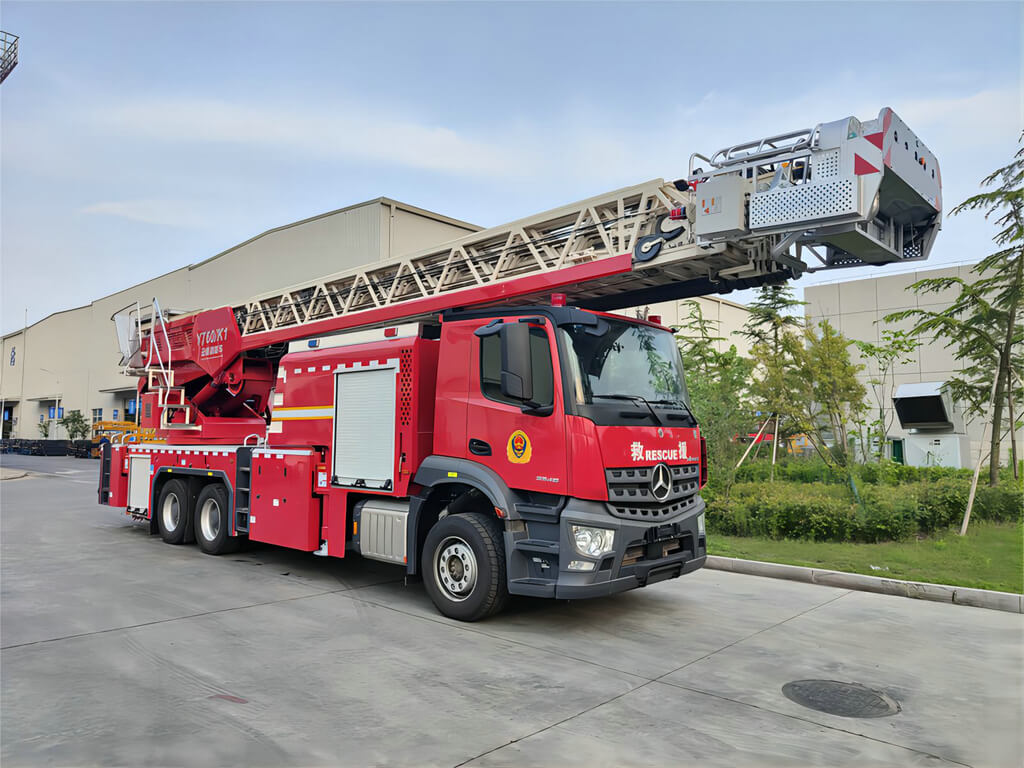

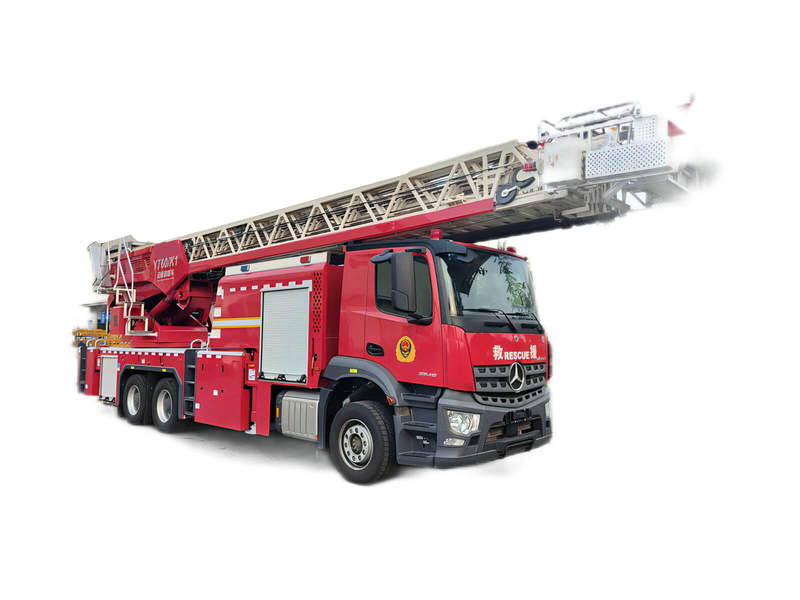

Arocs 6X4 YT60 Aerial Ladder Fire Truck
Aerial ladder fire truck Main technical parameters
Overall dimensions: | 13710×2550×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 30700(Kg) | Net | 30550(Kg) |
Approach Angle/Departure Angle: | 15/6 (°) | Front/rear overhang: | 1500/3290(mm) |
Axle Load: | 7050/11800/11850 | Wheelbase: | 5100+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 85(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/55 r22. 5/315/70 r22. 5/315/70 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4 |
Front wheel base: | 2140(mm) | Rear wheel base: | 1804/1804(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.5-54 | Daimler AG | 10677 | 320 |
This model is a special operation vehicle for fire fighting. The vehicle is an integral side and rear protection structure, the rear protection height from the ground :308mm, the front protection :2215mm, the rear extension :255mm. The ABS system model is EB5006, the manufacturer is WABCO. The main special equipment are ladder, fire pump, fire cannon. The model was powered by an OM470LA.5-54 engine with 385/55R22.5 and 315/70R22.5 tyres. The engine maximum net power of 315 kw. | |||
Euro 6
Overall dimensions: | 13650×2550×4000(mm) | Fuel Type: | Diesel oil |
Total mass: | 31200(Kg) | Net | 31050(Kg) |
Approach Angle/Departure Angle: | 17/7 (°) | Front/rear overhang: | 1500/3295(mm) |
Axle Load: | 7000/12100/12100 | Wheelbase: | 5100+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 90(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 385/55 r22. 5/315/70 r22. 5/315/70 r22. 5385/65 r22. 5/315/80 r22. 5/315/80 r22. 5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 4/4 |
Front wheel base: | 2140(mm) | Rear wheel base: | 1804/1804(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
OM470LA.6-56 | Daimler Trucks AG | 10677 | 336 |
This model is a special operation vehicle for fire fighting. Integrated side and rear protection structure, rear protection height from the ground :410mm. Front :2135mm, rear :270mm.ABS manufacturer is WABCO Automotive Control System (China) Co., LTD., model ABS-E 4S/4M. The main special equipment are ladder, fire pump and fire cannon. Maximum net engine power is 335kW. Strobe light color optional. | |||

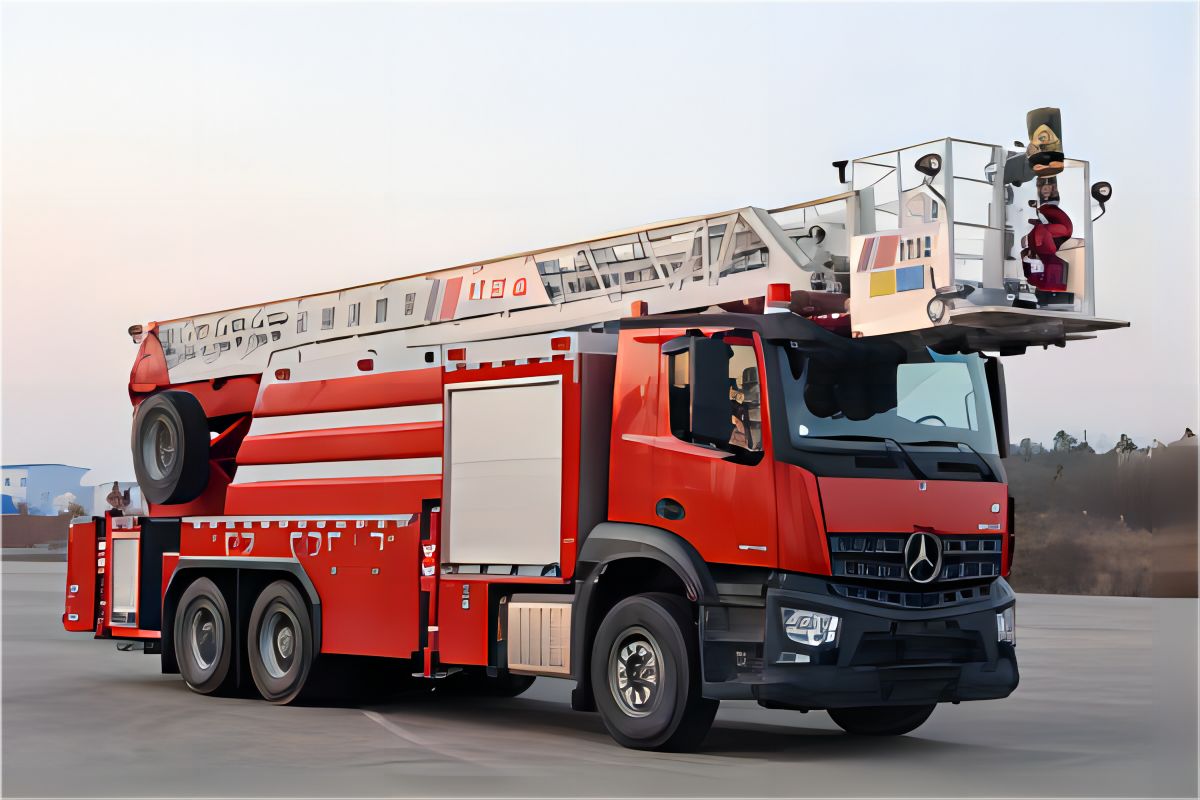

Arocs 32M Aerial Ladder Fire Truck
