ZXF5190JXFYT22/ST5 ,ZXF5190JXFYT22/ST6,ZLF5190JXFYT25
-
DONG RUN ZE
-
8705301000

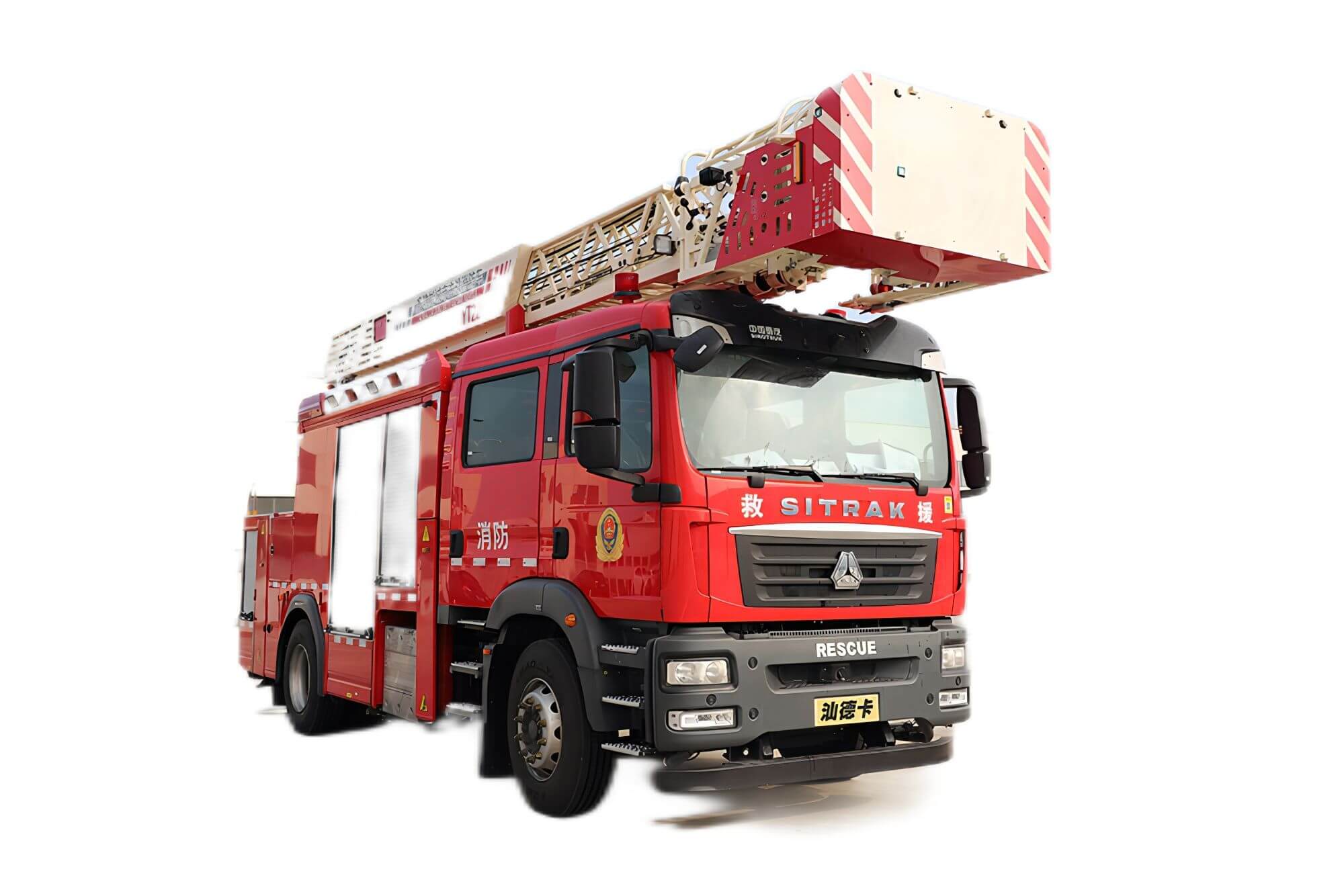

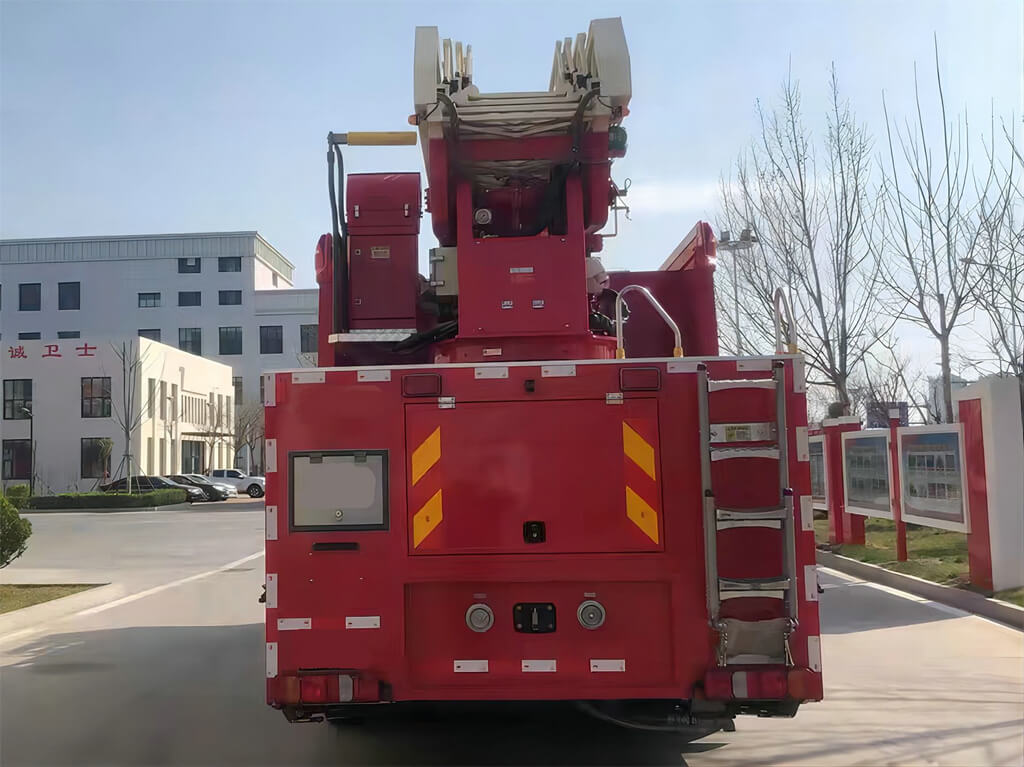

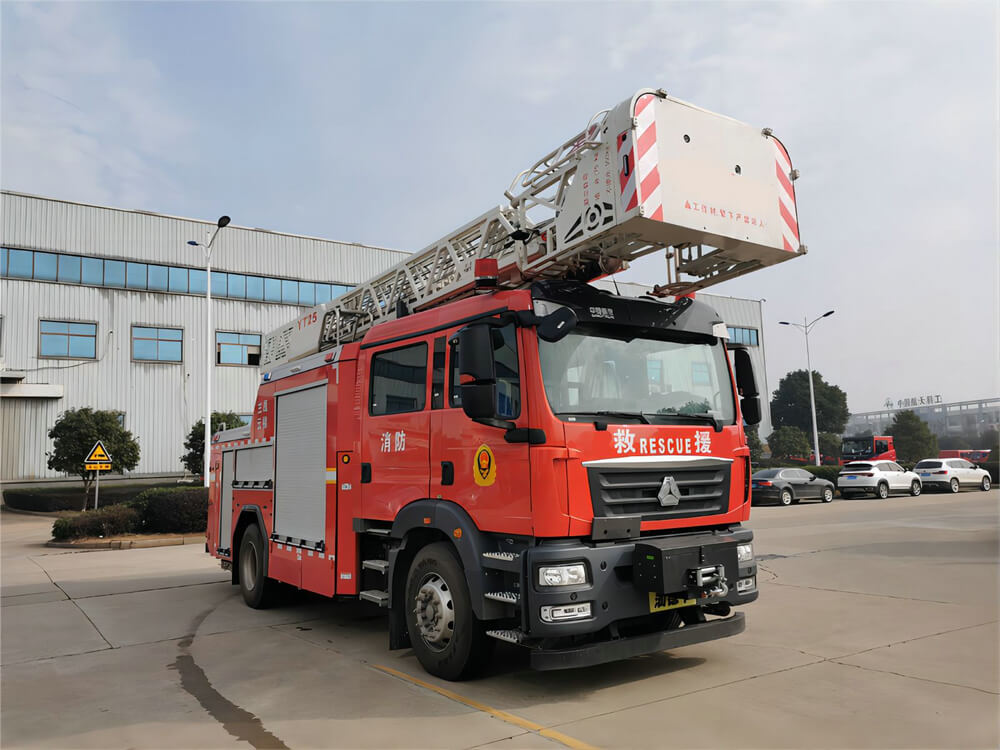

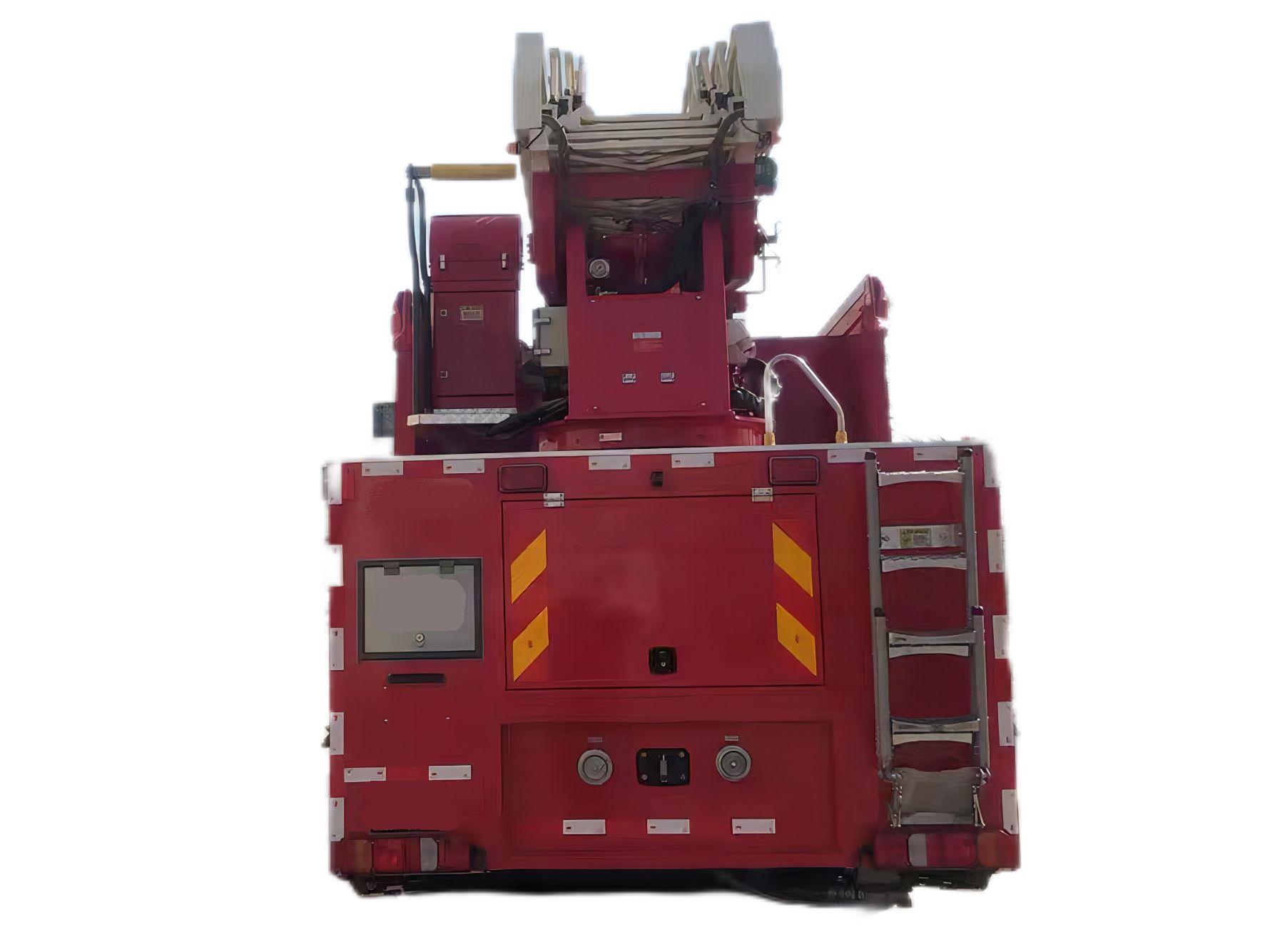

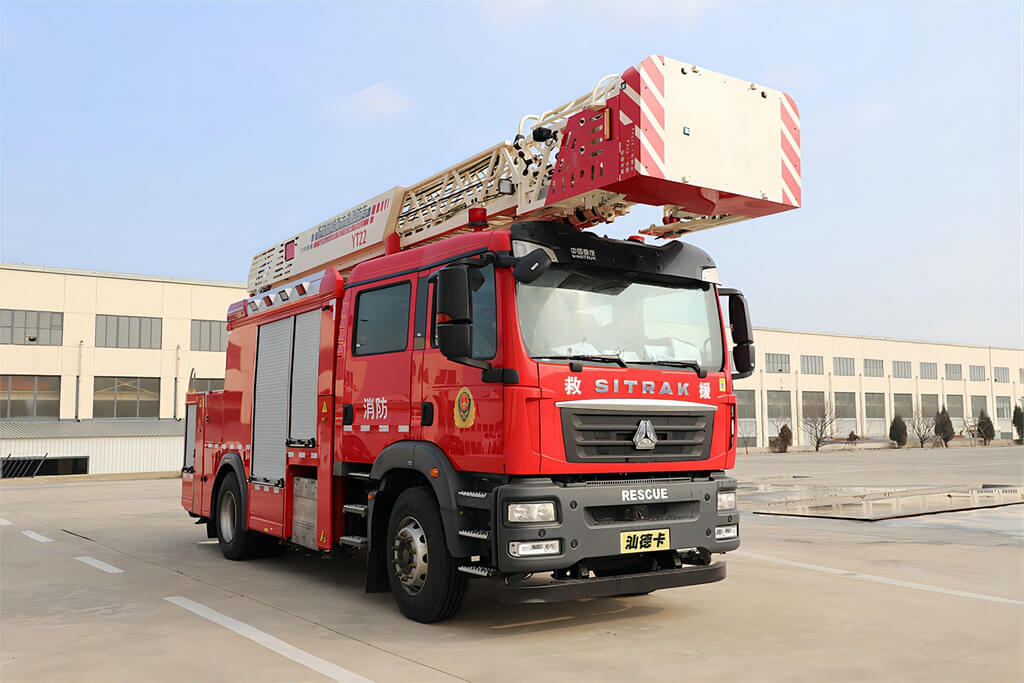

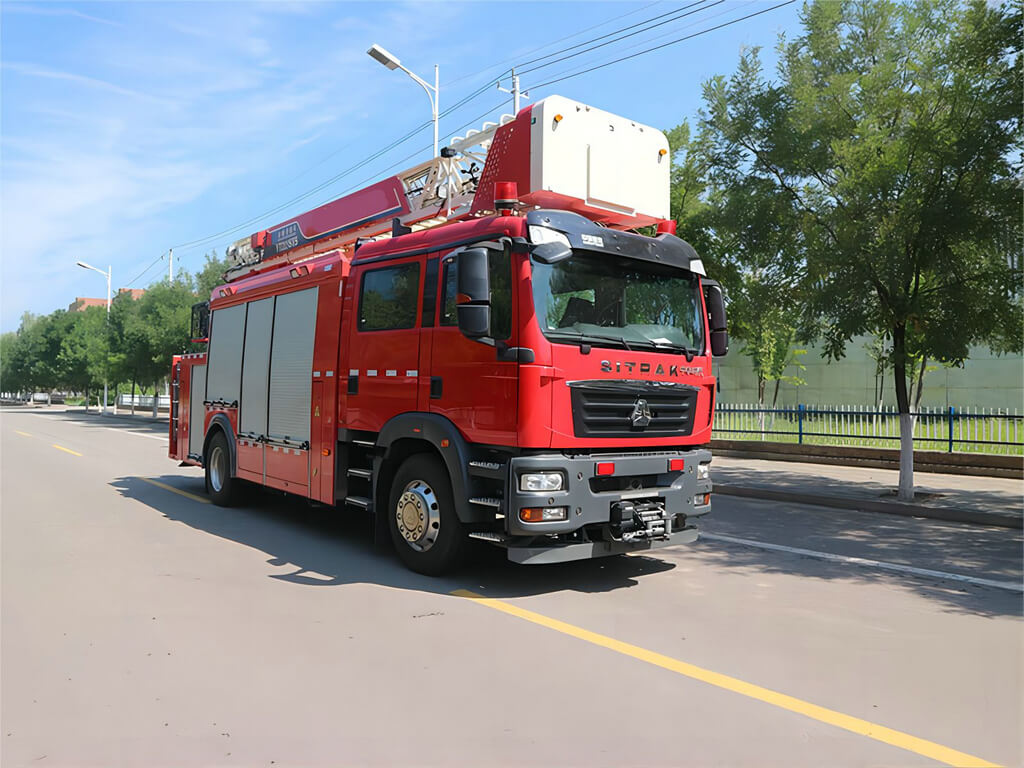

SITRCK E6 Aerial Ladder 22M Fire Fighting Truck
Water Tank 2000L, Foam Tank :500L
22m ladder, fire cannon Pump Flow 50L/s
SITRAK Chassis model: ZZ5206N471GF5
| Vehicle model | ZXF5190JXFYT22/ST5 | |
|---|---|---|
| Chassis model | SITRAK、ZZ5206N501GE5 ( EuroⅤ) | |
| Engine power | 248kW | |
| Dimension | 9300×2540×3950 | |
| Liquid carrying amount | Water:1000；Foam:300 | |
| Operational altitude | 22m | |
| Fire pump flow | 50L/s | |
| Fire monitor flow | 48L/s | |
| Winch | ChampionN12000XF-24V，50kN | |
Aerial ladder fire truck Main technical parameters
Overall dimensions: | 9000×2540×3950(mm) 8825×2505×3950(mm) 9300×2540×3950(mm) | Vehicle type: | |
Total mass: | 19490(Kg) | Fuel Type: | Diesel oil |
Net | 16540(Kg) | Rated load mass: | 2500(Kg) |
Approach Angle/Departure Angle: | 16/11, 12/11 (°) | Front/rear overhang: | 1450/2160(mm) |
Axle Load: | 7070/12420 | Wheelbase: | 4500,4700,4200,5000,5200,5600,5800,3900,6000(mm) |
Number of shafts: | 2 | Maximum speed: | 95(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 315/80 r22. 5295/80 r22. 5, 12 R22.5, 12.00 R20, 11.00 R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 2/3 + 2, 3/3 + 2, 3/9 + 8, 11/9 + 8, 4, 5 |
Front wheel base: | 1998,2035 (mm) | Rear wheel base: | 1850(mm) |
Engine parameter
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.33-60; WP8.350 E61. MC11.40-60; MC07.34-60; MC07.31-60; MC07.27-60; MC07H.29-60; MC07.33-60; WP7.300 E61. MC07H.35-60; WP7.270 E61. MC11.40-61; WP7H320E62; MC07H.31-61; MC07H.35-61; WP8.350 E62 | China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 7360; 7800; 10518; 6870; 6870; 6870; 7360; 6870; 7470; 7360; 7470; 10518; 6800; 7360; 7360; 7800 | 240; 257; 297; 251; 228; 202; 213; 240; 220; 257; 199; 297; 235; 228; 254; 257 |
A : Total tank volume :2.500 cubic meters, tank volume :2.000 cubic meters, tank size :1240×1200×1400mm, foam tank volume :0.500 cubic meters, foam tank size :520×2000×500mm. Integrated side and rear protection structure, rear protection height from the ground :498mm, forward :890mm. EBS is manufactured by ZF Commercial Vehicle Systems (Qingdao) Co., LTD. The model is EBS3. The main special devices are ladder frame and fire cannon.; B: Total tank volume :2.35 cubic meters, water tank volume :2.0 cubic meters, water tank size :755×2200×1248mm, foam tank volume :0.35 cubic meters, foam tank size :865×700×598mm. Integral side protection structure, rear protection device material :Q2345B, section size :140×58mm, connection with the vehicle: bolt connection, rear protection height :496mm, forward extension :710mm. EBS is manufactured by ZF Commercial Vehicle Systems (Qingdao) Co., LTD. The model is EBS3. The main special equipment are ladder, fire cannon, compressed air foam system, winch. C: Total tank volume :1.294 cubic meters, tank volume :1.000 cubic meters, tank size :700×1150×1300mm, foam tank volume :0.294 cubic meters, foam tank size :470×500×1300mm. Integrated side and rear protection structure, rear protection height :458mm, forward extension :230mm, rear extension :80mm. The ABS manufacturer is WABCO Automotive Control Systems (China) Co., LTD. The model number is 4460046300. The main special devices are ladder frame and fire cannon. | |||
