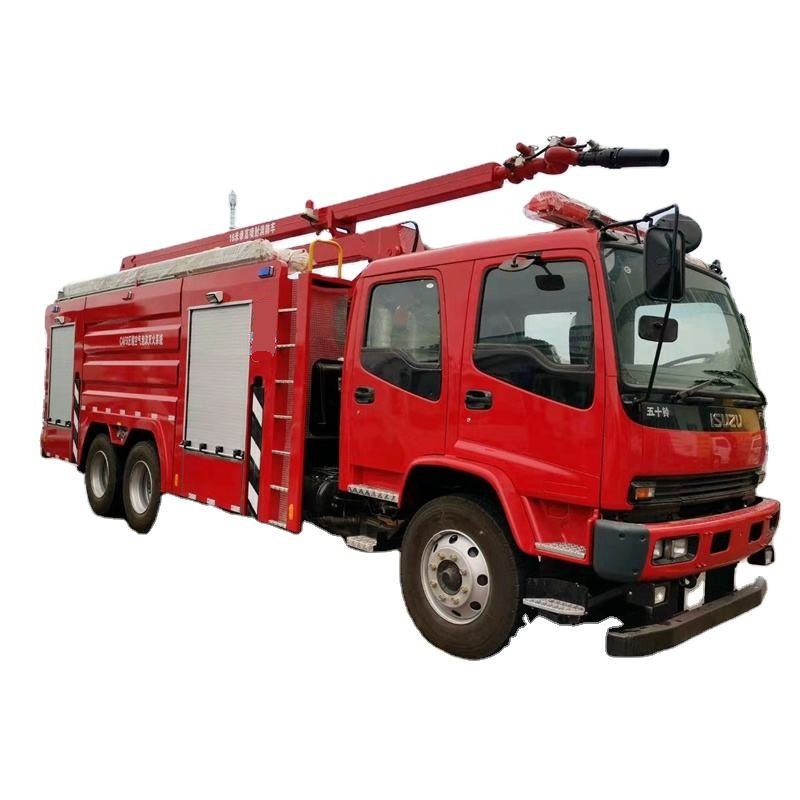

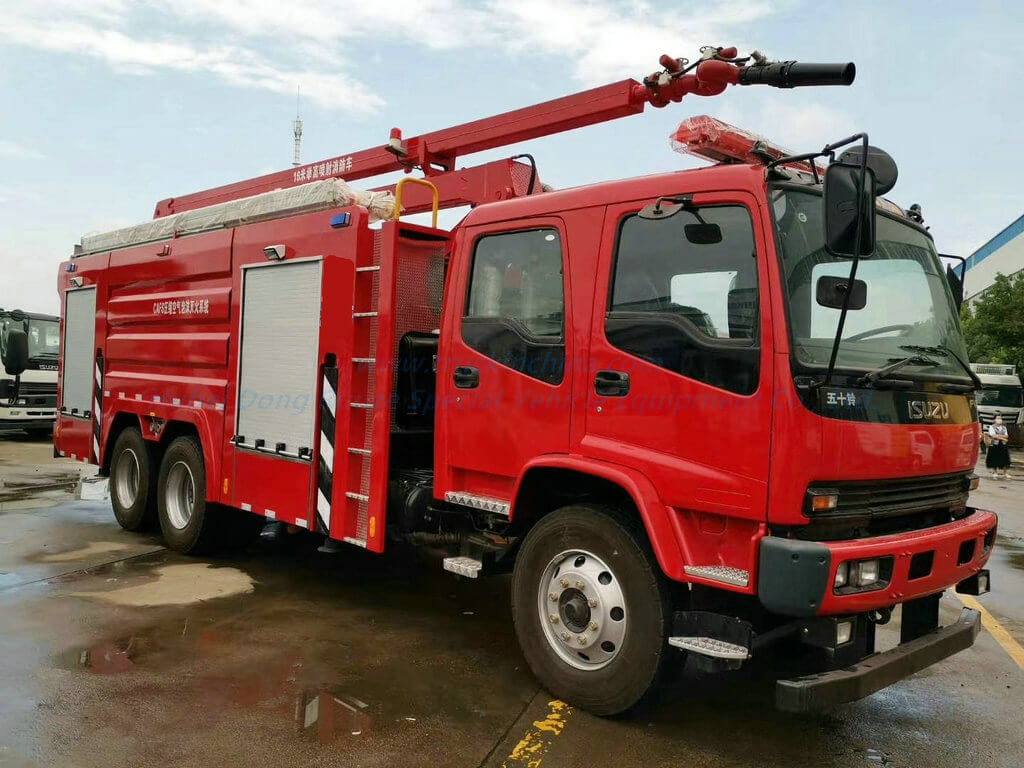

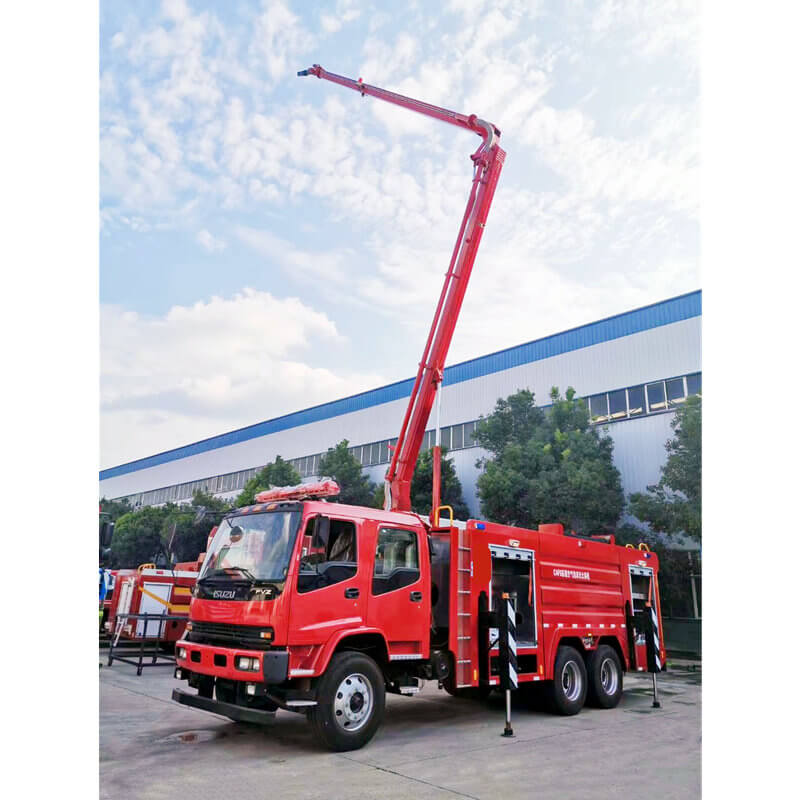

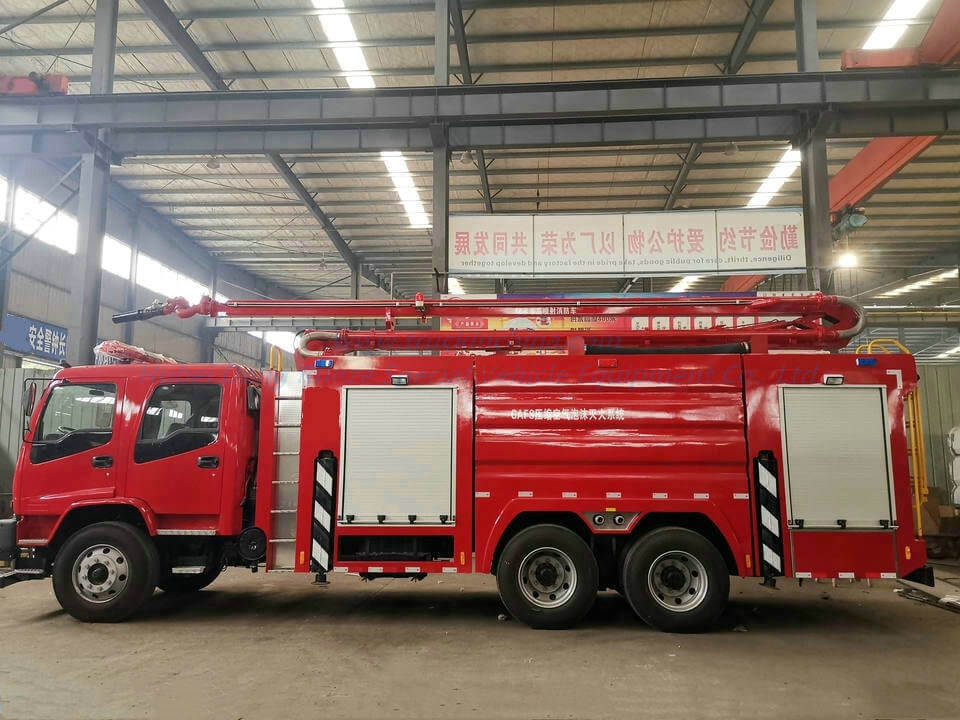

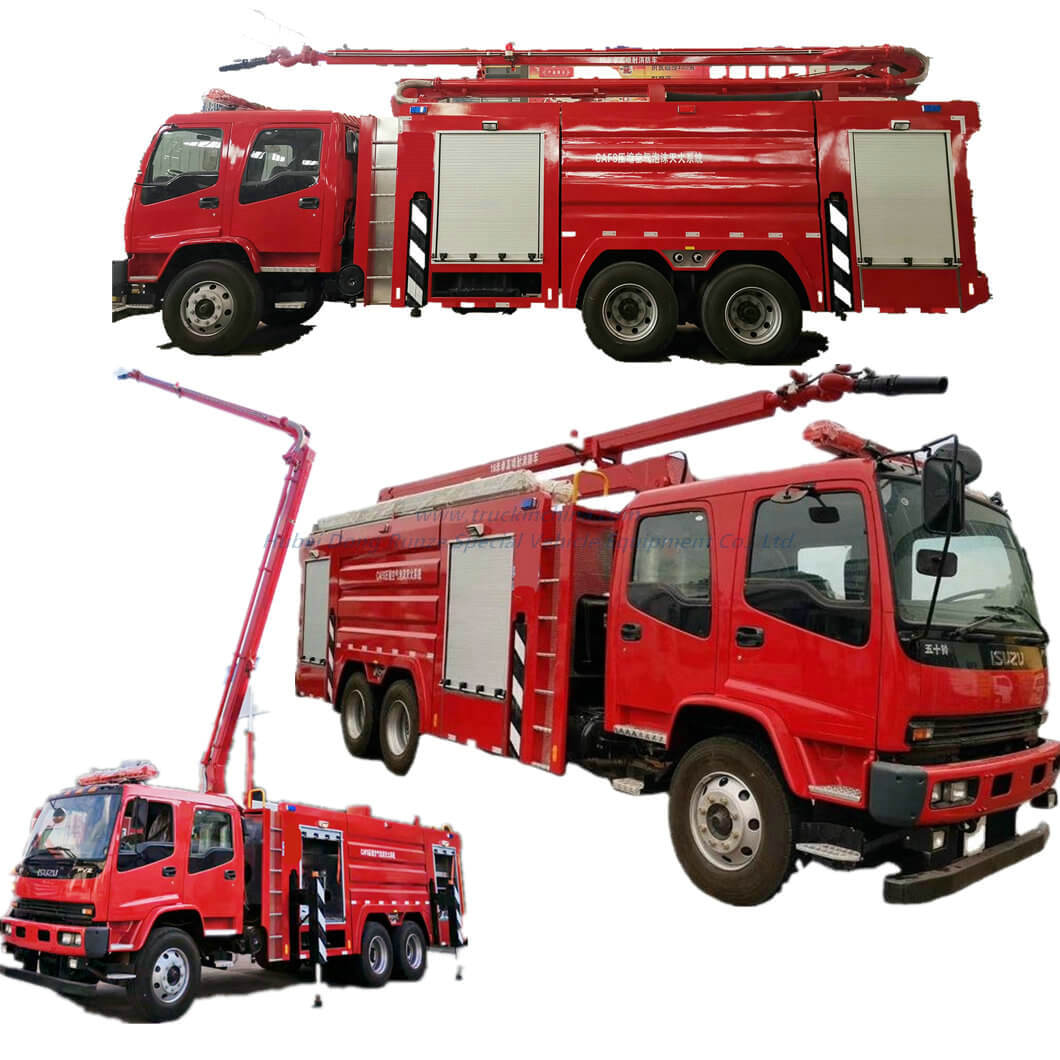

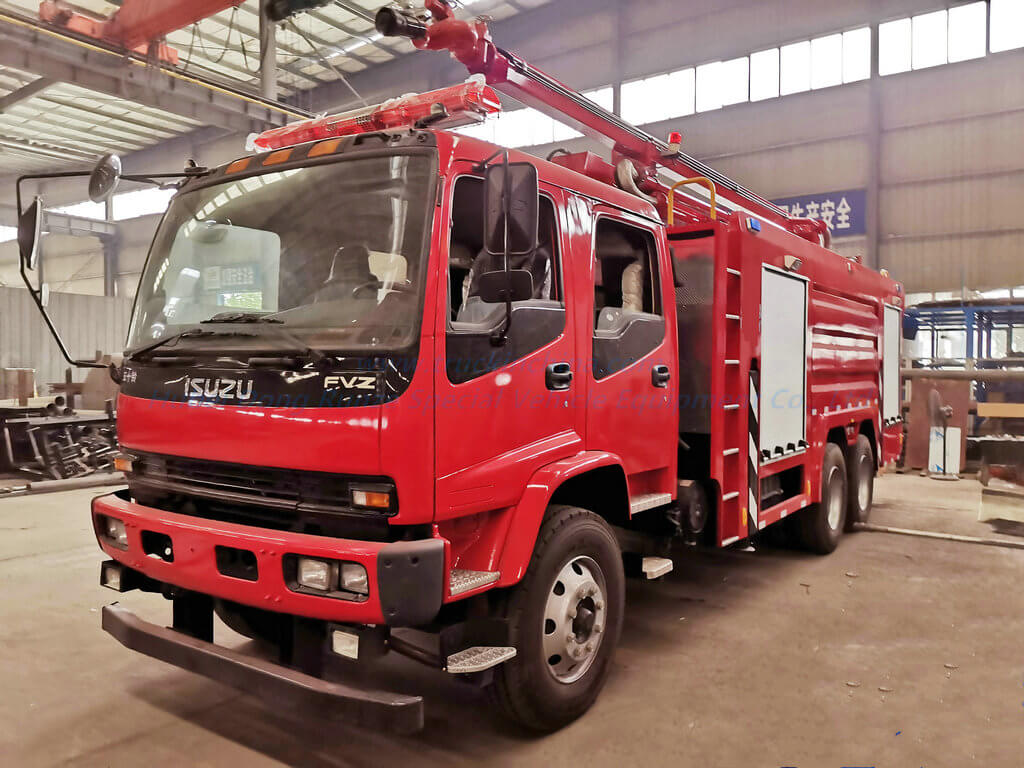

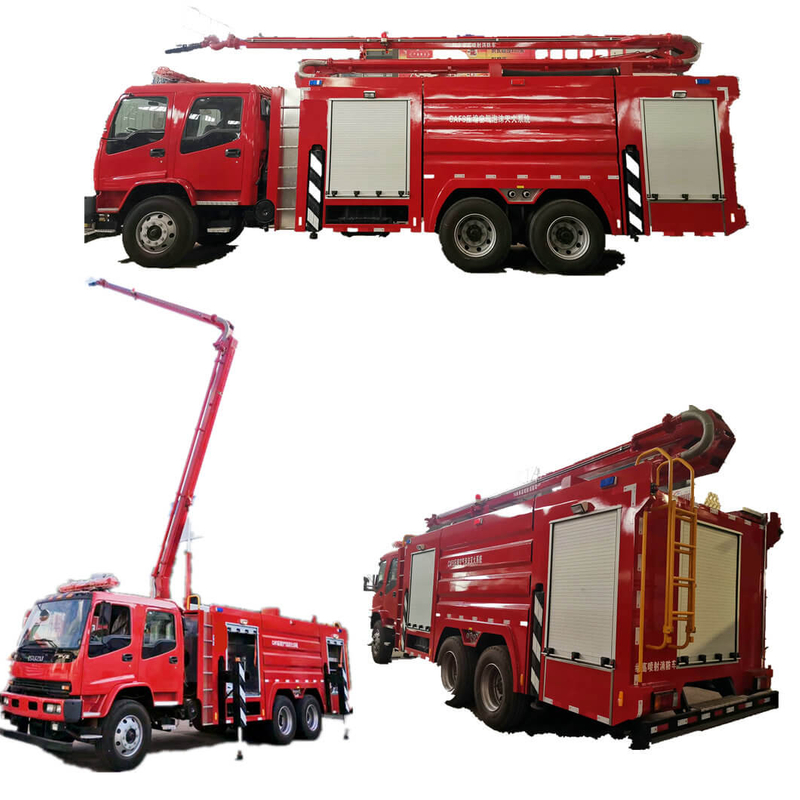

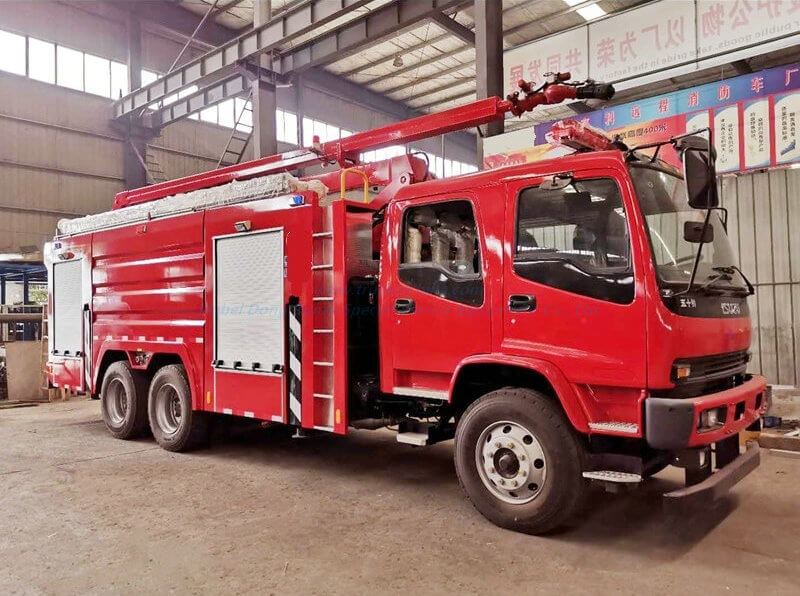

ISUZU FVZ 18 M High Jet Fire Fighting Truck Tower Fire Truck
High Jet FVZ Water Foam Fire Fighting Truck iSUZU with Hydraulic Lifting 18m Jib Telescopic Boom
high-quality chassis to adapt to various modifications: rich engine power specifications, wheelbase series, combined with more than 10 kinds in medium tonnage Modified truck chassis, can meet the needs of various types of top-loading, wide and straight frame, convenient for all kinds of top-loading layout, quick response to the user to partially strengthen the frame; fuel tank muffler and other chassis components can be changed according to needs, easy to modify Arrangement.
| High Lift Arm Jetting System | |
| Model | JP18 |
| Arm lifting height | 18 meters |
| Type | Hydraulic 2 section arm |
| Nozzle | High pressure water jet nozzle |
| Other | With camera |
| Pump | |
| Model | CB10/80 |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Water diversion time | <40s |
| Water suction depth | 7m |
| Water Tank | |
| Volume | 12000 liters |
| Material | stainless steel 304 |
| Manhole | One unit |
| Flow valve | One unit |
| Fire Monitor(shooting nozzle) | |
| Model | PS50 water jet nozzle |
| Pressure pump | 1.0MPa |
| Flow | 50L/s |
| Range | >60m |
| Rotation angle | 360° horizontal |
| Other Config. | |
| Fire pump compartment | One unit, with three sets aluminum shutter doors |
| Fire tool compartment | 2 sets, aluminum shutter doors |
| Fire tool | 21 sets |
| Lighting light | One unit, at rear top of truck |
| Side warning light | 8 pcs |
| Spare tire | One unit |
| Water suction hose | 2 pcs, 6m long ruber hose per pcs |
| Ladder | One set |
| User manual | One pcs |
| Reflective stickers | Factory standard |
| Logo painting & Color | Customzied |
ISUZU CHINA FVZ Lorry Truck Specifications:
| Truck Brand | QingLing |
Driving Type | Left Hand Drive |
Overall Dimension（L*W*H） | 11660*2530*3070mm |
Box Dimension（L*W*H） | 9300*2430*600mm |
GVW | 25000Kg |
Curb Weight | 10200Kg |
Axle Loading: | 7000/18000 |
Wheelbase | 5700+1300mm |
F/R Track | 1960/1855/1855 |
Approaching Angle/Departure Angle(o) | 15/9 |
Tire No. | 11（Including Spare Tire） |
Tire | 11.00R20 18PR |
Color: | Optional |
Max Speed（Km/h） | 105Km/h |
Engine | |
Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 6 Cylinders |
Emission Route | DPF |
Model | 6HK1-TCH |
Fuel Type | Diesel Engine |
Max output | 219Kw |
Horsepower： | 301Hp |
Max Torque | 980N.m |
Emission Standard | Euro V |
Displacement: | 7790ml |
Transmission: | |
Model: | FAST 9JS119TA |
Type | Manual |
Forward/Reverse | 9/1 |
Brake System: | |
Service Brake | Dual Circuit Compressed Air Brake |
Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
Auxiliary System | Engine Exhaust Brake |
Electrical System | |
Battery | 2*12-70Ah |
Alternator | 28V-70Ah |
Starter | 24V/7.5Kw |
Cab | |
One Row and Half Cab with Air Conditioner | |
Other Equipment: | |
Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking，Data Recorder，Vehicle Speed Light | |
