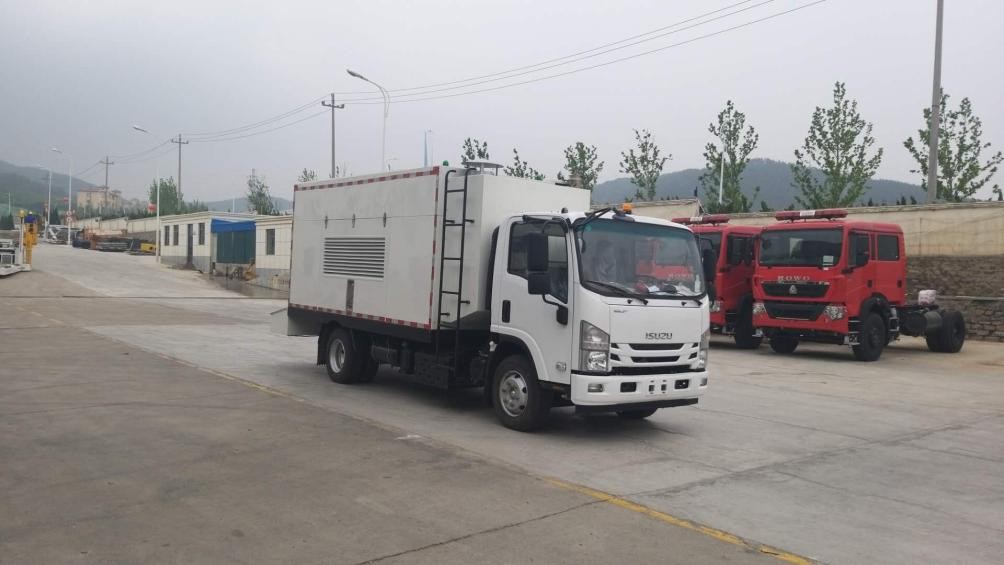

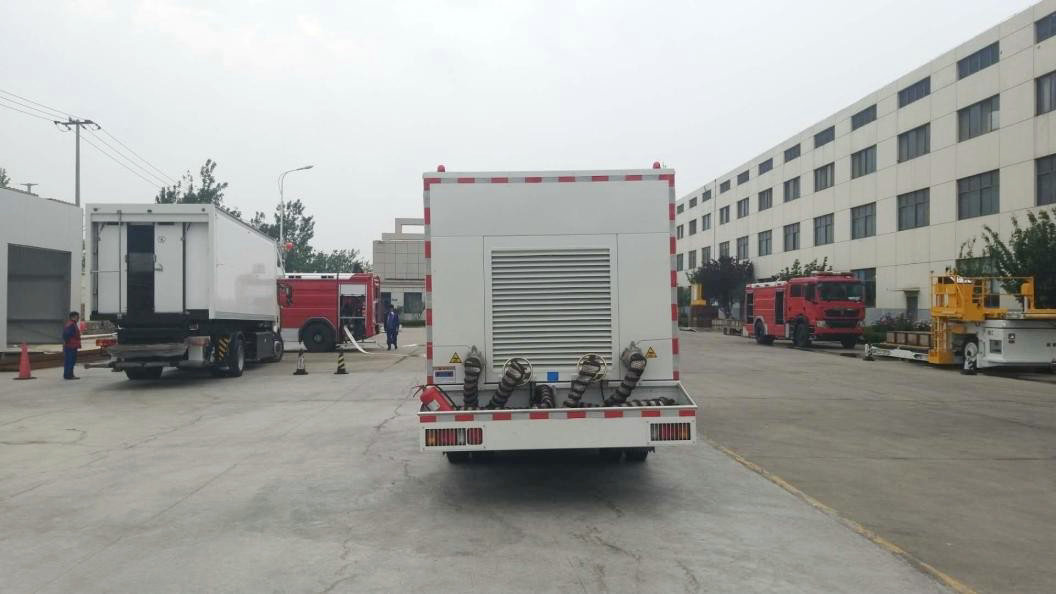

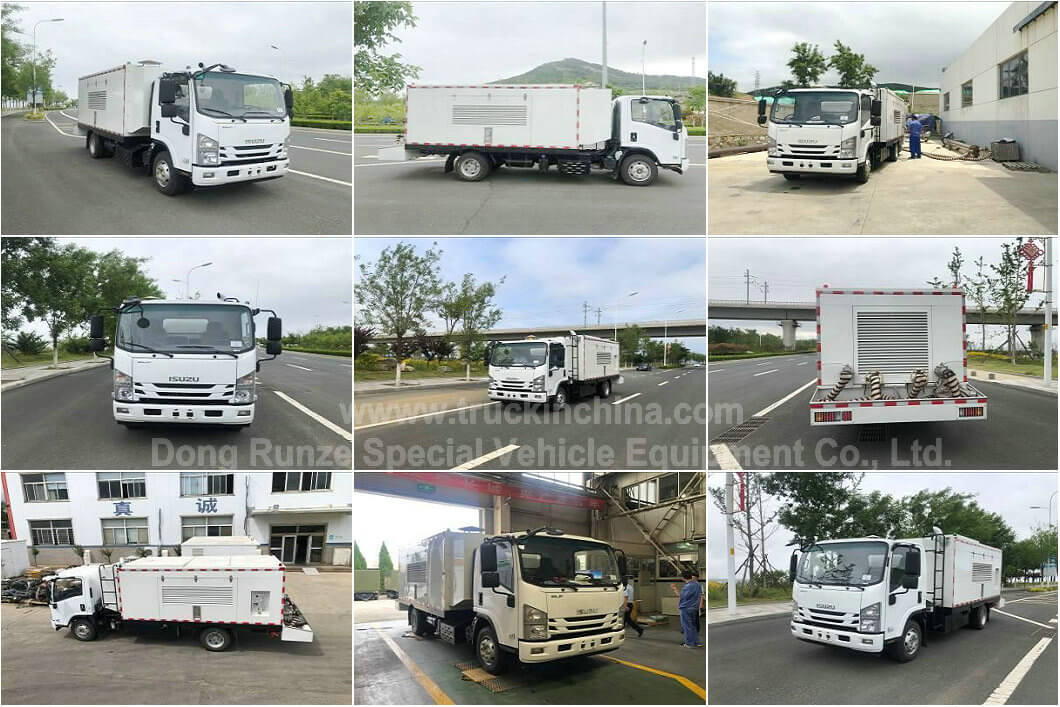

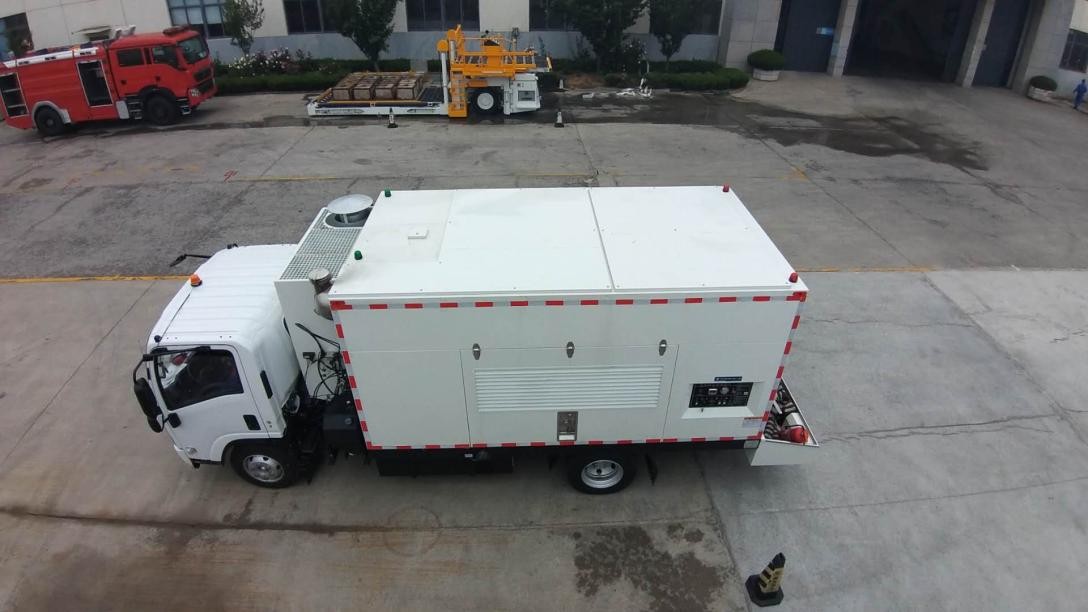

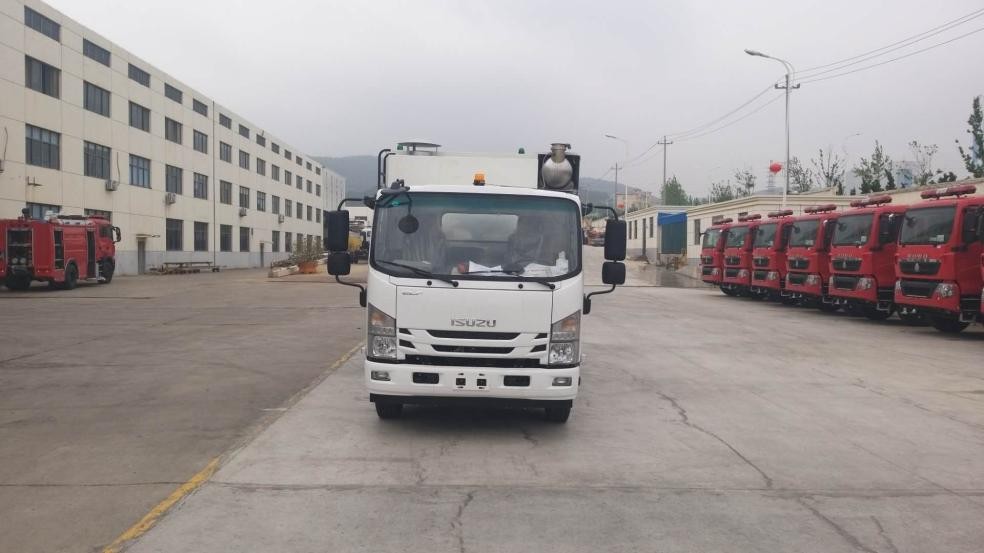

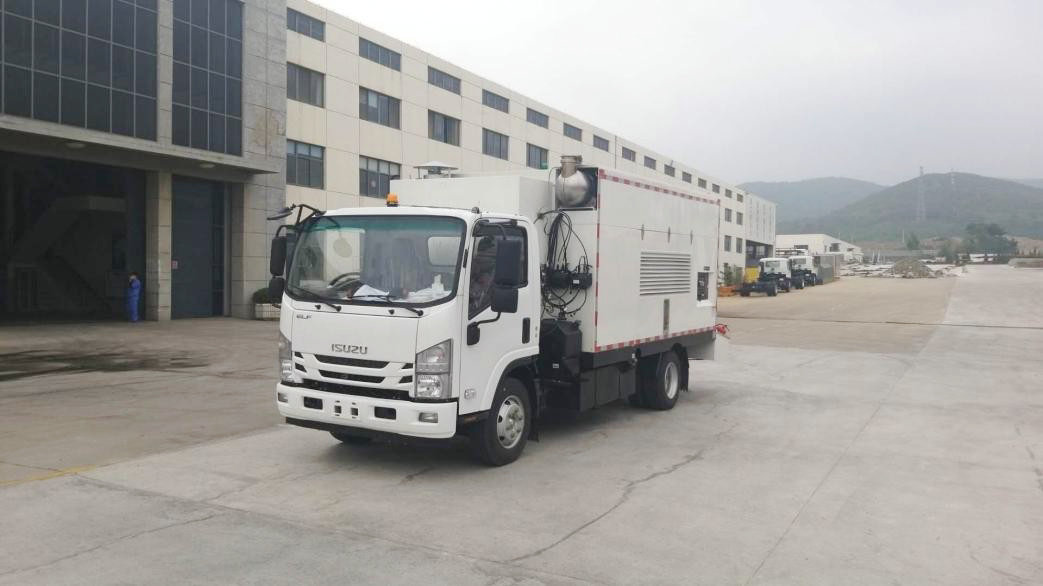

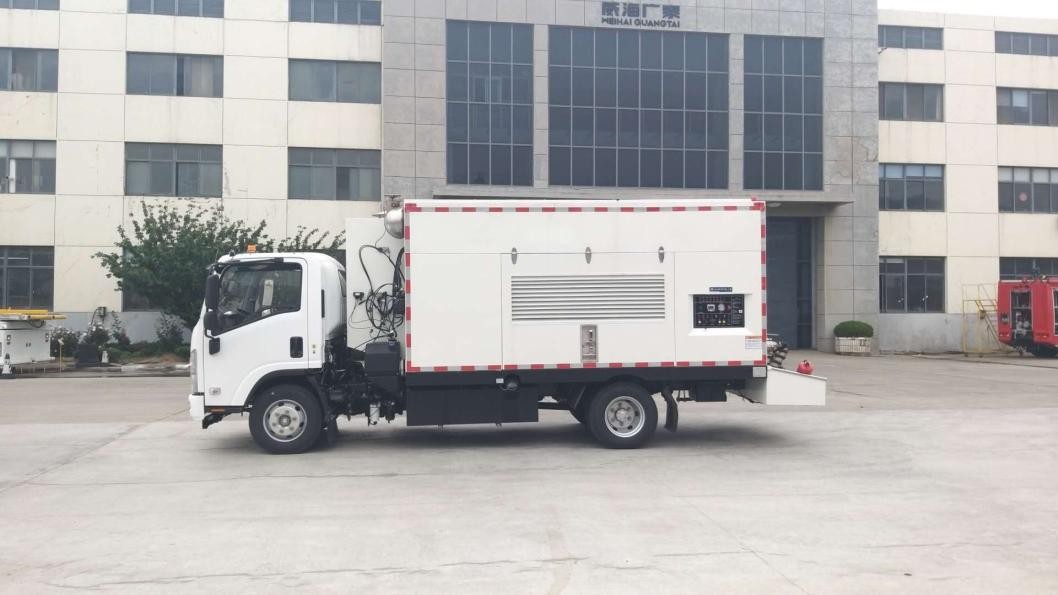

ISUZU Aircraft Ground Source Vehicle Air Start Unit with CD42S Compresor 300ppm 43.5 psi
ISUZU aircraft jet engine start unit AIRCRAFT LAUNCHED AIR SUPPLY UNIT
Email us for Discount Price
| Quantity: | |
|---|---|
|
| |
- WGAS290 /QL1110ANKAY;TYAS300 /QL1100A8KAY
- ISUZU
- 87059099.90
ISUZU Aircraft Ground Source Vehicle Air Start Unit with CD42S Compresor 300ppm 43.5 psi
Features
Engine: low lube oil pressure, high coolant temperature, over speed
Compressor: low lube oil pressure, high lube oil temperature, safety valve to discharge pressure
High air outlet temperature
Low fuel indication
Emergency stop button
Technical Specifications
Model: WGAS290 /TYAS300
Engine: Cummins diesel engine
Compressor: Aerzen or GHH
Air Start:
Output Flow Rate: 290ppm
Output Pressure: 35~42psi adjustable
Output Air Temperature: Maximum 210°C / 410°F
Air Conditioning
Output Flow Rate: 290ppm
Output Pressure: 25~30psi
Air Flow:
suction pressure of 1 bar absolute
suction temperature of 20°C/68°F
Relative humidity : < 80%
Air Quality: Oil Free
Ambient Operating Temperature: -40°C ~ +50°C
Electrical System: 24V DC
Chassis: Option of Isuzu commercial chassis or trailer mounted
No | Item | Model | Manufacturer |
1 | Work Engine | TCD16.0 V8 | Deutz, Germany |
2 | Chassis | QL1110ANKAY | Qingling Motors Company Limited |
3 | Chassis Engine | 4HK1-TCG61 | Qingling Isuzu (Chongqing) Engine |
4 | Transmission | MLD-6Q | Qingling Motors Company Limited |
5 | Air Compressor | CD42S | Ghh Rand, Germany |
6 | Safety Valve | 0337-K01AKM0050 | Kunkle Valve, Usa |
7 | Air Supply Hose | 1170-40 | Hbd Industries |
8 | Steering Shaft | F033 | Qingling Motors Company Limited |
9 | Drive Shaft | R066 | Qingling Motors Company Limited |
10 | Front / Rear Tire | 235/75R17.5 16PR | Pulin Chengshan (Shandong) Tire |
Applicable aircraft types
Model: WGAS290 /TYAS300
Aircraft: A300, A310, A320, A220, A330, A340, A350, B737, B747, B757, B767, B777, B787, MD11
Item | WGAS290 | ||||
1 | 2 | 3 | 4 | ||
Work engine | Manufacturer | Germany DEUTZ | Germany DEUTZ （DEUTZ AG） | Germany DEUTZ （DEUTZ AG） | Germany DEUTZ （DEUTZ AG） |
Model | TCD16.0V8 | TCD16.0V8 | TCD2015V08 | TCD2015V08 | |
Compressor | Manufacturer | Germany GHH RAND | Germany GHH RAND | Germany GHH RAND | Germany GHH RAND |
Model | CD42S | CD42S | CD42S | CD42S | |
Air supply flow (PPM) | 300 | 300 | 300 | 300 | |
Maximum supply pressure (PSI) | 43.5 | 43.5 | 43.5 | 43.5 | |
Maximum air supply temperature (℃) | ≤220 | ≤220 | ≤220 | ≤220 | |
Other performance | —— | —— | —— | —— | |
Rated speed of operating engine (RPM) | 2100 | 2100 | 2100 | 2100 | |
Chassis engine | Manufacturer | Qingling Isuzu (Chongqing) Engine | Qingling Isuzu (Chongqing) Engine | Qingling Isuzu (Chongqing) Engine | Qingling Isuzu (Chongqing) Engine |
Model | 4HK1-TCG61 | 4HK1-TCG61 | 4HK1-TCG61 | 4HK1-TC51 | |
Engine emissions | Euro 6 | Euro 6 | Euro 6 | Euro 5 | |
Max speed（km/h） | 80 | 80 | 80 | 80 | |
Overall dimension (length × wide × Height) (mm) | 7350×2260×2940 | 7350×2260×2940 | 7350×2260×2780 | 7300×2260×2760 | |
Curb weight (kg) | 8500 | 9400 | 9200 | 9000 | |
Outer diameter of channel circle (mm) | 16000 | 16000 | 16000 | 16000 | |
Chassis | Manufacturer | Qingling Motors | Qingling Motors | Qingling Motors | Qingling Motors |
Model | QL1110ANKAY | QL1110ANKAY | QL1110ANKAY | QL1100A8KAY | |
Gas flow rate: 290 lb/min,
Sustained work output pressure: 25~32 lb/in2
continuous flow aircraft jet engine start unit provides pressur-ized air to start jet engines. The start air pressure is adjustable up to 42 psig and delivers 180PPM/290PPM pounds per minute flow. The unit consists of a diesel engine with proper horsepower rating, and air cooled, oil free rotary screw compressor and air regulating system, sound attenuation, and easy to operate control panel.
Applicable model: B737, B747, B757, B767, DC10 and DC11, A300, A310, A320, A330 and A340.
Products features engine response type electronic adjustable speed system
reduced fuel consumption, and reduced mechanical wear and the noise;
variety drop noise measures, noise is less than 85dB
; Centralized control, Control Panel, instrument instruction is complete, simple operation, easy traffic flow, wide fit, start reliable aircraft.
Air Start Unit 290ppm
The Air Start Unit produces 290ppm of continuous air flow with adjustable air pressure up to 42psi to start jet engines on wide body aircraft types.
The unit consists of a diesel engine in compliance with the latest emission standard, air cooled & oil free rotary screw compressor, air regulating system, sound attenuation system, and a easy access operating control panel.
The Micro Controller System ensures the variable airflow and constant pressure by adjusting the engine speed and the airflow control valve.
Item TYAS300 | ||
Work engine | Manufacturer | DEUTZ AG |
Model | TCD2015V8 | |
Compressor | Manufacturer | GHH RAND |
Model | CD42S | |
Air supply flow (PPM) | 300 | |
Maximum supply pressure (PSI) | 43 | |
Maximum air supply temperature (℃) | ≤220 | |
Other performance | —— | |
Rated speed of operating engine (RPM) | 2060 | |
Chassis engine | Manufacturer | Qingling Isuzu (Chongqing) Engine Co., Ltd |
Model | 4KH1-TC51 | |
Engine emissions | Euro 5 | |
Max speed（km/h） | 80 | |
Overall dimension (length × wide × Height) (mm) | 7125×2260×3000 | |
Curb weight (kg) | 9100 | |
Outer diameter of channel circle (mm) | 16000 | |
Chassis | Manufacturer | Qingling Motors Company Limited |
Model | QL1100A8KAY | |
