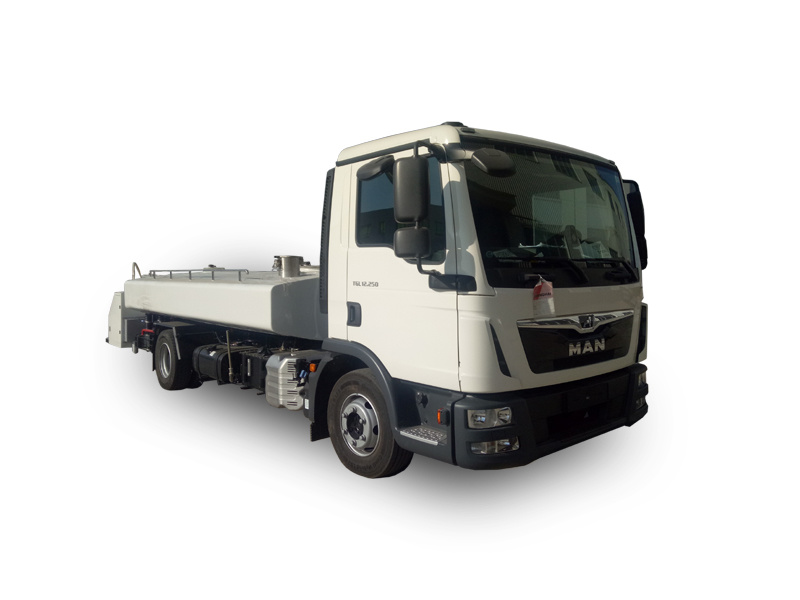

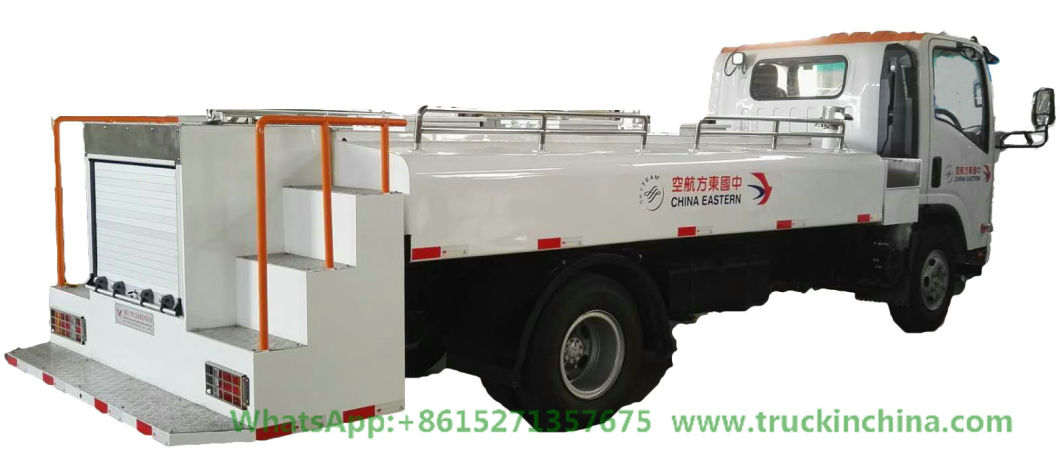

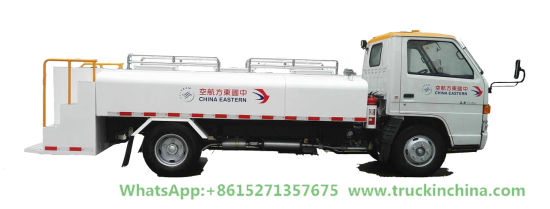

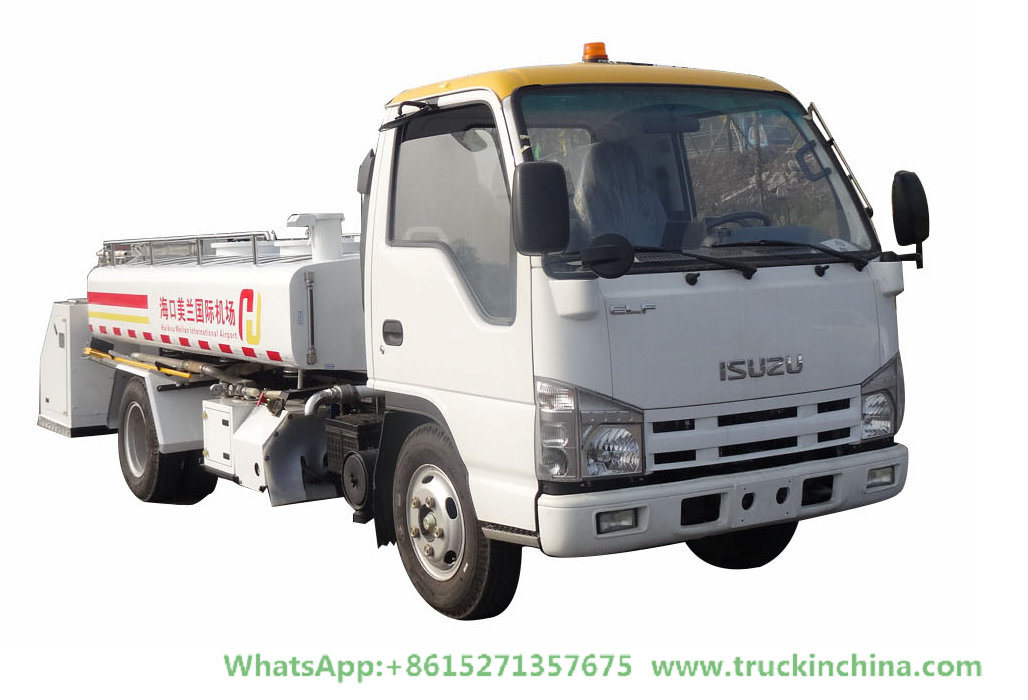

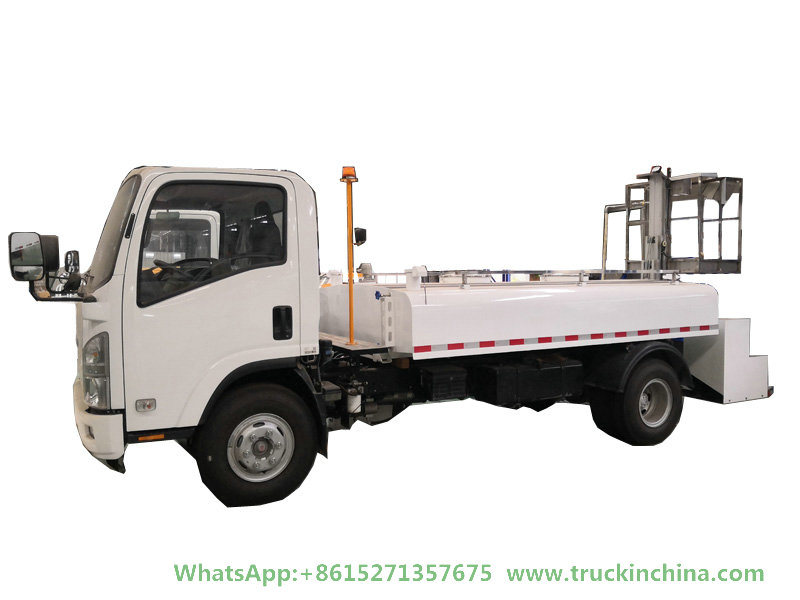

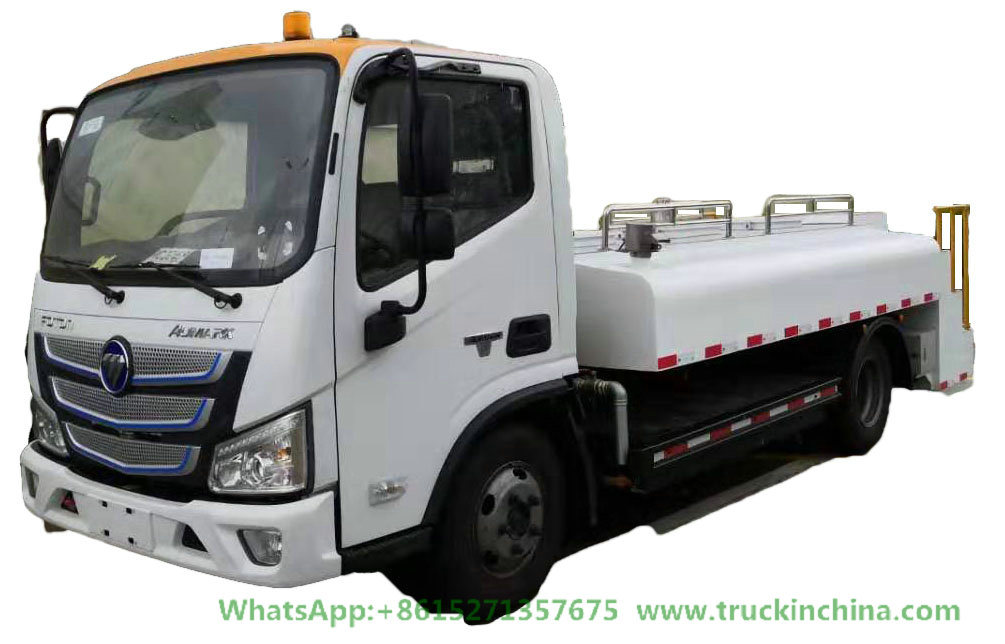

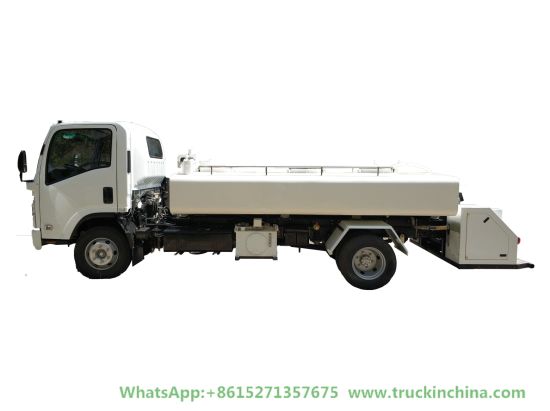

Aircraft Lavatory and Water Trucks (Industrial Man Lifts Water Tank Volume 3000L -5000L)
Aircraft Lavatory and Water Trucks (Industrial Man Lifts Water Tank Volume 3000L -5000L)
| Quantity: | |
|---|---|
-
Shanghai, China
-
T/T
-
Roro

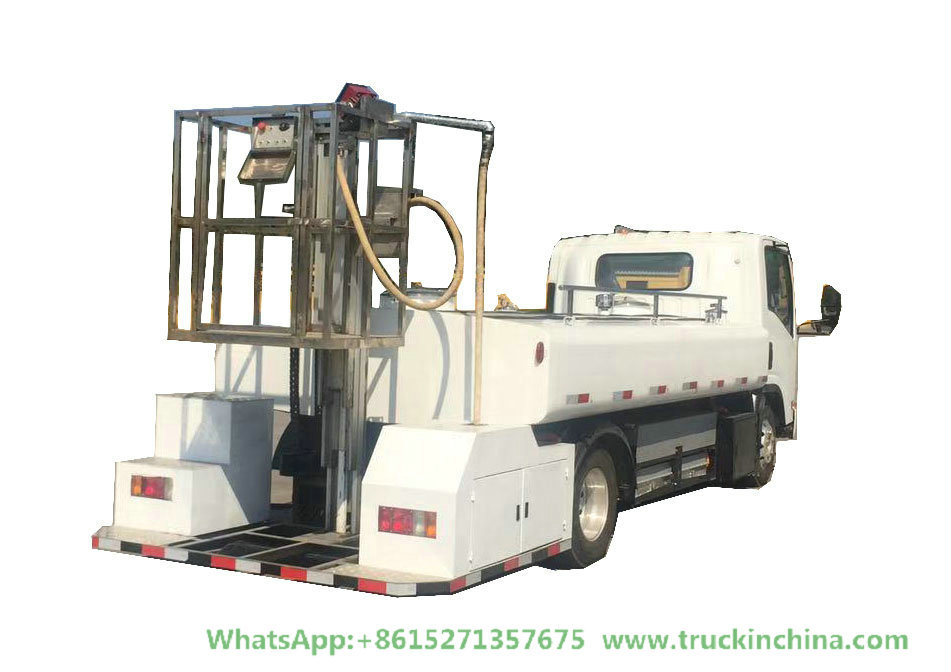

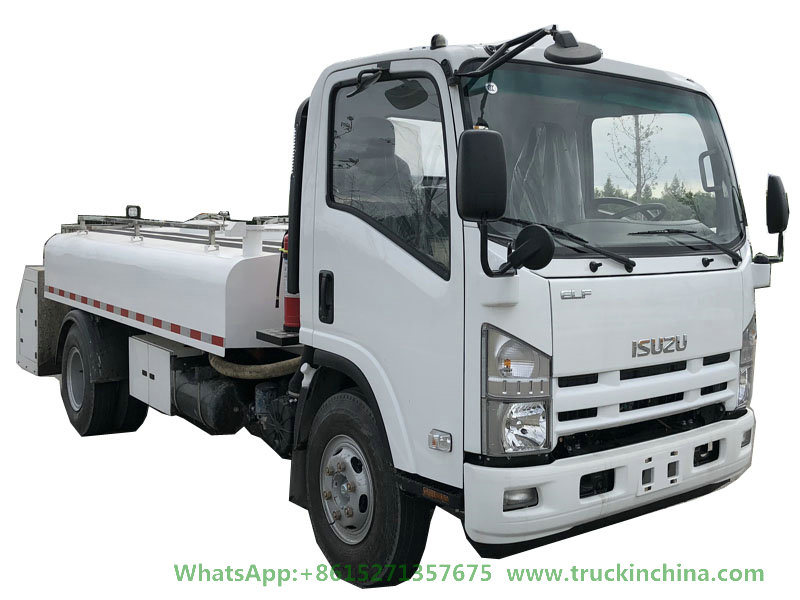

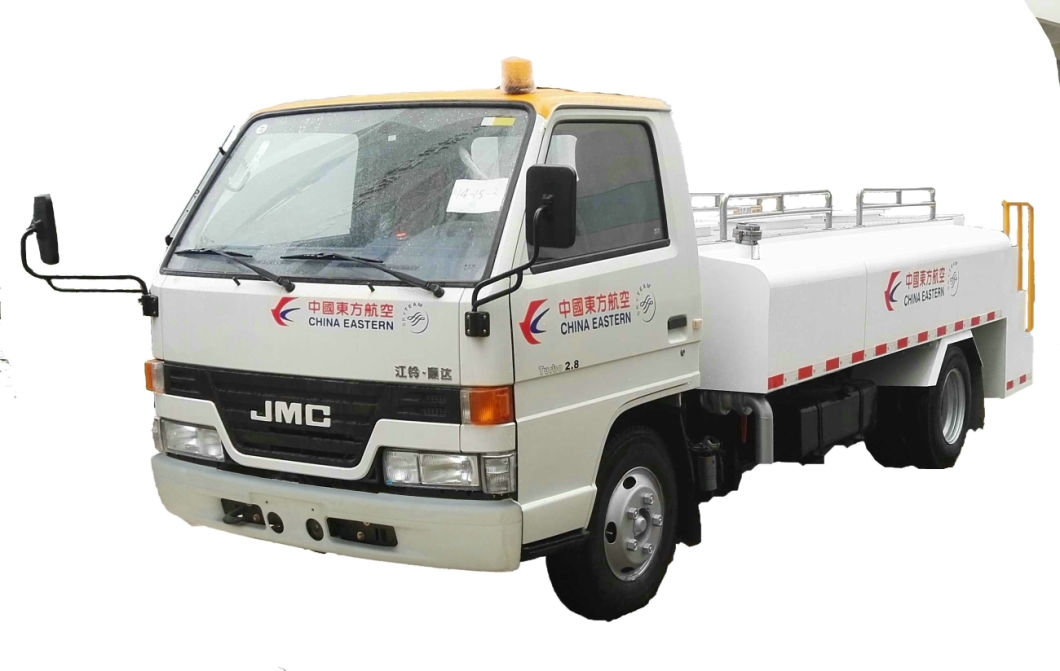

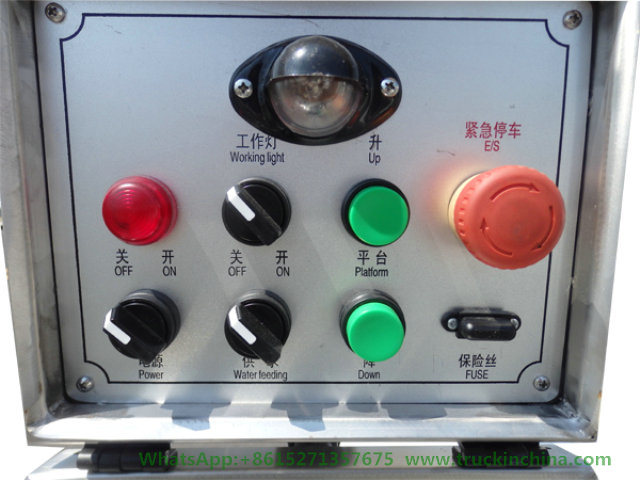

Aircraft Lavatory and Water Trucks (Industrial Man Lifts Water Tank Volume 3000L -5000L)
With Pump Electric Diesel Vehicle )
With Pump Electric Diesel Vehicle )
Lavatory service truck is designed to withstand the airport complex environment, simply to operated and easy to maintain. The lavatory servicing truck with closed cab and heating systems is equipped with latest electric and hydraulic circuits. The unit is equipped with a lift platform in the rear and used and servicing up to B747. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
Aviation Equipment
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
Applicable aircrafts
It is applicable to A300,A310,A318,A319,A320,A330,A340,B707, B727,B737,B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,
MD80 type aircraft except A380.
| No. | Project name | Design value | Note |
| 1 | Total length(mm) | 7315 | |
| 2 | Total width(mm) | 2200 | |
| 3 | Total height(mm) | 2360 | |
| 4 | Wheelbase(mm) | 3815 | |
| 5 | Wheelbase(front/rear)(mm) | 1680/1650 | |
| 6 | Front hanger(mm) | 1100 | |
| 7 | Rear hanger(mm) | 2440 | |
| 8 | Approach angle (°) | 19 | |
| 9 | departure angle (°) | 5 | |
| 10 | Min. ground clearance | 200 | |
| 11 | Curb weight(kg) | 4060 | |
| 12 | Total weight(kg) | 8190 | |
| 13 | Outside diameter of channel round(mm) | 15600 | |
| 14 | Max. speed(km/h) | 60 | |
| 15 | tank volume(L) | 4000 | |
| 16 | Water supply rate(L/min) | ≥150 | |
| 17 | Min. height of work platform (mm) | 385 | |
| 18 | Max. height of work platform (mm) | 3800 | |
| 19 | Material of water tank | Stainless steel plate 1Cr18Ni9Ti/4mm |
Main performance indexes of ggs40d:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 170
Water supply pressure (MPA) 0.35
Curb weight (kg) 4300
Boundary dimension (L × w × h) (mm): 7075 × 2100 × 2200
Maximum speed (km / h) 90
Driving range (km) 245
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1071bevbcday
Motor pump manufacturer Hangzhou Mige Motor Co., Ltd
Model 180bst-m12030
Motor pump controller manufacturer Xi'an Jinshi Electric Co., Ltd
Model: jsdac3-3htf-12
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 400 ~ 3000
Test temperature condition (ºC) - 35 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
QS04B
Main performance indexes:
Project performance index
Configuration III (October 31, 2019)
Engine manufacturer Qingling Isuzu (Chongqing)
Model: 4hk1-tc51 4hk1-tc51 4hk1-tc51 4hk1-tcg40
Water tank volume (L) 4060 4060 4060
Water supply flow (L / min) ≥ 133 ≥ 133 ≥ 133
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg): 4800 4550 4350
Overall dimension (L × w × h) (mm): 7135x2295x2350 7380x2295x2350 7450x2295x2370
Maximum speed (km / h) 80 80 90
Other performance -- minimum turning diameter (mm): 15000
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1100a8kay ql1100a8kay ql1100a8kay ql11009kary
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3
Outer diameter of channel circle (mm) 16000 16000--
The emission of exhaust pollutants from the engine meets the requirements of gb17691-2005 phase V limit, and the exhaust smoke meets the requirements of GB 3847-2005.
QS03b
QS03b
Main performance indexes:
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5 jx493zlq4
Water tank volume (L) 2400 2200
Water supply flow (L / min) ≥ 120 ≥ 120
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 3400 3400
Boundary dimension (L × w × h) (mm): 6350 × 1900x2050 6810 × 1930x2085
Maximum speed (km / h) 69 68
Other performance - Minimum turning diameter (mm): 13600
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25 jx1060tg24
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 3; 1Cr18Ni9Ti / 3
Outer diameter of channel circle (mm) 15000--
Engine emission: exhaust pollutants meet the emission limits of gb17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005.
QSE3-A
Main performance indexes:
Project performance index
Drive motor manufacturer Foton Motor Co., Ltd
Model fttb060
Drive motor controller manufacturer Foton Motor Co., Ltd
Model: ftivt200
Energy storage device manufacturer Lishen power battery system Co., Ltd
Model lsft? 104.7kwh? F
Water tank volume (L) 2900
Water supply flow (L / min) ≥ 125
Water supply pressure (MPA) 0.345
Curb weight (kg) 4300
Boundary dimension (L × w × h) (mm): 6430 × 2110 × 2200
Maximum speed (km / h) 80
Driving range (km): 213.5
Other performance--
Chassis manufacturer Foton Co., Ltd
Model: bj1065evja1
Motor pump manufacturer--
Model--
Motor pump controller manufacturer--
Model--
Total energy of energy storage device (KWH) 104.7
Table lifting height (mm)--
Test temperature condition (ºC) - 20 ~ 50
XLH5080GQSE
XLH5080GQSE
Main performance indexes:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 120
Water supply pressure (MPA) 0.35
Curb weight (kg) 4380
Boundary dimension (L × w × h) (mm): 7075 × 2240 × 2270
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Motor pump manufacturer Wuxi Heckman Hydraulic Machinery Manufacturing Co., Ltd
Model: mhs8022-12v
Motor pump controller
Model fs02c0071-f1a
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 380-2900
Test temperature condition (ºC) - 35-60 (replace the large capacity vehicle lead-acid battery, and turn on the battery heating system at - 15 ºC)
TD40EQS
Main performance indexes:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 160
Water supply pressure (MPA) 0.35
Curb weight (kg) 4300
Boundary dimension (L × w × h) (mm): 7050 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Motor pump manufacturer Suqian Taida Airport Equipment Co., Ltd
Model td-4yc-dc010001a
Motor pump controller manufacturer Suqian Taida Airport Equipment Co., Ltd
Model td-5dr-d83c
Total energy of energy storage device (KWH): 96.77
Table lifting height (mm): 480 ~ 2860
Test temperature condition (ºC) - 30 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
TD40CQS
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing)
Model: 4kh1cn5hs 4kh1-tcg40
Water tank volume (L) 4000 4000
Water supply flow (L / min) ≥ 120 ≥ 120
Water supply pressure (MPA) 0.25-0.35 0.25-0.35
Curb weight (kg) 3300 3550
Boundary dimension (L × w × h) (mm): 6570 × 2100 × 2360 6855 × 2100 × 2160
Maximum speed (km / h) 80 80
Other performance optional lifting platform--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1070a1ka1y
Lifting height of working platform (mm) - 400 ~ 2800
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3 0Cr18Ni9 / 3
Outer diameter of channel circle (mm): 15000 13800
Engine emissions - exhaust pollutants meet the limit requirements of gb17691-2005 phase V; exhaust smoke meets the requirements of gb3847-2005
WXQ5060DQS
Main performance indexes:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 160
Water supply pressure (MPA) 0.345
Curb weight (kg) 4100
Boundary dimension (L × w × h) (mm): 7140 × 2100 × 2370
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Motor pump
Model: wxq5060dqs-0620100
Motor pump controller
Model: wxq5060dqs-0801000
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 400-3000
Start the heating system of the battery when the test temperature is - 35-60 (- 20 ºC);
WXQ5090GQS
WXQ5090GQS
Main performance indexes:
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40 4hk1-tcn2
Water tank volume (L) 4800 4800 4800
Water supply flow (L / min) ≥ 120 160 ≥ 120
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 4550 4300 4250
Boundary dimension (L × w × h) (mm): 7370 × 2300 × 2400 7295 × 2300 × 2325 7300 × 2300 × 2450
Maximum speed (km / h) 80 80 80
Other properties ----
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1100a8kay ql11009kary ql1080zkarzy
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Material / thickness of clean water tank (mm): stainless steel (1Cr18Ni9Ti) / 4 stainless steel (1Cr18Ni9Ti) / 4 stainless steel (1Cr18Ni9Ti) / 4
Outer diameter of channel circle (mm) 15500 15100--
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
WXQ5050GQS
o measure performance:
Project performance index
Configuration III (2019-10-09) - configuration II (2017-10-25) - configuration I
Engine manufacturer Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: jx493zlq5 4jb1cn jx493zlq4
Water tank volume (L) 3000 3000 3000
Water supply flow (L / min) 180 180 180
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 2950 2960 2940
Boundary dimension (L × w × h) (mm): 6560 × 1900 × 2150 6600 × 1900 × 2250 6590 × 1900 × 2150
Maximum speed (km / h) 80 80 80
Other properties ----
Chassis manufacturer Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: jx1061tg25 ql1053hary jx1051tg24
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 4 1Cr18Ni9Ti / 4 1Cr18Ni9Ti / 4
Outer diameter of channel circle (mm): 14200 15000 15000
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005
WXQ5060GQS
WXQ5060GQS
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs
Water tank volume (L) 4000
Water supply flow (L / min) 180
Water supply pressure (MPA) 0.345
Curb weight (kg) 3280
Boundary dimension (L × w × h) (mm): 6880 × 2100 × 2250
Maximum speed (km / h) 80
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay
Lifting height of working platform (mm)--
Clear water tank material / thickness (mm): 1Cr18Ni9Ti / 4
Outer diameter of channel circle (mm): 16000
JSTY5070GQS
JSTY5070GQS
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) engine
Model: 4kh1cn5hs 4hki-tcg40 4kh1-tcg40 4hk1-tcn2 4KH1-TC
Water tank volume (L) 4000 4000 4000 4000 4000
Water supply flow (L / min) ≥ 150 ≥ 150 ≥ 150 130 130
Water supply pressure (MPA) 0.345 0.345 0.345 0.345 0.345 0.345
Curb weight (kg): 4160 4550 4160 3850 3450
Boundary dimension (L × w × h) (mm): 7265x2140x2295 7315x2200x2360 7285x2150x2270 7330x2220x2400 7050x2100x2160
Maximum speed (km / h) 80 80 80 80 80 80
Other performance: optional lifting platform, optional lifting platform, optional lifting platform, minimum turning diameter mm: 14000, minimum turning diameter mm: 15500
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay, ql11009kary, ql1070a1kay, ql1080zkarzy, nkr77plpacjay
Lifting height of working platform (mm): 380-3740 400-3000 380-3740 550-2800 500-2800
Material / thickness of clean water tank (mm): s31603 / 4.5mm; s31603 / 4.5mm; s31603 / 4.5mm; s31603 / 4mm; s31603 / 4mm
Outer diameter of channel circle (mm) 17000 15600 17000 ---
Engine emissions: exhaust pollutants meet the limit requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
JSTY5050GQS
JSTY5050GQS
Main performance indexes:
Project performance index
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5
Water tank volume (L) 3000
Water supply flow (L / min) ≥ 150
Water supply pressure (MPA) 0.345
Curb weight (kg) 3100
Boundary dimension (L × w × h) (mm): 6355x1900x2150
Maximum speed (km / h) 80
Other performance--
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25
Lifting height of working platform (mm)--
Material / thickness of clean water tank (mm): 0Cr18Ni9Ti / 3.0
Outer diameter of channel circle (mm) 15500
Engine emissions exhaust pollutants meet the requirements of GB 17691-2005
GGS30
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd
Model: 4kh1cn5ls jx493zlq5 jx493zlq4 4jb1cn JX493ZLQ3
Water tank volume (L) 2600 2600 2600 2600 2600 2600
Water supply flow (L / min): 170 170 110 120 110
Water supply pressure (MPA) 0.345 0.345 0.3 0.345 0.3
Curb weight (kg) 3250 3150 3150 3250 3200
Boundary dimension (L × w × h) (mm): 6580 × 1890 × 2300 6460 × 1882 × 2300 6460 × 1882 × 2300 6440 × 1890 × 2280 6375 × 1882 × 2300
Maximum speed (km / h): 90 80 80 80 85
Other properties -----
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql1070a6hay jx1051tg25 jx1051tg24 ql1053harry jx1050tgb23
Lifting height of working platform (mm) ----
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4
Outer diameter of channel circle (mm): 15000 13600 ≤ 16000
GGS50
GGS50
Main performance indexes:
Project performance index
Engine manufacturer man Truck & bus UK Ltd
Model: d0836lfalah d0836lf29
Water tank volume (L) 4800 4800
Water supply flow (L / min) 170 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg) 7100 6800
Boundary dimension (L × w × h) (mm): 8600 × 2350 × 2700 8600 × 2300 × 2840
Maximum speed (km / h) 90 85
Other performance none none
Chassis manufacturer man Truck & bus UK Ltd
Model tgl12.250 tgl12.250
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3 0Cr18Ni9 / 3
Outer diameter of channel circle (mm) 15200 18100
The emission of exhaust pollutants from the engine meets the limit value of gb17691-2005 phase V, and the exhaust smoke meets the requirements of gb3847-2005.
WGGS40
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4kh1-tcg40
Water tank volume (L) 3600 3600
Water supply flow (L / min) ≥ 170 ≥ 120
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 3900 3900
Boundary dimension (L × w × h) (mm): 6880 × 2100 × 2350 6900x2100x2400
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1070a1hay
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 4 0Cr18Ni9 / 4
Outer diameter of channel circle (mm) 15000--
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
WTM-900
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc51
Water tank volume (L) 2000 5000
Water supply flow (L / min) 120
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg): 4460 5380
Boundary dimension (L × w × h) (mm): 5880 × 2150 × 2380 7060 × 2200 × 2380
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm) - 460 ~ 3050
Clear water tank material / thickness (mm) SS316 / 4 SS316 / 4
Outer diameter of channel circle (mm): 16000-16000
Engine emissions - exhaust pollutants meet the limit requirements of gb17691-2005 phase V, exhaust smoke meets the requirements of gb3847-2005
XLH5070GQS
XLH5070GQS
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1cn5hs 4kh1-tcg40
Water tank volume (L) 5050 4000 4000
Water supply flow (L / min) ≥ 120 ≥ 120 ≥ 120
Water supply pressure (MPA) 0.35 0.35 0.35
Curb weight (kg): 4820 3470 3470
Boundary dimension (L × w × h) (mm): 7250 × 2240 × 2410 6985 × 1980 × 2290 6980 × 1980 × 2160
Maximum speed (km / h) 80 80 80
Other performance options: lifting platform options: lifting platform options: lifting platform options: lifting platform
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1070a5kay, ql1070a1kay
Lifting height of working platform (mm): 380-2900 380-2900 380-2900 380-2900
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3
Outer diameter of channel circle (mm): 16000 17000 16000
Engine emissions: exhaust pollutants meet the emission limits of the fifth stage of GB 17691-2005; exhaust smoke meets the requirements of GB 3847-2005
TC-QS40
TK-QS50
TK-QS30
TC-QS40
Main performance indexes:
Project performance index
Configuration II (November 8, 2018) - configuration I (July 31, 2017)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40
Water tank volume (L) 4000 4000
Water supply flow (L / min) 150 150
Water supply pressure (MPA) 0.35 0.35
Curb weight (kg) 4500 4300
Boundary dimension (L × w × h) (mm): 7180 × 2105 × 2440 7100 × 2105 × 2440
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model ql1100a8kay ql10909kary
Lifting height of working platform (mm): 400-2800 400-2800
Material / thickness of clean water tank (mm): 022cr17ni12mo2 / 3mm; 022cr17ni12mo2 / 3mm
Outer diameter of channel circle (mm) 15500 15500
The engine emission meets the emission limit value of phase V of GB 17691-2005, and the exhaust smoke meets the requirements of GB 3847-2005
TK-QS50
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Water tank volume (L) 5000
Water supply flow (L / min) 140
Water supply pressure (MPA) 0.25-0.35
Curb weight (kg) 4770
Boundary dimension (L × w × h) (mm): 7260 × 2200 × 2330
Maximum speed (km / h) 70
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3.5
Outer diameter of channel circle (mm) 15600
Engine emission: exhaust pollutants meet the limit requirements of phase V of GB 17691-2005
TK-QS30
Main performance indexes:
Project performance index
Configuration four (2018-04-19) - configuration three (2017-01-25) - configuration two - configuration one
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd
Model: 4kh1cn5ls jx493zlq5 4jb1cn jx493zlq4
Water tank volume (L) 3000 3000 3000 3000
Water supply flow (L / min) 120 120 120 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg): 3400 3200 3250 3690
Boundary dimension (L × w × h) (mm): 6470 × 2100 × 2290 6530 × 2100 × 2110 6470 × 2100 × 2190 6530 × 2100 × 2110
Maximum speed (km / h) 60 60 70 70
Other performance optional lifting platform optional lifting platform--
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql1070a6hay jx1061tg25 ql10603hay jx1061tg24
Lifting height of working platform (mm): 400 ~ 2800 -- 400 ~ 2800--
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3 0Cr18Ni9 / 3 0Cr18Ni9 / 3 0Cr18Ni9 / 3
Outer diameter of channel circle (mm) 15000 15000 15000 15000 15000
Engine emissions: exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005, and exhaust smoke meets the requirements of GB 3847-2005
Aircraft Lavatory and Water Trucks (Industrial Man Lifts Water Tank Volume 3000L -5000L)
With Pump Electric Diesel Vehicle )
With Pump Electric Diesel Vehicle )
Lavatory service truck is designed to withstand the airport complex environment, simply to operated and easy to maintain. The lavatory servicing truck with closed cab and heating systems is equipped with latest electric and hydraulic circuits. The unit is equipped with a lift platform in the rear and used and servicing up to B747. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
Aviation Equipment
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
Applicable aircrafts
It is applicable to A300,A310,A318,A319,A320,A330,A340,B707, B727,B737,B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,
MD80 type aircraft except A380.
| No. | Project name | Design value | Note |
| 1 | Total length(mm) | 7315 | |
| 2 | Total width(mm) | 2200 | |
| 3 | Total height(mm) | 2360 | |
| 4 | Wheelbase(mm) | 3815 | |
| 5 | Wheelbase(front/rear)(mm) | 1680/1650 | |
| 6 | Front hanger(mm) | 1100 | |
| 7 | Rear hanger(mm) | 2440 | |
| 8 | Approach angle (°) | 19 | |
| 9 | departure angle (°) | 5 | |
| 10 | Min. ground clearance | 200 | |
| 11 | Curb weight(kg) | 4060 | |
| 12 | Total weight(kg) | 8190 | |
| 13 | Outside diameter of channel round(mm) | 15600 | |
| 14 | Max. speed(km/h) | 60 | |
| 15 | tank volume(L) | 4000 | |
| 16 | Water supply rate(L/min) | ≥150 | |
| 17 | Min. height of work platform (mm) | 385 | |
| 18 | Max. height of work platform (mm) | 3800 | |
| 19 | Material of water tank | Stainless steel plate 1Cr18Ni9Ti/4mm |
Main performance indexes of ggs40d:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 170
Water supply pressure (MPA) 0.35
Curb weight (kg) 4300
Boundary dimension (L × w × h) (mm): 7075 × 2100 × 2200
Maximum speed (km / h) 90
Driving range (km) 245
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1071bevbcday
Motor pump manufacturer Hangzhou Mige Motor Co., Ltd
Model 180bst-m12030
Motor pump controller manufacturer Xi'an Jinshi Electric Co., Ltd
Model: jsdac3-3htf-12
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 400 ~ 3000
Test temperature condition (ºC) - 35 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
QS04B
Main performance indexes:
Project performance index
Configuration III (October 31, 2019)
Engine manufacturer Qingling Isuzu (Chongqing)
Model: 4hk1-tc51 4hk1-tc51 4hk1-tc51 4hk1-tcg40
Water tank volume (L) 4060 4060 4060
Water supply flow (L / min) ≥ 133 ≥ 133 ≥ 133
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg): 4800 4550 4350
Overall dimension (L × w × h) (mm): 7135x2295x2350 7380x2295x2350 7450x2295x2370
Maximum speed (km / h) 80 80 90
Other performance -- minimum turning diameter (mm): 15000
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1100a8kay ql1100a8kay ql1100a8kay ql11009kary
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3
Outer diameter of channel circle (mm) 16000 16000--
The emission of exhaust pollutants from the engine meets the requirements of gb17691-2005 phase V limit, and the exhaust smoke meets the requirements of GB 3847-2005.
QS03b
QS03b
Main performance indexes:
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5 jx493zlq4
Water tank volume (L) 2400 2200
Water supply flow (L / min) ≥ 120 ≥ 120
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 3400 3400
Boundary dimension (L × w × h) (mm): 6350 × 1900x2050 6810 × 1930x2085
Maximum speed (km / h) 69 68
Other performance - Minimum turning diameter (mm): 13600
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25 jx1060tg24
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 3; 1Cr18Ni9Ti / 3
Outer diameter of channel circle (mm) 15000--
Engine emission: exhaust pollutants meet the emission limits of gb17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005.
QSE3-A
Main performance indexes:
Project performance index
Drive motor manufacturer Foton Motor Co., Ltd
Model fttb060
Drive motor controller manufacturer Foton Motor Co., Ltd
Model: ftivt200
Energy storage device manufacturer Lishen power battery system Co., Ltd
Model lsft? 104.7kwh? F
Water tank volume (L) 2900
Water supply flow (L / min) ≥ 125
Water supply pressure (MPA) 0.345
Curb weight (kg) 4300
Boundary dimension (L × w × h) (mm): 6430 × 2110 × 2200
Maximum speed (km / h) 80
Driving range (km): 213.5
Other performance--
Chassis manufacturer Foton Co., Ltd
Model: bj1065evja1
Motor pump manufacturer--
Model--
Motor pump controller manufacturer--
Model--
Total energy of energy storage device (KWH) 104.7
Table lifting height (mm)--
Test temperature condition (ºC) - 20 ~ 50
XLH5080GQSE
XLH5080GQSE
Main performance indexes:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 120
Water supply pressure (MPA) 0.35
Curb weight (kg) 4380
Boundary dimension (L × w × h) (mm): 7075 × 2240 × 2270
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Motor pump manufacturer Wuxi Heckman Hydraulic Machinery Manufacturing Co., Ltd
Model: mhs8022-12v
Motor pump controller
Model fs02c0071-f1a
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 380-2900
Test temperature condition (ºC) - 35-60 (replace the large capacity vehicle lead-acid battery, and turn on the battery heating system at - 15 ºC)
TD40EQS
Main performance indexes:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 160
Water supply pressure (MPA) 0.35
Curb weight (kg) 4300
Boundary dimension (L × w × h) (mm): 7050 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Motor pump manufacturer Suqian Taida Airport Equipment Co., Ltd
Model td-4yc-dc010001a
Motor pump controller manufacturer Suqian Taida Airport Equipment Co., Ltd
Model td-5dr-d83c
Total energy of energy storage device (KWH): 96.77
Table lifting height (mm): 480 ~ 2860
Test temperature condition (ºC) - 30 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
TD40CQS
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing)
Model: 4kh1cn5hs 4kh1-tcg40
Water tank volume (L) 4000 4000
Water supply flow (L / min) ≥ 120 ≥ 120
Water supply pressure (MPA) 0.25-0.35 0.25-0.35
Curb weight (kg) 3300 3550
Boundary dimension (L × w × h) (mm): 6570 × 2100 × 2360 6855 × 2100 × 2160
Maximum speed (km / h) 80 80
Other performance optional lifting platform--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1070a1ka1y
Lifting height of working platform (mm) - 400 ~ 2800
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3 0Cr18Ni9 / 3
Outer diameter of channel circle (mm): 15000 13800
Engine emissions - exhaust pollutants meet the limit requirements of gb17691-2005 phase V; exhaust smoke meets the requirements of gb3847-2005
WXQ5060DQS
Main performance indexes:
Project performance index
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Water tank volume (L) 4000
Water supply flow (L / min) 160
Water supply pressure (MPA) 0.345
Curb weight (kg) 4100
Boundary dimension (L × w × h) (mm): 7140 × 2100 × 2370
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Motor pump
Model: wxq5060dqs-0620100
Motor pump controller
Model: wxq5060dqs-0801000
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 400-3000
Start the heating system of the battery when the test temperature is - 35-60 (- 20 ºC);
WXQ5090GQS
WXQ5090GQS
Main performance indexes:
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40 4hk1-tcn2
Water tank volume (L) 4800 4800 4800
Water supply flow (L / min) ≥ 120 160 ≥ 120
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 4550 4300 4250
Boundary dimension (L × w × h) (mm): 7370 × 2300 × 2400 7295 × 2300 × 2325 7300 × 2300 × 2450
Maximum speed (km / h) 80 80 80
Other properties ----
Chassis manufacturer Qingling Automobile Co., Ltd
Model ql1100a8kay ql11009kary ql1080zkarzy
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Material / thickness of clean water tank (mm): stainless steel (1Cr18Ni9Ti) / 4 stainless steel (1Cr18Ni9Ti) / 4 stainless steel (1Cr18Ni9Ti) / 4
Outer diameter of channel circle (mm) 15500 15100--
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
WXQ5050GQS
o measure performance:
Project performance index
Configuration III (2019-10-09) - configuration II (2017-10-25) - configuration I
Engine manufacturer Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: jx493zlq5 4jb1cn jx493zlq4
Water tank volume (L) 3000 3000 3000
Water supply flow (L / min) 180 180 180
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 2950 2960 2940
Boundary dimension (L × w × h) (mm): 6560 × 1900 × 2150 6600 × 1900 × 2250 6590 × 1900 × 2150
Maximum speed (km / h) 80 80 80
Other properties ----
Chassis manufacturer Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: jx1061tg25 ql1053hary jx1051tg24
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 4 1Cr18Ni9Ti / 4 1Cr18Ni9Ti / 4
Outer diameter of channel circle (mm): 14200 15000 15000
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005
WXQ5060GQS
WXQ5060GQS
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs
Water tank volume (L) 4000
Water supply flow (L / min) 180
Water supply pressure (MPA) 0.345
Curb weight (kg) 3280
Boundary dimension (L × w × h) (mm): 6880 × 2100 × 2250
Maximum speed (km / h) 80
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay
Lifting height of working platform (mm)--
Clear water tank material / thickness (mm): 1Cr18Ni9Ti / 4
Outer diameter of channel circle (mm): 16000
JSTY5070GQS
JSTY5070GQS
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) engine
Model: 4kh1cn5hs 4hki-tcg40 4kh1-tcg40 4hk1-tcn2 4KH1-TC
Water tank volume (L) 4000 4000 4000 4000 4000
Water supply flow (L / min) ≥ 150 ≥ 150 ≥ 150 130 130
Water supply pressure (MPA) 0.345 0.345 0.345 0.345 0.345 0.345
Curb weight (kg): 4160 4550 4160 3850 3450
Boundary dimension (L × w × h) (mm): 7265x2140x2295 7315x2200x2360 7285x2150x2270 7330x2220x2400 7050x2100x2160
Maximum speed (km / h) 80 80 80 80 80 80
Other performance: optional lifting platform, optional lifting platform, optional lifting platform, minimum turning diameter mm: 14000, minimum turning diameter mm: 15500
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay, ql11009kary, ql1070a1kay, ql1080zkarzy, nkr77plpacjay
Lifting height of working platform (mm): 380-3740 400-3000 380-3740 550-2800 500-2800
Material / thickness of clean water tank (mm): s31603 / 4.5mm; s31603 / 4.5mm; s31603 / 4.5mm; s31603 / 4mm; s31603 / 4mm
Outer diameter of channel circle (mm) 17000 15600 17000 ---
Engine emissions: exhaust pollutants meet the limit requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
JSTY5050GQS
JSTY5050GQS
Main performance indexes:
Project performance index
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5
Water tank volume (L) 3000
Water supply flow (L / min) ≥ 150
Water supply pressure (MPA) 0.345
Curb weight (kg) 3100
Boundary dimension (L × w × h) (mm): 6355x1900x2150
Maximum speed (km / h) 80
Other performance--
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25
Lifting height of working platform (mm)--
Material / thickness of clean water tank (mm): 0Cr18Ni9Ti / 3.0
Outer diameter of channel circle (mm) 15500
Engine emissions exhaust pollutants meet the requirements of GB 17691-2005
GGS30
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd
Model: 4kh1cn5ls jx493zlq5 jx493zlq4 4jb1cn JX493ZLQ3
Water tank volume (L) 2600 2600 2600 2600 2600 2600
Water supply flow (L / min): 170 170 110 120 110
Water supply pressure (MPA) 0.345 0.345 0.3 0.345 0.3
Curb weight (kg) 3250 3150 3150 3250 3200
Boundary dimension (L × w × h) (mm): 6580 × 1890 × 2300 6460 × 1882 × 2300 6460 × 1882 × 2300 6440 × 1890 × 2280 6375 × 1882 × 2300
Maximum speed (km / h): 90 80 80 80 85
Other properties -----
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql1070a6hay jx1051tg25 jx1051tg24 ql1053harry jx1050tgb23
Lifting height of working platform (mm) ----
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4 0Cr18Ni9 / 4
Outer diameter of channel circle (mm): 15000 13600 ≤ 16000
GGS50
GGS50
Main performance indexes:
Project performance index
Engine manufacturer man Truck & bus UK Ltd
Model: d0836lfalah d0836lf29
Water tank volume (L) 4800 4800
Water supply flow (L / min) 170 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg) 7100 6800
Boundary dimension (L × w × h) (mm): 8600 × 2350 × 2700 8600 × 2300 × 2840
Maximum speed (km / h) 90 85
Other performance none none
Chassis manufacturer man Truck & bus UK Ltd
Model tgl12.250 tgl12.250
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3 0Cr18Ni9 / 3
Outer diameter of channel circle (mm) 15200 18100
The emission of exhaust pollutants from the engine meets the limit value of gb17691-2005 phase V, and the exhaust smoke meets the requirements of gb3847-2005.
WGGS40
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4kh1-tcg40
Water tank volume (L) 3600 3600
Water supply flow (L / min) ≥ 170 ≥ 120
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 3900 3900
Boundary dimension (L × w × h) (mm): 6880 × 2100 × 2350 6900x2100x2400
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1070a1hay
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 4 0Cr18Ni9 / 4
Outer diameter of channel circle (mm) 15000--
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
WTM-900
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc51
Water tank volume (L) 2000 5000
Water supply flow (L / min) 120
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg): 4460 5380
Boundary dimension (L × w × h) (mm): 5880 × 2150 × 2380 7060 × 2200 × 2380
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm) - 460 ~ 3050
Clear water tank material / thickness (mm) SS316 / 4 SS316 / 4
Outer diameter of channel circle (mm): 16000-16000
Engine emissions - exhaust pollutants meet the limit requirements of gb17691-2005 phase V, exhaust smoke meets the requirements of gb3847-2005
XLH5070GQS
XLH5070GQS
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1cn5hs 4kh1-tcg40
Water tank volume (L) 5050 4000 4000
Water supply flow (L / min) ≥ 120 ≥ 120 ≥ 120
Water supply pressure (MPA) 0.35 0.35 0.35
Curb weight (kg): 4820 3470 3470
Boundary dimension (L × w × h) (mm): 7250 × 2240 × 2410 6985 × 1980 × 2290 6980 × 1980 × 2160
Maximum speed (km / h) 80 80 80
Other performance options: lifting platform options: lifting platform options: lifting platform options: lifting platform
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1070a5kay, ql1070a1kay
Lifting height of working platform (mm): 380-2900 380-2900 380-2900 380-2900
Material / thickness of clean water tank (mm): 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3 1Cr18Ni9Ti / 3
Outer diameter of channel circle (mm): 16000 17000 16000
Engine emissions: exhaust pollutants meet the emission limits of the fifth stage of GB 17691-2005; exhaust smoke meets the requirements of GB 3847-2005
TC-QS40
TK-QS50
TK-QS30
TC-QS40
Main performance indexes:
Project performance index
Configuration II (November 8, 2018) - configuration I (July 31, 2017)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40
Water tank volume (L) 4000 4000
Water supply flow (L / min) 150 150
Water supply pressure (MPA) 0.35 0.35
Curb weight (kg) 4500 4300
Boundary dimension (L × w × h) (mm): 7180 × 2105 × 2440 7100 × 2105 × 2440
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model ql1100a8kay ql10909kary
Lifting height of working platform (mm): 400-2800 400-2800
Material / thickness of clean water tank (mm): 022cr17ni12mo2 / 3mm; 022cr17ni12mo2 / 3mm
Outer diameter of channel circle (mm) 15500 15500
The engine emission meets the emission limit value of phase V of GB 17691-2005, and the exhaust smoke meets the requirements of GB 3847-2005
TK-QS50
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Water tank volume (L) 5000
Water supply flow (L / min) 140
Water supply pressure (MPA) 0.25-0.35
Curb weight (kg) 4770
Boundary dimension (L × w × h) (mm): 7260 × 2200 × 2330
Maximum speed (km / h) 70
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm) ---
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3.5
Outer diameter of channel circle (mm) 15600
Engine emission: exhaust pollutants meet the limit requirements of phase V of GB 17691-2005
TK-QS30
Main performance indexes:
Project performance index
Configuration four (2018-04-19) - configuration three (2017-01-25) - configuration two - configuration one
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd
Model: 4kh1cn5ls jx493zlq5 4jb1cn jx493zlq4
Water tank volume (L) 3000 3000 3000 3000
Water supply flow (L / min) 120 120 120 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg): 3400 3200 3250 3690
Boundary dimension (L × w × h) (mm): 6470 × 2100 × 2290 6530 × 2100 × 2110 6470 × 2100 × 2190 6530 × 2100 × 2110
Maximum speed (km / h) 60 60 70 70
Other performance optional lifting platform optional lifting platform--
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql1070a6hay jx1061tg25 ql10603hay jx1061tg24
Lifting height of working platform (mm): 400 ~ 2800 -- 400 ~ 2800--
Material / thickness of clean water tank (mm): 0Cr18Ni9 / 3 0Cr18Ni9 / 3 0Cr18Ni9 / 3 0Cr18Ni9 / 3
Outer diameter of channel circle (mm) 15000 15000 15000 15000 15000
Engine emissions: exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005, and exhaust smoke meets the requirements of GB 3847-2005
