5180GJYF6Z
-
SITRAK
-
8705906000
-
Shanghai, China
-
T/T
-
Roro

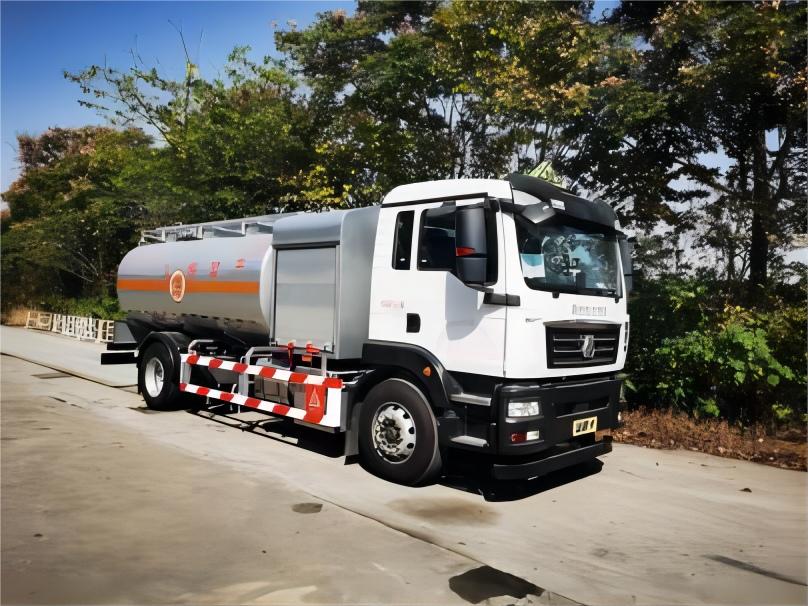

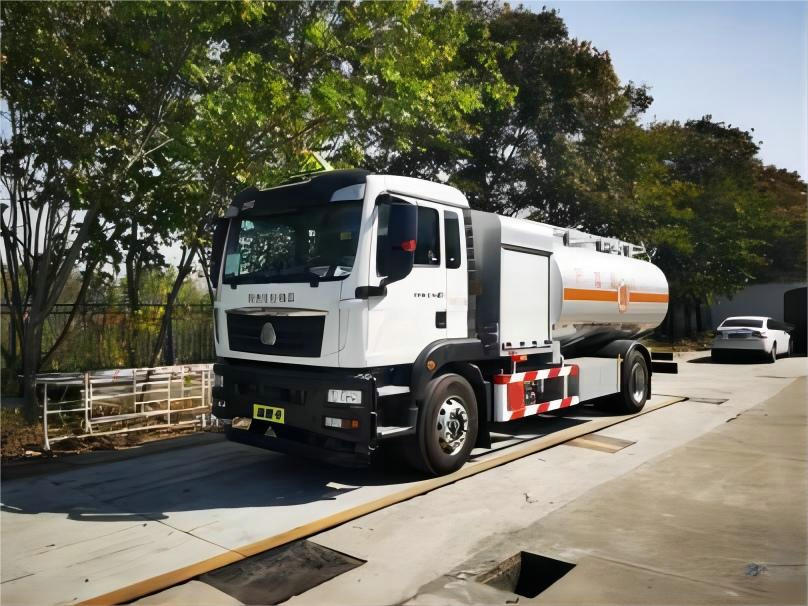

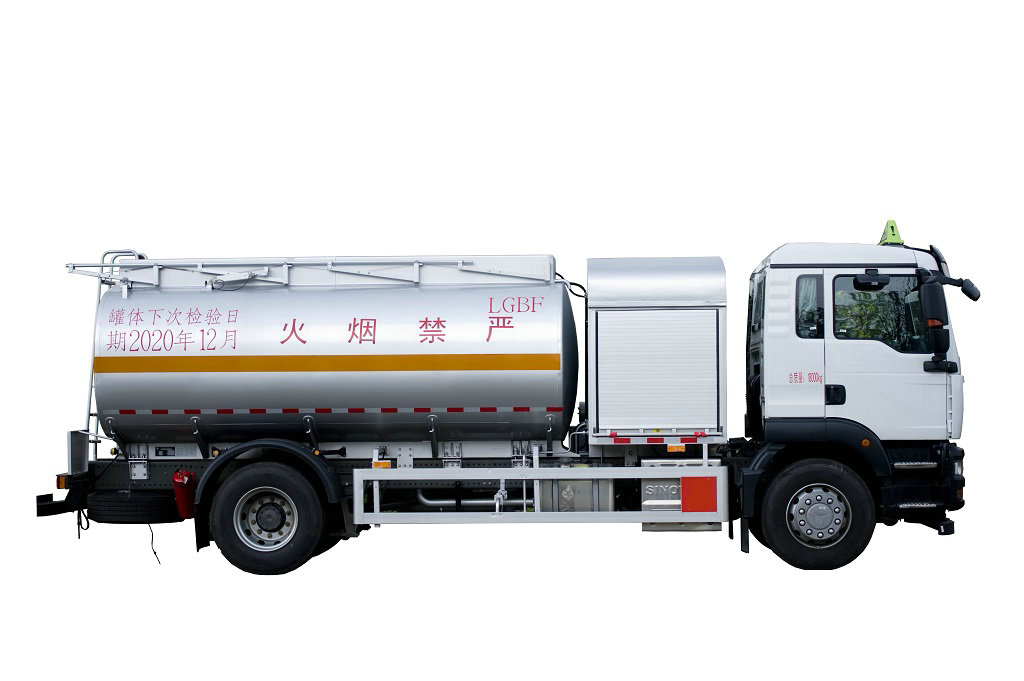

SITRAK Aviation Aircraft Refueller Truck 12KL
Item | Performance index | |
Chassis | Manufacturer | SINOTRUCK |
Model | ZZ1186K501GF1 | |
Engine | Manufacturer | SINOTRUCK |
Model | MC07.27-60 | |
Gearbox | Manufacturer | SINOTRUCK |
Model | HW09 | |
Rated tank capacity (L) | 12000 | |
Reel hose fueling maximum flow (L/min) | 300 | |
Maximum flow rate (L/min) Double hose refueling | —— | |
Flow meter accuracy (%) | ±0.2 | |
Reel single pipe pumping rate (L/min) | —— | |
Aviation kerosene filtration accuracy | GB/T 21358-2008 | |
Overall dimensions (L × W × H) (mm) | 8550×2500×3270 | |
Maximum speed (km/h) | 80 | |
Braking distance (m) | ≤9 | |
Net weight (kg) | 8750 | |
Other properties | —— | |
Lifting range of refueling platform (mm) | —— | |
Overall Dimension: L*W*H(mm) | 8600×2500×3270 |
Gross Vehicle Weight: (kg) | 18000 |
Payload: (kg) | 9610 |
Curb Weight: (kg) | 8262 |
Chassis Manufacturer: | ZZ1186K501GF1 , Euro VI |
Engine Model | MC07.27-60 |
Power: (Kw) | 202 |
Max. Speed: (Km/hr) | 80 |
Tank Volume: (L) | 13020 |
Tank Material: | Aluminum Alloy (5083) |
Accuracy of Flow mete: | ±0.2% |
Filter Separator Standard: | Comply with API 1581 5th |
Wheelbase(mm) | 5000 |
Max. Flow Rate of Gravity refuelling(L/min): | 300 |
Max.De-fueling Flow Rate (L/min): | 300(Single Hose) |
Max. Loading Flow Rate (L/min): | 1000 |
Refueling Pressure Contol: | Online, at the end |
Interlock Brake: | YES |
DeadmanContol: | Pneumatic/Electic Control |
Civil Aviation Production License: | YES |
High/Low Level Control: | YES |
5180GJYF6Z Civil Aviation Aircraft Refueller
No | Name | Assembly |
1 | Chassis | ZZ1186K501GF1 |
2 | Engine | MC07.27-60 |
3 | Transmission | HW09 |
4 | Oil Pump | BX-65QZ-50/40N |
5 | Flowmeter | LL-50T-ZF11-W |
6 | Filter Separator | 50WGF-30/10 |
7 | Hydraulic Pump | 12000L |
8 | Hydraulic Motor | HR VPD75D |
9 | Oil Tank | MCY11 |
10 | Steering Shaft | 295/80R22.5 |
Main technical parameters
Overall dimensions: | 8600×2500×3270(mm) | Fuel Type: | Diesel oil |
GW | 18000(Kg) | ||
NW | 8260(Kg) | Rated load mass: | 9610(Kg) |
Approach Angle/Departure Angle: | 16/15 (°) | Front/rear overhang: | 1450/2150(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 5000(mm) |
Number of shafts: | 2 | Maximum speed: | 80(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 295/80R22.5 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/- |
Front wheel base: | 1998,2015,2035(mm) | Rear wheel base: | 1850(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07.27-60 | China Heavy Duty Automobile Group Co., LTD | 6870 | 202 |
Speed limiting device (km/h):80; Engine power 199kW MC07.27-60 , 5000mm wheelbase, 295/80R22.518PR tires Total capacity of the tank body 12.93 cubic meters, the effective volume 12.32 cubic meters, overall dimensions of the tank body (mm)(2412×1562×3980,4330 Special function and device: centrifugal pump :65QZ-50/40, manufacturer: Hangzhou Weilong Pump Co., LTD. Flowmeter LL-50T-ZF11-W, Manufacturer: Chongqing NADE Industrial Co., LTD. Rear axle is air suspension. Optional float free type of level gauge. | |||
